Clutch Cover And Ducting replacement parts for 2012 Polaris RZR 570 EFI INTL

OEM Parts Polaris 2012 Polaris RZR 570 EFI INTL Clutch Cover And Ducting

CLUTCH COVER and DUCTING Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

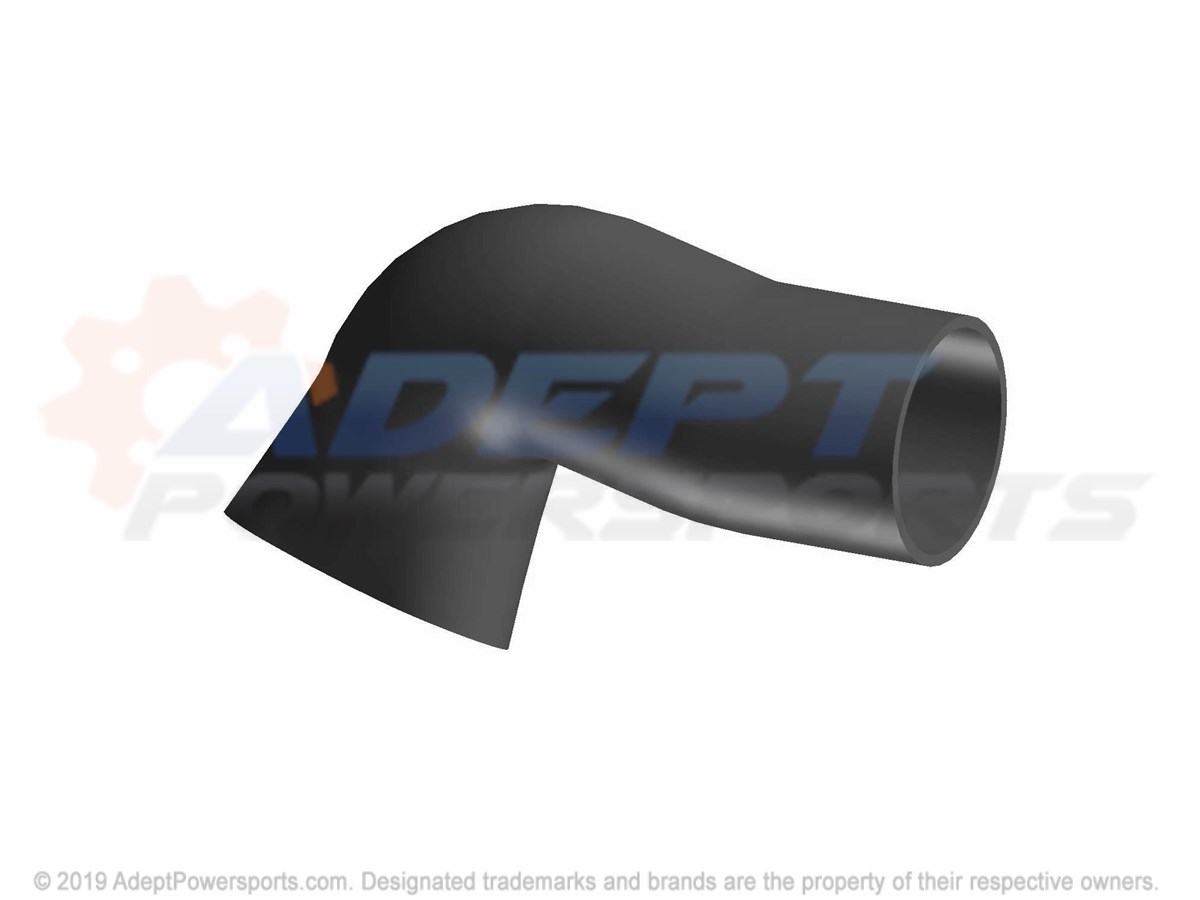

1	BOOT, OUTLET, CLUTCH Part #: 5813831 Required per assembly: 1 Currently Not Available
2	SCREW (W/O INSERT) Part #: 7512098 Required per assembly: 2 Note: SCREW ~~$2.99~~ $1.73 - + Add to cart
3	CLAMP, BAND, NARROW Part #: 7080707 Required per assembly: 2 Note: Clamp, Narrow Band ~~$4.99~~ $2.88 - + Add to cart
3	CLAMP, BAND, NARROW Part #: 7080707 Required per assembly: 2 Note: Clamp, Narrow Band ~~$4.99~~ $2.88 - + Add to cart
4	TBD Part #: TBD Required per assembly: 1 Currently Not Available
5	CLIP-ROUTING CLUTCH Part #: 5439035 Required per assembly: 1 Note: Built 2/06/12 and Before Currently Not Available
6	CLAMP, NARROW, BAND Part #: 7081279 Required per assembly: 1 Currently Not Available
7	ASM-COVER CLUTCH OUTER Part #: 2634179 Required per assembly: 1 Note: Incl. Outer Cover, Plug, O-Ring Currently Not Available
8	PLUG-DRAIN, CLUTCH, COVER Part #: 5434264 Required per assembly: 1 Note: Plug, Drain Currently Not Available
9	ASM-COVER CLUTCH INNER Part #: 2634188 Required per assembly: 1 Note: Incl. 9,10 Currently Not Available
10	DUCT-CLUTCH AIR IN Part #: 5438891 Required per assembly: 1 Currently Not Available
11	SEAL-OUTER CLUTCH COVER Part #: 5526449 Required per assembly: 1 Currently Not Available
12	HOSE-INTAKE CLUTCH Part #: 5414156 Required per assembly: 1 Currently Not Available
13	O-RING, MOLDED Part #: 5411432 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
14	DECAL-BELT CAUTION/CHECK Part #: 7177469 Required per assembly: 1 Currently Not Available
15	SCREW (FOR REF. 33 W/O INSERTS) Part #: 7512094 Required per assembly: 9 Note: Qty 8 if Built 2/07/12 and After ~~$2.99~~ $1.73 - + Add to cart
16	ASM-BOLT/WASHER 20 MM Part #: 7519278 Required per assembly: 8 Currently Not Available
17	CLAMP, RUBBER, COATED Part #: 7081116 Required per assembly: 1 Currently Not Available
18	SCREW Part #: 7518533 Required per assembly: 1 Note: Built 2/07/12 and After Currently Not Available
19	NUT, FLANGE Part #: 7547339 Required per assembly: 1 Note: Built 2/07/12 and After Currently Not Available
