Main Frame And Skid Plate replacement parts for 2012 Polaris RZR 570 EFI INTL

OEM Parts Polaris 2012 Polaris RZR 570 EFI INTL Main Frame And Skid Plate

MAIN FRAME and SKID PLATE Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-MAINFRAME M BLK Part #: 1018117-458 Required per assembly: 1 Currently Not Available
2	WELD-BRACE BOLT IN REAR BLK Part #: 1018005-458 Required per assembly: 1 Currently Not Available

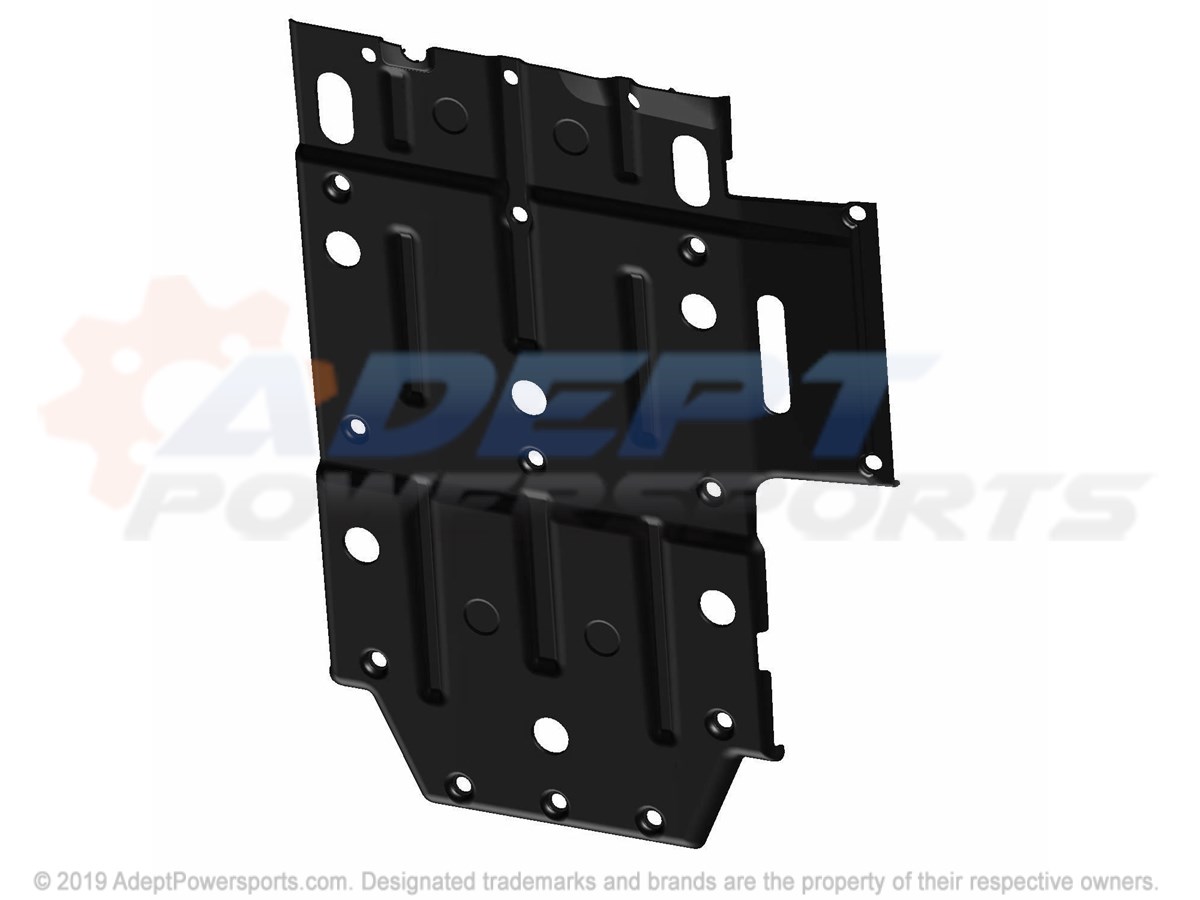

3	PLATE-SKID PLASTIC BLK Part #: 5438937-070 Required per assembly: 1 Currently Not Available

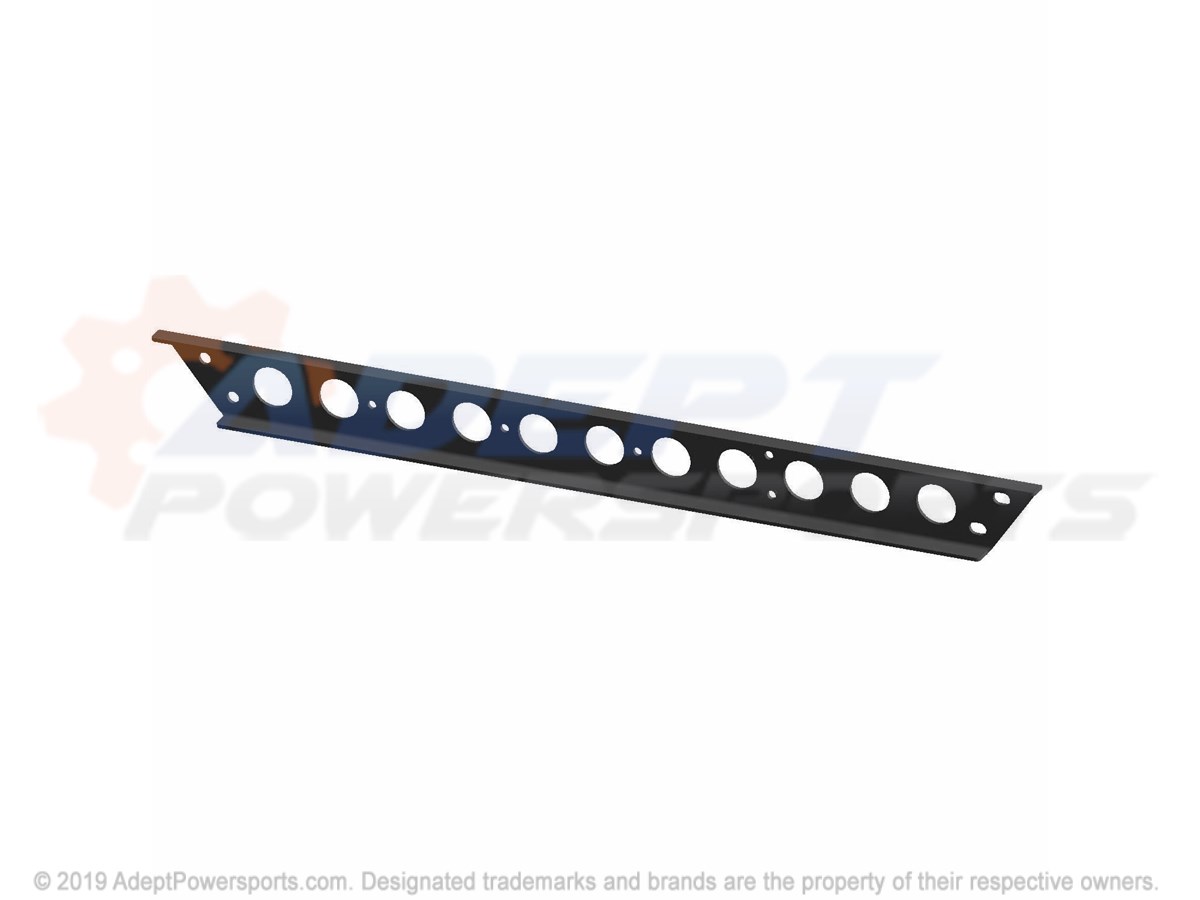

4	SUPPORT, BUMPER, REAR, BLACK Part #: 1019125-329 Required per assembly: 1 Currently Not Available
5	WASHER-SKID PLATE Part #: 7556065 Required per assembly: 15 Note: Washer Currently Not Available
6	SCREW Part #: 7518529 Required per assembly: 15 ~~$2.99~~ $1.73 - + Add to cart
7	SCREW Part #: 7518555 Required per assembly: 10 Note: Bolt, Flange Currently Not Available
7	SCREW Part #: 7518555 Required per assembly: 10 Note: Bolt, Flange Currently Not Available
8	SCR-HXFL-M10X1.25X55 10.9 ZOD Part #: 7519285 Required per assembly: 4 Currently Not Available
9	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
10	CAPLUG Part #: 5437721 Required per assembly: 2 Currently Not Available
10	CAPLUG Part #: 5437721 Required per assembly: 2 Currently Not Available
11	SHIELD, PIPE Part #: 5255219 Required per assembly: 2 Currently Not Available
12	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
13	NUT, FLANGE Part #: 7547339 Required per assembly: 2 Currently Not Available
14	BRKT-REAR BRACE BLK Part #: 5254980-458 Required per assembly: 2 Currently Not Available
