Frame replacement parts for 2012 Yamaha ZUMA 125 (YW125BB)

OEM Parts Yamaha 2012 Yamaha ZUMA 125 (YW125BB) Frame

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRAME COMP. Part #: 32S-F1110-00-7M Required per assembly: 1 Note: MDS(MIDNIGHT SILVER) Not Available

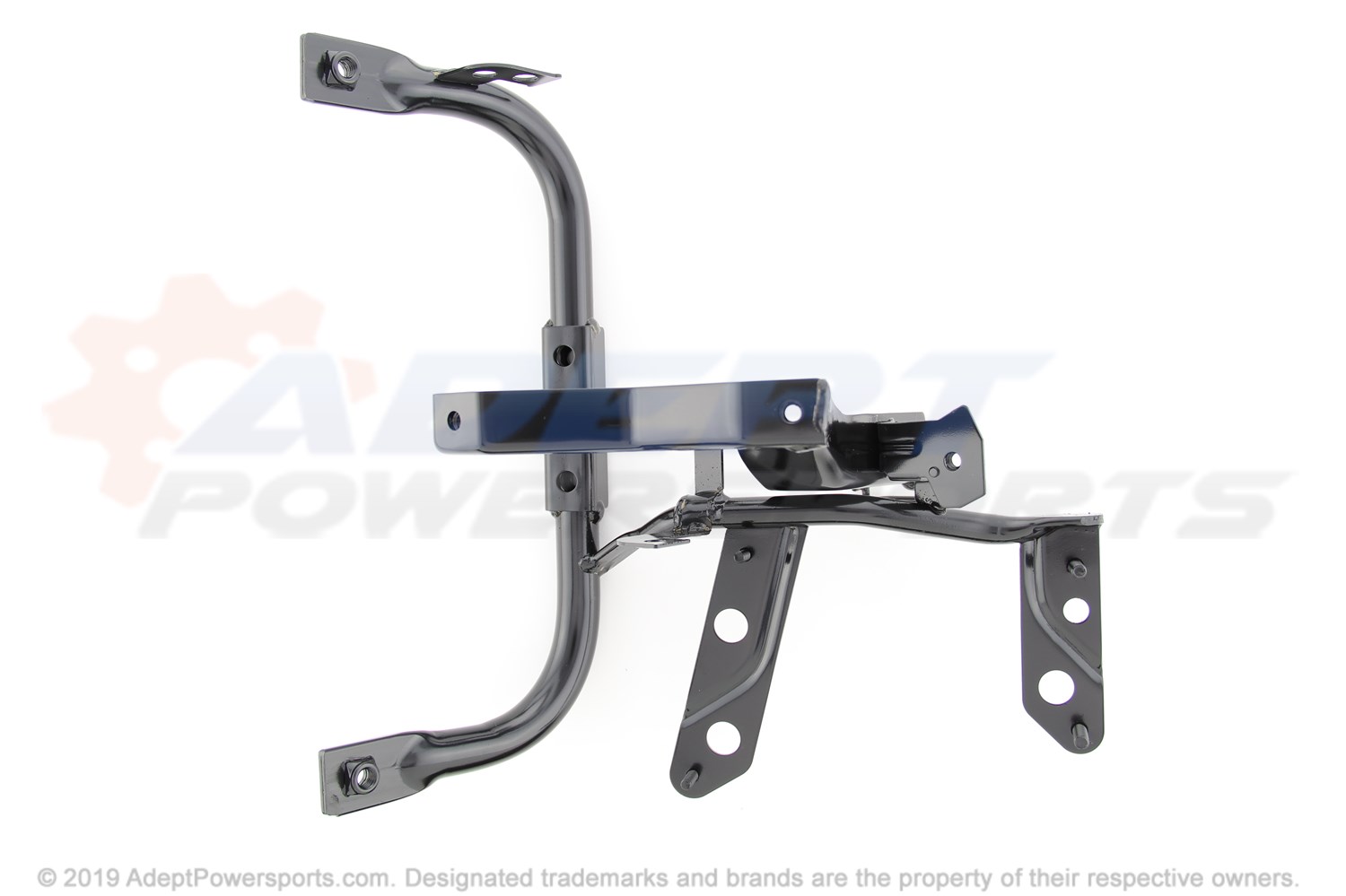

2	ENGINE BRACKET COMP. 2 Part #: 5S9-F1420-00-00 Required per assembly: 1 $80.98 $64.37 - + Add to cart
4	NUT, SELF-LOCKING Part #: 90185-10801-00 Required per assembly: 2 $1.96 $1.42 - + Add to cart
5	WASHER, PLATE Part #: 90201-105A2-00 Required per assembly: 2 $9.49 $6.55 - + Add to cart
6	STAY, ENGINE Part #: 5ML-F1480-10-00 Required per assembly: 1 $44.99 $35.03 - + Add to cart
8	WASHER, PLATE Part #: 90201-105A2-00 Required per assembly: 1 $9.49 $6.55 - + Add to cart
9	COLLAR 1 Part #: 5ML-F1544-01-00 Required per assembly: 2 $7.49 $4.87 - + Add to cart
11	BOLT, ENGINE, MOUNTING, 1 Part #: 5ML-F1481-00-00 Required per assembly: 1 $6.49 $4.60 - + Add to cart
12	NUT, SELF-LOCKING Part #: 90185-10801-00 Required per assembly: 1 $1.96 $1.42 - + Add to cart
13	CLAMP Part #: 90464-40801-00 Required per assembly: 3 $2.18 $0.76 - + Add to cart
14	CLAMP Part #: 90464-12812-00 Required per assembly: 2 $0.40 $0.31 - + Add to cart
17	BRACKET, REGULATOR Part #: 32S-F128A-00-00 Required per assembly: 1 $50.52 - + Add to cart
18	BOLT, FLANGE Part #: 95817-06010-00 Required per assembly: 2 $5.49 $3.84 - + Add to cart
19	BOLT, FLANGE, (6TA) Part #: 95817-08030-00 Required per assembly: 2 $9.49 $6.05 - + Add to cart
21	GROMMET(4DN) Part #: 90480-01558-00 Required per assembly: 4 $4.65 $3.87 - + Add to cart
22	TOOL KIT Part #: 4CW-F8100-00-00 Required per assembly: 1 $8.49 $5.35 - + Add to cart
23	DAMPER 1 Part #: 5ML-F1541-00-00 Required per assembly: 2 $0.45 $0.32 - + Add to cart
