Leg Shield replacement parts for 2012 Yamaha ZUMA 125 (YW125BB)

OEM Parts Yamaha 2012 Yamaha ZUMA 125 (YW125BB) Leg Shield

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

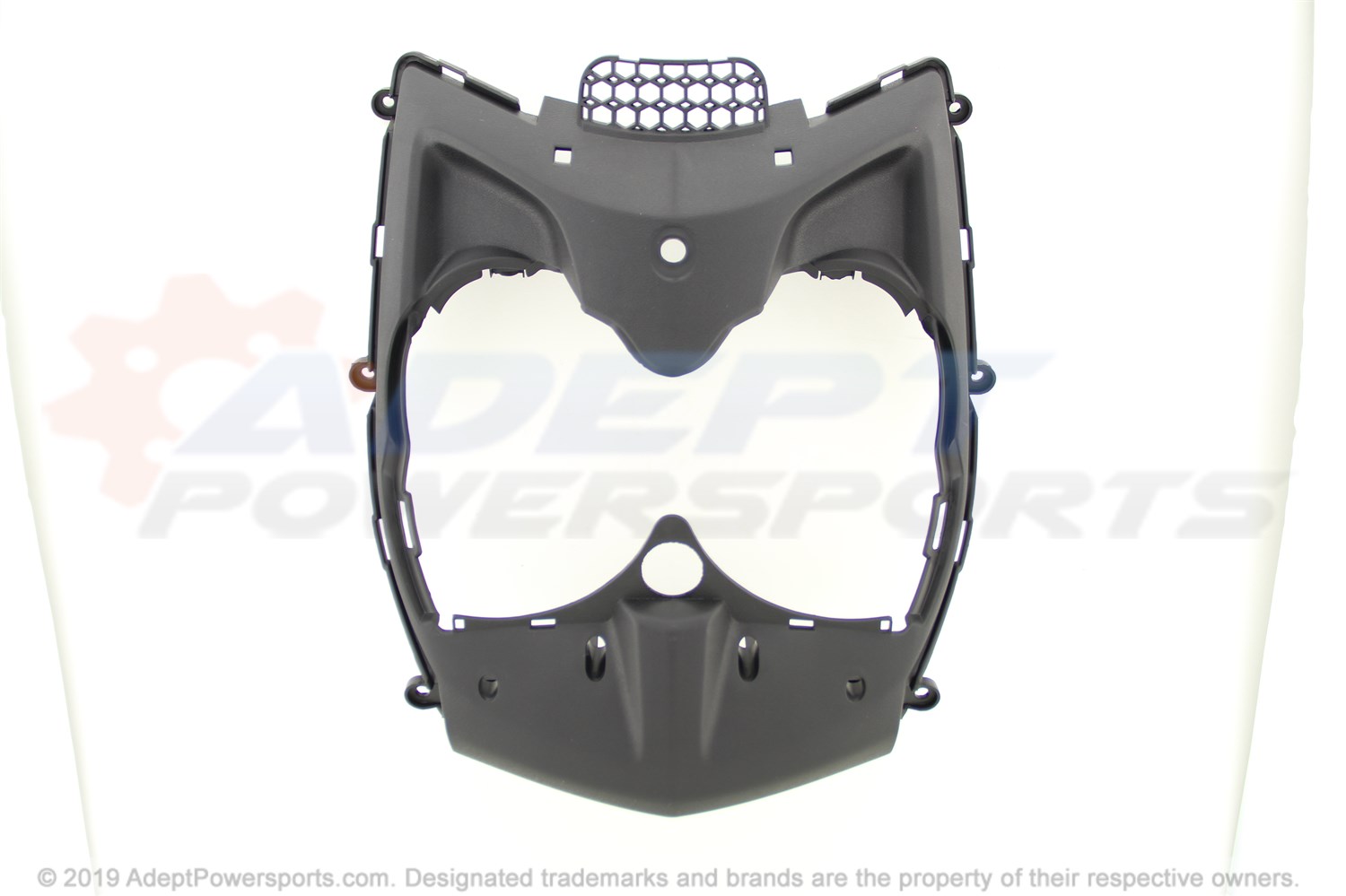

1	LEG SHIELD 1 Part #: 32S-F8311-01-P1 Required per assembly: 1 $126.03 - + Add to cart
2	SCREW, TRUSS, HEAD, TAPPING Part #: 97707-50016-00 Required per assembly: 2 $1.85 $1.41 - + Add to cart
3	GUARD COMP. Part #: 32S-F840K-00-7M Required per assembly: 1 Note: MDS(MIDNIGHT SILVER) $49.99 $49.87 - + Add to cart
4	NUT 1 Part #: 5S9-F1535-00-00 Required per assembly: 2 $5.49 $3.18 - + Add to cart
5	BOLT, HEXAGON, SOCKET, HEAD Part #: 90110-06851-00 Required per assembly: 2 $0.40 $0.31 - + Add to cart
6	PLUG Part #: 90338-16801-00 Required per assembly: 2 $1.10 $0.85 - + Add to cart
7	LEG SHIELD 2 Part #: 5S9-F8312-00-00 Required per assembly: 1 $103.75 - + Add to cart
8	SCREW, TRUSS, HEAD, TAPPING Part #: 97707-50016-00 Required per assembly: 6 $1.85 $1.41 - + Add to cart
9	SCREW, WITH, WASHER Part #: 90159-06067-00 Required per assembly: 1 $10.49 $6.29 - + Add to cart
10	COLLAR Part #: 90387-068C3-00 Required per assembly: 1 $0.45 $0.32 - + Add to cart
11	CAP Part #: 5FM-F8349-00-00 Required per assembly: 1 $2.35 $1.97 - + Add to cart
12	WASHER, PLATE Part #: 90201-068A5-00 Required per assembly: 1 $0.30 $0.25 - + Add to cart
13	SCREW, WITH, WASHER Part #: 90159-06067-00 Required per assembly: 1 $10.49 $6.29 - + Add to cart
14	MOLE 1 Part #: 32S-XF834-00-P0 Required per assembly: 1 $19.48 $15.41 - + Add to cart
15	EMBLEM 3 Part #: 5NW-F152A-00-00 Required per assembly: 1 $1.95 $1.54 - + Add to cart
16	DUCT 1 Part #: 5ML-F838N-01-00 Required per assembly: 1 $12.49 $8.75 - + Add to cart
19	HOSE CLAMP ASSEMBLY Part #: 90450-53008-00 Required per assembly: 1 $11.49 $7.82 - + Add to cart
20	BOLT Part #: 90109-063F1-00 Required per assembly: 2 $2.97 $2.26 - + Add to cart
21	REFLECTOR ASSEMBLY Part #: 32S-H5110-00-00 Required per assembly: 1 $5.49 $4.31 - + Add to cart
22	NUT, FLANGE, (4MV) Part #: 95707-06500-00 Required per assembly: 1 $1.00 $0.77 - + Add to cart
23	FRONT REFLECTOR ASSEMBLY 2 Part #: 32S-H5120-00-00 Required per assembly: 1 $3.79 $3.70 - + Add to cart
24	NUT, FLANGE, (4MV) Part #: 95707-06500-00 Required per assembly: 1 $1.00 $0.77 - + Add to cart
25	LABEL, TIRE Part #: 24P-F1668-00-00 Required per assembly: 1 Not Available
27	COVER, HEADLIGHT Part #: 32S-XH414-01-00 Required per assembly: 1 $19.83 - + Add to cart
28	DAMPER 3 Part #: 4VP-H4368-00-00 Required per assembly: 2 $1.35 $0.88 - + Add to cart
29	SCREW, TRUSS, HEAD, TAPPING Part #: 97707-50016-00 Required per assembly: 8 $1.85 $1.41 - + Add to cart
