OEM Parts Polaris 2013 Polaris RANGER 800 CREW R13WH76AG/AR/EAH/EAI Rear Caliper - R13wh76ag/Ar/Eah/Eai

2013 Polaris RANGER 800 CREW - R13WH76AG/AR/EAH/EAI - Rear Caliper - R13wh76ag/Ar/Eah/Eai

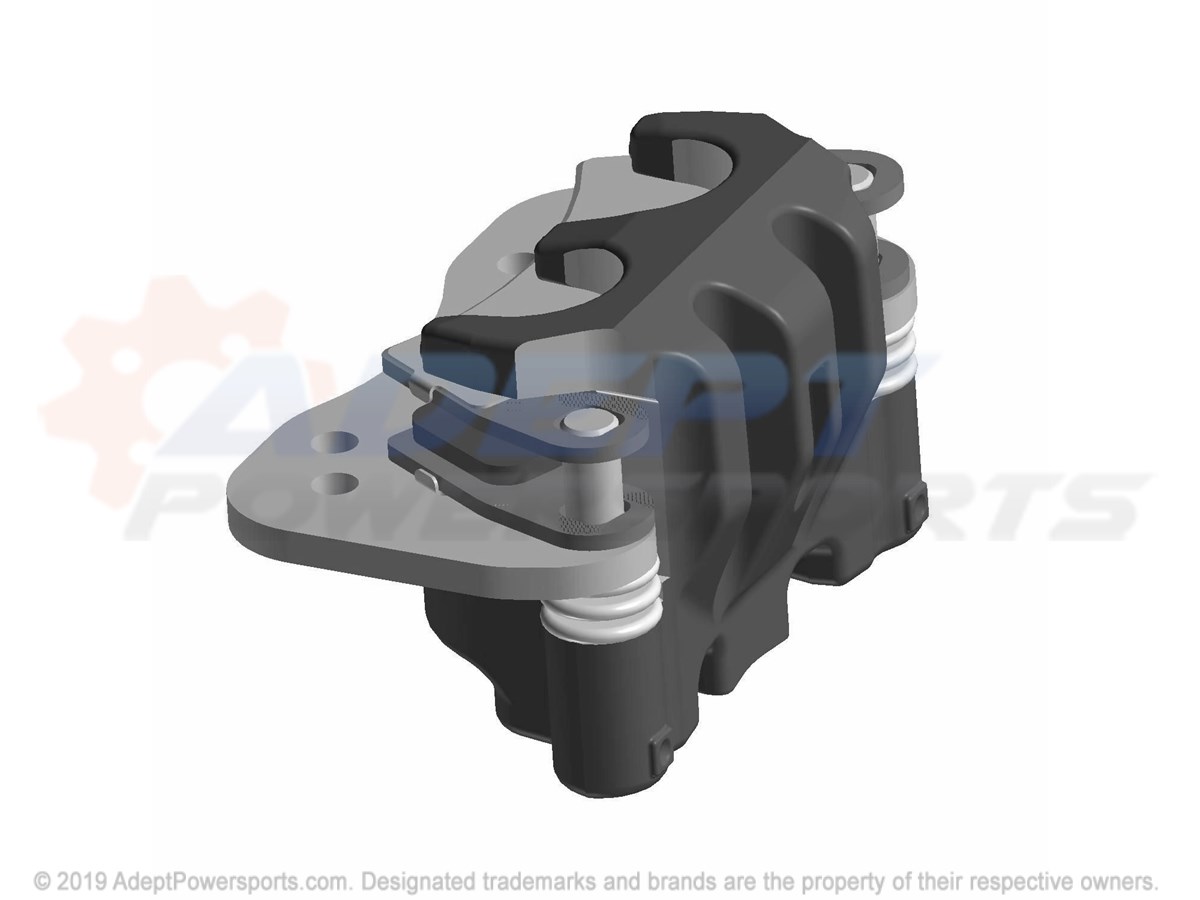

Rear Caliper - R13WH76AG/AR/EAH/EAI Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
-
Polaris 1911427 Asm-Caliper Brk Xldb 1.19"L M

ASM-CALIPER BRK XLDB 1.19"L M

Part #: 1911427 Required per assembly: 1 Note: Incl. All
Currently Not Available
-
Polaris 1911429 Asm-Caliper Brk Xldb 1.19"Rh M

ASM-CALIPER BRK XLDB 1.19"RH M

Part #: 1911429 Required per assembly: 1
Currently Not Available
1

SCREW, BLEEDER

Part #: 7081343 Required per assembly: 1
Currently Not Available
2
Polaris 7518863 Screw, Socket, Set

SCREW, SOCKET, SET

Part #: 7518863 Required per assembly: 1
Currently Not Available
3
Polaris 2205949 K-Asm, Pad, Brake, Db, 1.375

K-ASM, PAD, BRAKE, DB, 1.375

Part #: 2205949 Required per assembly: 1 Note: Two pads
Currently Not Available
4
Polaris 1930642 Kit, Boot, F.Brake

KIT, BOOT, F.BRAKE

Part #: 1930642 Required per assembly: 1 Note: Incl. 5,6
Currently Not Available
5
Polaris 5412506 Boot, Pin, Seal

BOOT, PIN, SEAL

Part #: 5412506 Required per assembly: 1
Currently Not Available
6
Polaris 5412505 Boot, Bushing

BOOT, BUSHING

Part #: 5412505 Required per assembly: 1
Currently Not Available
7
Polaris 5410780 Ring, Square, Molded, (.134)

RING, SQUARE, MOLDED, (.134)

Part #: 5410780 Required per assembly: 2
$9.99
$5.75
-
+
Add to cart
8
Polaris 5410779 Ring, Square, Molded, (.099)

RING, SQUARE, MOLDED, (.099)

Part #: 5410779 Required per assembly: 2
Currently Not Available
9

PISTON, &, SEAL, KIT

Part #: 1930665 Required per assembly: 2 Note: (Description)
Currently Not Available
10
Polaris 1911762 Assembly, Mount, Caliper, Rear

ASSEMBLY, MOUNT, CALIPER, REAR

Part #: 1911762 Required per assembly: 1
Currently Not Available
