OEM Parts Polaris 2013 Polaris RANGER 800 CREW R13WH76AG/AR/EAH/EAI Battery - R13wh76ag/Ar/Eah/Eai

2013 Polaris RANGER 800 CREW - R13WH76AG/AR/EAH/EAI - Battery - R13wh76ag/Ar/Eah/Eai

Battery - R13WH76AG/AR/EAH/EAI Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 4014471 Solenoid, Starter, C1100, W/Washer

SOLENOID, STARTER, C1100, W/WASHER

Part #: 4014471 Required per assembly: 1
Currently Not Available
2
Polaris 7518196 Screw

SCREW

Part #: 7518196 Required per assembly: 4
$1.99
$1.15
-
+
Add to cart
3
Polaris 7552801 Lock Washer

LOCK WASHER

Part #: 7552801 Required per assembly: 2
$3.99
$2.30
-
+
Add to cart
4
Polaris 7547270 Nut, Flange

NUT, FLANGE

Part #: 7547270 Required per assembly: 2 Note: Nut, Hex
Currently Not Available
5

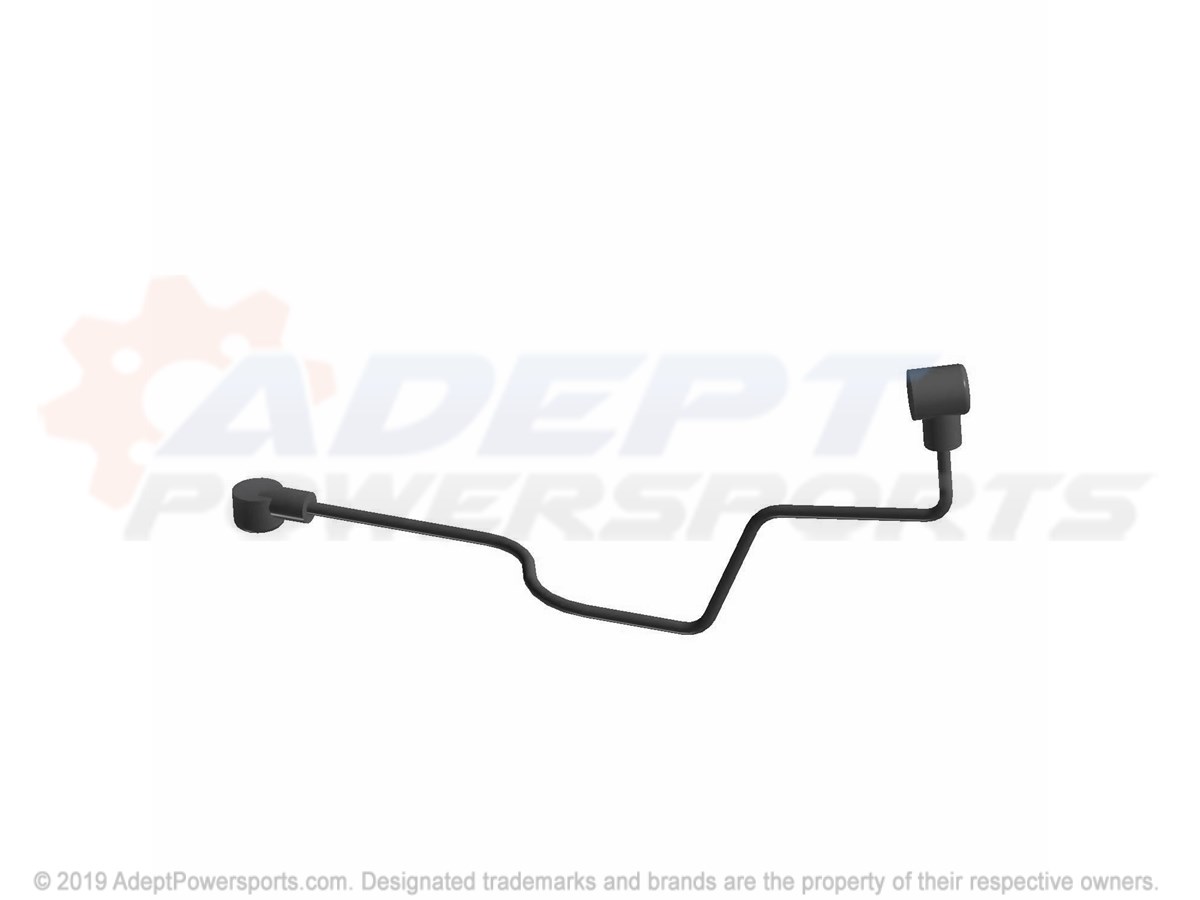

Polaris 4013961 Cable, Solenoid/Starter

CABLE, SOLENOID/STARTER

Part #: 4013961 Required per assembly: 1
Currently Not Available
6
Polaris 4011892 Block, Terminal

BLOCK, TERMINAL

Part #: 4011892 Required per assembly: 1 Note: Block, Terminal
Currently Not Available
7
Polaris 7546601 Nut, Nylok

NUT, NYLOK

Part #: 7546601 Required per assembly: 3 Note: Nut, Nylok
Sold in multiples of 10 only
Currently Not Available
8
Polaris 5248659 Strap, Ground

STRAP, GROUND

Part #: 5248659 Required per assembly: 1
Currently Not Available
9
Polaris 7512018 Screw

SCREW

Part #: 7512018 Required per assembly: 1 Note: Sold in multiples of 10 only
Currently Not Available
10

HOOK, STRAP

Part #: 7081733 Required per assembly: 2
Currently Not Available
11
Polaris 2634189 Asm-Strap Battery

ASM-STRAP BATTERY

Part #: 2634189 Required per assembly: 1
Currently Not Available
12
Polaris 4010630 Battery, 30, Amp, Top, Mount

BATTERY, 30, AMP, TOP, MOUNT

Part #: 4010630
Aftermarket alternatives available Required per assembly: 1 Note: Required on Ranger EV, LSV with Warn 3.0 Integrated Winch. Part Number 2877865.
Yuasa YB30L-B (no acid)
Sold in multiples of 2 only
Currently Not Available
13

KIT, BATTERY, BOLT

Part #: 2202802 Required per assembly: 1 Note: Kit, Battery Bolt
Currently Not Available
14
Polaris 4013869 Cable, Positive

CABLE, POSITIVE

Part #: 4013869 Required per assembly: 1
Currently Not Available
15
Polaris 4013958 Cable, Ground, Split

CABLE, GROUND, SPLIT

Part #: 4013958 Required per assembly: 1
Currently Not Available
16

TUBE, BATTERY, VENT

Part #: 5433681 Required per assembly: 1
Currently Not Available
17
Polaris 7080761 Strap, Panduit, 14"

STRAP, PANDUIT, 14"

Part #: 7080761 Required per assembly: 2 Note: Cable Tie
Currently Not Available
