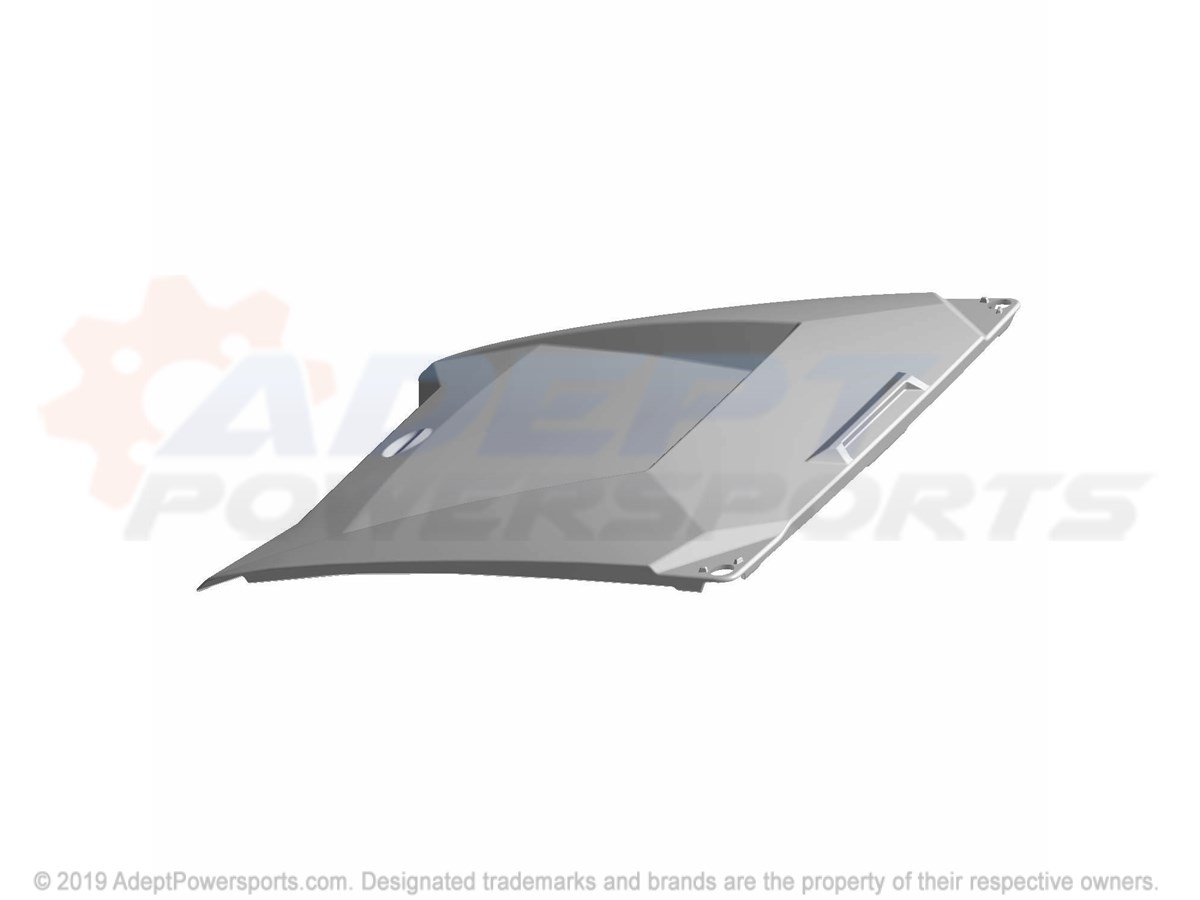

Hood and Front Body Work - R13XE76AD/EAI Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 5438575-293 Hood-Center Access I.Red

HOOD-CENTER ACCESS I.RED

Part #: 5438575-293 Required per assembly: 1 Note: AD
Currently Not Available
1
Polaris 5438581-620 Hood, Access, Center, Blue, Fire

HOOD, ACCESS, CENTER, BLUE, FIRE

Part #: 5438581-620 Required per assembly: 1 Note: EAI
Currently Not Available
2
Polaris 7081500 Latch, 1/4, Turn

LATCH, 1/4, TURN

Part #: 7081500 Required per assembly: 2
Currently Not Available
3
Polaris 7555919 Washer

WASHER

Part #: 7555919 Required per assembly: 2 Note: Washer
Currently Not Available
4
Polaris 5413428 Grommet, Latch

GROMMET, LATCH

Part #: 5413428 Required per assembly: 2
Currently Not Available
5

NUT, U-TYPE

Part #: 7670145 Required per assembly: 10 Note: Sold in multiples of 10 only
Currently Not Available
6

ASSEMBLY, HOOD, BLUE, FIRE, [EAI]

Part #: 2634090-620 Required per assembly: 1 Note: Incl. Warning Decals
Currently Not Available
6

ASSEMBLY, HOOD, INDY, RED, [AD]

Part #: 2634052-293 Required per assembly: 1 Note: Incl. Warning Decals
Currently Not Available
7
Polaris 5813911 Bumper, Rubber

BUMPER, RUBBER

Part #: 5813911 Required per assembly: 2 Note: AD
Currently Not Available
8
Polaris 7518375 Screw

SCREW

Part #: 7518375 Required per assembly: 8
Currently Not Available
9
Polaris 5437659-070 Flair, Fender, Front, Lt, Lh, Black

FLAIR, FENDER, FRONT, LT, LH, BLACK

Part #: 5437659-070 Required per assembly: 1
Currently Not Available
10
Polaris 5437660-070 Flair, Fender, Front, Lt, Rh, Black

FLAIR, FENDER, FRONT, LT, RH, BLACK

Part #: 5437660-070 Required per assembly: 1
Currently Not Available
11
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 8
$2.99
$1.73
-
+
Add to cart
12
Polaris 7517685 Screw

SCREW

Part #: 7517685 Required per assembly: 4 Note: Screw
Currently Not Available
