OEM Parts Polaris 2013 Polaris RANGER RZR 4 800 EFI R13XE76AD/EAI Battery - R13xe76ad/Eai

2013 Polaris RANGER RZR 4 800 EFI - R13XE76AD/EAI - Battery - R13xe76ad/Eai

Battery - R13XE76AD/EAI Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 4014471 Solenoid, Starter, C1100, W/Washer

SOLENOID, STARTER, C1100, W/WASHER

Part #: 4014471 Required per assembly: 1
Currently Not Available
2
Polaris 7547270 Nut, Flange

NUT, FLANGE

Part #: 7547270 Required per assembly: 2 Note: Nut, Hex
Currently Not Available
3
Polaris 7518529 Screw

SCREW

Part #: 7518529 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
4

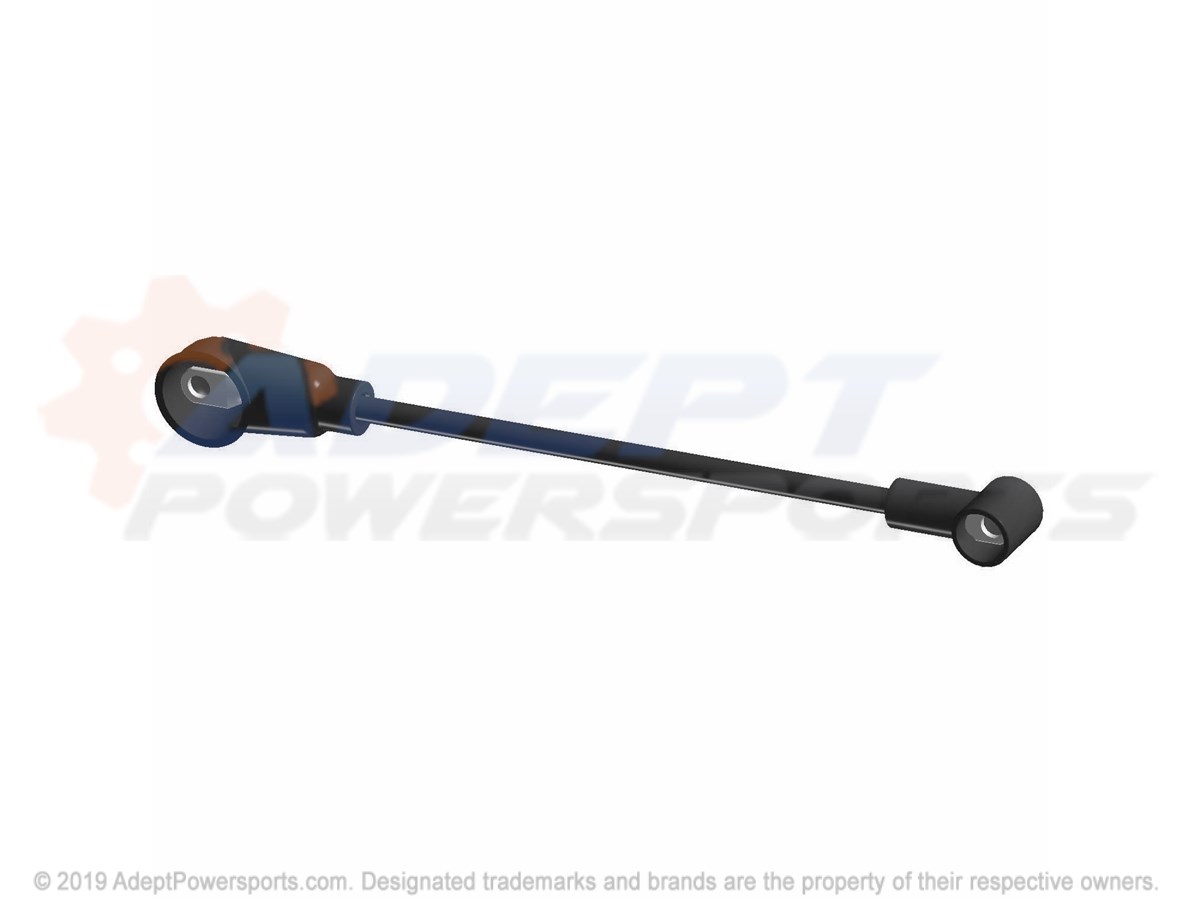

Polaris 4011498 Cable, Solenoid, To, Starter

CABLE, SOLENOID, TO, STARTER

Part #: 4011498 Required per assembly: 1
Currently Not Available
5
Polaris 4012842 Cable-Batt To Solenoid/Termina

CABLE-BATT TO SOLENOID/TERMINA

Part #: 4012842 Required per assembly: 1
Currently Not Available
6
Polaris 4012841 Cable-Chassis Ground

CABLE-CHASSIS GROUND

Part #: 4012841 Required per assembly: 1
Currently Not Available
7
Polaris 4014609 Battery-30Ah, 12, Volt, Agm

BATTERY-30AH, 12, VOLT, AGM

Part #: 4014609 Required per assembly: 1
Currently Not Available
8

KIT, BATTERY, BOLT

Part #: 2202848 Required per assembly: 1
Currently Not Available
9
Polaris 5411054 Strap, Rubber

STRAP, RUBBER

Part #: 5411054 Required per assembly: 1
Currently Not Available
10
Polaris 7518529 Screw

SCREW

Part #: 7518529 Required per assembly: 1
$2.99
$1.73
-
+
Add to cart
11
Polaris 7081123 Hook, Battery, Strap

HOOK, BATTERY, STRAP

Part #: 7081123 Required per assembly: 2
Currently Not Available
12

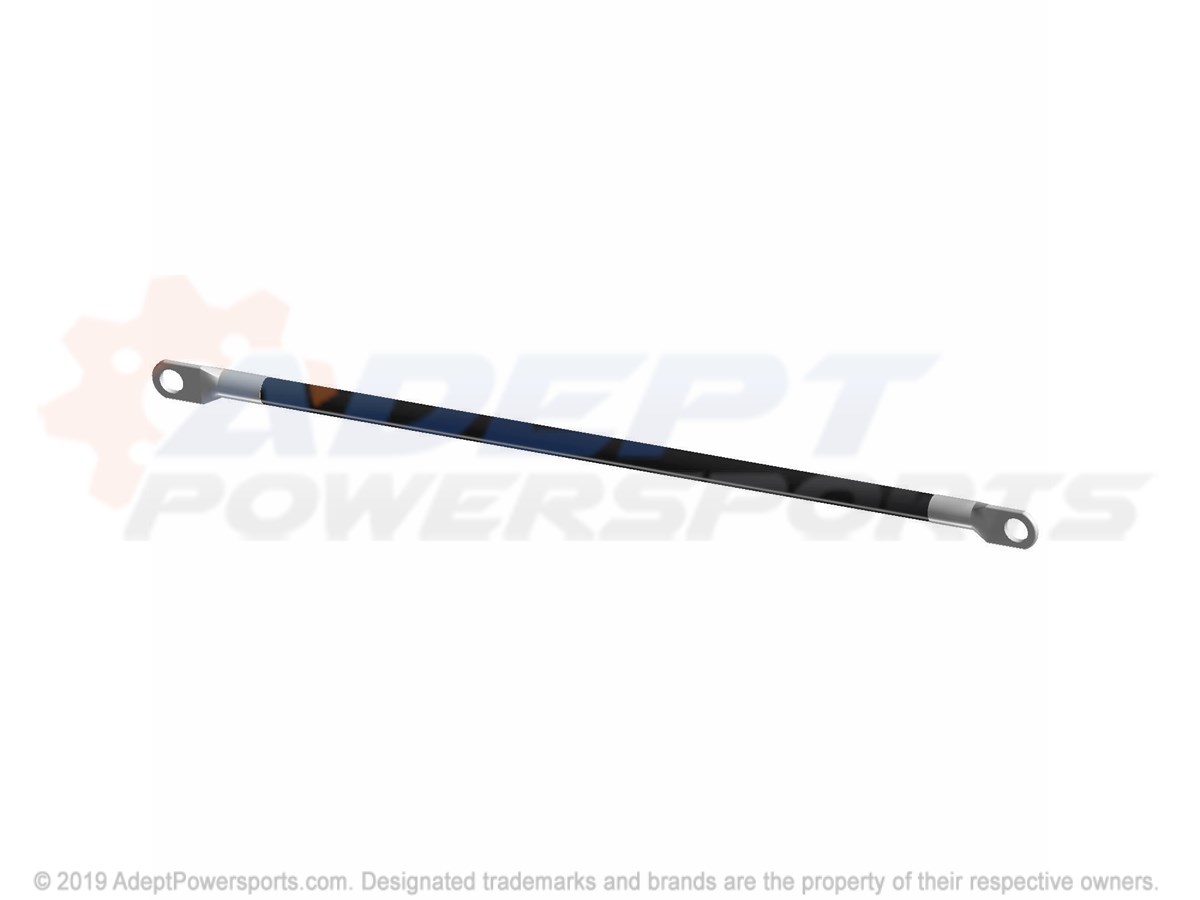

Polaris 4011499 Cable, Ground

CABLE, GROUND

Part #: 4011499 Required per assembly: 1
Currently Not Available
13
Polaris 7552604 Washer

WASHER

Part #: 7552604 Required per assembly: 2
$3.77
$2.30
-
+
Add to cart
