Air Intake System - R13vh57ad/6Eak replacement parts for 2013 Polaris RZR 570 EFI

OEM Parts Polaris 2013 Polaris RZR 570 EFI R13VH57AD/6EAK Air Intake System - R13vh57ad/6Eak

Air Intake System - R13VH57AD/6EAK Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-AIRBOX MAIN Part #: 1240633 Required per assembly: 1 Note: Incl. 1-5 Currently Not Available
2	BOOT-AIRBOX Part #: 5414134 Required per assembly: 1 Currently Not Available
3	BASE-AIRBOX Part #: 5438897 Required per assembly: 1 Currently Not Available
4	CLAMP, AIRBOX Part #: 7081312 Required per assembly: 1 Currently Not Available
5	CLIP-AIRBOX Part #: 7081707 Required per assembly: 6 Currently Not Available
6	BRKT-MOUNT AIRBOX BLK Part #: 5254922-329 Required per assembly: 1 Currently Not Available
7	GROMMET Part #: 5412507 Required per assembly: 3 Currently Not Available

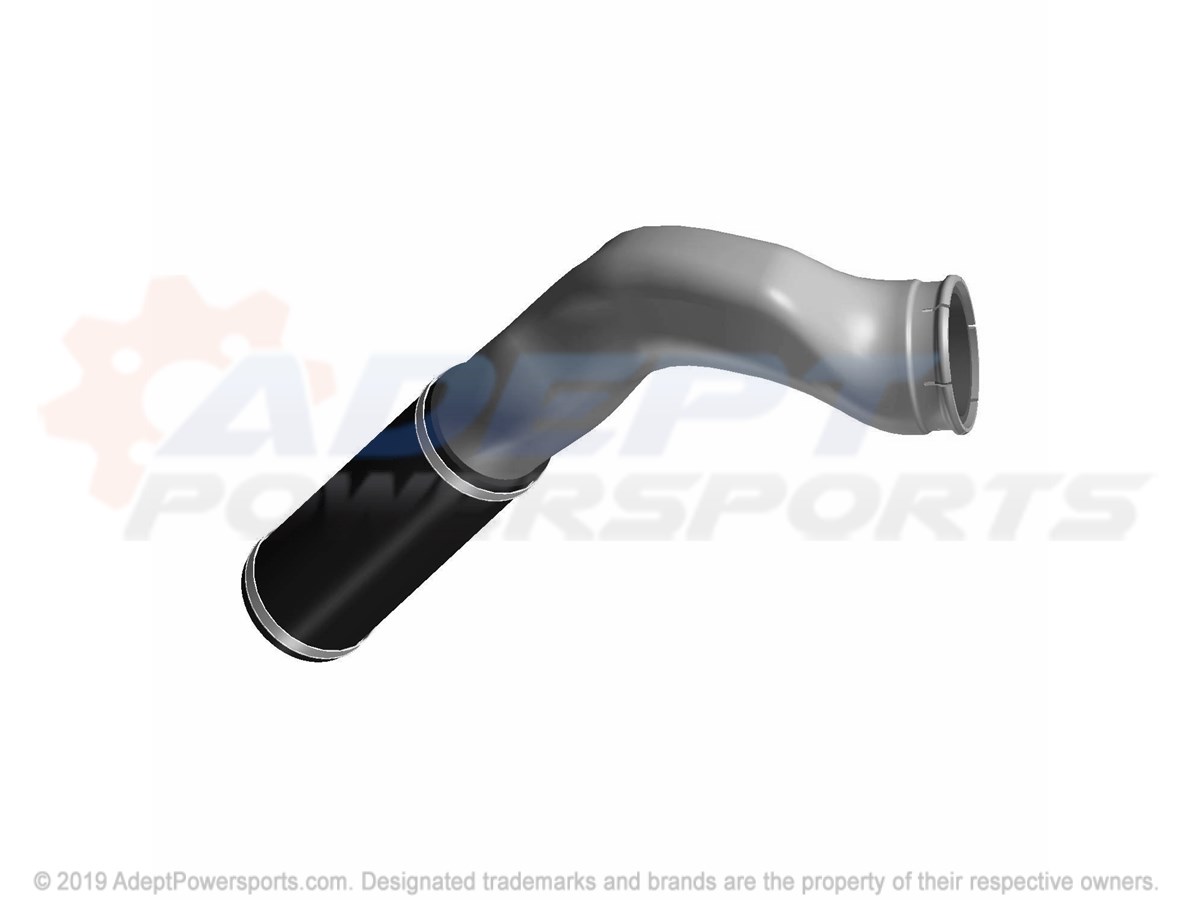

8	KIT, INTAKE, [REPLACES, HOSE, FROM, EARLY, BUILD, BEFORE, 8/07/12] Part #: 2204982 Required per assembly: 1 Note: Incl. 10,23-25 Currently Not Available
9	LID, AIRBOX Part #: 5450157 Required per assembly: 1 Currently Not Available
10	CLAMP, BAND, NARROW Part #: 7080707 Required per assembly: 3 Note: Clamp, Narrow Band ~~$4.99~~ $2.88 - + Add to cart
11	CLAMP, HOSE Part #: 7081623 Required per assembly: 1 Currently Not Available
12	FILTER-AIRBOX MAIN Part #: 7081706 Required per assembly: 1 Currently Not Available
13	DECAL-FILTER MAINT Part #: 7177872 Required per assembly: 1 Currently Not Available
14	BOX-INTAKE Part #: 5450598 Required per assembly: 1 Currently Not Available
15	FILTER-ENGINE IN Part #: 5813713 Required per assembly: 1 Currently Not Available
16	FILTER-CLUTCH IN Part #: 5813712 Required per assembly: 1 Currently Not Available
17	SCREW Part #: 7512026 Required per assembly: 7 Note: Screw Currently Not Available
18	CAP, DRAIN Part #: 5412960 Required per assembly: 2 Currently Not Available
19	CLAMP, HOSE, SPRING Part #: 7080694 Required per assembly: 2 Note: Clamp, Hose, Spring Currently Not Available
20	SCREW Part #: 7517685 Required per assembly: 2 Note: Screw Currently Not Available
21	NUT, U-TYPE Part #: 7670145 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
22	SCREW Part #: 7518529 Required per assembly: 1 ~~$2.99~~ $1.73 - + Add to cart

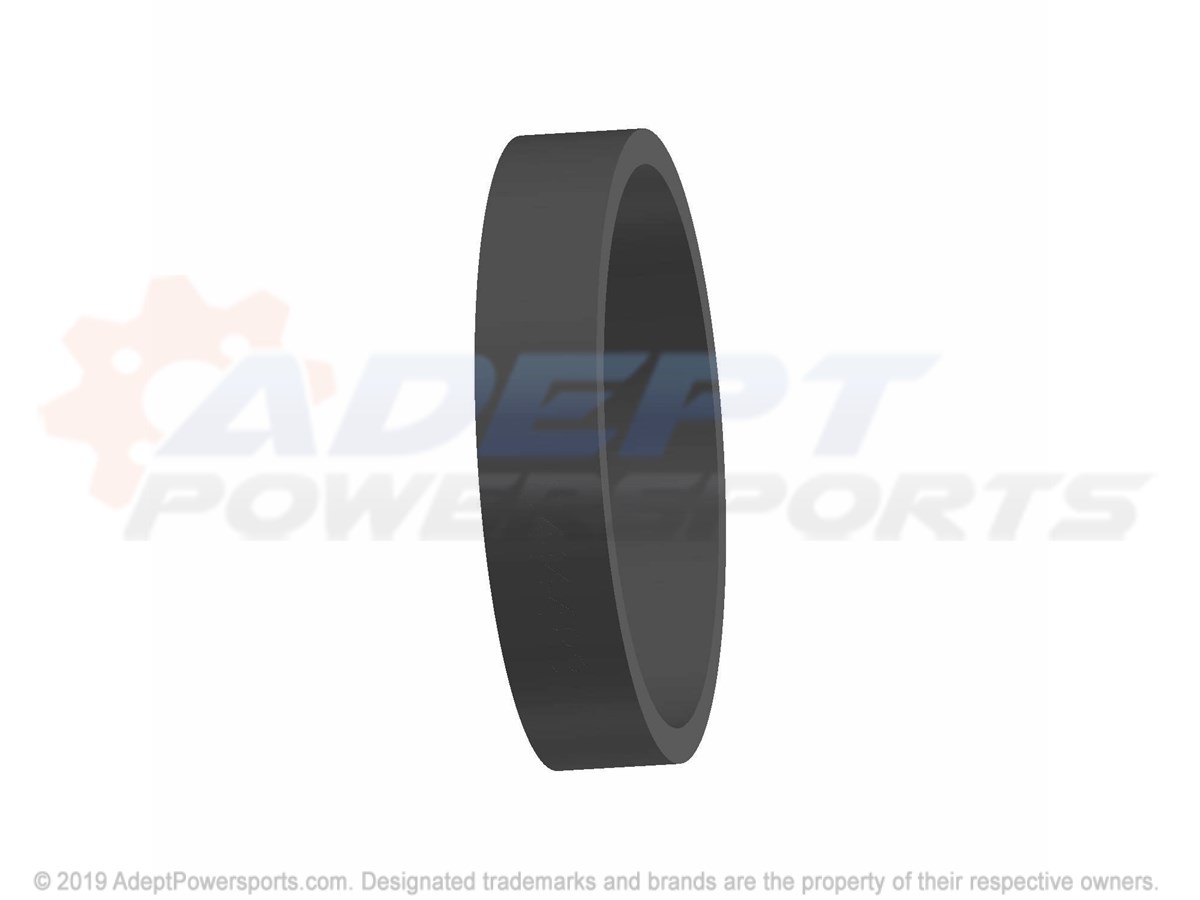

23	HOSE, SEAL, ENGINE, INLET Part #: 5414483 Required per assembly: 1 Currently Not Available

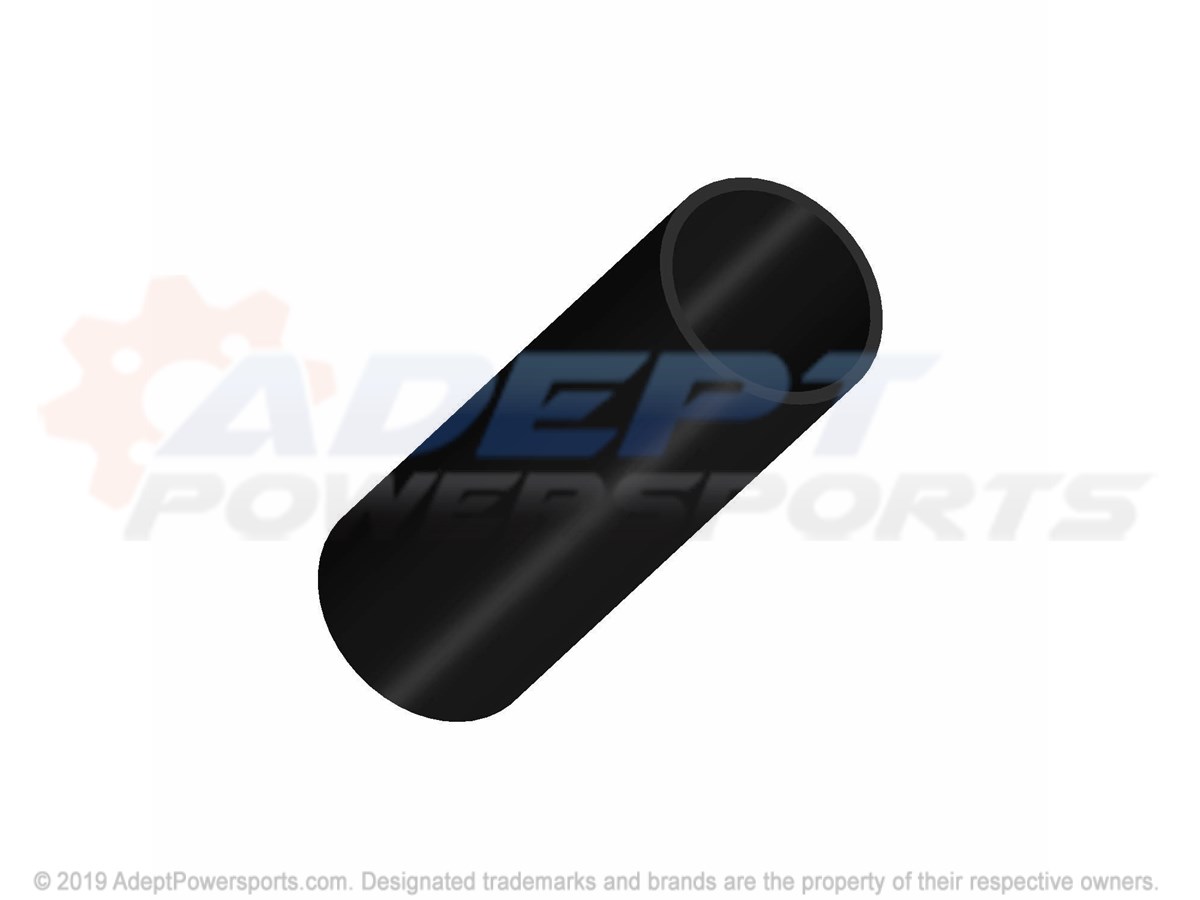

24	HOSE, ENGINE, INLET Part #: 5414484 Required per assembly: 1 Currently Not Available

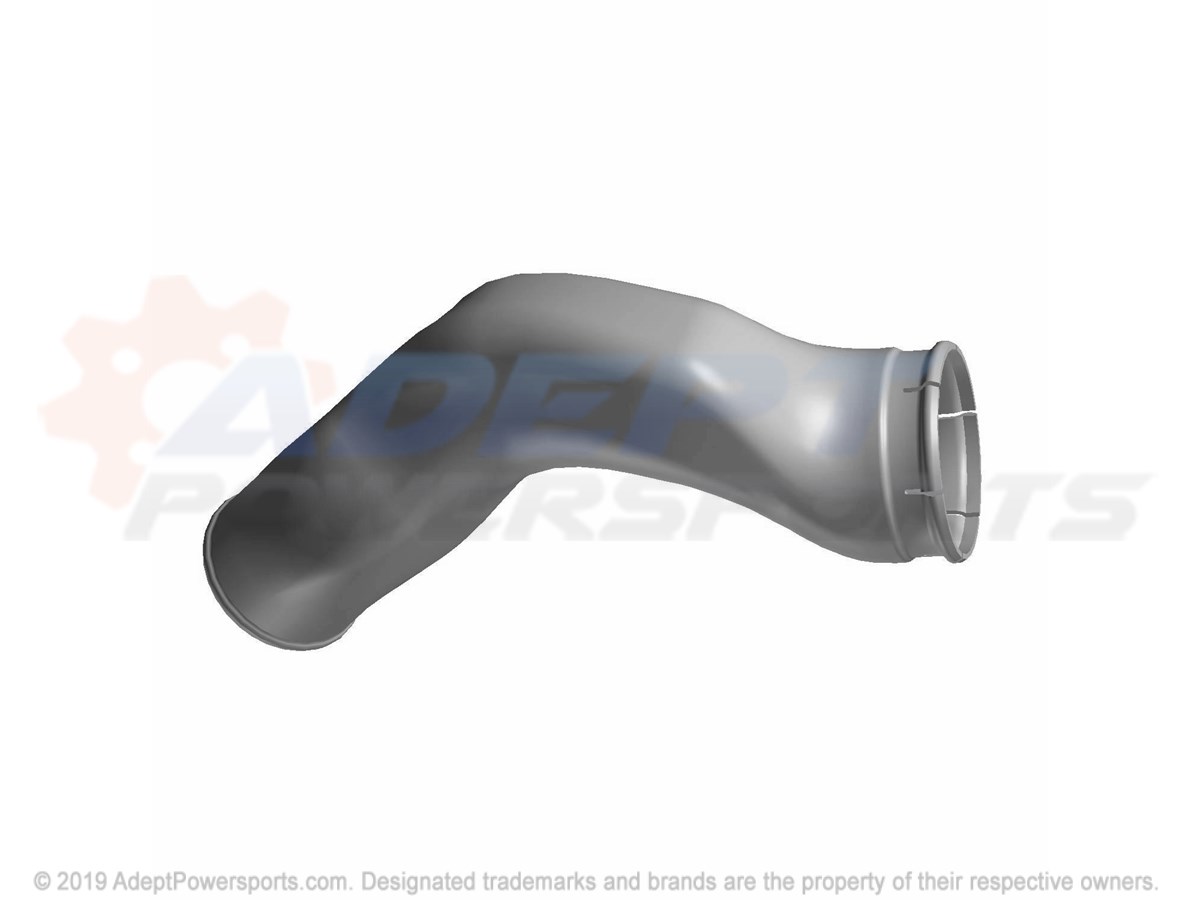

25	DUCT, ENGINE, INLET Part #: 5439759 Required per assembly: 1 Currently Not Available
