OEM Parts Polaris 2013 Polaris RZR 570 EFI R13VH57AD/6EAK Front Shock Mounting - R13vh57ad/6Eak

2013 Polaris RZR 570 EFI - R13VH57AD/6EAK - Front Shock Mounting - R13vh57ad/6Eak

Front Shock Mounting - R13VH57AD/6EAK Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7547333 Nut, Flange

NUT, FLANGE

Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25
$3.74
$2.23
-
+
Add to cart
2
Polaris 5251753 Retainer, Spring

RETAINER, SPRING

Part #: 5251753 Required per assembly: 2
Currently Not Available
3
Polaris 7519285 Scr-Hxfl-M10x1.25X55 10.9 Zod

SCR-HXFL-M10X1.25X55 10.9 ZOD

Part #: 7519285 Required per assembly: 2
Currently Not Available
4
Polaris 7043809-458 Spring-115# Blk

SPRING-115# BLK

Part #: 7043809-458 Required per assembly: 2 Note: 7AD
Currently Not Available
4

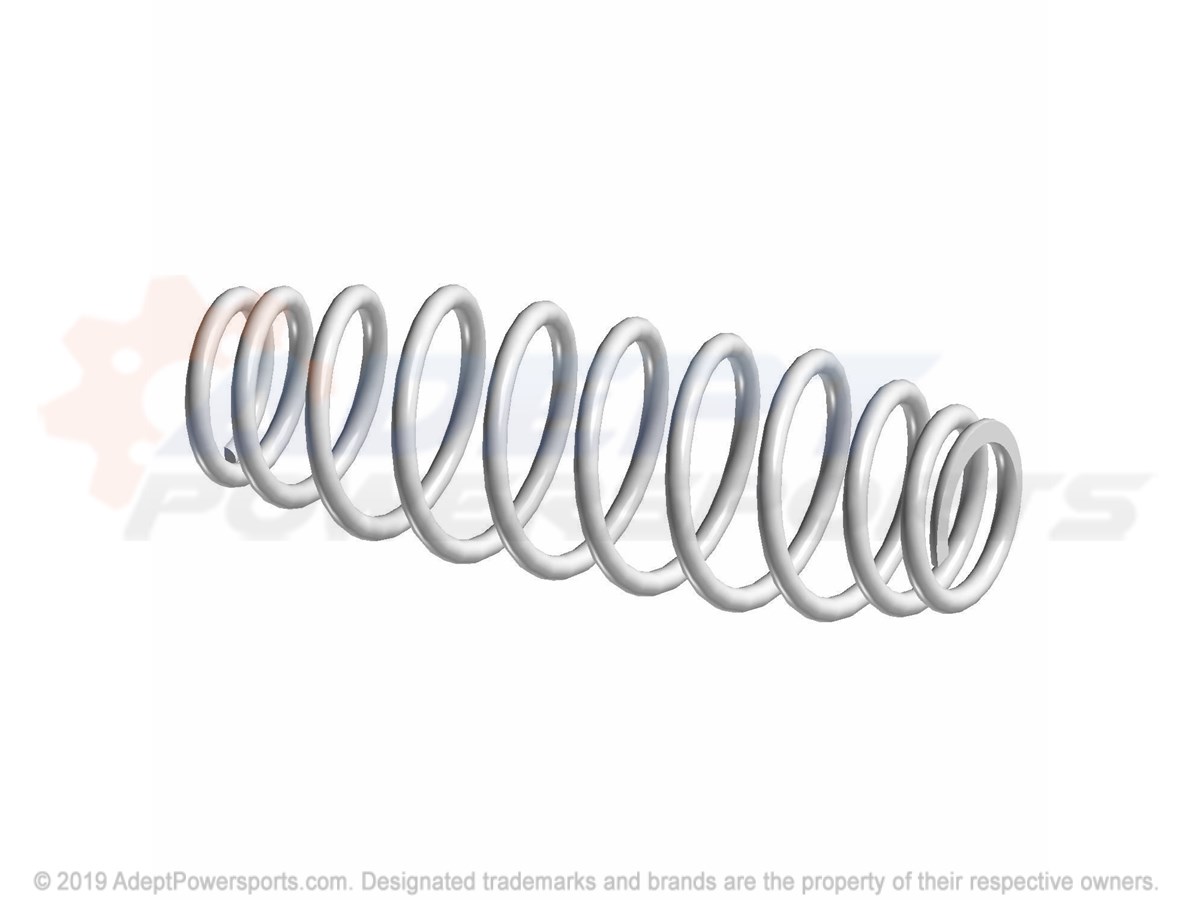

Polaris 7043809-133 Spring, 115#, White

SPRING, 115#, WHITE

Part #: 7043809-133 Required per assembly: 2 Note: EAK
Currently Not Available
5
Polaris 5253768 Cam-Adjusting Spring Steel

CAM-ADJUSTING SPRING STEEL

Part #: 5253768 Required per assembly: 2
Currently Not Available
6

SHOCK-FRONT 414.4MM EXT

Part #: 7043761 Required per assembly: 2
Currently Not Available
7

SCREW

Part #: 7518610 Required per assembly: 2 Note: Bolt, Flange
Currently Not Available
