Drive Shaft replacement parts for 2013 Yamaha YXR7FSPD

OEM Parts Yamaha 2013 Yamaha YXR7FSPD Drive Shaft

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	REAR AXLE GEAR CASE ASSEMBLY Part #: 1RB-46101-00-00 Required per assembly: 1 $1,806.29 $1,660.08 - + Add to cart
2	HOUSING, DRIVE, SHAFT Part #: 1RB-46151-00-00 Required per assembly: 1 $266.34 - + Add to cart
3	BEARING ASSEMBLY Part #: 5KM-46102-00-00 Required per assembly: 1 Note: (USA) $71.98 $60.15 - + Add to cart
4	BEARING, CYL.#17 Part #: 93317-85569-00 Required per assembly: 1 $93.98 $79.68 - + Add to cart
5	RING GEAR SET Part #: 5UG-Y4612-00-00 Required per assembly: 1 $561.99 $557.66 - + Add to cart
6	BEARING Part #: 93306-30574-00 Required per assembly: 1 Note: (USA) $79.98 $67.65 - + Add to cart
7	BOSS, 1 Part #: 5UG-46212-00-00 Required per assembly: 1 $220.99 $198.53 - + Add to cart

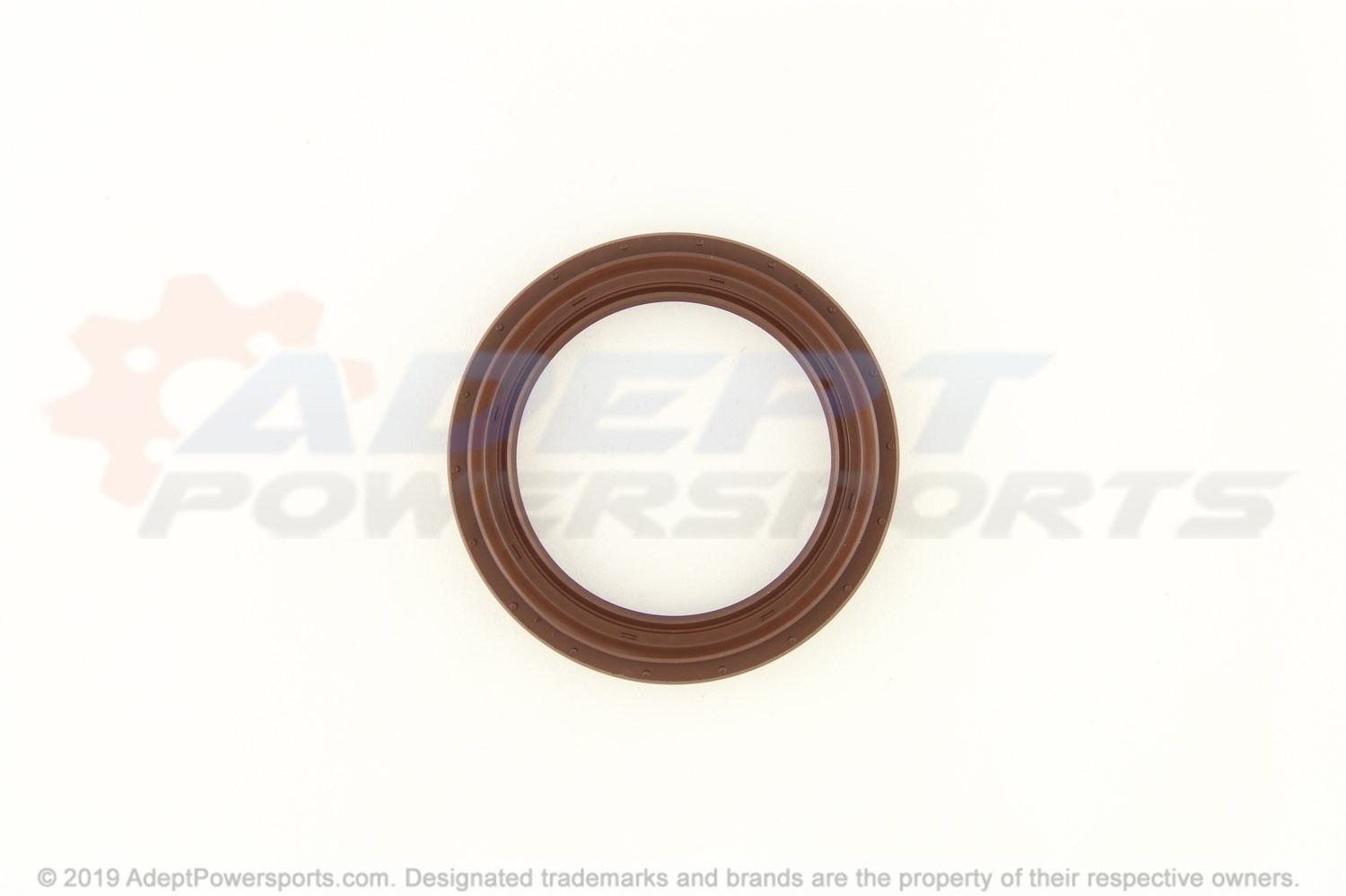

8	OIL SEAL Part #: 93102-35009-00 Required per assembly: 1 Note: (USA) $24.98 $19.04 - + Add to cart
9	NUT, SPEC'L, SHAPE Part #: 90179-65305-00 Required per assembly: 1 $47.99 $37.53 - + Add to cart
10	O-RING Part #: 93210-626A7-00 Required per assembly: 1 $16.48 $10.81 - + Add to cart
11	WASHER, PLATE Part #: 90201-12029-00 Required per assembly: 1 $8.49 $6.05 - + Add to cart
12	NUT, SPEC'L, SHAPE Part #: 90179-12325-00 Required per assembly: 1 $6.49 $5.76 - + Add to cart
13	HOUSING, PINION, BEARING Part #: 5UG-46144-00-00 Required per assembly: 1 $151.99 $129.58 - + Add to cart
14	SHIM, DRIVE, PISTON, (050T) Part #: 2HR-46127-00-50 Required per assembly: 1 Note: UR $16.48 $13.96 - + Add to cart
14	SHIM, DRIVE, PISTON, (030T) Part #: 2HR-46127-00-30 Required per assembly: 1 Note: U.R. $15.49 $11.89 - + Add to cart
14	SHIM, DRIVE, PISTON, (040T) Part #: 2HR-46127-00-40 Required per assembly: 1 Note: U.R. $16.48 $13.87 - + Add to cart
15	BOLT, WITH, WASHER Part #: 90119-08125-00 Required per assembly: 4 $4.15 $3.39 - + Add to cart
16	WASHER, THRUST, (14T) Part #: 24W-46118-00-14 Required per assembly: 1 Note: U.R. $17.98 $14.33 - + Add to cart
16	WASHER, THRUST, (12T) Part #: 24W-46118-00-12 Required per assembly: 1 Note: U.R. $21.98 $15.71 - + Add to cart
16	WASHER, THRUST, (16T) Part #: 24W-46118-00-16 Required per assembly: 1 Note: U.R. $17.98 $14.45 - + Add to cart
16	WASHER, THRUST, (20T) Part #: 24W-46118-00-20 Required per assembly: 1 Note: U.R. $16.48 $13.20 - + Add to cart
16	WASHER, THRUST, (18T) Part #: 24W-46118-00-18 Required per assembly: 1 Note: U.R. $17.98 $14.45 - + Add to cart
17	PLUG, STRAIGHT, SCREW Part #: 90340-20143-00 Required per assembly: 1 Note: (USA) $46.99 $35.03 - + Add to cart
18	O-RING (646) Part #: 93210-19123-00 Required per assembly: 1 Note: Sold in multiples of 5 only $8.99 $6.79 - + Add to cart
19	BREATHER Part #: 5UG-15371-00-00 Required per assembly: 1 $44.99 $34.13 - + Add to cart
20	HOUSING, BEARING Part #: 5KM-46152-00-00 Required per assembly: 1 Note: (USA) $100.98 $87.21 - + Add to cart
21	STOPPER, RING, GEAR Part #: 2HR-46156-00-00 Required per assembly: 1 $32.99 $22.59 - + Add to cart
22	WASHER, PLATE Part #: 90201-08087-00 Required per assembly: 1 Note: Sold in multiples of 5 only $3.95 $3.34 - + Add to cart
23	NUT, FLANGE, (JN5) Part #: 95707-08500-00 Required per assembly: 1 $1.95 $1.47 - + Add to cart
24	OIL SEAL Part #: 93102-65008-00 Required per assembly: 2 $44.99 $42.34 - + Add to cart
25	BEARING Part #: 93316-01701-00 Required per assembly: 1 Note: (USA) $181.99 $154.51 - + Add to cart
26	O-RING Part #: 93211-54698-00 Required per assembly: 1 $22.98 $17.40 - + Add to cart
27	SHIM, RING, GEAR, (040T) Part #: 22U-46117-00-40 Required per assembly: 1 Note: UR (USA) $4.84 $3.55 - + Add to cart
27	SHIM, RING, GEAR, (030T) Part #: 22U-46117-00-30 Required per assembly: 1 Note: UR (USA) $5.99 $3.81 - + Add to cart
27	SHIM, RING, GEAR, (025T) Part #: 22U-46117-00-25 Required per assembly: 1 Note: UR (USA) $4.84 $3.55 - + Add to cart
28	BOLT, HEXAGON Part #: 97017-08025-00 Required per assembly: 6 $11.49 $7.32 - + Add to cart
29	WASHER, PLAIN, (663) Part #: 92990-08600-00 Required per assembly: 6 $2.64 $2.28 - + Add to cart
30	BOLT, FLANGE, (3GD) Part #: 95817-10025-00 Required per assembly: 2 $9.49 $6.05 - + Add to cart
31	BOLT, FLANGE, (81E) Part #: 95022-10016-00 Required per assembly: 1 $9.49 $6.17 - + Add to cart
32	GASKET Part #: 90430-10171-00 Required per assembly: 1 $3.18 $2.65 - + Add to cart
33	SPRING, COMPRESSION Part #: 90501-20361-00 Required per assembly: 1 $14.49 $10.72 - + Add to cart
34	SHAFT, DRIVE Part #: 5B4-G6172-00-00 Required per assembly: 1 $185.99 $152.47 - + Add to cart
35	CIRCLIP, S-TYPE Part #: 99009-19400-00 Required per assembly: 1 $9.49 $6.05 - + Add to cart
36	COUPLING Part #: 5KM-46126-00-00 Required per assembly: 1 Note: (USA) $71.98 $58.97 - + Add to cart
37	CIRCLIP, S-TYPE Part #: 93410-22039-00 Required per assembly: 1 Note: Sold in multiples of 5 only $9.49 $6.05 - + Add to cart
38	DAMPER Part #: 5KM-46559-00-00 Required per assembly: 1 Note: (USA) $8.49 $6.73 - + Add to cart
39	SEAL 2 Part #: 5KM-46137-00-00 Required per assembly: 1 Note: (USA) $17.98 $14.36 - + Add to cart
40	SEAL 1 Part #: 5KM-46136-00-00 Required per assembly: 1 Note: (USA) $9.49 $7.61 - + Add to cart
41	HOSE (L1700) Part #: 90445-070G6-00 Required per assembly: 1 $40.99 $26.37 - + Add to cart
42	CLIP, SCISSOR Part #: 90467-07029-00 Required per assembly: 1 $2.60 $1.89 - + Add to cart
43	CLAMP Part #: 90464-12830-00 Required per assembly: 1 $1.49 $1.03 - + Add to cart
44	CLAMP Part #: 90464-19815-00 Required per assembly: 2 Note: (YMUS) $1.80 $1.72 - + Add to cart
45	CLAMP Part #: 90464-12830-00 Required per assembly: 1 $1.49 $1.03 - + Add to cart
46	BOLT, FLANGE Part #: 90105-12016-00 Required per assembly: 2 $13.49 $11.07 - + Add to cart
47	NUT, SELF-LOCKING Part #: 90185-12002-00 Required per assembly: 2 $13.49 $9.87 - + Add to cart
48	WASHER, PLAIN Part #: 92990-12200-00 Required per assembly: 4 $9.49 $6.05 - + Add to cart
