Frame replacement parts for 2013 Yamaha YXR7FSPD

OEM Parts Yamaha 2013 Yamaha YXR7FSPD Frame

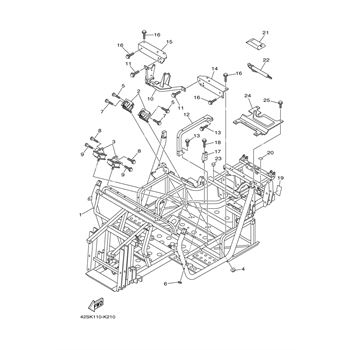

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	FRAME COMP. Part #: 1RB-F1110-00-00 Required per assembly: 1 Not Available
2	DAMPER, RUBBER, 1 Part #: 5B4-21485-01-00 Required per assembly: 2 $124.98 $101.23 - + Add to cart
3	DAMPER, RUBBER, 1 Part #: 5B4-21485-01-00 Required per assembly: 2 $124.98 $101.23 - + Add to cart
4	NUT, SELF-LOCKING Part #: 90185-10011-00 Required per assembly: 2 $4.95 $4.10 - + Add to cart
5	BOLT, FLANGE, (2UJ) Part #: 95024-06016-00 Required per assembly: 2 $9.49 $6.55 - + Add to cart
6	NUT, SELF-LOCKING Part #: 90185-10011-00 Required per assembly: 2 $4.95 $4.10 - + Add to cart
7	BOLT, FLANGE Part #: 95812-10035-00 Required per assembly: 2 $6.49 $4.91 - + Add to cart
8	BOLT, FLANGE Part #: 90105-10314-00 Required per assembly: 2 $9.49 $6.50 - + Add to cart
9	BOLT, FLANGE, (2UJ) Part #: 95024-06016-00 Required per assembly: 2 $9.49 $6.55 - + Add to cart
10	REINFORCEMENT, FRAME, 1 Part #: 5B4-F1986-00-00 Required per assembly: 1 Not Available
11	BOLT, FLANGE Part #: 95817-10020-00 Required per assembly: 2 $8.49 $5.15 - + Add to cart
12	SEAT BRACKET COMP. Part #: 5B4-F4103-01-00 Required per assembly: 1 Not Available
13	BOLT, FLANGE Part #: 90105-08867-00 Required per assembly: 4 $1.95 $1.47 - + Add to cart
14	SUPPORT, SEAT Part #: 5UG-F114H-01-00 Required per assembly: 1 Not Available
15	SUPPORT, SEAT Part #: 5UG-F114J-01-00 Required per assembly: 1 Not Available
16	BOLT, FLANGE Part #: 90105-08867-00 Required per assembly: 8 $1.95 $1.47 - + Add to cart
17	BRACKET Part #: 5UG-F116B-00-00 Required per assembly: 1 Note: (YMUS) Not Available
18	BOLT, FLANGE Part #: 90105-06831-00 Required per assembly: 1 $2.29 $1.72 - + Add to cart
19	LABEL 7 Part #: 5B4-F151K-00-00 Required per assembly: 1 Note: ENGLISH Not Available
20	LABEL 6 Part #: 5UG-F151J-00-00 Required per assembly: 1 Note: (YMUS) Not Available
21	TOOL KIT Part #: 5B4-F8100-00-00 Required per assembly: 1 $47.99 $35.47 - + Add to cart
22	GAUGE, AIR Part #: 5UG-F811A-00-00 Required per assembly: 1 Note: (YMUS) $7.99 $7.18 - + Add to cart
23	STOPPER, MAIN, STAND Part #: 5UG-F7114-01-00 Required per assembly: 2 Not Available
24	INSULATOR, HEAT Part #: 5B4-F2898-00-00 Required per assembly: 1 Not Available
25	BOLT, FLANGE Part #: 90105-06831-00 Required per assembly: 4 $2.29 $1.72 - + Add to cart
