Clutch Cover - R14wh88a/9Ea All Options replacement parts for 2014 Polaris Ranger 900 Crew All Options

OEM Parts Polaris 2014 Polaris Ranger 900 Crew All Options Clutch Cover - R14wh88a/9Ea All Options

Clutch Cover - R14WH88A/9EA All Options Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-COVER CLUTCH OUTER Part #: 2634179 Required per assembly: 1 Note: INCL. 2,3 Currently Not Available
2	O-RING, MOLDED Part #: 5411432 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
3	PLUG-DRAIN, CLUTCH, COVER Part #: 5434264 Required per assembly: 1 Note: Plug, Drain Currently Not Available
4	SEAL-OUTER CLUTCH COVER Part #: 5526449 Required per assembly: 1 Currently Not Available
5	SEAL-COVER PTO Part #: 5813708 Required per assembly: 1 Currently Not Available
6	ASM-BOLT/WASHER 20 MM Part #: 7519278 Required per assembly: 7 Currently Not Available
7	SCREW Part #: 7519330 Required per assembly: 8 ~~$2.50~~ $1.73 - + Add to cart
8	ASSEMBLY, COVER, CLUTCH, INNER Part #: 2635158 Required per assembly: 1 Note: INCL. 9-15 Currently Not Available
9	BRACKET, GUARD, CLUTCH, COVER Part #: 5256223 Required per assembly: 1 Currently Not Available
10	COVER-CLUTCH, INNER, BLK Part #: 5454487-070 Required per assembly: 1 Currently Not Available

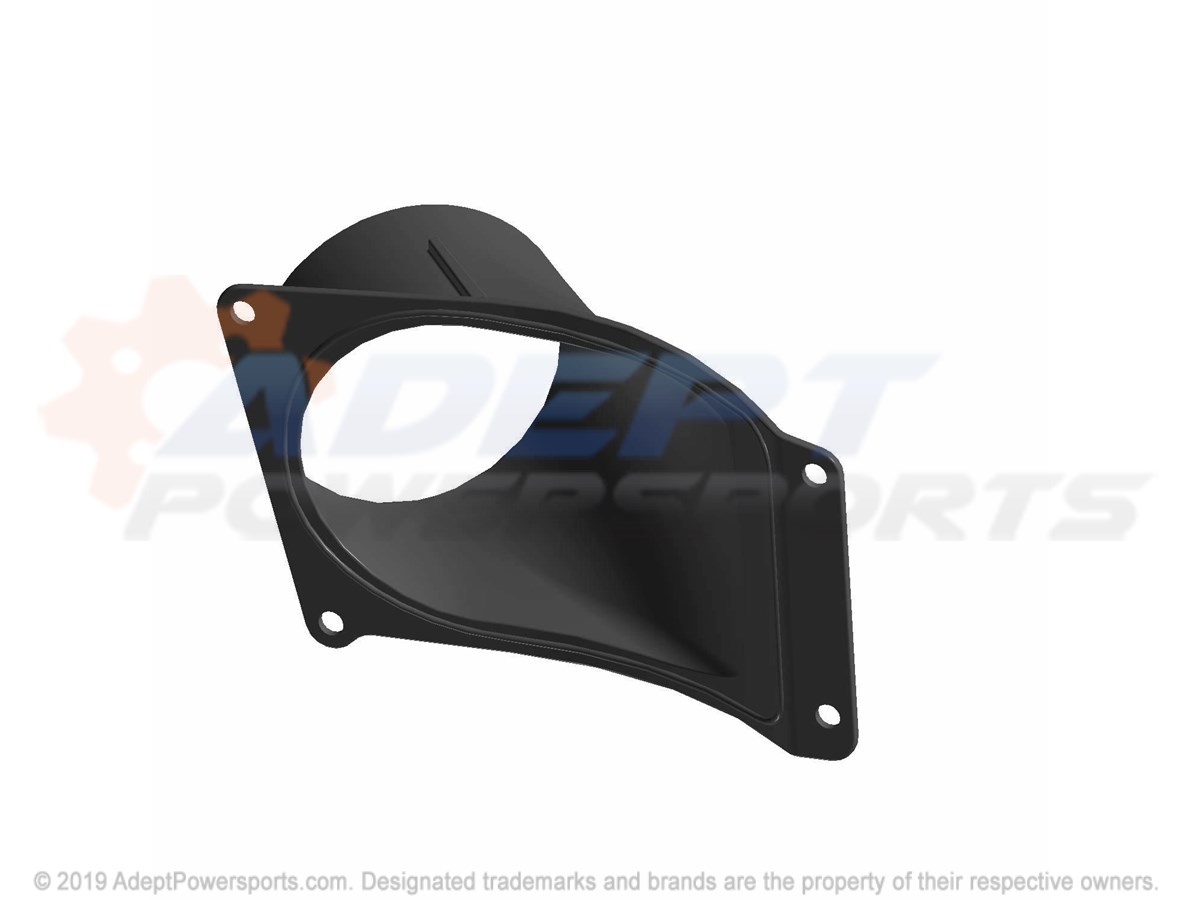

11	DUCT, CLUTCH, AIR, OUTLET Part #: 5439085 Required per assembly: 1 Currently Not Available
12	DUCT, CLUTCH, AIR, INLET Part #: 5439086 Required per assembly: 1 Currently Not Available
13	SCREW Part #: 7518546 Required per assembly: 3 Currently Not Available
14	SCREW Part #: 7519205 Required per assembly: 5 ~~$2.99~~ $1.73 - + Add to cart
15	NUT, FLANGE Part #: 7547453 Required per assembly: 3 Currently Not Available
16	BRACKET, SCREEN, BELT Part #: 5256957 Required per assembly: 1 Currently Not Available
17	HOSE, CLUTCH, AIR, OUTLET Part #: 5414537 Required per assembly: 1 Currently Not Available
18	HOSE-CLUTCH, AIR, IN, TRAP, 900/1K Part #: 5416021 Required per assembly: 1 Currently Not Available
19	HOSE, INTAKE, CLUTCH Part #: 5414854 Required per assembly: 1 Currently Not Available
20	DUCT, INTAKE, CLUTCH Part #: 5451066 Required per assembly: 1 Note: BUILT 7/02/13 AND AFTER Currently Not Available
20	DUCT, INTAKE, CLUTCH Part #: 5451066 Required per assembly: 1 Note: BUILT 7/01/13 AND BEFORE Currently Not Available
21	INTAKE, FENDER, REAR Part #: 5450695 Required per assembly: 1 Currently Not Available
22	PAD, CLUTCH, DUCT Part #: 5813938 Required per assembly: 1 Note: BUILT 7/01/13 AND BEFORE Currently Not Available
23	CLAMP, BAND, NARROW Part #: 7080707 Required per assembly: 1 Note: Clamp, Narrow Band ~~$4.99~~ $2.88 - + Add to cart
24	CLAMP Part #: 7081626 Required per assembly: 2 Note: Clamp Currently Not Available
24	CLAMP Part #: 7081626 Required per assembly: 2 Note: Clamp Currently Not Available
25	SCREW Part #: 7518238 Required per assembly: 4 ~~$3.79~~ $1.73 - + Add to cart
26	SCREW Part #: 7519045 Required per assembly: 2 Currently Not Available
27	DECAL-BELT CAUTION/CHECK Part #: 7177469 Required per assembly: 1 Currently Not Available
