2014 Polaris Ranger 900 Crew All Options R14WH88A/9EA - Pedal And Master Cylinder Mounting - R14wh88a/9Ea All Options

Pedal and Master Cylinder Mounting - R14WH88A/9EA All Options Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 7661843 Clevis (Us Only)

CLEVIS (US ONLY)

Part #: 7661843 Required per assembly: 1 Note: Pin, Clevis
Currently Not Available
2

NUT, FLANGE

Part #: 7547332 Required per assembly: 4 Note: Nut, Nylok
Currently Not Available
2

NUT, FLANGE

Part #: 7547332 Required per assembly: 4 Note: Nut, Nylok
Currently Not Available
3

RING, RETAINING

Part #: 7710901 Required per assembly: 1
Currently Not Available
4
Polaris 5439274 Bushing, Pedal, Pivot

BUSHING, PEDAL, PIVOT

Part #: 5439274 Required per assembly: 2
Currently Not Available
4
Polaris 5439274 Bushing, Pedal, Pivot

BUSHING, PEDAL, PIVOT

Part #: 5439274 Required per assembly: 2
Currently Not Available
5

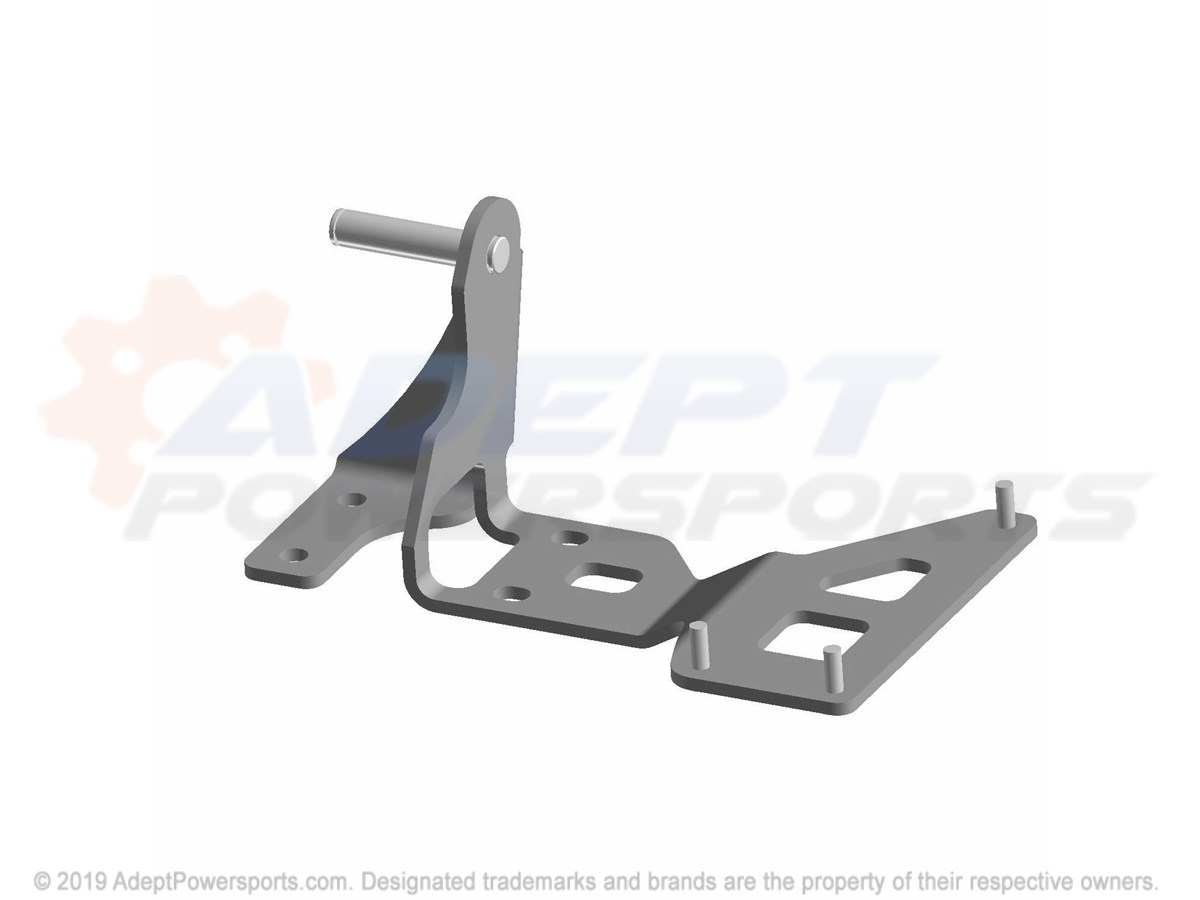

Polaris 1019667-329 Mount, Pedal, Black

MOUNT, PEDAL, BLACK

Part #: 1019667-329 Required per assembly: 1
Currently Not Available
6
Polaris 7661140 Pin, Clip

PIN, CLIP

Part #: 7661140 Required per assembly: 1
Currently Not Available
7
Polaris 1021765-458 Weld-Brake, Pedal, M.Blk

WELD-BRAKE, PEDAL, M.BLK

Part #: 1021765-458 Required per assembly: 1
Currently Not Available
