Front - Z146t1eam/Eaw replacement parts for 2014 Polaris RZR XP 4 1000/PS

OEM Parts Polaris 2014 Polaris RZR XP 4 1000/PS Front - Z146t1eam/Eaw

Front - Z146T1EAM/EAW Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

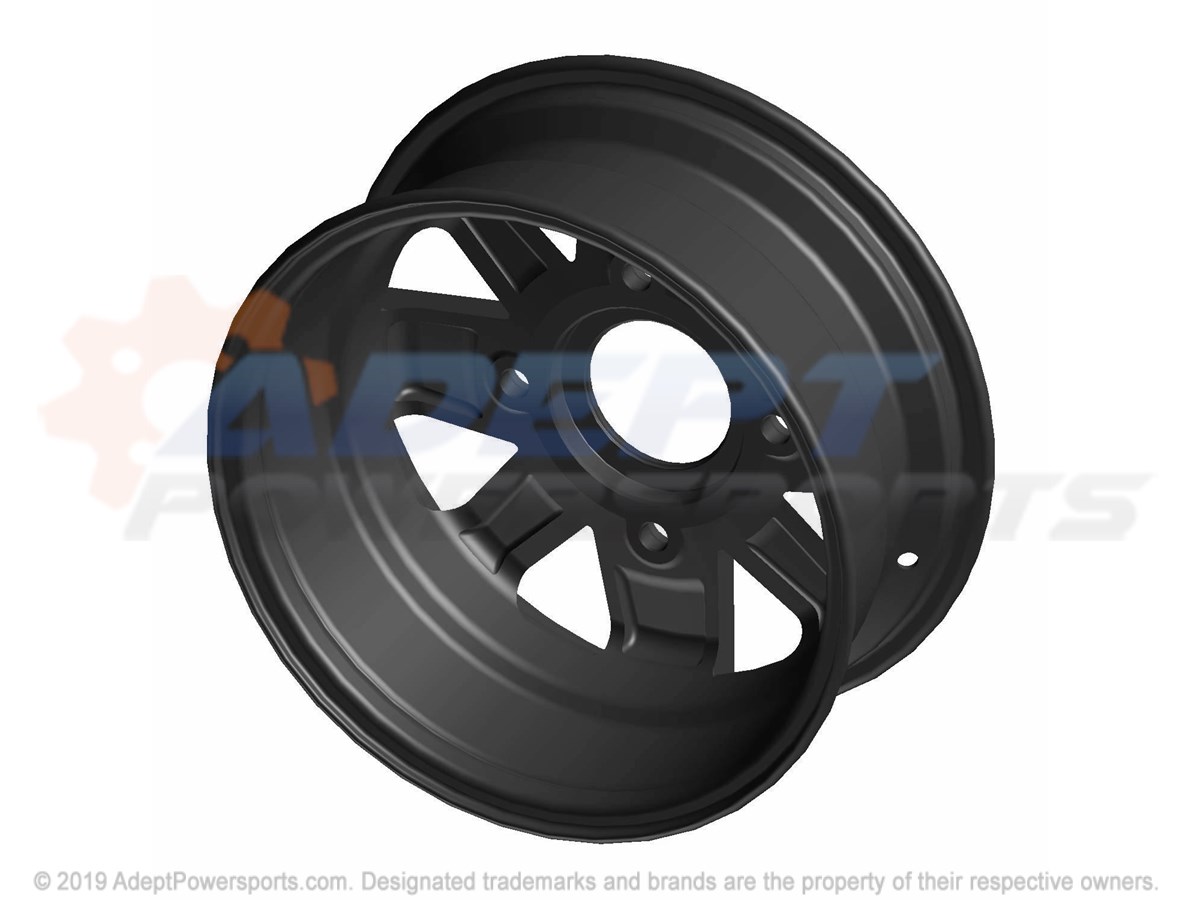

1	RIM, FRONT, CAST Part #: 1521963-655 Required per assembly: 2 Currently Not Available
2	CAP-RIM, BLK Part #: 1523993-655 Required per assembly: 2 Currently Not Available
3	VALVE, RIM Part #: 1525017 Required per assembly: 2 Currently Not Available
4	TIRE, FRONT Part #: 5414622 Required per assembly: 2 Currently Not Available
5	NUT, WHEEL Part #: 7547489 Required per assembly: 8 Currently Not Available
6	BEARING-BALL SEALED 44X72X33.1 Part #: 3514699 Required per assembly: 2 Currently Not Available

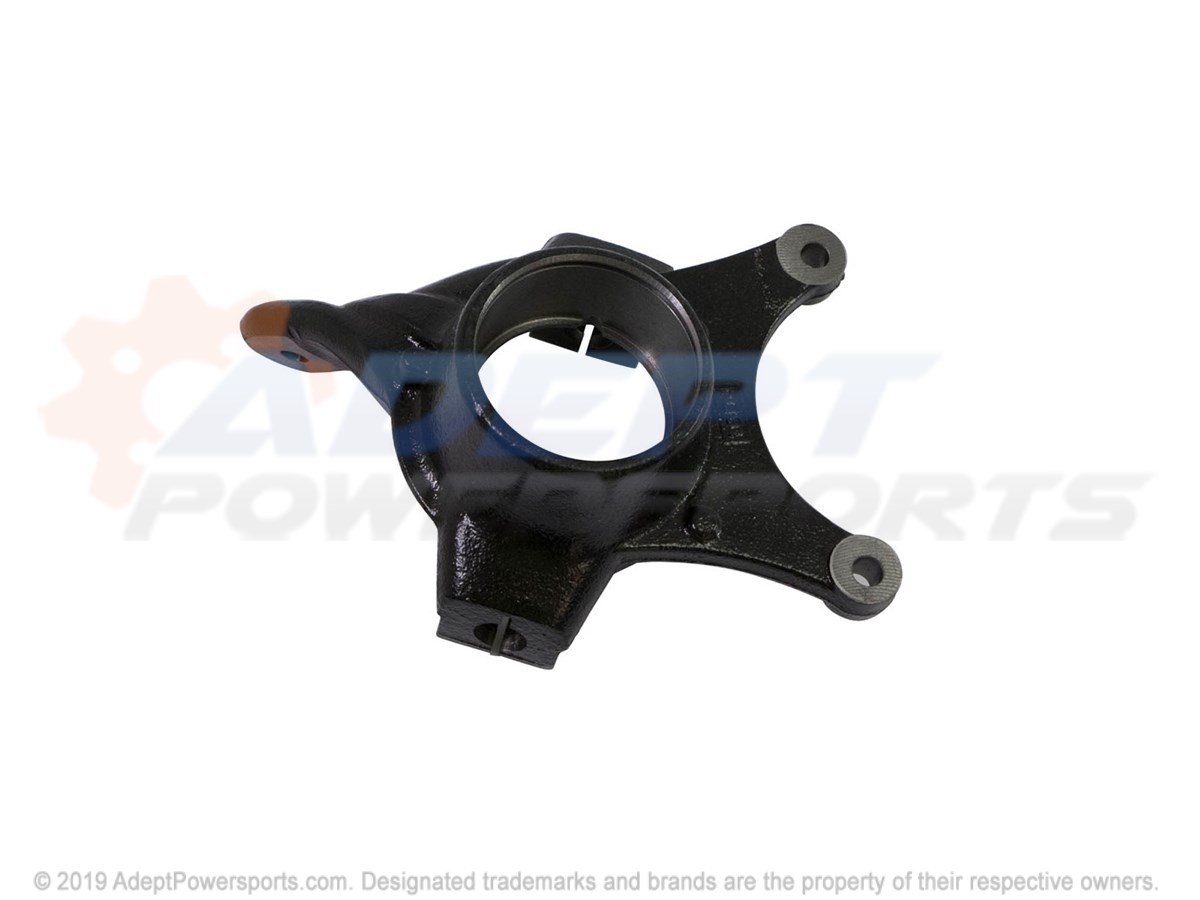

7	KNUCKLE, FRONT, RH Part #: 5138414 Required per assembly: 1 Currently Not Available

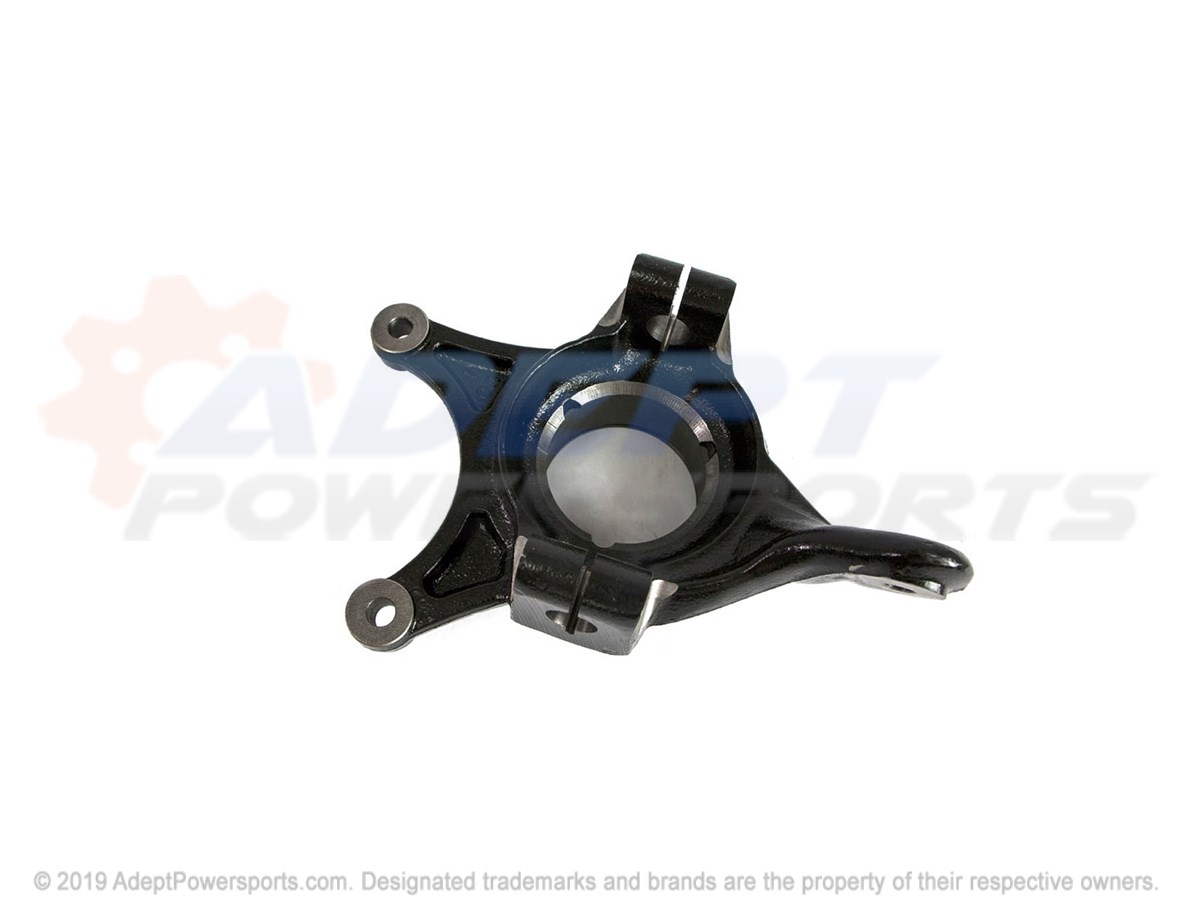

7	KNUCKLE, FRONT, LH Part #: 5138413 Required per assembly: 1 Currently Not Available
8	NUT, CASTLE, [4X4] Part #: 7547337 Required per assembly: 2 Note: Nut, Castle ~~$3.99~~ $2.30 - + Add to cart
9	WASHER, CONE Part #: 7555796 Required per assembly: 4 Currently Not Available
10	PIN, COTTER Part #: 7661404 Required per assembly: 2 Currently Not Available
11	RING, RETAINING Part #: 7710440 Required per assembly: 2 Note: Ring, Retaining Currently Not Available

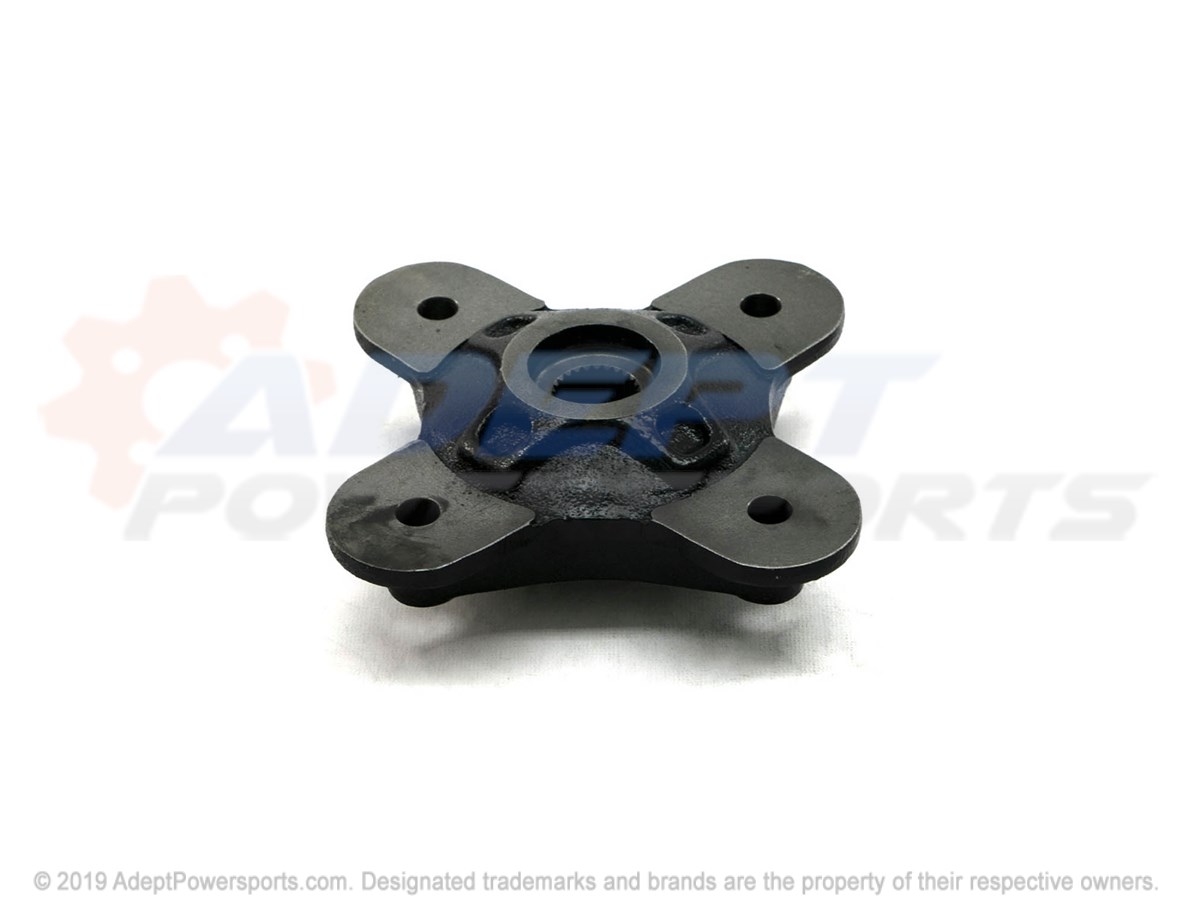

12	HUB-WHEEL, (MACH), BLACK Part #: 5139265-067 Required per assembly: 2 Currently Not Available
13	DISC, BRAKE Part #: 5257196 Required per assembly: 2 Currently Not Available

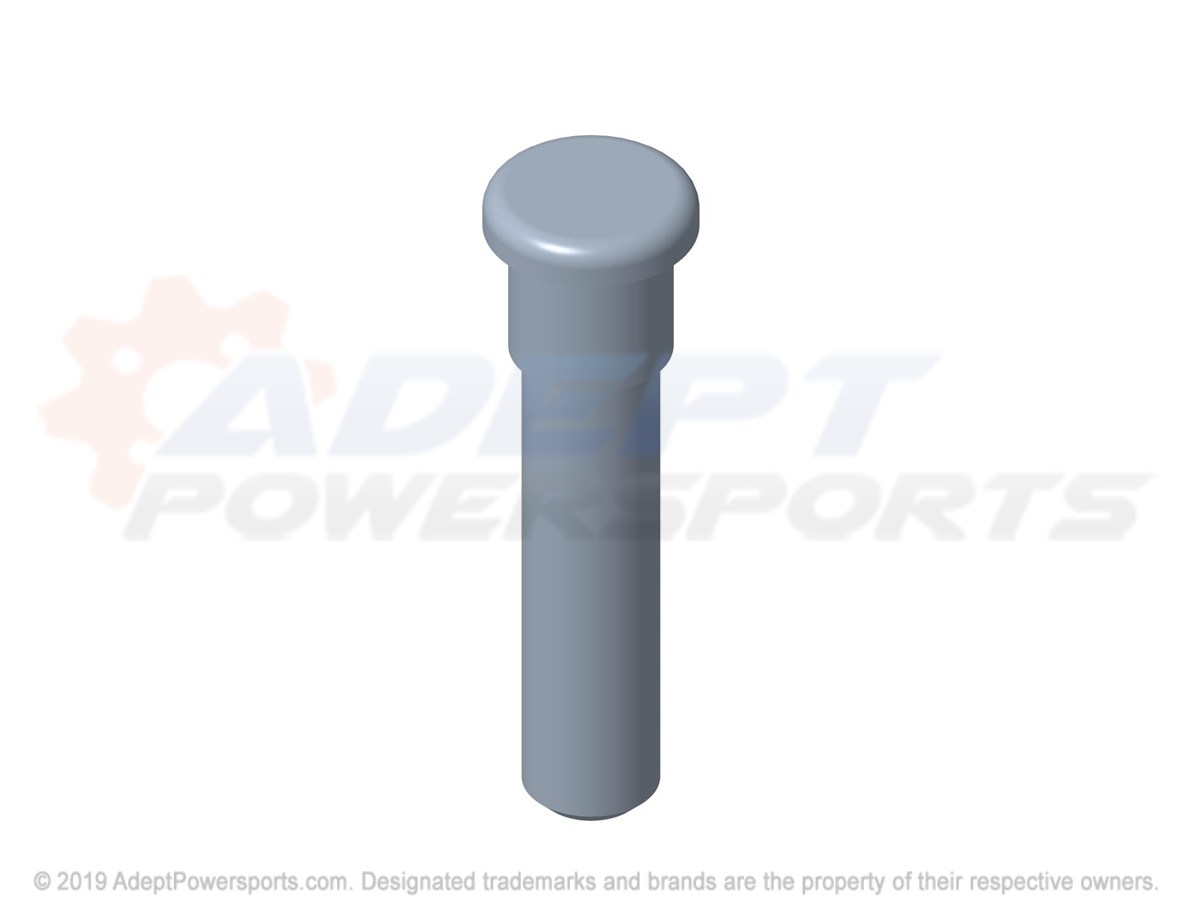

14	STUD, WHEEL Part #: 7519792 Required per assembly: 8 Note: Sold in multiples of 6 only Currently Not Available
