Cam Chain And Sprocket - A15saa32eh (49Atvcamchain14sp325) replacement parts for 2015 Polaris Hawkeye 325 2X4

OEM Parts Polaris 2015 Polaris Hawkeye 325 2X4 Cam Chain And Sprocket - A15saa32eh (49Atvcamchain14sp325)

Cam Chain and Sprocket - A15SAA32EH (49ATVCAMCHAIN14SP325) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

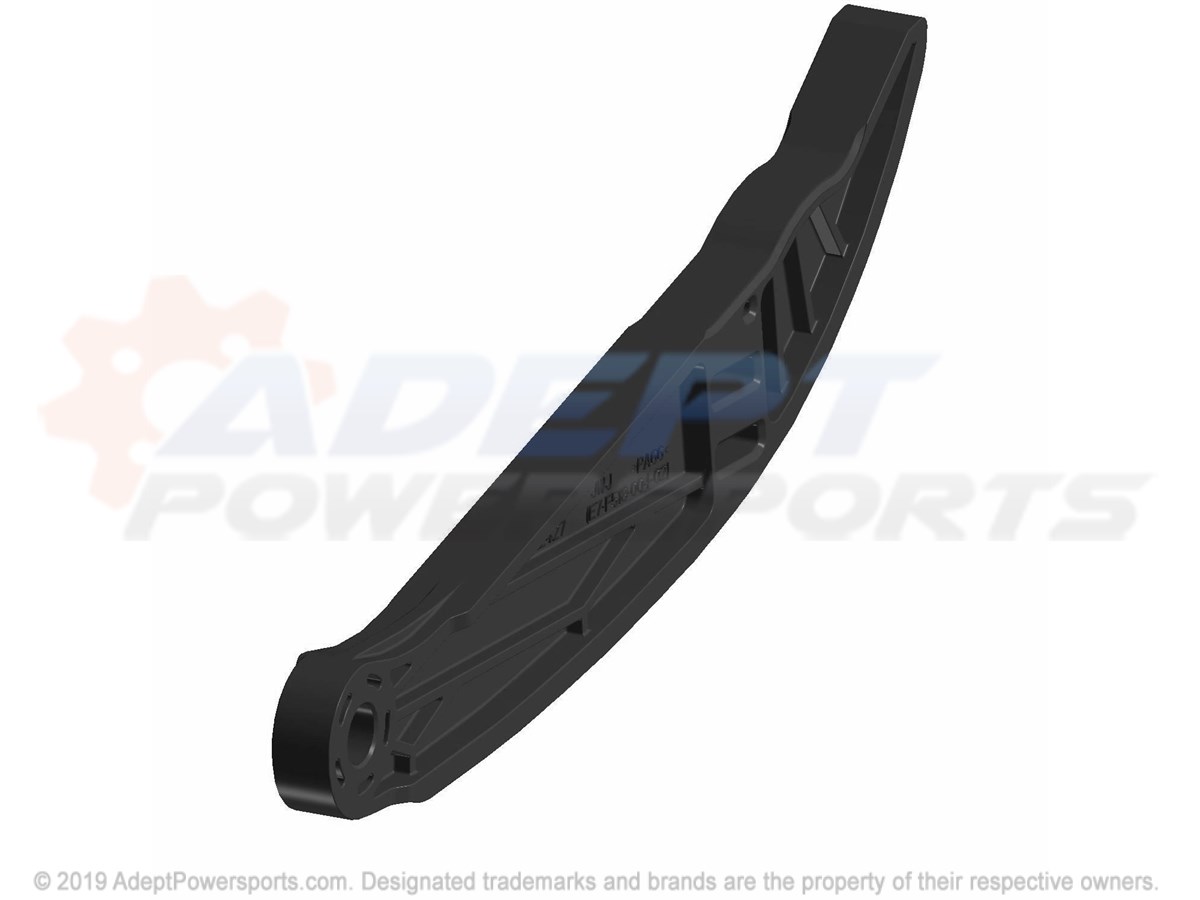

1	GUIDE-CAMCHAIN, FIXED Part #: 3022393 Required per assembly: 1 Currently Not Available

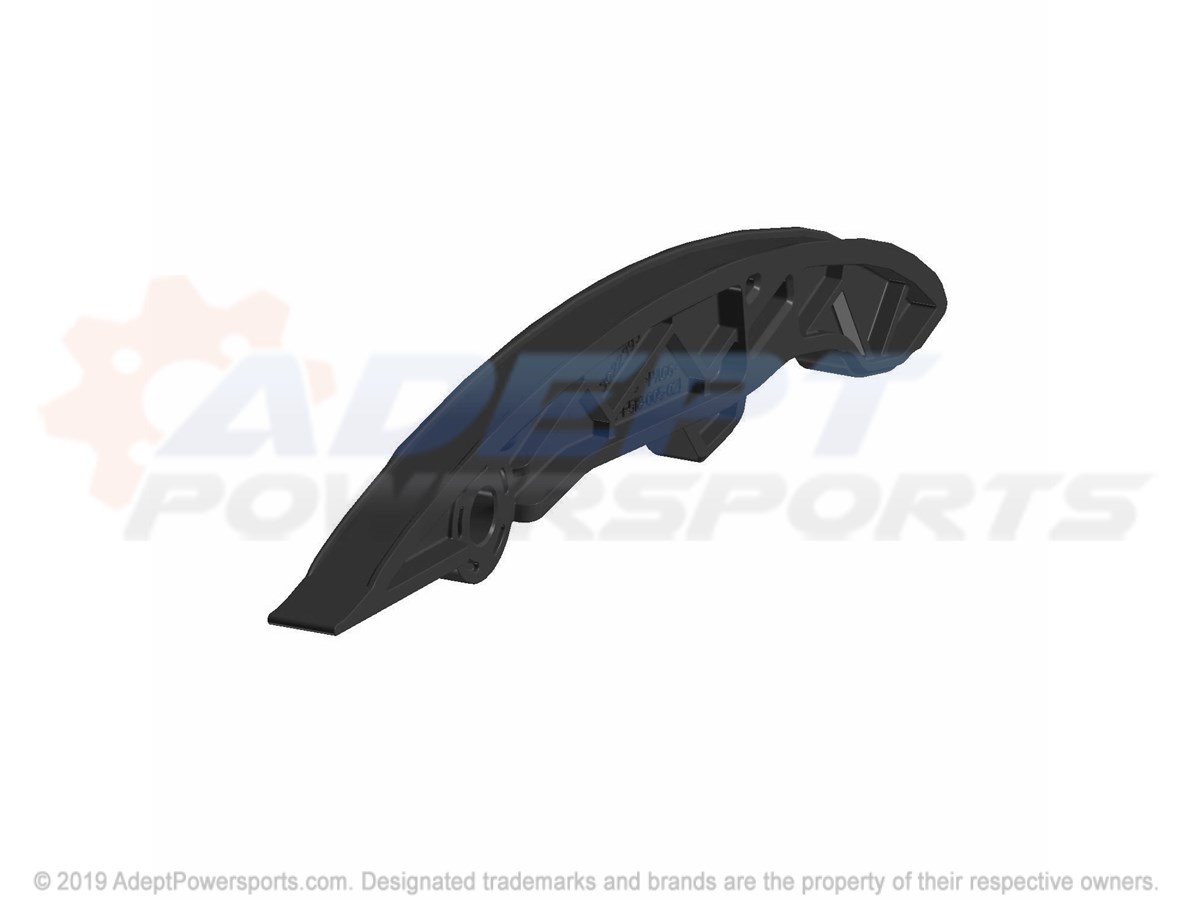

2	GUIDE-CAMCHAIN, TENSIONER Part #: 3022427 Required per assembly: 1 Currently Not Available

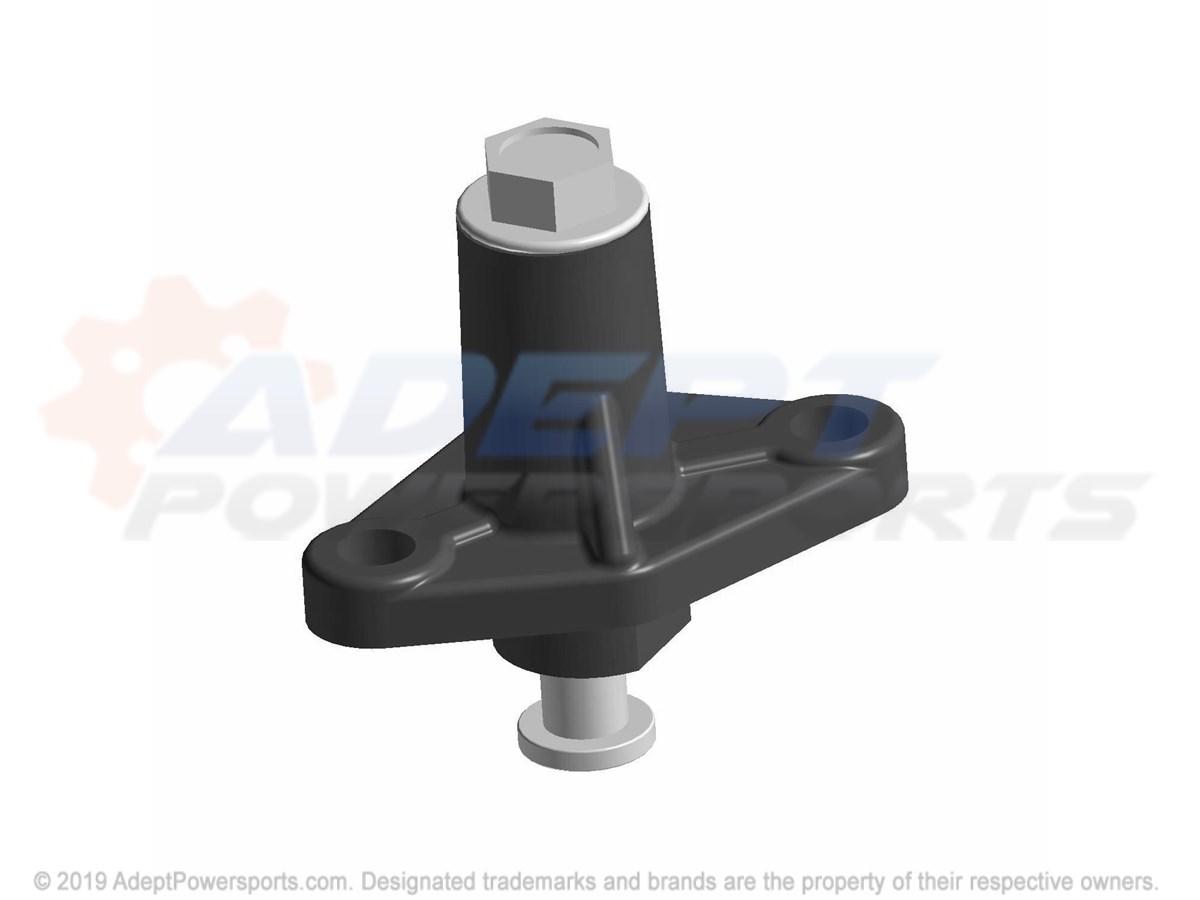

3	TENSIONER-CAMCHAIN, MECH Part #: 3022429 Required per assembly: 1 Currently Not Available

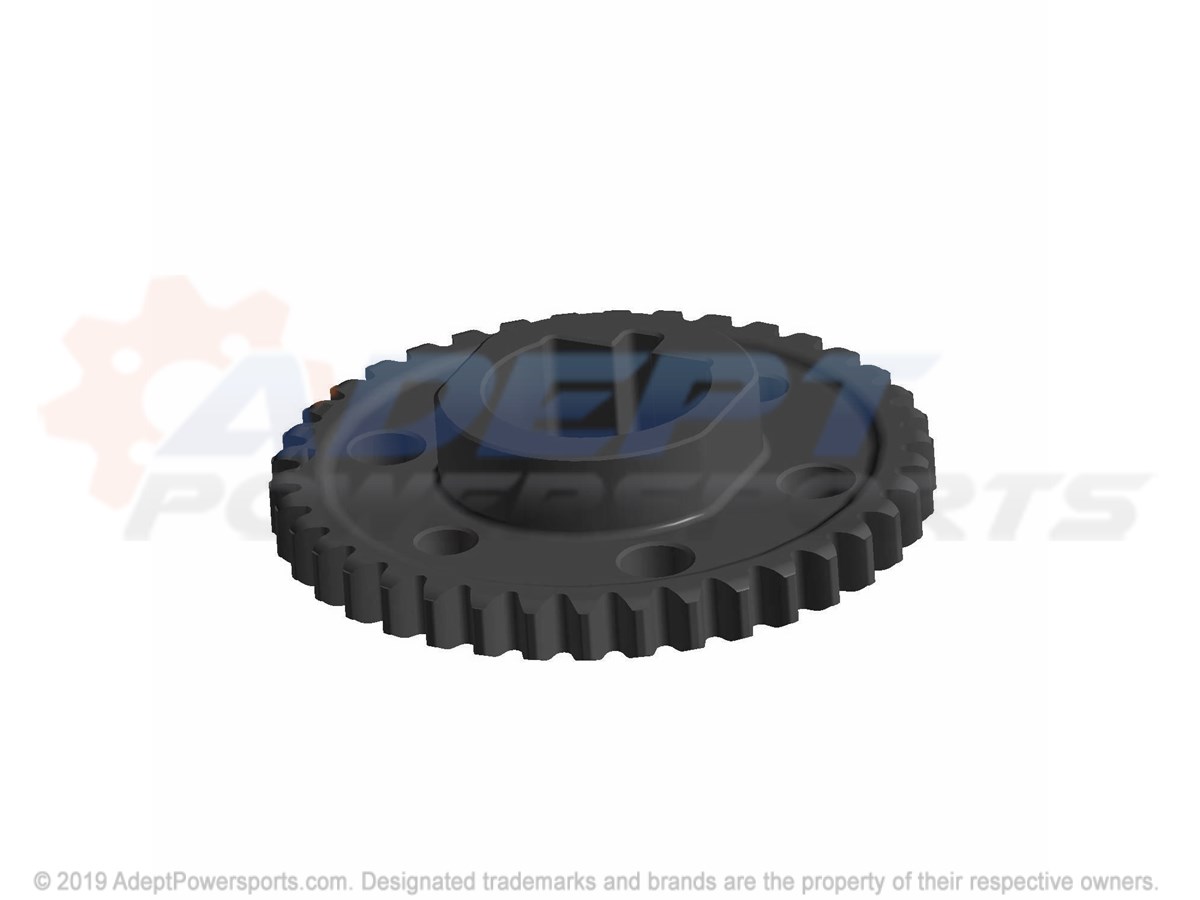

4	SPROCKET-CAMSHAFT, INTAKE Part #: 3222201 Required per assembly: 1 Currently Not Available

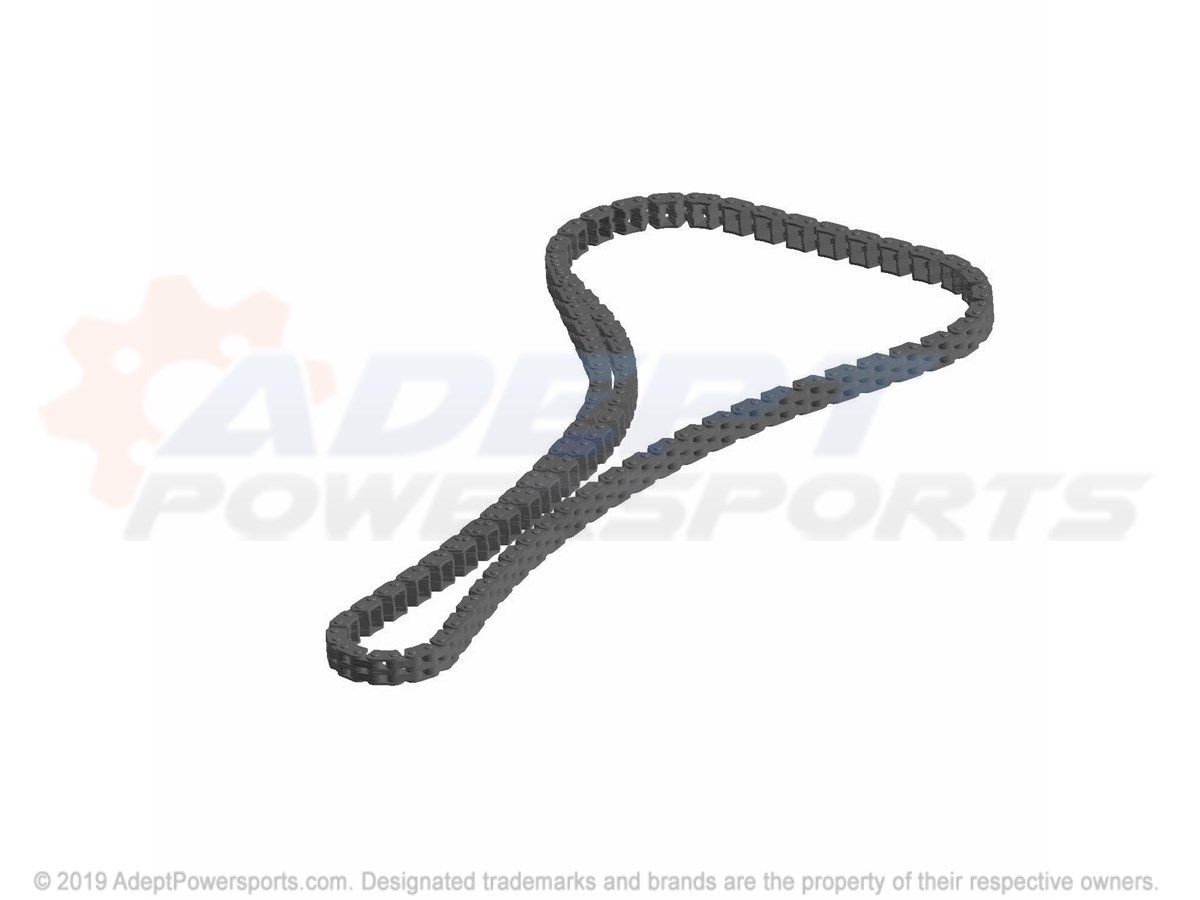

5	CHAIN-CAMSHAFT Part #: 3222203 Required per assembly: 1 Currently Not Available
6	GUIDE-CAM, DRIVE, LOWER Part #: 5439738 Required per assembly: 1 Currently Not Available

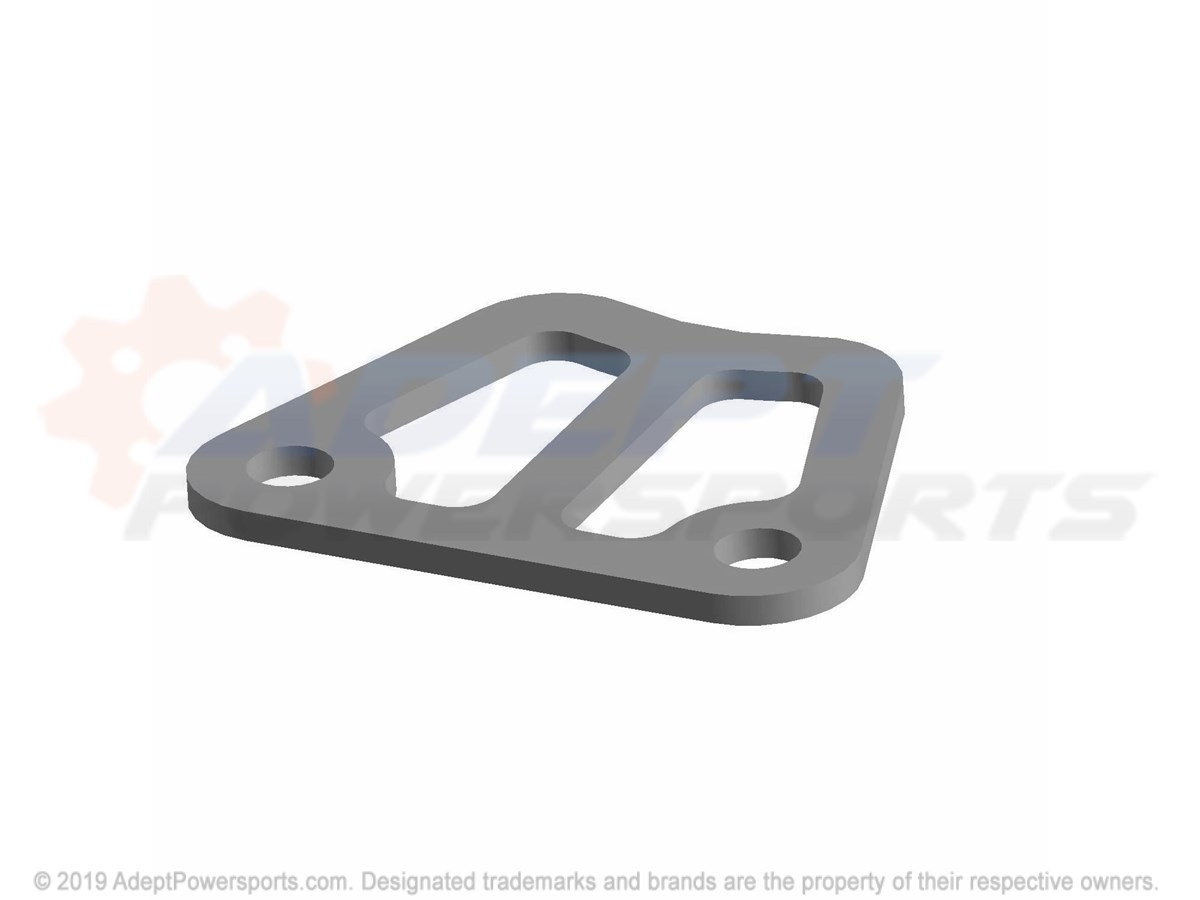

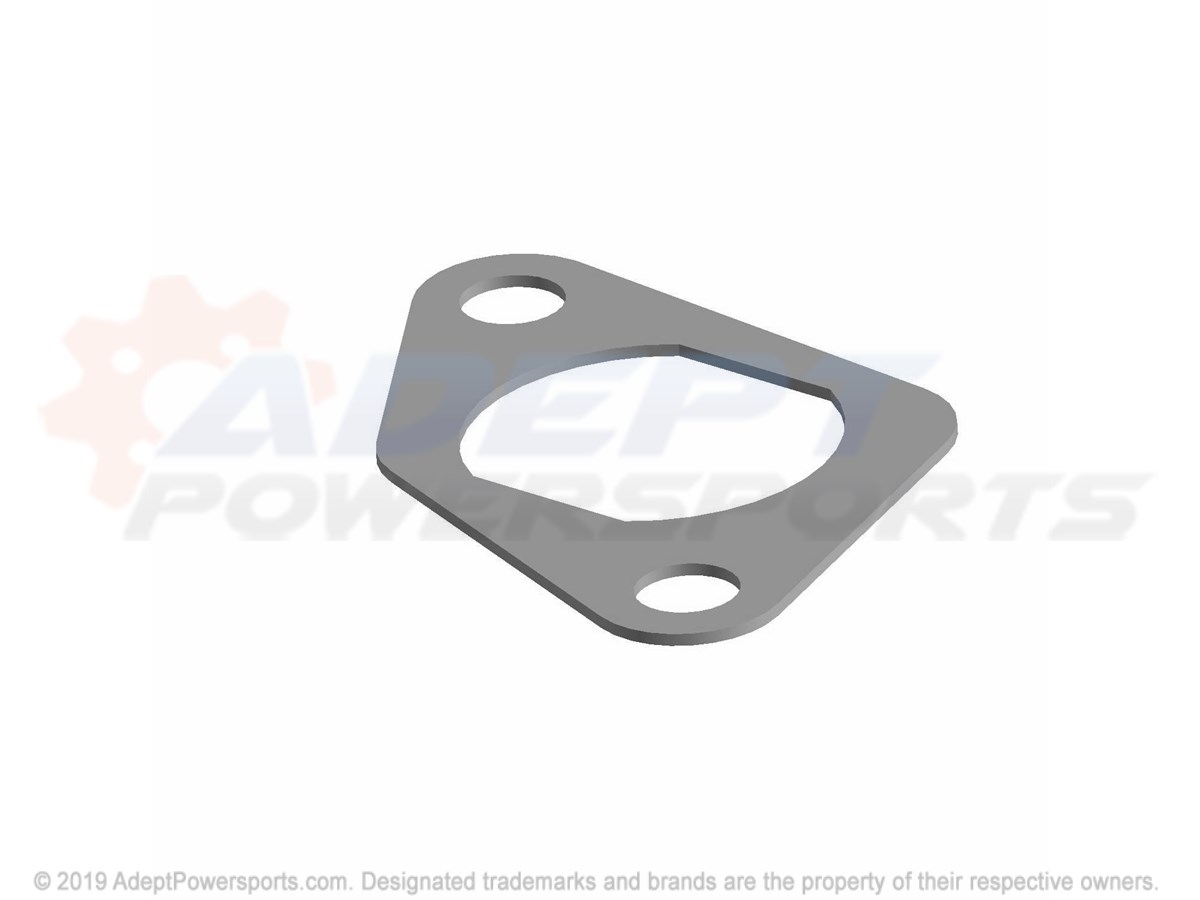

7	GASKET-TENSIONER Part #: 5814107 Required per assembly: 1 Currently Not Available

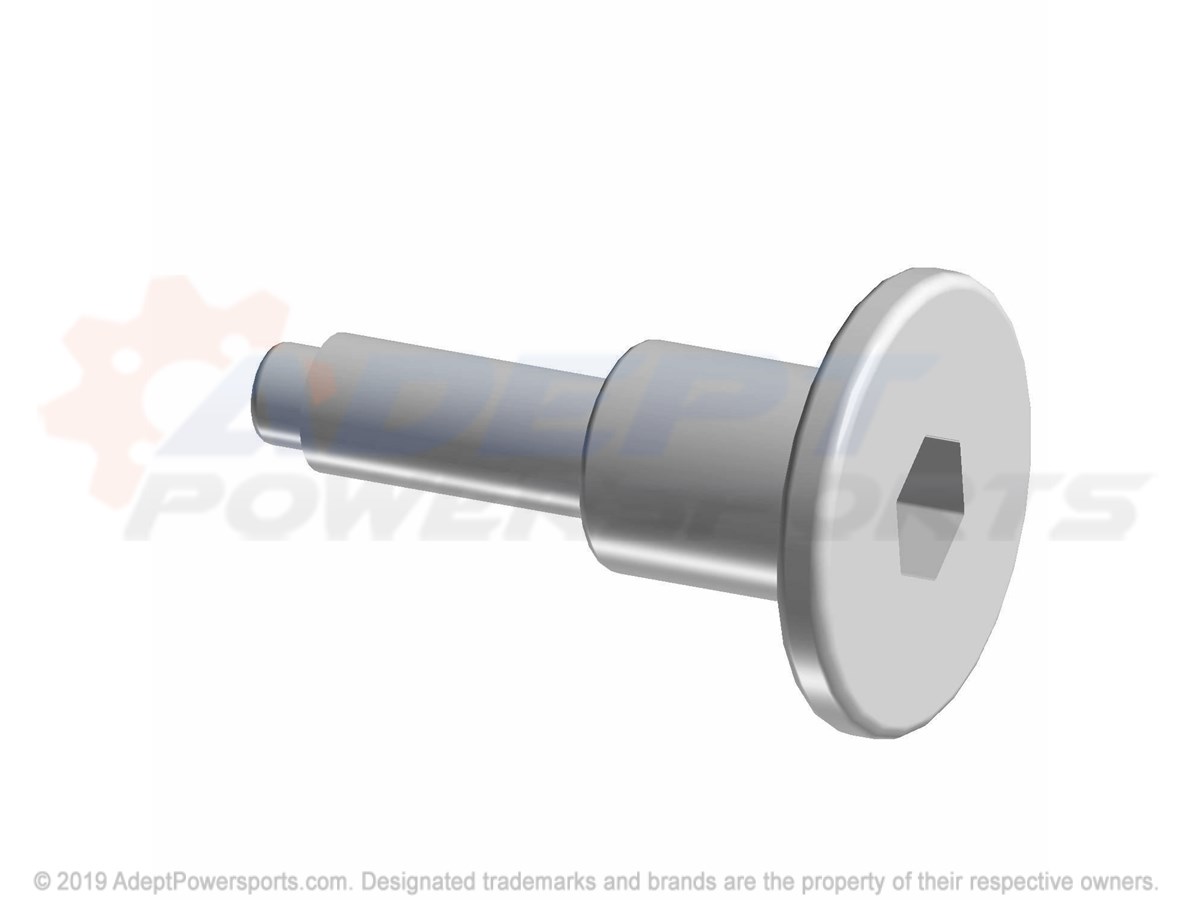

8	SCR-SHLDR-M6X11.75X14 Part #: 7519350 Required per assembly: 2 Currently Not Available
9	SCREW Part #: 7518548 Required per assembly: 3 Currently Not Available
10	SCR-HXFL-M10X1.5X25, DIN6921ZB Part #: 7519349 Required per assembly: 1 Currently Not Available

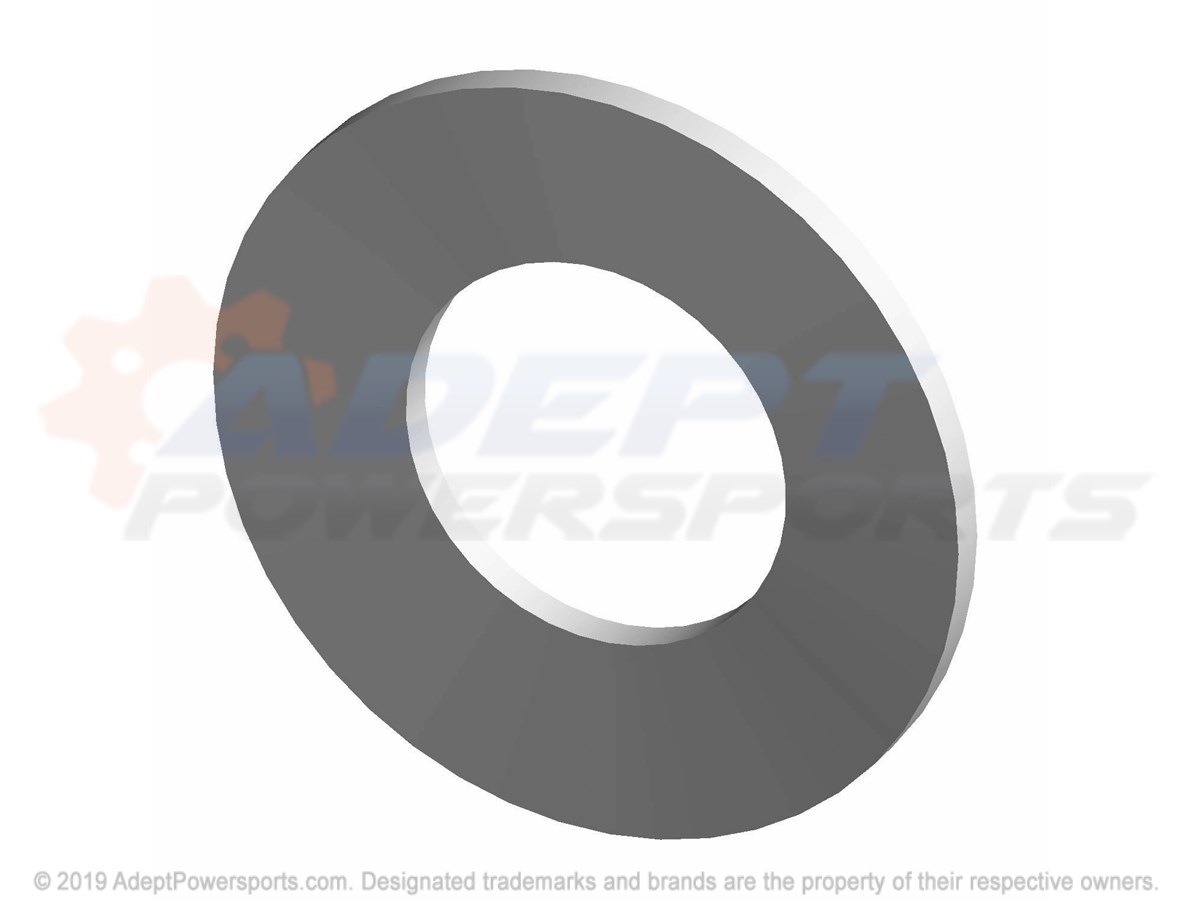

11	WASHER-FLAT M10X30X2.5 HARDEN Part #: 7556698 Required per assembly: 1 Currently Not Available

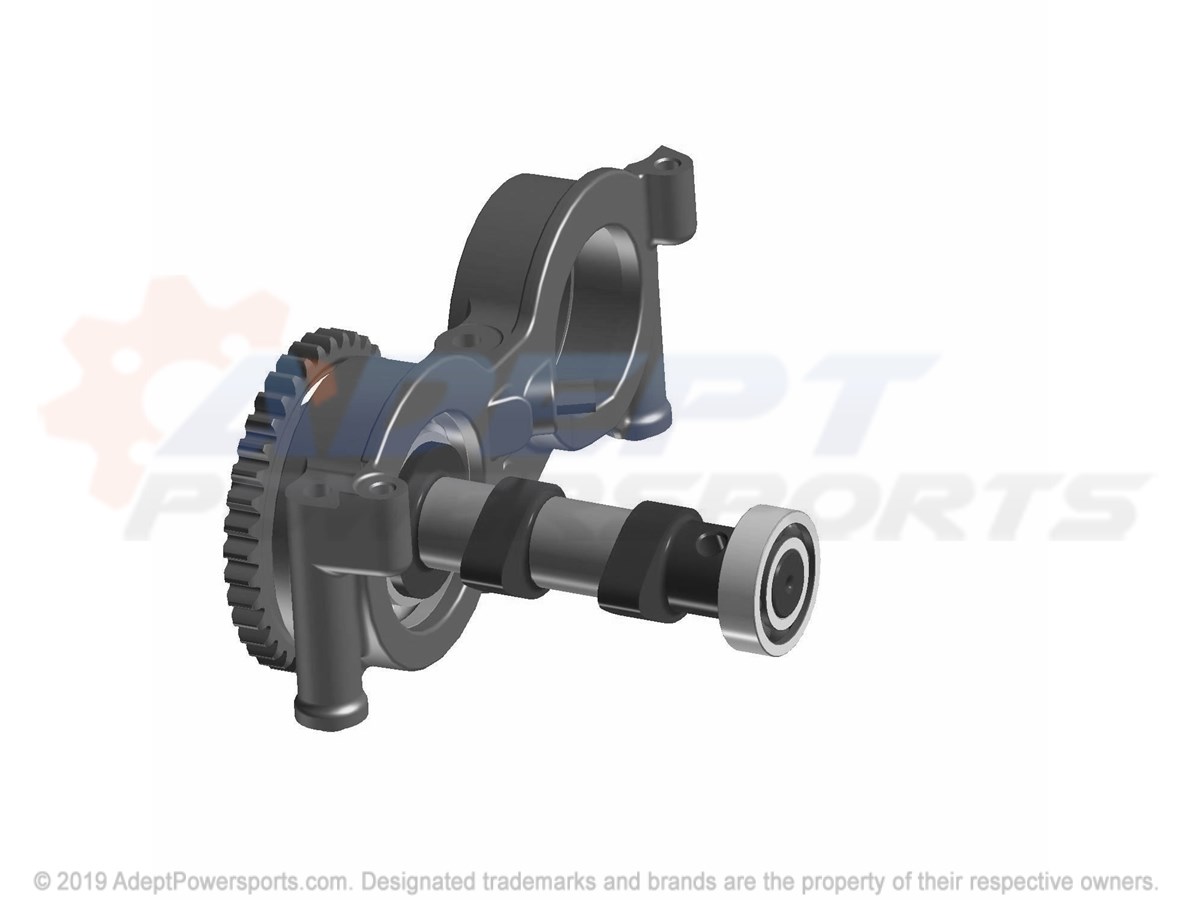

12	KIT-ASM, CAMSHAFT, EXHAUST Part #: 2205584 Required per assembly: 1 Currently Not Available

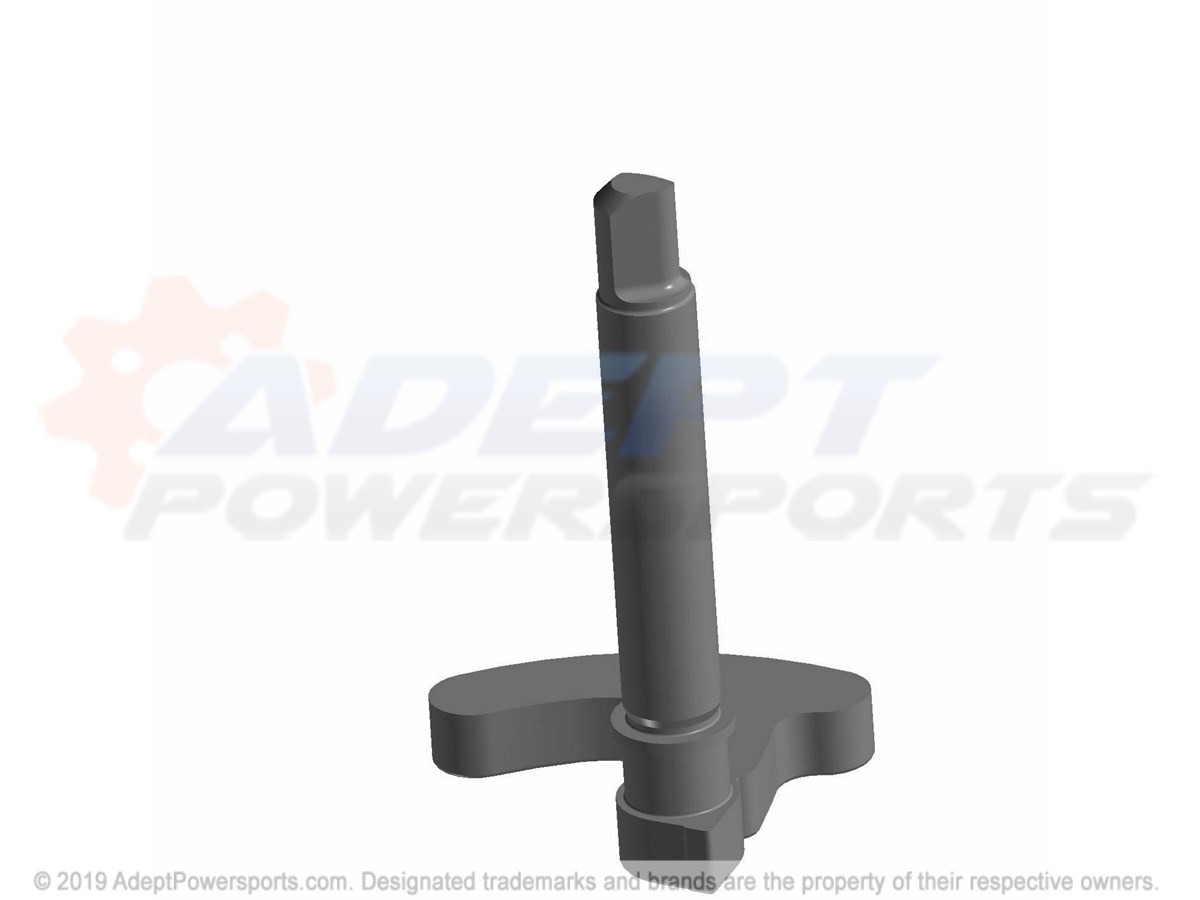

13	SHAFT-DECOMP Part #: 6230763 Required per assembly: 1 Currently Not Available

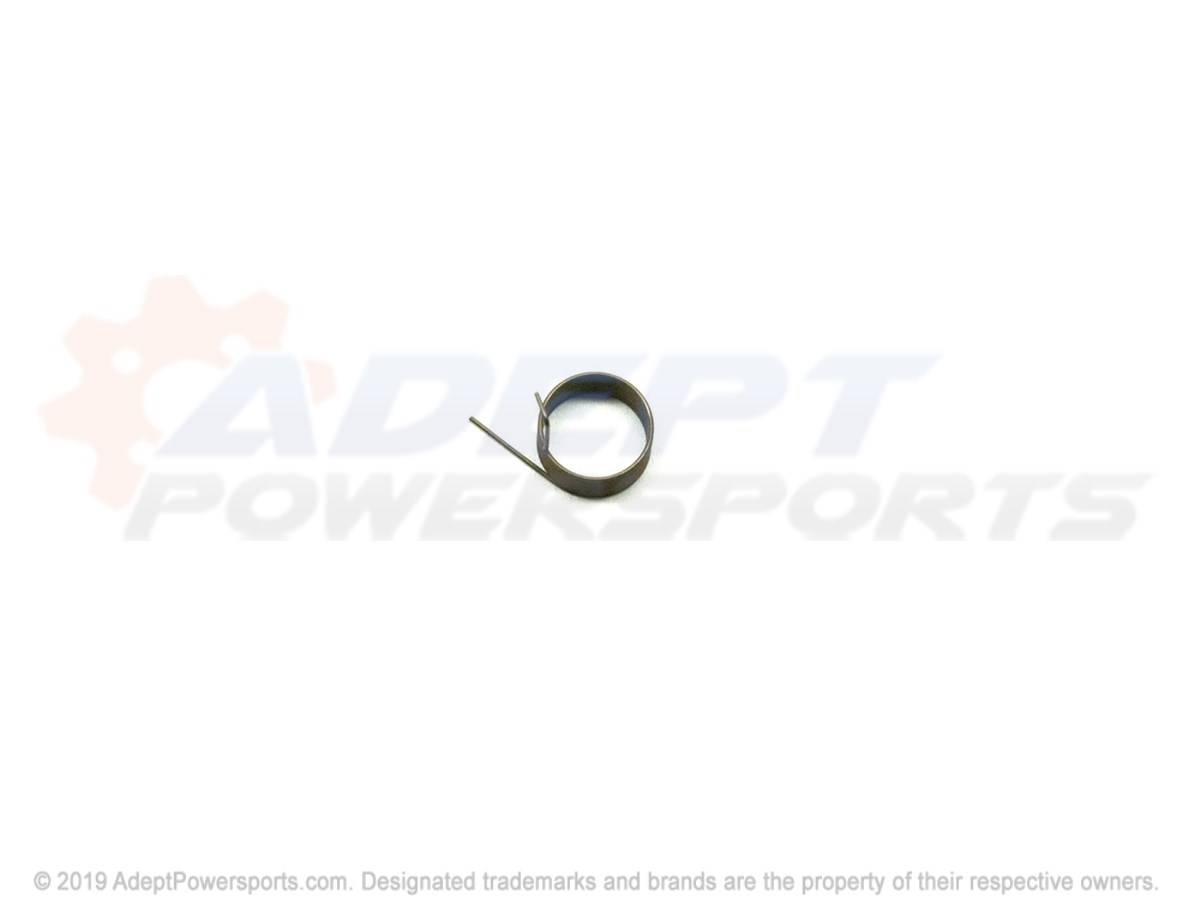

14	SPRING-DECOMP Part #: 7043802 Required per assembly: 1 Currently Not Available
15	SPRING-DISC, M10X20X1 Part #: 7043804 Required per assembly: 1 Currently Not Available
16	SCR-SH-SP-M10X1.5X12 10.9 Part #: 7519348 Required per assembly: 1 Currently Not Available
