Headlight Pod - A15saa32eh (49Atvheadlight11sp800) replacement parts for 2015 Polaris Hawkeye 325 2X4

OEM Parts Polaris 2015 Polaris Hawkeye 325 2X4 Headlight Pod - A15saa32eh (49Atvheadlight11sp800)

Headlight Pod - A15SAA32EH (49ATVHEADLIGHT11SP800) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	POD, HEADLIGHT, UPPER, BLUE, FIRE, METALLIC Part #: 5436819-620 Required per assembly: 1 Currently Not Available
2	SCREW Part #: 7511881 Required per assembly: 3 ~~$2.99~~ $1.73 - + Add to cart

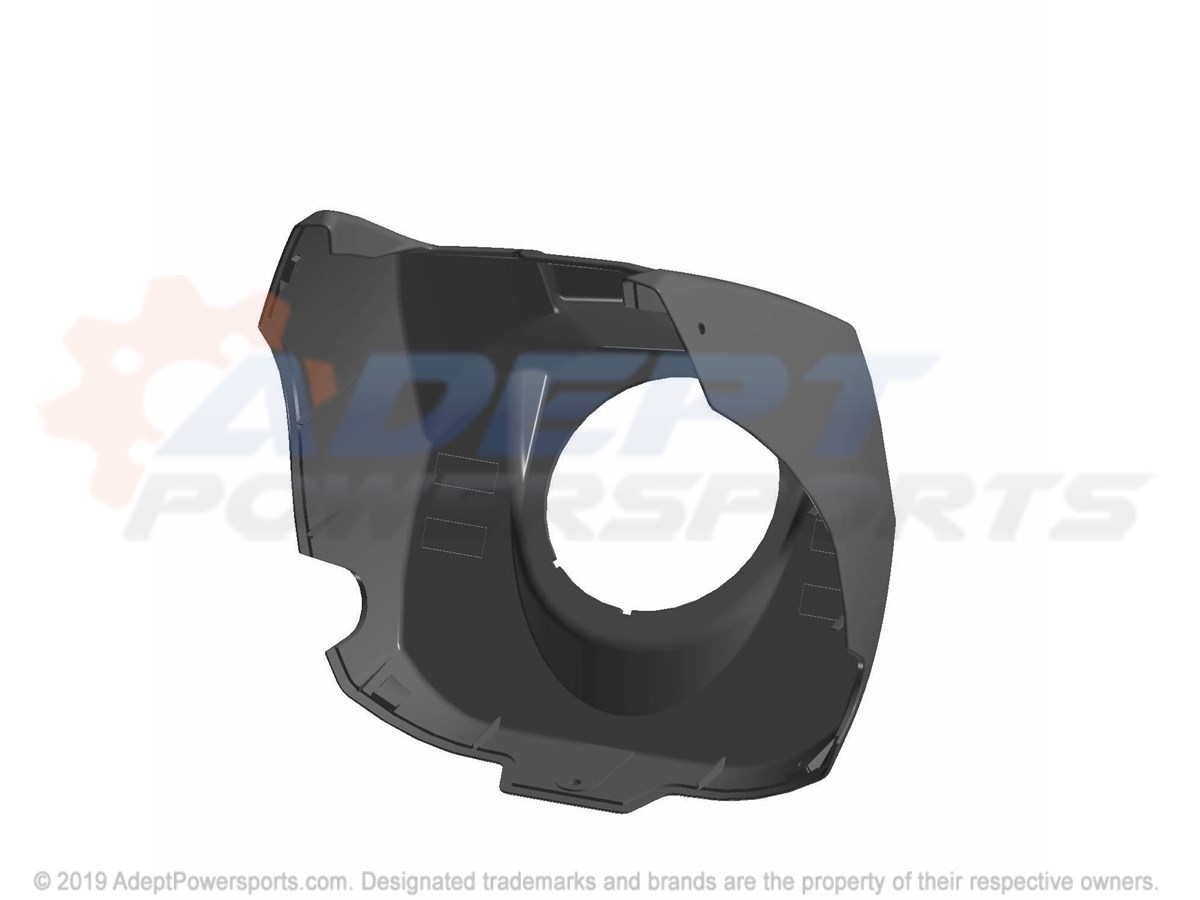

3	POD, HEADLIGHT, LOWER, SNAP, BLACK, [AT] Part #: 5436747-070 Required per assembly: 1 Note: Pod, Headlight, Lower, Snap, Black Currently Not Available
4	O RING Part #: 5410163 Required per assembly: 2 ~~$4.99~~ $2.92 - + Add to cart
5	CLIP-SCREW, #8/10, .03-.10, PANEL Part #: 7670127 Required per assembly: 1 Currently Not Available
6	GROMMET Part #: 5413239 Required per assembly: 1 Currently Not Available
