Headlight Pod - A15sye95ax/L95ap (49Atvheadlight15trng1) replacement parts for 2015 Polaris Sportsman Touring 1000

OEM Parts Polaris 2015 Polaris Sportsman Touring 1000 Headlight Pod - A15sye95ax/L95ap (49Atvheadlight15trng1)

Headlight Pod - A15SYE95AX/L95AP (49ATVHEADLIGHT15TRNG1) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

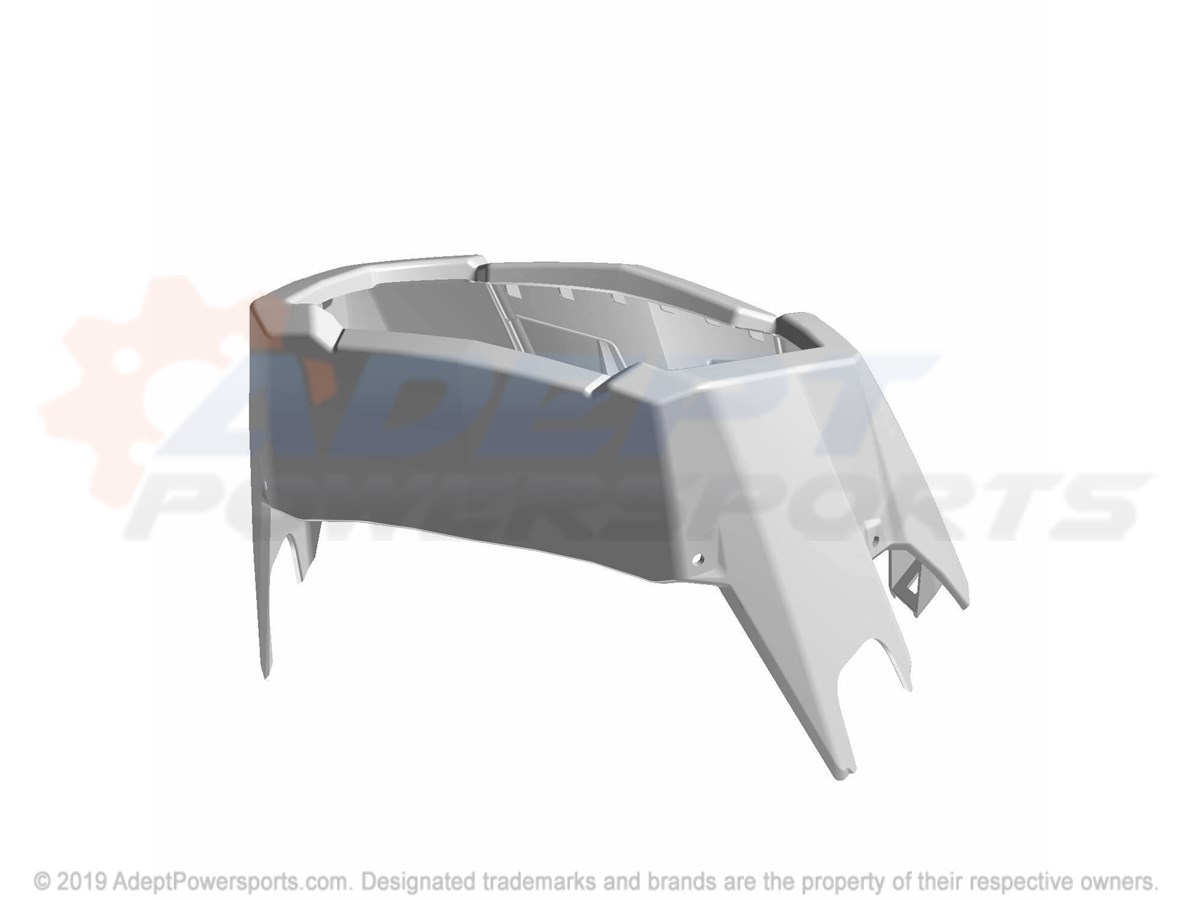

1	POD-HDLT, FRNT, PNTD, BRONZE, MIST Part #: 5451313-605 Required per assembly: 1 Note: AX Currently Not Available
1	POD-HDLT, FRONT, PNTD, PEARL, WHT Part #: 5451313-538 Required per assembly: 1 Note: AP Currently Not Available

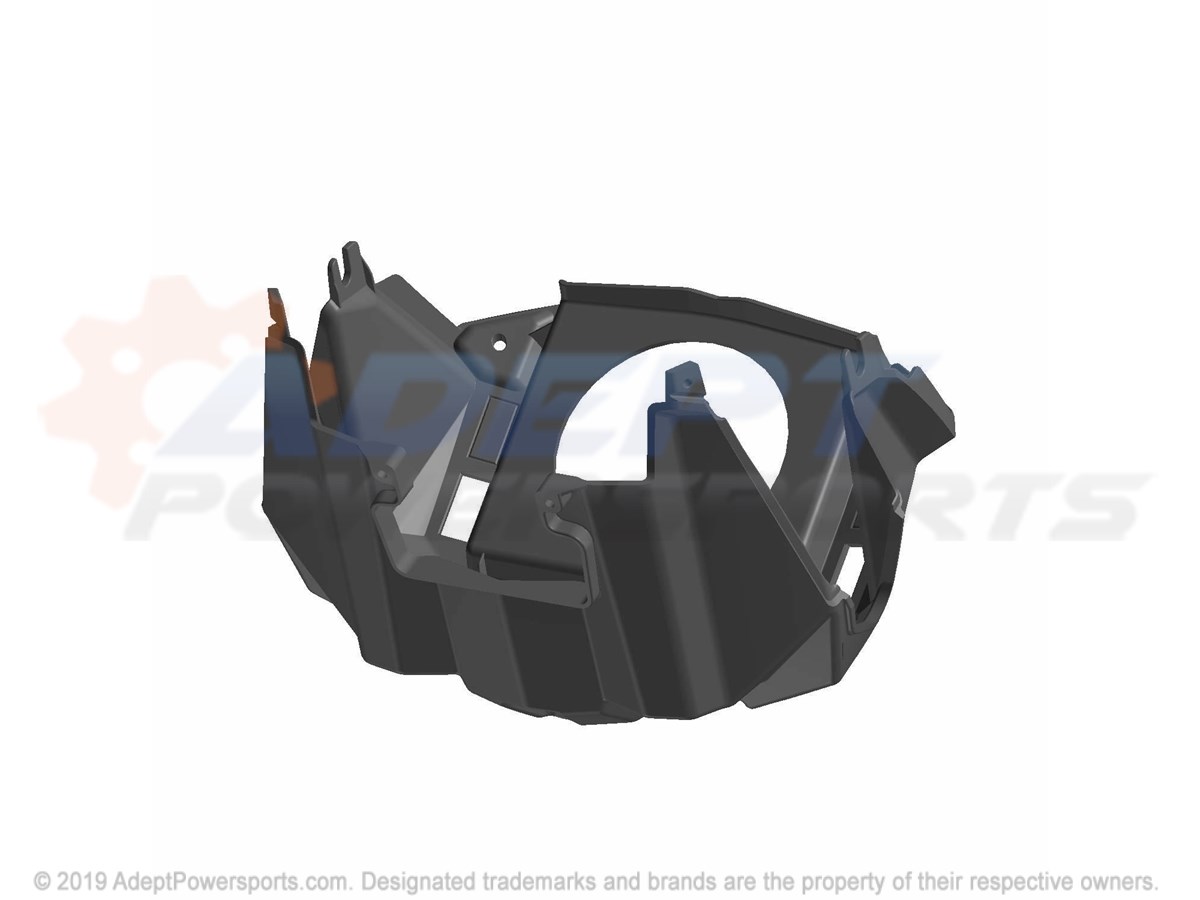

2	POD-HDLT, RR, W/RND, CUTOUT2, BLK Part #: 5451732-070 Required per assembly: 1 Note: AX Currently Not Available
2	POD-HDLT, RR, W/KSTN, CUTOUT2, BLK Part #: 5452210-070 Required per assembly: 1 Note: AP Currently Not Available
3	SCREW Part #: 7518238 Required per assembly: 5 ~~$3.79~~ $1.73 - + Add to cart
4	CLIP-SCREW, #8/10, .03-.10, PANEL Part #: 7670127 Required per assembly: 5 Currently Not Available
5	SCREW Part #: 7517441 Required per assembly: 2 Currently Not Available
6	SCREW Part #: 7512026 Required per assembly: 2 Note: Screw Currently Not Available
