Rear Cab And Footwell - A15sye95ax/L95ap (100015) replacement parts for 2015 Polaris Sportsman Touring 1000

OEM Parts Polaris 2015 Polaris Sportsman Touring 1000 Rear Cab And Footwell - A15sye95ax/L95ap (100015)

Rear Cab and Footwell - A15SYE95AX/L95AP (100015) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RIVET Part #: 7661855 Required per assembly: 18 ~~$2.99~~ $1.73 - + Add to cart
2	SCR-HXFL-M6X1.0X30 RIE DGPNT Part #: 7519202 Required per assembly: 8 Currently Not Available
3	SCREW Part #: 7518529 Required per assembly: 12 ~~$2.99~~ $1.73 - + Add to cart
4	CAB-REAR, SPMN, TOUR, PNTD, B.MIST Part #: 5451775-605 Required per assembly: 1 Note: AX Currently Not Available
4	CAB-REAR, SPMN, TRG, PNTD, PRL, WHT Part #: 5451775-538 Required per assembly: 1 Note: AP Currently Not Available
5	NUT Part #: 7547274 Required per assembly: 12 Note: Nut, Flange Currently Not Available
6	SUPPORT, FOOTPAD, LH Part #: 5437600 Required per assembly: 2 Currently Not Available
7	SUPPORT, FOOTPAD, RH Part #: 5437601 Required per assembly: 1 Currently Not Available
8	FOOTWELL, BLACK, LH Part #: 5437888-070 Required per assembly: 1 Currently Not Available
8	FOOTWELL-RH BLK Part #: 5439078-070 Required per assembly: 1 Currently Not Available
9	TUBE-FOOTWELL, SUPPORT, LH, BLK Part #: 5338574-329 Required per assembly: 1 Currently Not Available
10	TUBE-FOOTWELL, SUPPORT, RH, BLK Part #: 5338575-329 Required per assembly: 1 Currently Not Available

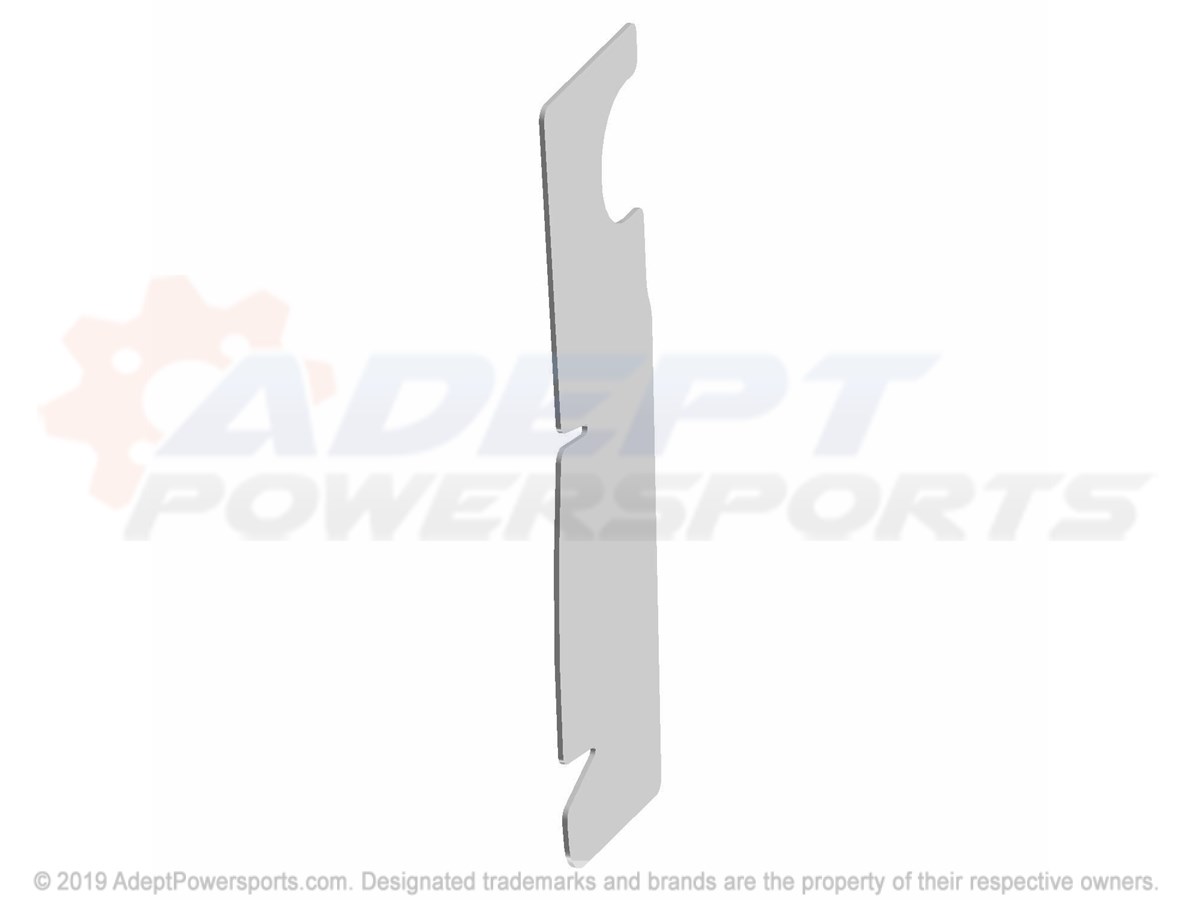

11	FOIL-SHIELD, SEATWELL Part #: 5814246 Required per assembly: 1 Currently Not Available
12	PAD, FOOTWELL, SHORT Part #: 5413165 Required per assembly: 2 Currently Not Available
13	SCREW Part #: 7517610 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
