Exhaust System - R15rma32fa (49Rgrexhaust15325) replacement parts for 2015 Polaris Ranger ETX EU

OEM Parts Polaris 2015 Polaris Ranger ETX EU Exhaust System - R15rma32fa (49Rgrexhaust15325)

Exhaust System - R15RMA32FA (49RGREXHAUST15325) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	CLAMP HEAT SHIELD EXHAUST Part #: 7081156 Required per assembly: 5 Currently Not Available

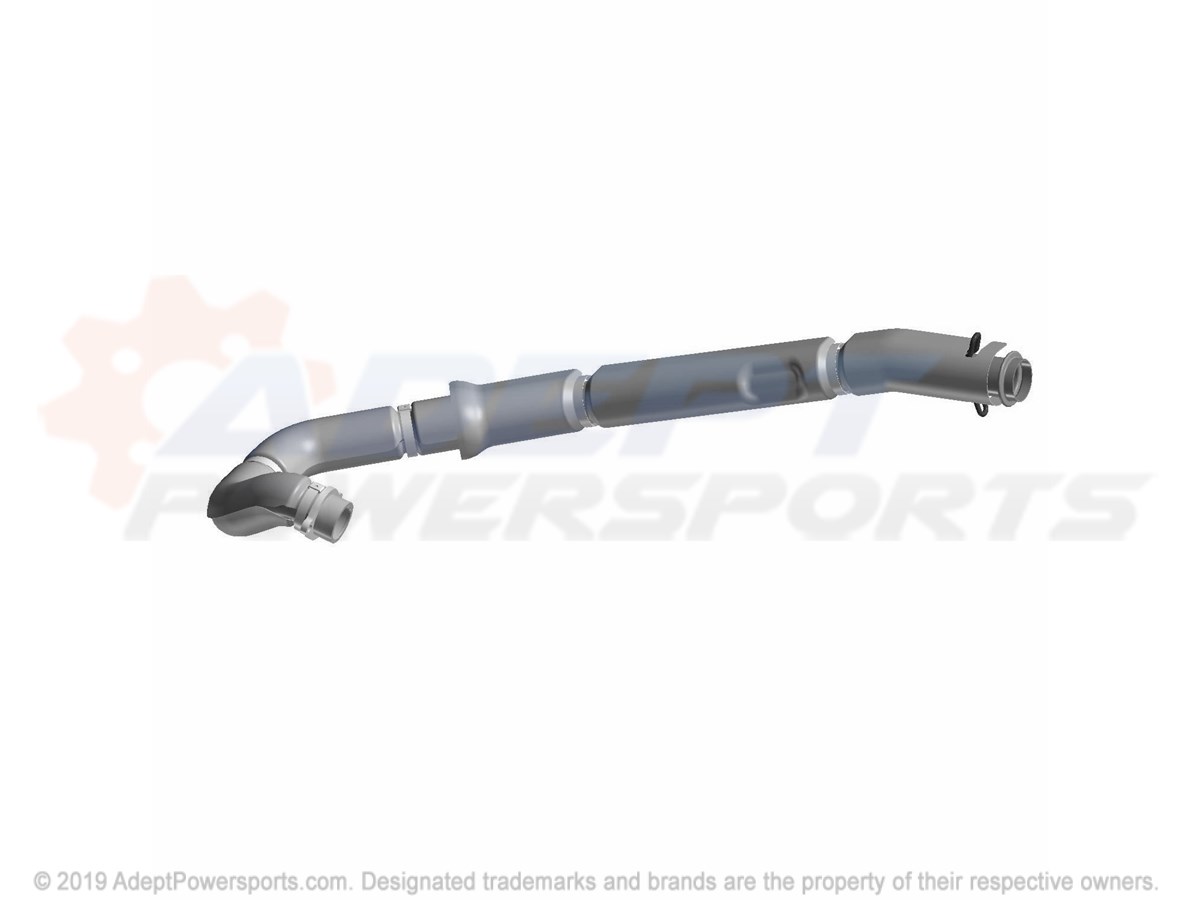

1	ASM-HEADPIPE Part #: 1262513 Required per assembly: 1 Note: INCL. 3,4,5,6 Currently Not Available
2	ASM-SILENCER Part #: 1263595 Required per assembly: 1 Note: INCL. 2-6 Currently Not Available
2	SHIELD-SILENCER Part #: 5258754 Required per assembly: 1 Currently Not Available
3	WELD-SPARK ARRESTOR QT Part #: 1262239 Required per assembly: 1 Currently Not Available
4	SCREW Part #: 7517257 Required per assembly: 1 Currently Not Available
5	NUT Part #: 7547120 Required per assembly: 1 Currently Not Available
6	SCREW Part #: 7515197 Required per assembly: 3 ~~$1.99~~ $1.15 - + Add to cart
7	BUSHING-RES. MT. Part #: 5010192 Required per assembly: 2 Currently Not Available
8	SEAL, EXHAUST Part #: 5256385 Required per assembly: 1 Currently Not Available
9	GASKET-EXHAUST, SEALING, 43.20 Part #: 5256452 Required per assembly: 1 Currently Not Available
10	WASHER, RUBBER Part #: 5414945 Required per assembly: 2 Currently Not Available
11	DAMPER, VIBRATION Part #: 5414946 Required per assembly: 2 Currently Not Available
12	SPRING-EXHAUST Part #: 7041789 Required per assembly: 2 Note: Spring, Exhaust ~~$6.99~~ $4.03 - + Add to cart
13	SCREW Part #: 7519305 Required per assembly: 2 Currently Not Available
14	NUT Part #: 7547076 Required per assembly: 2 Currently Not Available
15	WASHER Part #: 7555716 Required per assembly: 2 Currently Not Available
16	WASHER, LOCK Part #: 7556111 Required per assembly: 2 Currently Not Available
17	NUT, FLANGE Part #: 7547332 Required per assembly: 2 Note: Nut, Nylok Currently Not Available
