Wire Harnesses - R15rma32fa (700128) replacement parts for 2015 Polaris Ranger ETX EU

OEM Parts Polaris 2015 Polaris Ranger ETX EU Wire Harnesses - R15rma32fa (700128)

Wire Harnesses - R15RMA32FA (700128) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-CHASSIS, 325, EU Part #: 2412855 Required per assembly: 1 Currently Not Available
2	BREAKER, CIRCUIT, 20, AMP Part #: 4011372 Required per assembly: 1 Currently Not Available
3	KIT, FUSIBLE, LINK, 1.0MM Part #: 2202670 Required per assembly: 2 Note: Kit, Fusible Link Currently Not Available
4	BRACKET, MOUNT, FUSE, BLOCK, BLACK Part #: 5256408-329 Required per assembly: 1 Currently Not Available
5	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 7 Currently Not Available
6	SCREW Part #: 7512084 Required per assembly: 2 Note: Screw ~~$2.99~~ $1.73 - + Add to cart
7	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
8	FUSE, 10AMP Part #: 2434016 Required per assembly: 6 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
9	SCREW Part #: 7519650 Required per assembly: 2 Currently Not Available
10	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 5 Currently Not Available
11	HARNESS-BOX, 570, EU Part #: 2412854 Required per assembly: 1 Currently Not Available
12	SCREW Part #: 7518535 Required per assembly: 2 Currently Not Available
13	SCREW Part #: 7518529 Required per assembly: 2 ~~$2.99~~ $1.73 - + Add to cart
14	CLIP Part #: 7670134 Required per assembly: 1 Note: Clip, Wire Currently Not Available
15	CLIP-ROUTING Part #: 7081496 Required per assembly: 1 Currently Not Available

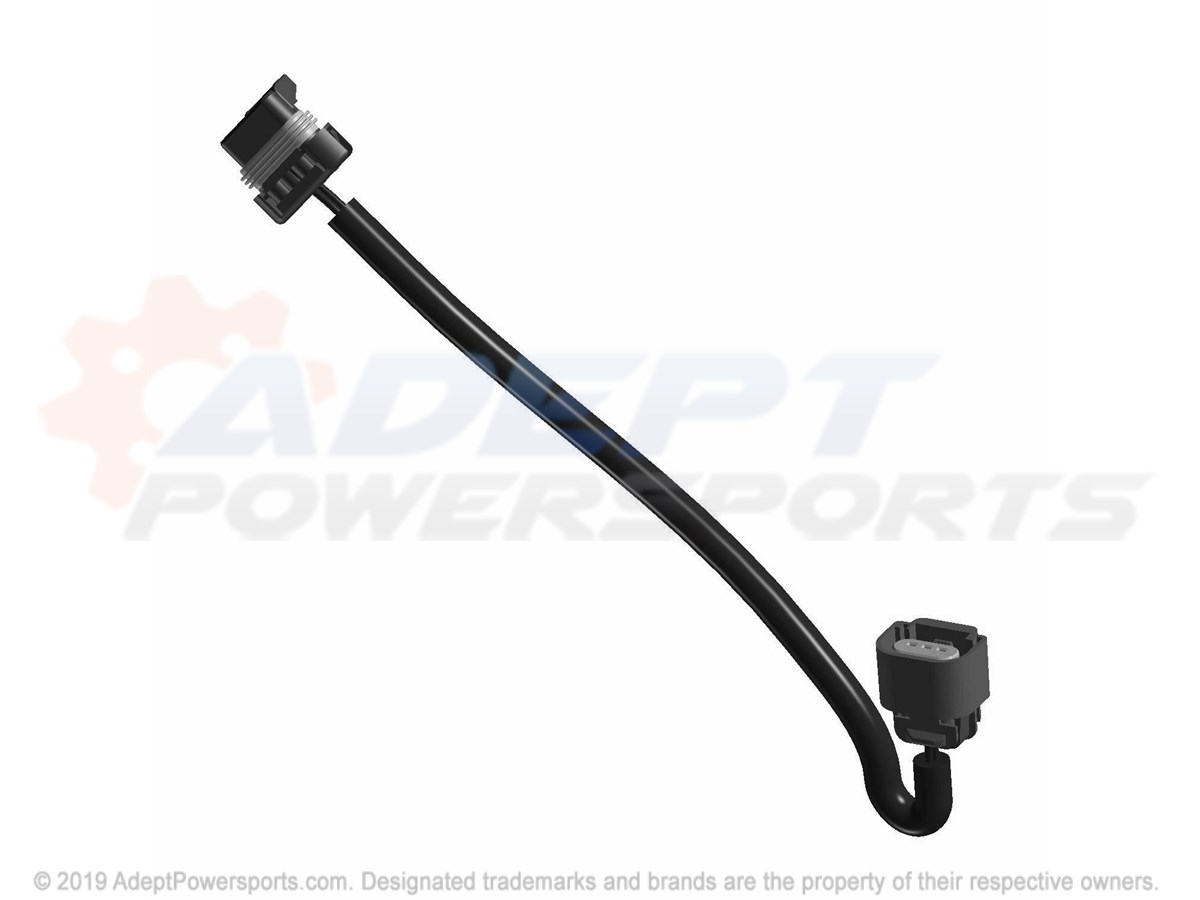

17	HEADLIGHT, JUMPER, DOMESTIC Part #: 2413117 Required per assembly: 1 Currently Not Available
