Cab Frame - R15rna57aa/Ac/Ar/E57as (49Rgrframe15570mc) replacement parts for 2015 Polaris Ranger 570 EFI Crew

OEM Parts Polaris 2015 Polaris Ranger 570 EFI Crew Cab Frame - R15rna57aa/Ac/Ar/E57as (49Rgrframe15570mc)

Cab Frame - R15RNA57AA/AC/AR/E57AS (49RGRFRAME15570MC) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WELD-CAB, FRAME, LWR, REAR, M.BLK Part #: 1020164-458 Required per assembly: 2 Currently Not Available

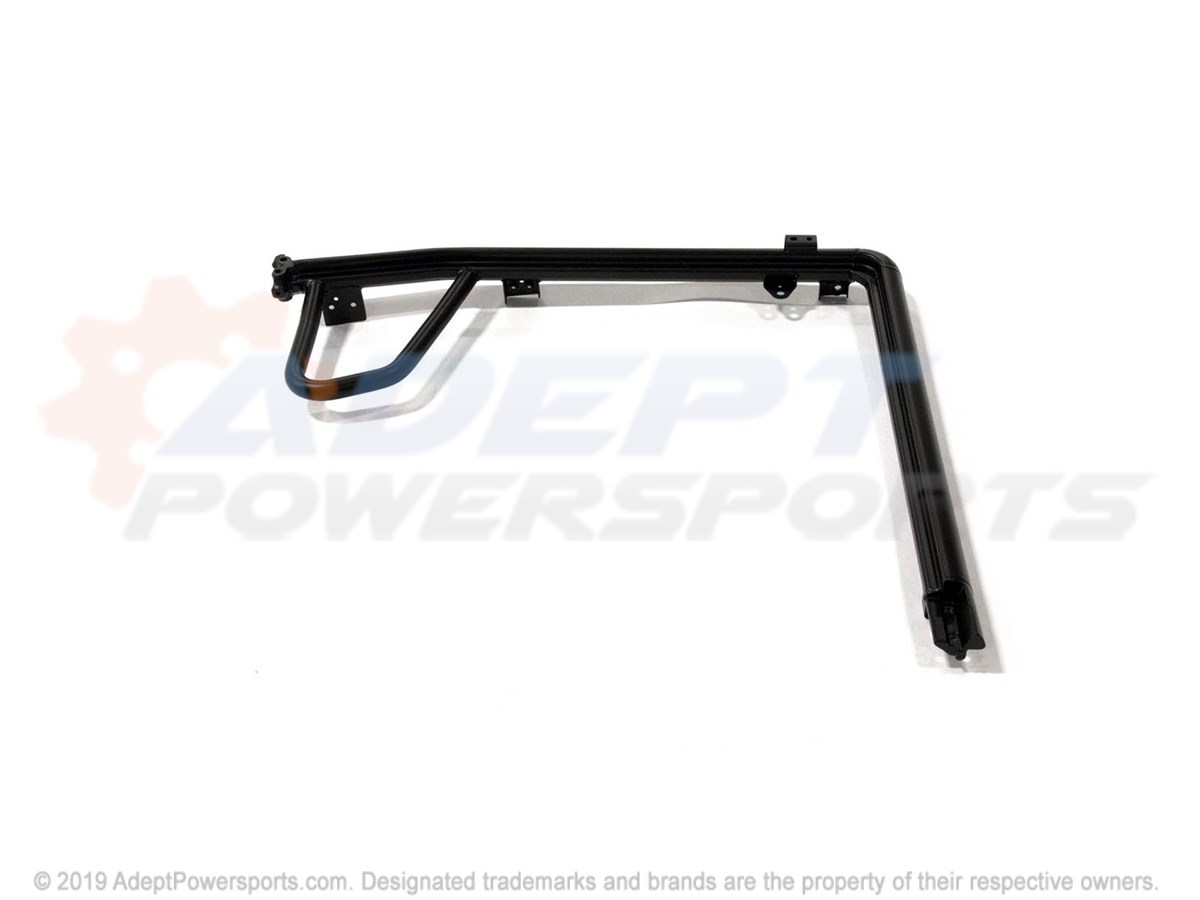

2	WELD-CABFRAME, FRT, CREW, LH, M.BK Part #: 1022612-458 Required per assembly: 1 Currently Not Available

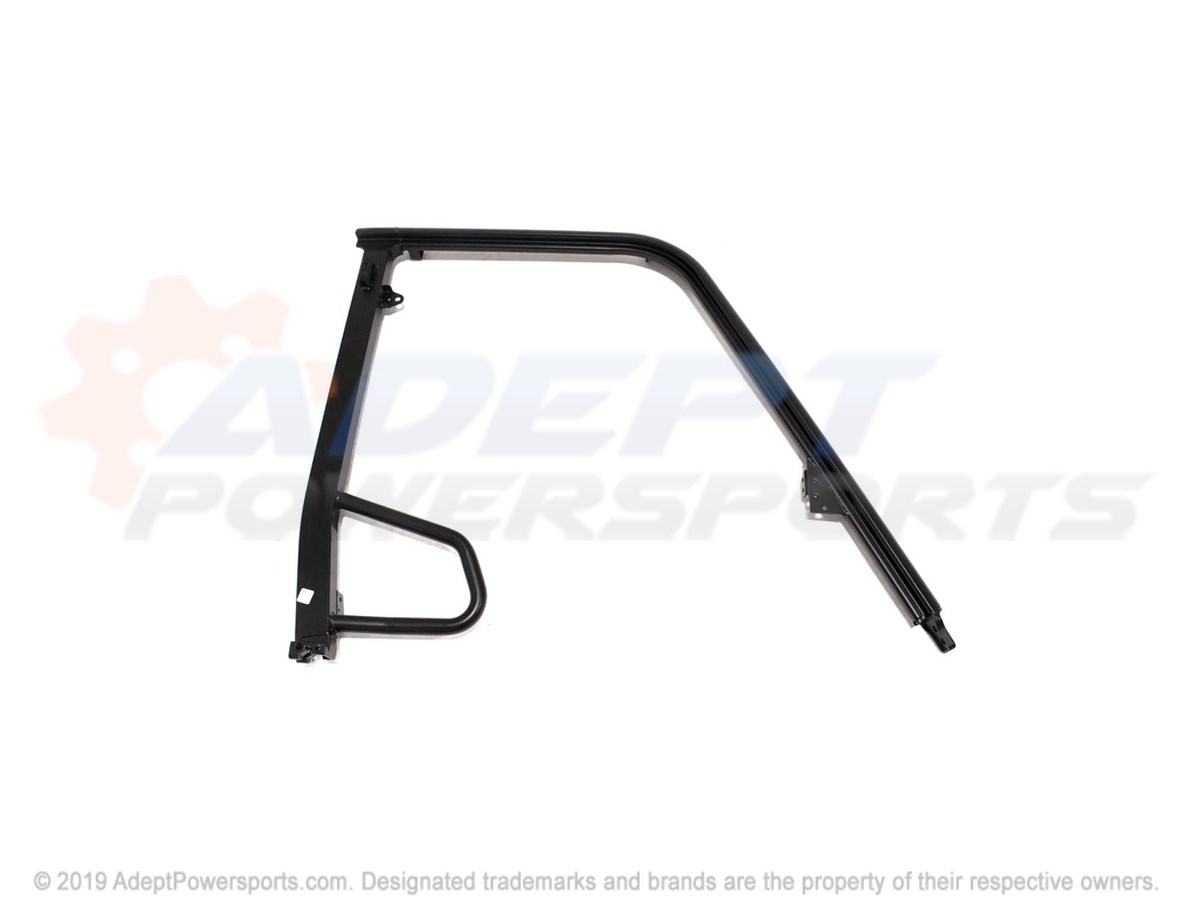

3	WELD-CABFRAME, FRT, CREW, RH, M, BK Part #: 1020260-458 Required per assembly: 1 Currently Not Available

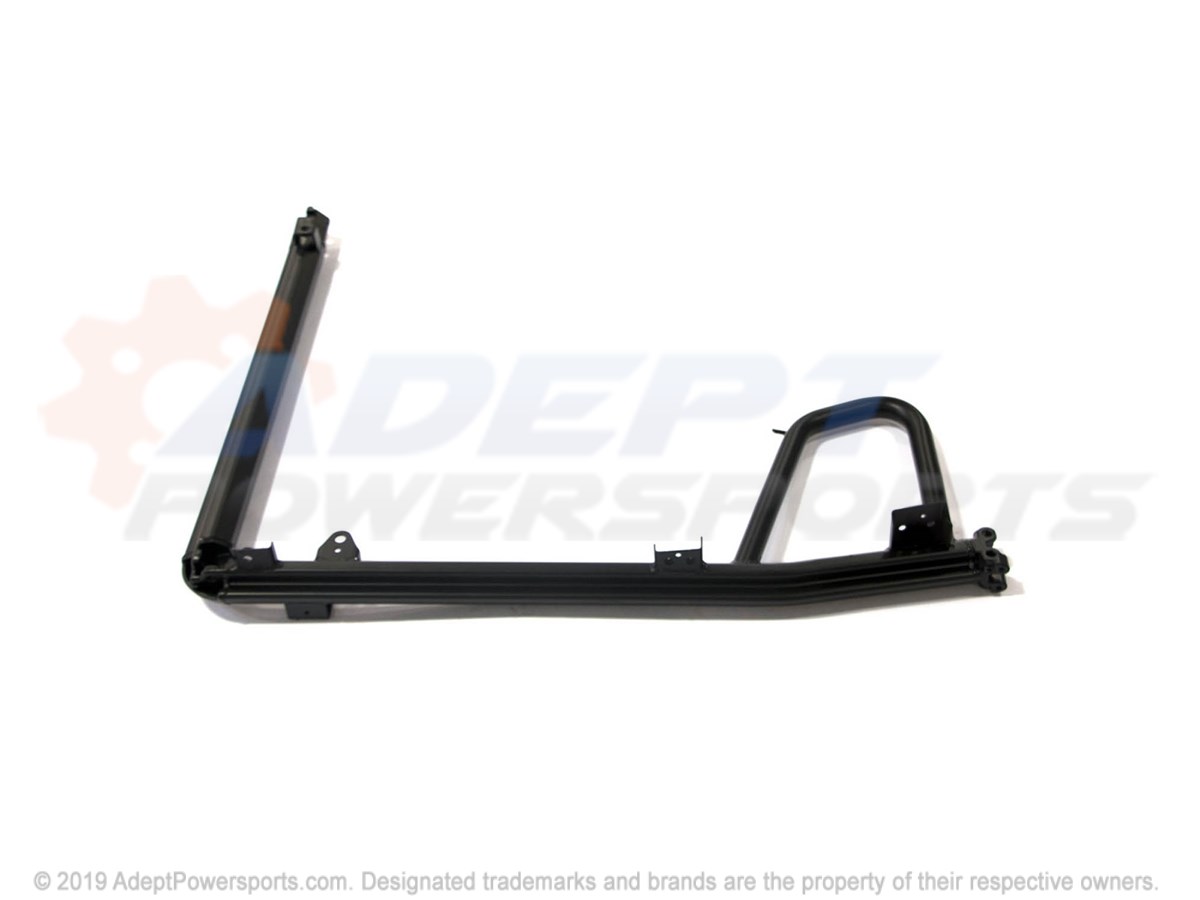

4	WELD-CABFRAME, RR, CREW, LH, M.BLK Part #: 1020261-458 Required per assembly: 1 Currently Not Available
5	WELD-CABFRAME, RR, CREW, RH, M.BLK Part #: 1020262-458 Required per assembly: 1 Currently Not Available
6	WELD-CABFRAME, CTR, CREW, M.BLK Part #: 1020263-458 Required per assembly: 1 Currently Not Available
7	WELD-CAB, SUPPORT, REAR, M.BLK Part #: 1021194-458 Required per assembly: 1 Currently Not Available
8	PLATE-WINDSHIELD, MOUNT, BLK Part #: 5258471-458 Required per assembly: 1 Currently Not Available
9	BRKT-BUCKLE Part #: 5259232 Required per assembly: 2 Currently Not Available
10	TUBE-CAB, FRAME, HANDLE, BLK Part #: 5338235-458 Required per assembly: 1 Currently Not Available
11	HANDLE, GRAB, ROPS, BLACK Part #: 5439299-070 Required per assembly: 1 Currently Not Available
12	SCREW Part #: 7517367 Required per assembly: 2 Currently Not Available
13	SCREW, FLANGE Part #: 7518450 Required per assembly: 16 Currently Not Available
14	SCREW Part #: 7518460 Required per assembly: 4 Note: Screw, Flange Currently Not Available
15	SCREW Part #: 7518555 Required per assembly: 7 Note: Bolt, Flange Currently Not Available
16	SCREW Part #: 7519052 Required per assembly: 2 Currently Not Available
17	SCREW Part #: 7519059 Required per assembly: 4 Currently Not Available
18	SCREW Part #: 7519650 Required per assembly: 2 Currently Not Available
19	SCR-TFTX-M8X1.25X30 ZOD Part #: 7520121 Required per assembly: 4 Currently Not Available
20	SCR-HXFL-M10X1.5X75 8.8 ZY3 NY Part #: 7520139 Required per assembly: 8 Currently Not Available
21	NUT, FLANGE Part #: 7547313 Required per assembly: 6 ~~$2.79~~ $1.73 - + Add to cart
22	NUT, FLANGE Part #: 7547332 Required per assembly: 8 Note: Nut, Nylok Currently Not Available
23	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
24	SCR-HXFL-M10X1.5X30 8.8 ZY3 NY Part #: 7520213 Required per assembly: 4 Currently Not Available
