OEM Parts Polaris 2015 Polaris Ranger 570 EFI Crew Wire Harnesses - R15rna57aa/Ac/Ar/E57as (49Rgrharness15570mc)

2015 Polaris Ranger 570 EFI Crew R15RNA57AA/AC/AR/E57AS - Wire Harnesses - R15rna57aa/Ac/Ar/E57as (49Rgrharness15570mc)

Wire Harnesses - R15RNA57AA/AC/AR/E57AS (49RGRHARNESS15570MC) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

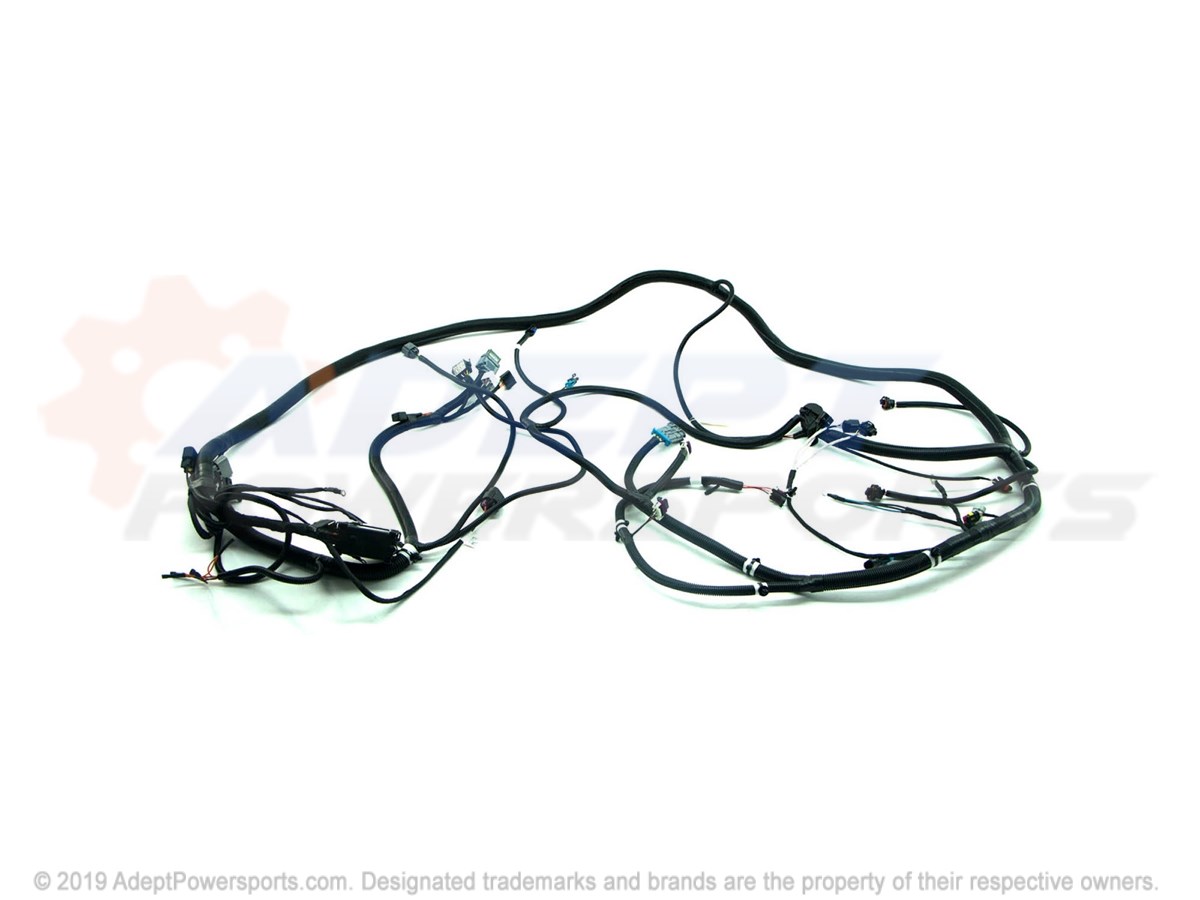

Polaris 2412701 Harness-Chassis, Crew, 570, Eps

HARNESS-CHASSIS, CREW, 570, EPS

Part #: 2412701 Required per assembly: 1 Note: INCL. 2,3,5,-8,10,16-19, ALL KITS
Currently Not Available
2

BREAKER, CIRCUIT, 15, AMP

Part #: 2411086 Required per assembly: 1
Currently Not Available
3

KIT, FUSIBLE, LINK, 1.0MM

Part #: 2202670 Required per assembly: 2 Note: Kit, Fusible Link
Currently Not Available
4
Polaris 5256408-329 Bracket, Mount, Fuse, Block, Black

BRACKET, MOUNT, FUSE, BLOCK, BLACK

Part #: 5256408-329 Required per assembly: 1
Currently Not Available
5
Polaris 4016819 Relay-Spst, 12V, 20A, Epxy, Hfa

RELAY-SPST, 12V, 20A, EPXY, HFA

Part #: 4016819 Required per assembly: 6
Currently Not Available
6
Polaris 7512084 Screw

SCREW

Part #: 7512084 Required per assembly: 2 Note: Screw
$2.99
$1.73
-
+
Add to cart
7
Polaris 4012170 Cover, Diagnostic, W/Clip

COVER, DIAGNOSTIC, W/CLIP

Part #: 4012170 Required per assembly: 1
Currently Not Available
8
Polaris 2434016 Fuse, 10Amp

FUSE, 10AMP

Part #: 2434016 Required per assembly: 2 Note: Fuse, 10 AMP, Ignition
Sold in multiples of 10 only
Currently Not Available
9
Polaris 7080761 Strap, Panduit, 14"

STRAP, PANDUIT, 14"

Part #: 7080761 Required per assembly: 4 Note: Cable Tie
Currently Not Available
10
Polaris 4012811 Fuse-20 Mini Blade 58V(Yellow)

FUSE-20 MINI BLADE 58V(YELLOW)

Part #: 4012811 Required per assembly: 3
Currently Not Available
11
Polaris 2412702 Harness-Box

HARNESS-BOX

Part #: 2412702 Required per assembly: 1
Currently Not Available
12
Polaris 7518535 Screw

SCREW

Part #: 7518535 Required per assembly: 2
Currently Not Available
13
Polaris 7518529 Screw

SCREW

Part #: 7518529 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
14
Polaris 2434015 Fuse, Main, 30, Amp

FUSE, MAIN, 30, AMP

Part #: 2434015 Required per assembly: 3 Note: Fuse, 30 AMP, Main
Sold in multiples of 10 only
Currently Not Available
15
Polaris 7670134 Clip

CLIP

Part #: 7670134 Required per assembly: 1 Note: Clip, Wire
Currently Not Available
16
Polaris 2410000 Diode, 6, Amp

DIODE, 6, AMP

Part #: 2410000 Required per assembly: 1 Note: Diaode, 6 AMP
Currently Not Available
17
Polaris 4011068 Fuse, 7.5, Amp

FUSE, 7.5, AMP

Part #: 4011068 Required per assembly: 1
Currently Not Available
18
Polaris 7081496 Clip-Routing

CLIP-ROUTING

Part #: 7081496 Required per assembly: 1
Currently Not Available
19

DECAL, FUSE/RELAY, BLOCK

Part #: 7180068 Required per assembly: 1
Currently Not Available
20
Polaris 5414440 Grommet, Electrical

GROMMET, ELECTRICAL

Part #: 5414440 Required per assembly: 1
Currently Not Available
