Fuel Injection Pump, Delivery Pipe - R15rtad1aa/Ea/Ed1ea (49Rgrfuelpump15dsl) replacement parts for 2015 Polaris Ranger 1000 Diesel

OEM Parts Polaris 2015 Polaris Ranger 1000 Diesel Fuel Injection Pump, Delivery Pipe - R15rtad1aa/Ea/Ed1ea (49Rgrfuelpump15dsl)

Fuel Injection Pump, Delivery Pipe - R15RTAD1AA/EA/ED1EA (49RGRFUELPUMP15DSL) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

-	COPPER WASHER 14X19X1 Part #: 3040095 Required per assembly: 3 Currently Not Available
-	BOLT M4X12 Part #: 3040260 Required per assembly: 1 Currently Not Available
1	NUT Part #: 3040058 Required per assembly: 6 Currently Not Available

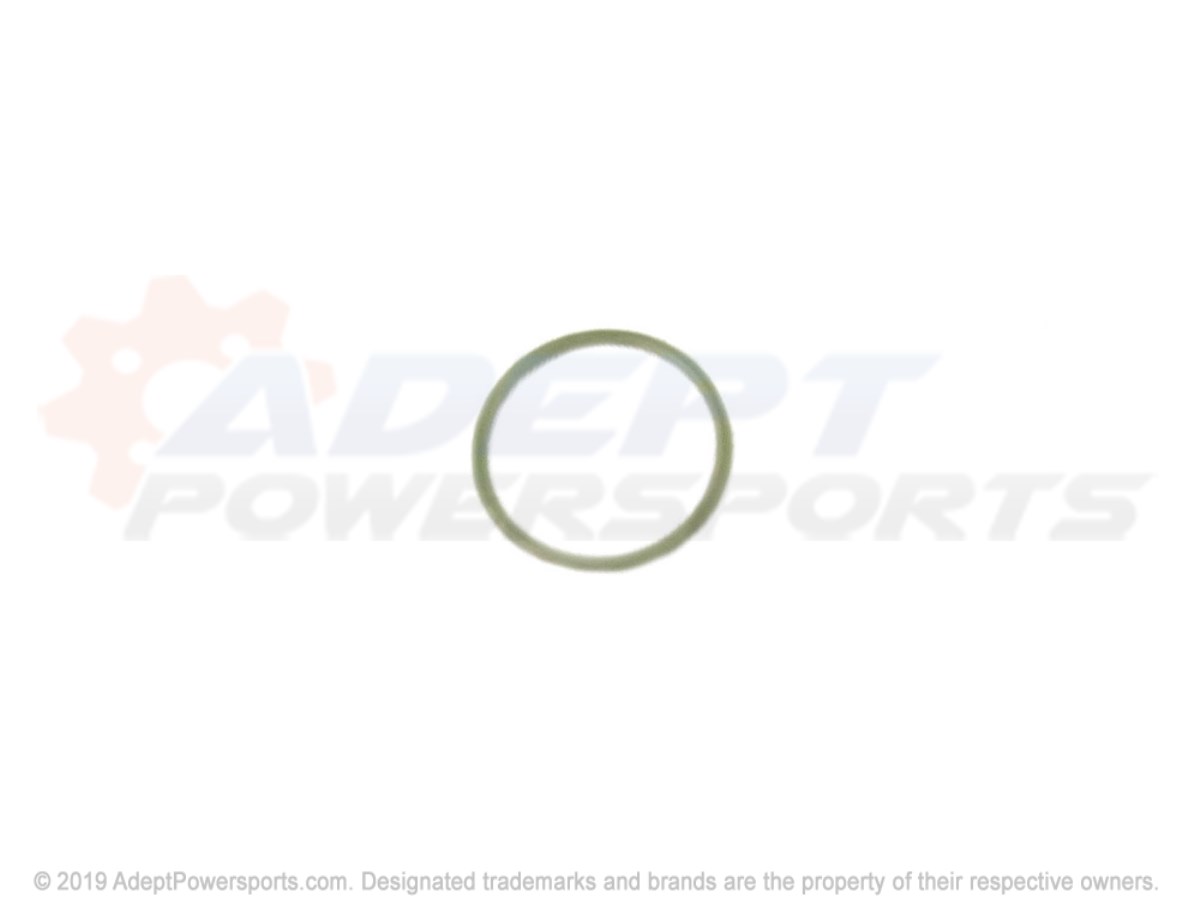

4	O-RING 26.70X1.78 Part #: 3040261 Required per assembly: 3 Currently Not Available
5	SPRING LOCKING PLATE Part #: 3040118 Required per assembly: 1 Currently Not Available
6	COPPER WASHER 14X19X1 Part #: 3040095 Required per assembly: 3 Currently Not Available
7	SCR SOC HEAD M4X16 Part #: 3040224 Required per assembly: 6 Currently Not Available
8	FUEL RAIL Part #: 3040208 Required per assembly: 1 Currently Not Available

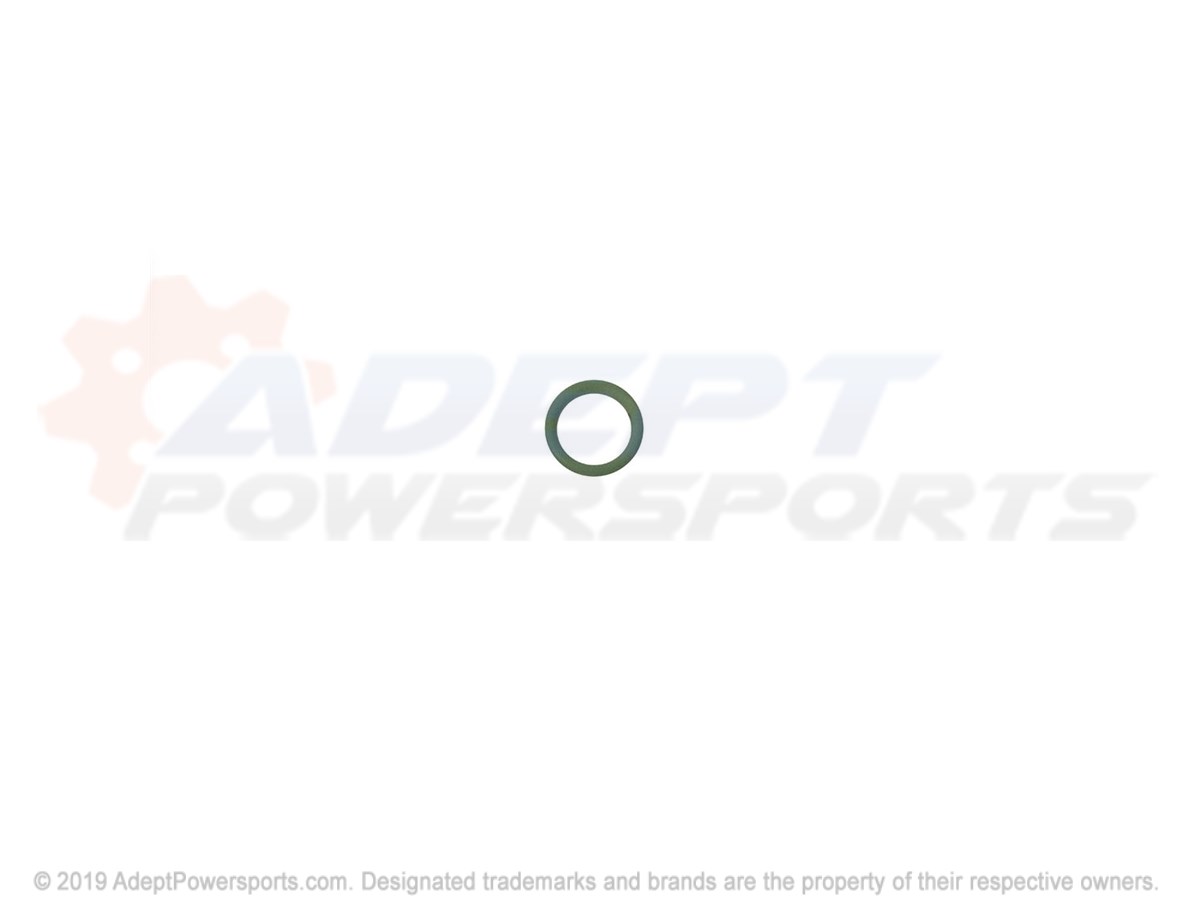

9	SEAL RING 9.25X1.78 Part #: 3040258 Required per assembly: 6 Currently Not Available
10	DELIVERY PIPE SEAL Part #: 3040257 Required per assembly: 1 Currently Not Available
11	BLEEDING VALVE Part #: 3040259 Required per assembly: 3 Currently Not Available
12	METAL GASKET Part #: 3040263 Required per assembly: 3 Currently Not Available
13	O-RING 25.12X1.78 Part #: 3040262 Required per assembly: 3 Currently Not Available
