Steering Asm. - R15RTED1EA (700096) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOOT, SEAL, ROD, END Part #: 5412929 Required per assembly: 2 Note: Boot, Seal, Rod End $11.99 $6.90 - + Add to cart
2	BALL-JOINT, 8MM, 5140 Part #: 7061220 Required per assembly: 2 Note: INCL. 1 Currently Not Available
3	NUT, LH, JAM Part #: 7547028 Required per assembly: 2 Note: Nut, Jam, LH $3.99 $2.30 - + Add to cart
5	CLAMP, BOOT, SMALL Part #: 7080978 Required per assembly: 2 $4.79 $2.30 - + Add to cart
6	BOOT, PASSENGER, SIDE, RACK Part #: 5412013 Required per assembly: 1 Currently Not Available
7	CLAMP, BOOT, LARGE Part #: 7080979 Required per assembly: 2 Currently Not Available
8	BOLT Part #: 7518935 Required per assembly: 3 Currently Not Available
9	SCREW Part #: 7519052 Required per assembly: 2 Note: EPS Currently Not Available
10	SCREW Part #: 7518558 Required per assembly: 4 Note: EPS Currently Not Available
11	SCREW Part #: 7518555 Required per assembly: 2 Note: EPS Currently Not Available
12	BOLT-SHOULDER, M8-15, M6X1.0-BLK Part #: 7519980 Required per assembly: 2 Currently Not Available
13	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 $3.74 $2.23 - + Add to cart
14	WHEEL, STEERING Part #: 1823622 Required per assembly: 1 Currently Not Available
15	NUT-HEX-M16X2 8 ZC NYL Part #: 7547506 Required per assembly: 1 Currently Not Available
16	CAP-STEERING WHEEL Part #: 5438865 Required per assembly: 1 Currently Not Available
17	BOLT, FLANGE, [2X4] Part #: 7518702 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
18	BUSHING, STEERING Part #: 7556675 Required per assembly: 2 Currently Not Available
19	SCREW Part #: 7518644 Required per assembly: 1 Currently Not Available
20	SHAFT, STEERING, UPPER/LOWER Part #: 1823844 Required per assembly: 1 Currently Not Available
21	NUT, NYLOK Part #: 7547385 Required per assembly: 1 Currently Not Available
22	NUT, FLANGE Part #: 7547332 Required per assembly: 5 Note: QTY 9 FOR EPAS Currently Not Available
23	BOOT, DRIVER, SIDE, RACK Part #: 5412012 Required per assembly: 1 $74.99 $36.99 - + Add to cart
24	BOLT Part #: 7517909 Required per assembly: 2 Note: Bolt Currently Not Available
25	SCREW Part #: 7518665 Required per assembly: 2 Note: Bolt, Flange Currently Not Available
26	ASM-POWER, STEERING, RANGER Part #: 2414880 Required per assembly: 1 Note: EPS Currently Not Available
27	PIN COTTER Part #: 7661203 Required per assembly: 2 $1.99 $1.15 - + Add to cart
28	ASSEMBLY, GEAR, BOX, STEERING Part #: 1823902 Required per assembly: 1 Note: INCL. 1-7,23 Currently Not Available
29	ASM-TILT, STEERING, RVTD, M10, BLK Part #: 1824420-458 Required per assembly: 1 Note: INCL. 12 Currently Not Available
30	NUT, METRIC Part #: 7546703 Required per assembly: 2 $1.99 $1.15 - + Add to cart
31	SHAFT, STEERING, UPPER Part #: 1823891 Required per assembly: 1 Note: EPS Currently Not Available
32	SHAFT, STEERING, EPAS, LOWER Part #: 1823667 Required per assembly: 1 Note: EPS Currently Not Available

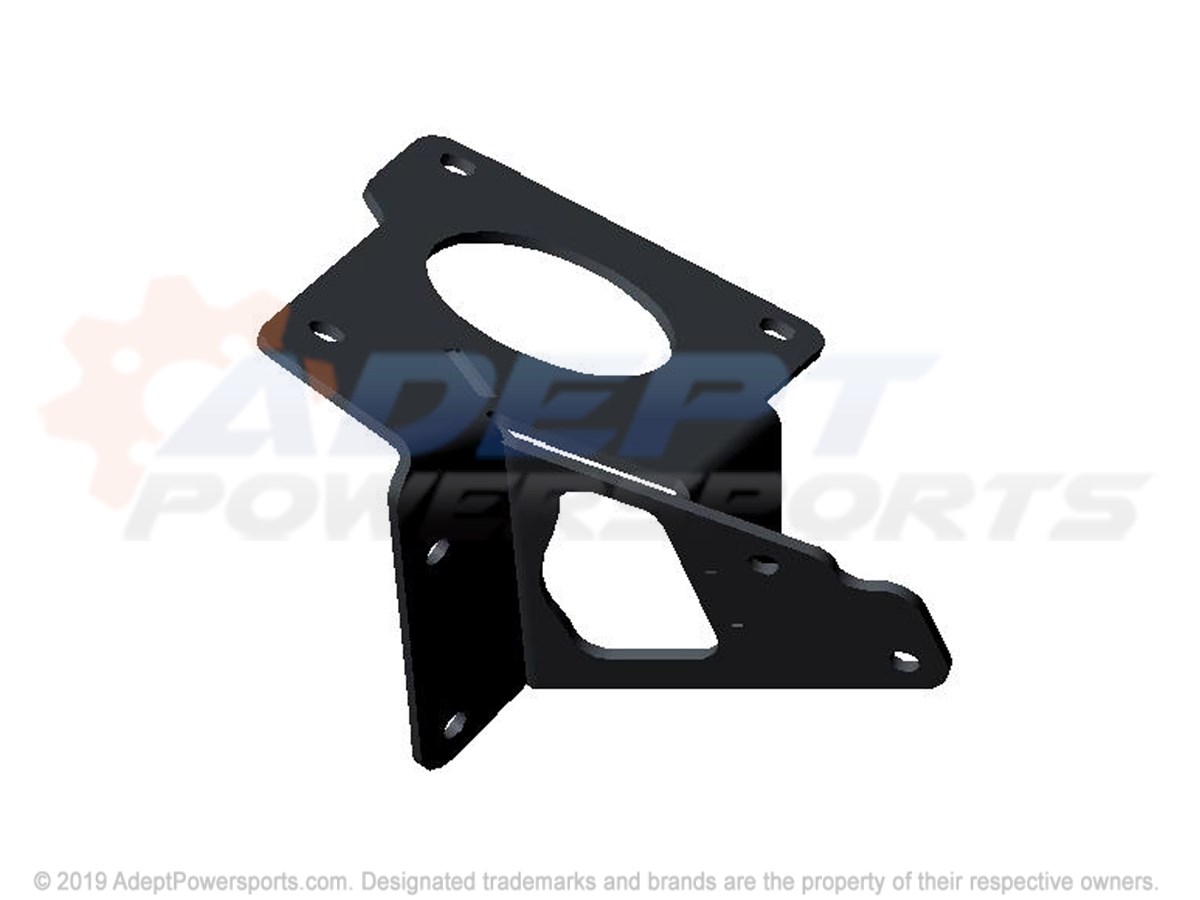

33	MOUNT, EPAS, BLACK Part #: 1018384-329 Required per assembly: 1 Note: EPS Currently Not Available
