OEM Parts Polaris 2015 Polaris Slingshot All Options Alternator, Flywheel And Starter Mounting - T15aas/Aap All Options (49Slingshotengalt14sling)

2015 Polaris Slingshot All Options T15AAS/AAP - Alternator, Flywheel And Starter Mounting - T15aas/Aap All Options (49Slingshotengalt14sling)

Alternator, Flywheel and Starter Mounting - T15AAS/AAP All Options (49SLINGSHOTENGALT14SLING) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
2

SCR-HXFL-M8X1.25X100.8, SPC, GM

Part #: 11588735 Required per assembly: 3
Currently Not Available
3

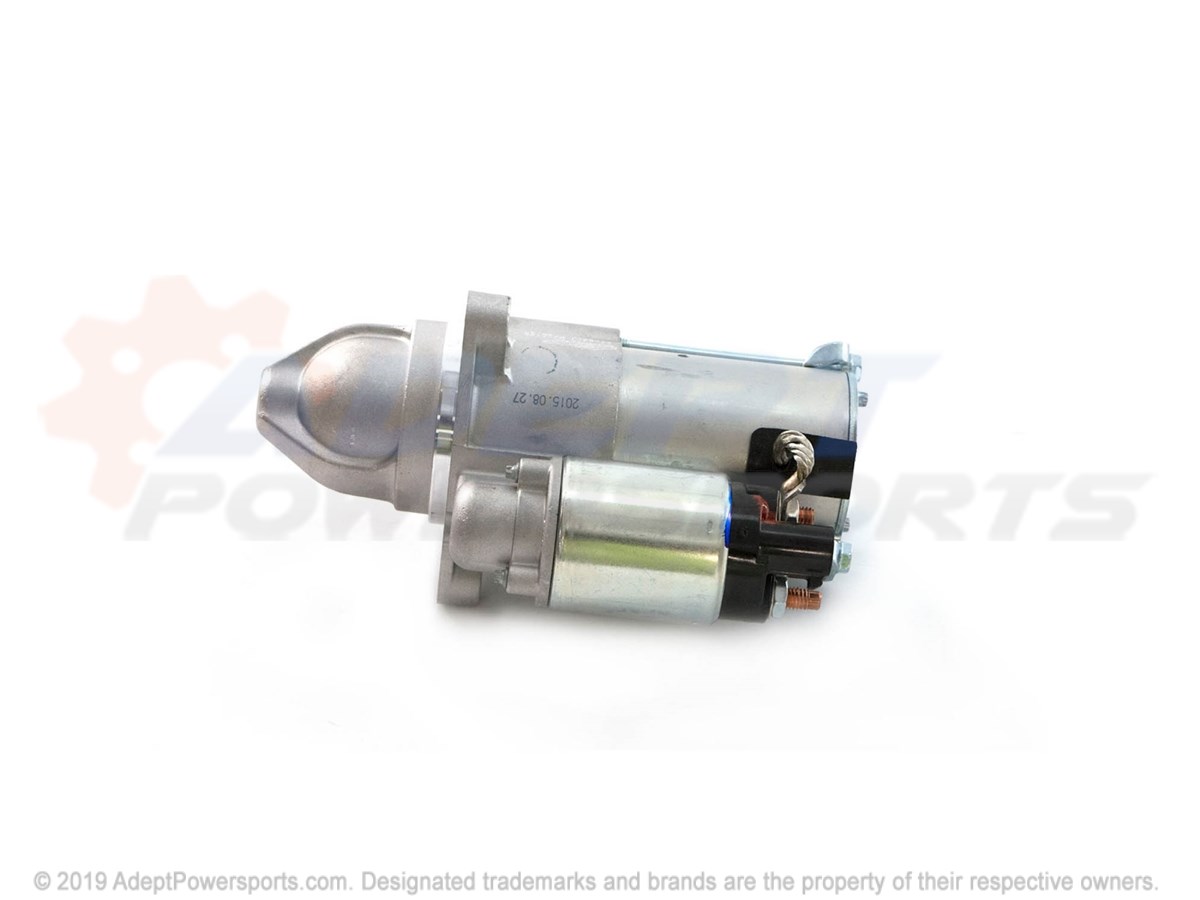

Polaris 12609317 Asm-Starter, Gm

ASM-STARTER, GM

Part #: 12609317 Required per assembly: 1
Currently Not Available
4

SCR-HXFL-M10X1.5X45.65, SPC, GM

Part #: 11588741 Required per assembly: 2
Currently Not Available
5

ASM-FLYWHEEL, GM

Part #: 90537283 Required per assembly: 1
Currently Not Available
6

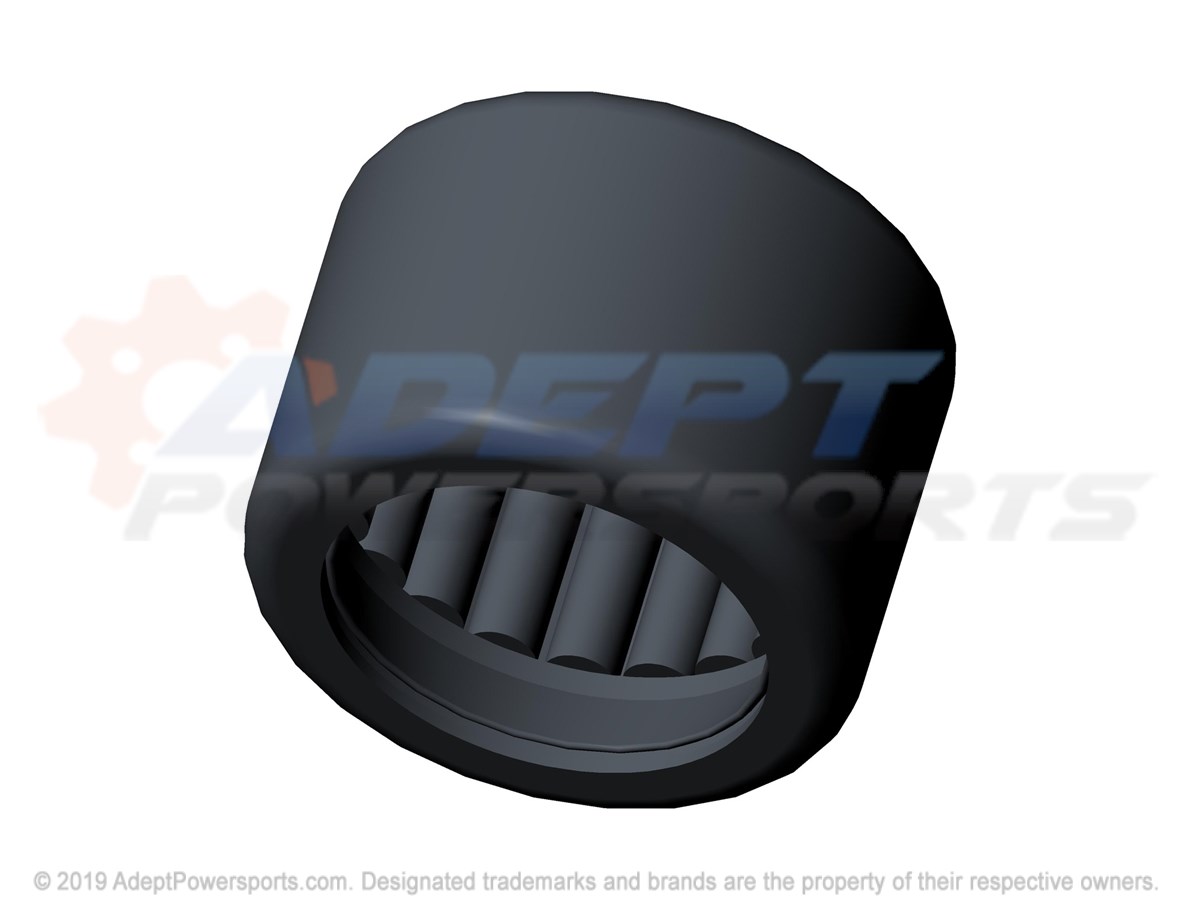

Polaris 90105743 Bearing-Pilot, Crankshaft, Gm

BEARING-PILOT, CRANKSHAFT, GM

Part #: 90105743 Required per assembly: 1
Currently Not Available
7

SCR-HH-M10X1.25X23.5, SPC, GM

Part #: 11570626 Required per assembly: 6
Currently Not Available
8
Polaris 3211151 Belt, Serpentine

BELT, SERPENTINE

Part #: 3211151 Required per assembly: 1
Currently Not Available
