Main, and Rear Asm. - T15AAS/AAP All Options (49SLINGSHOTCHASSIS214SLING) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

WELD-MAINFRME, CHASSIS, TITANIUM

Part #: 1018866-650 Required per assembly: 1
Currently Not Available
2

SCR-HXFL-M12X1.75X65 ZOD P80

Part #: 7519264 Required per assembly: 8
Currently Not Available
3

HOOP-ROLL, RH, FLAT, BLACK

Part #: 5139096-463 Required per assembly: 1
Currently Not Available
4

HOOP-ROLL, LH, FLAT, BLACK

Part #: 5139095-463 Required per assembly: 1
Currently Not Available
5
Polaris 1026167 Weld-Subframe, Rear

WELD-SUBFRAME, REAR

Part #: 1026167 Required per assembly: 1
Currently Not Available
6

NUT, FLANGE

Part #: 7547332 Required per assembly: 1 Note: Nut, Nylok
Currently Not Available
7
Polaris 7517533 Screw, M8x1.25X55

SCREW, M8X1.25X55

Part #: 7517533 Required per assembly: 1
Currently Not Available
8

WELD-TUBE, REAR, BRACE

Part #: 1021193 Required per assembly: 1
Currently Not Available
9
Polaris 7547232 Nut-Hexhd, M12, Din980v

NUT-HEXHD, M12, DIN980V

Part #: 7547232 Required per assembly: 1
Currently Not Available
10

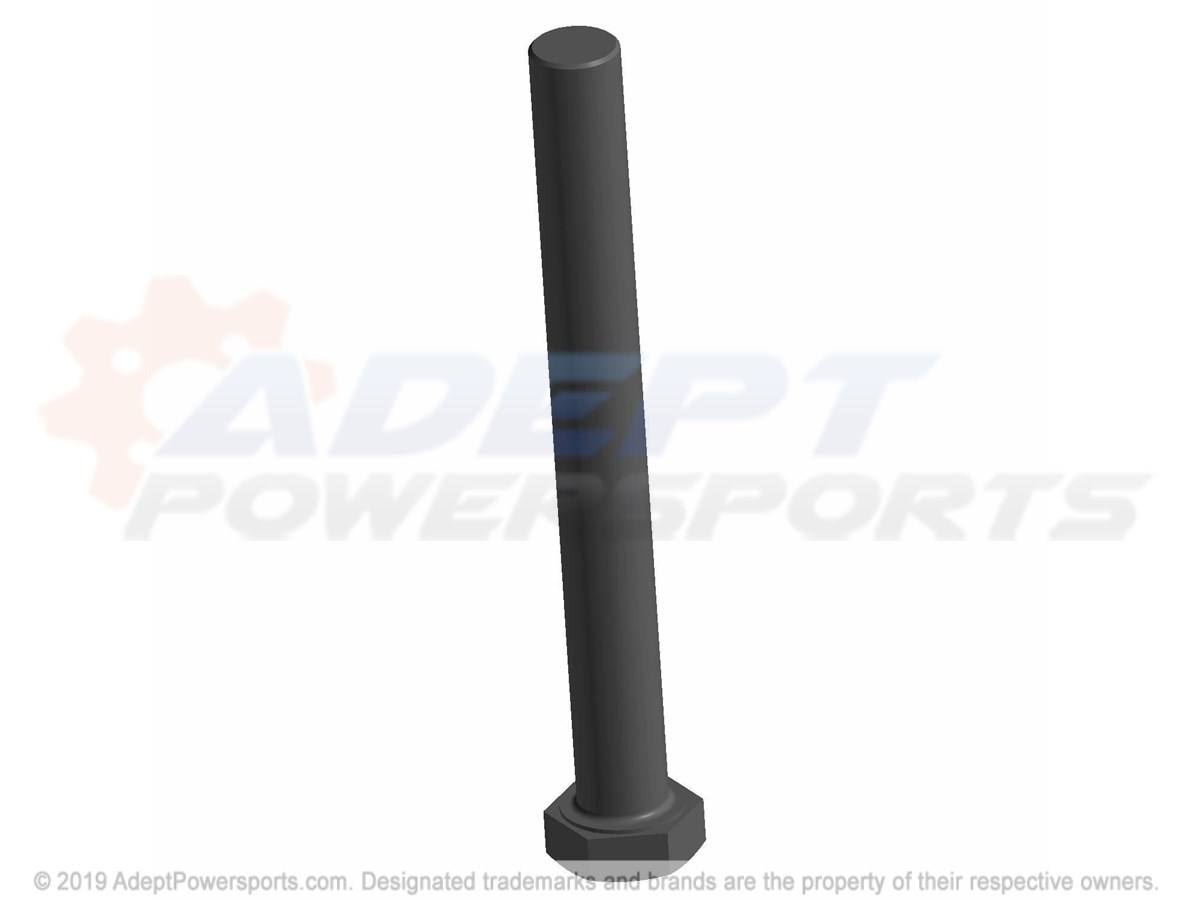

Polaris 7520114 Scr-Hh-M12x1.75X110 10.9 Zy3

SCR-HH-M12X1.75X110 10.9 ZY3

Part #: 7520114 Required per assembly: 1
Currently Not Available
