Bumper, Rear - A16dae87al (100300) replacement parts for 2016 Polaris 900 ACE EFI EPS

OEM Parts Polaris 2016 Polaris 900 ACE EFI EPS Bumper, Rear - A16dae87al (100300)

Bumper, Rear - A16DAE87AL (100300) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

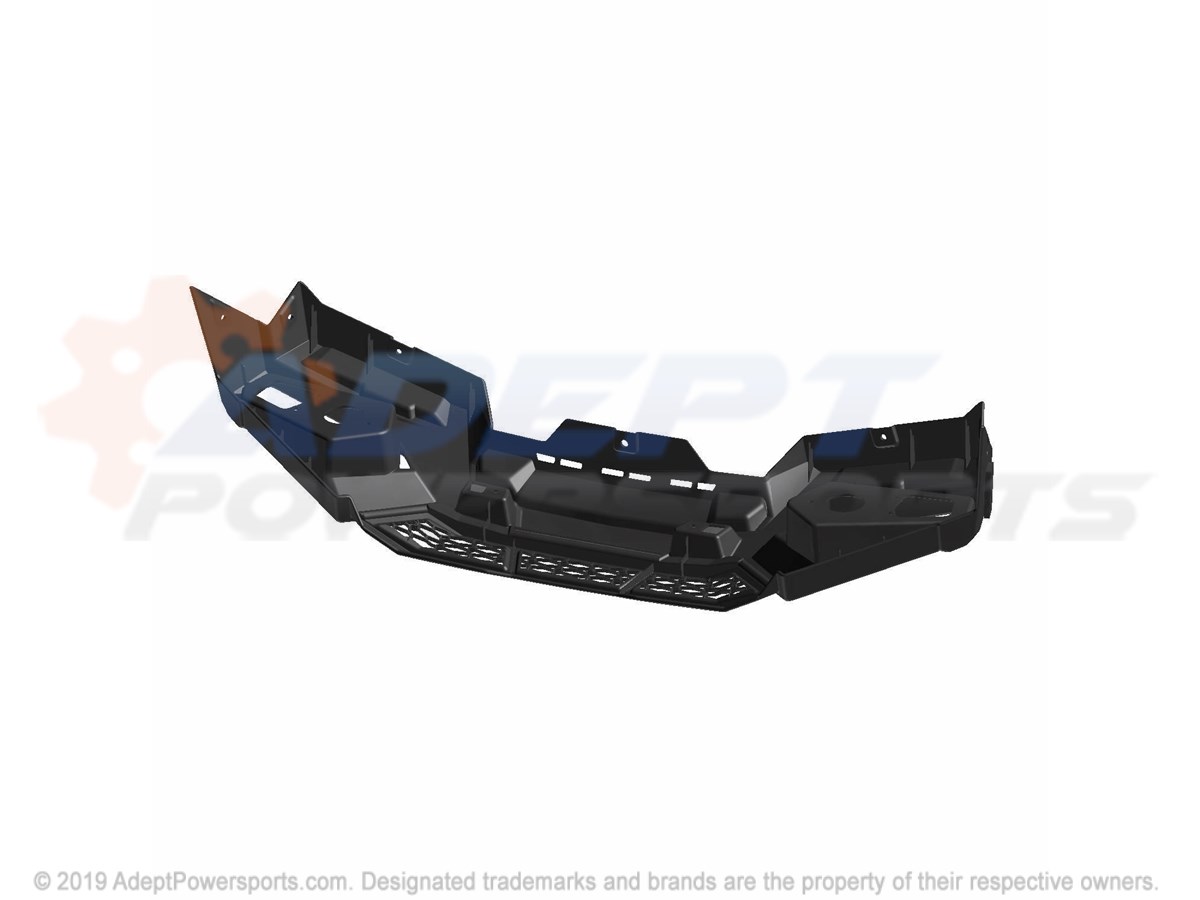

1	ASM-BUMPER, REAR, BLK Part #: 2636004-070 Required per assembly: 1 Note: INCL. RACK, RED REFLECTORS Currently Not Available
2	REFLECTOR, ASM, RED Part #: 2670133 Required per assembly: 2 Currently Not Available

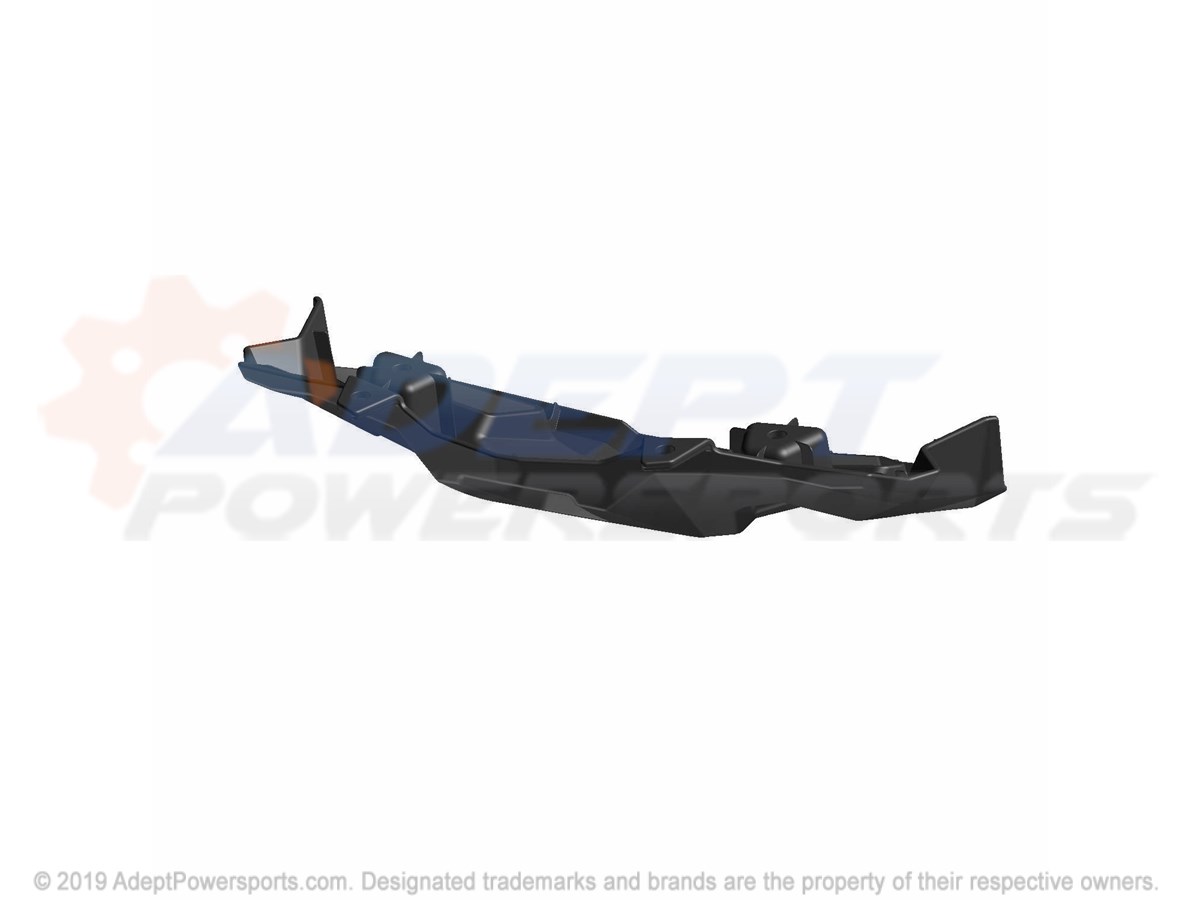

3	BUMPER-LOWER, REAR, BLK Part #: 5452790-070 Required per assembly: 1 Currently Not Available
4	SCREW Part #: 7518555 Required per assembly: 4 Note: Bolt, Flange Currently Not Available
5	SCREW Part #: 7519650 Required per assembly: 3 Currently Not Available
6	NUT, U-TYPE Part #: 7547674 Required per assembly: 3 ~~$2.99~~ $1.73 - + Add to cart
7	RIVET Part #: 7661855 Required per assembly: 6 ~~$2.99~~ $1.73 - + Add to cart
