Exhaust System - A16dae87al (100208) replacement parts for 2016 Polaris 900 ACE EFI EPS

OEM Parts Polaris 2016 Polaris 900 ACE EFI EPS Exhaust System - A16dae87al (100208)

Exhaust System - A16DAE87AL (100208) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

2	WELD-SPARK ARRESTOR QT Part #: 1262239 Required per assembly: 1 Currently Not Available
3	SCREW Part #: 7517257 Required per assembly: 1 Currently Not Available
4	NUT Part #: 7547120 Required per assembly: 1 Currently Not Available
5	SHIELD-HEAT, EXHAUST, SILENCER Part #: 5260822 Required per assembly: 1 Currently Not Available
6	SCREW Part #: 7518490 Required per assembly: 4 Note: Screw, Flange Currently Not Available
7	WASHER Part #: 7555935 Required per assembly: 4 Note: Washer, Flat Currently Not Available

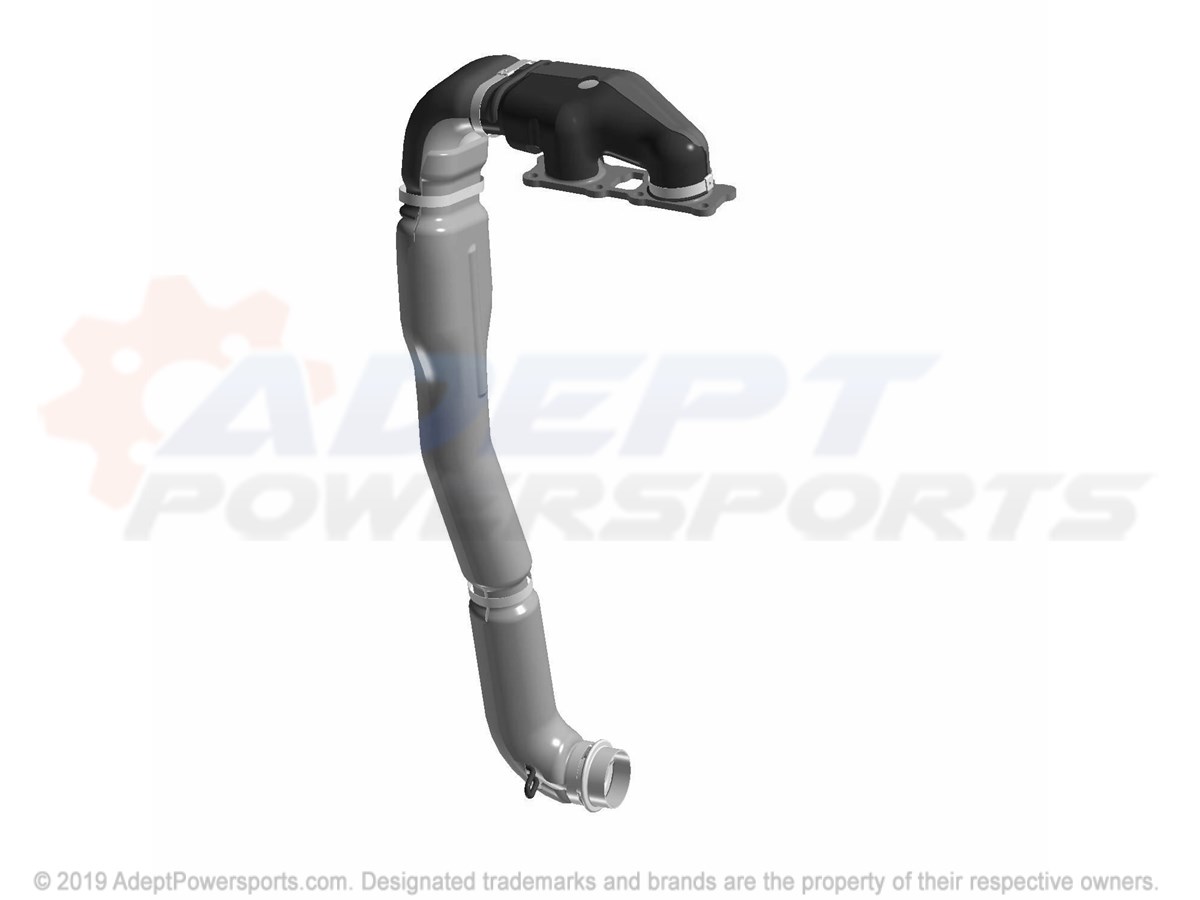

8	ASM-EXHAUST PIPE Part #: 1262689 Required per assembly: 1 Currently Not Available
9	GASKET, EXHAUST, SEAL Part #: 3610184 Required per assembly: 1 Currently Not Available
10	SEAL, EXHAUST Part #: 3610204 Required per assembly: 1 Currently Not Available
11	BUSHING-RES. MT. Part #: 5010192 Required per assembly: 1 Currently Not Available
12	MOUNT-EXHAUST, LOWER Part #: 5258177 Required per assembly: 1 Currently Not Available
13	WASHER, RUBBER Part #: 5414945 Required per assembly: 1 Currently Not Available
14	DAMPER, VIBRATION Part #: 5414946 Required per assembly: 1 Currently Not Available
15	GROMMET, SILENCER, MOUNT Part #: 5413383 Required per assembly: 1 Currently Not Available
16	SPRING-EXHAUST Part #: 7041789 Required per assembly: 2 Note: Spring, Exhaust ~~$6.99~~ $4.03 - + Add to cart
17	BOLT Part #: 7515316 Required per assembly: 1 Currently Not Available
18	SCREW Part #: 7518529 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
19	SCREW Part #: 7518984 Required per assembly: 6 Currently Not Available
20	NUT Part #: 7542324 Required per assembly: 1 Currently Not Available
21	WASHER Part #: 7555716 Required per assembly: 1 Currently Not Available

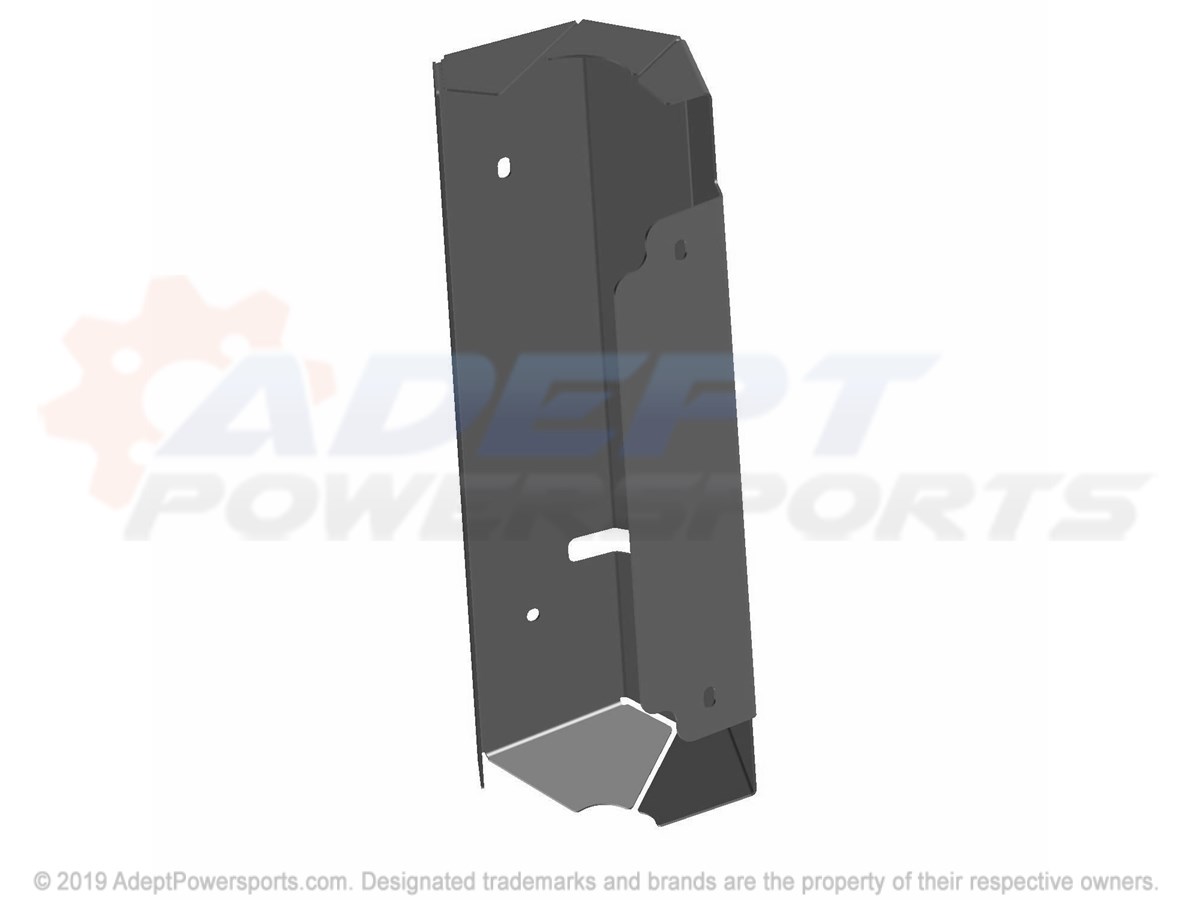

22	SHIELD-CLOSE OFF PANEL Part #: 5814322 Required per assembly: 1 Currently Not Available

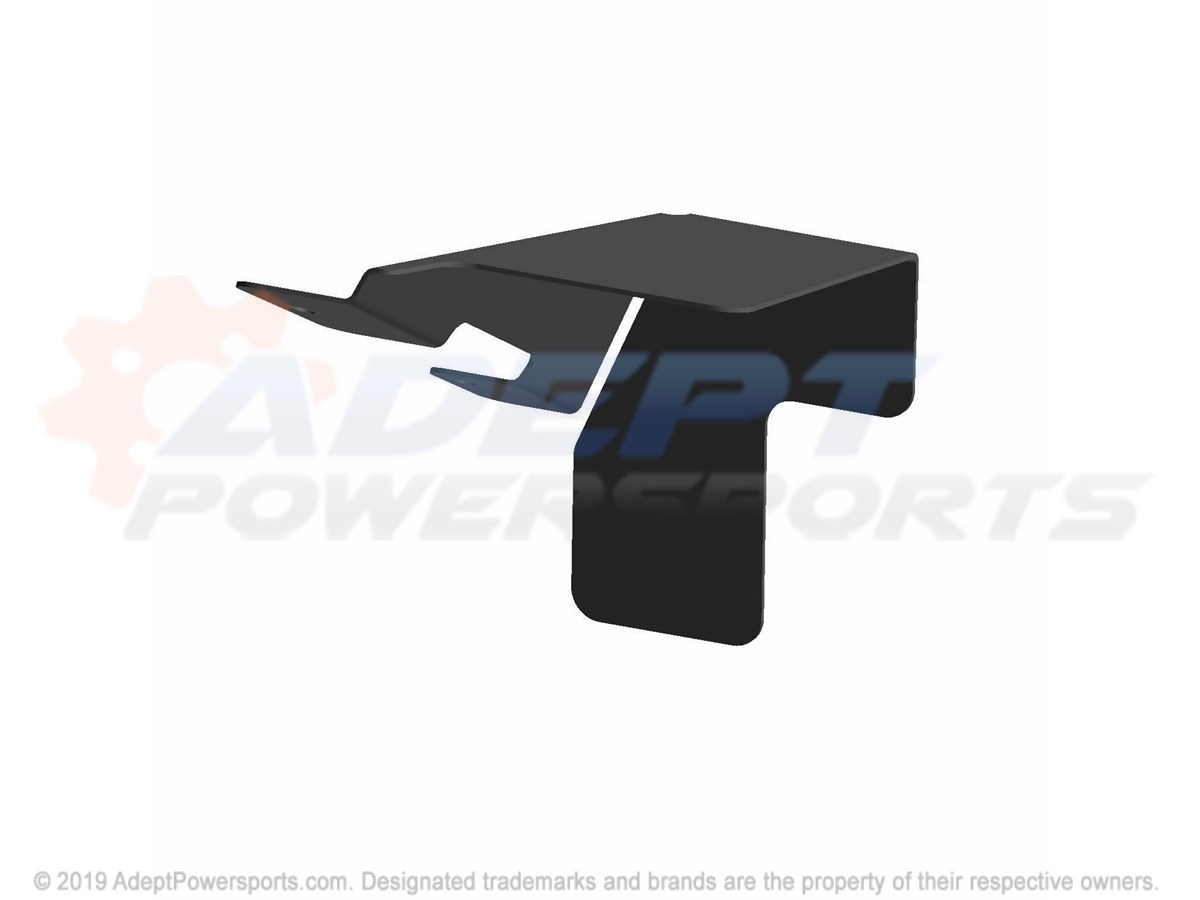

23	SHIELD-UNDER BOX Part #: 5814321 Required per assembly: 1 Currently Not Available
24	SHIELD-BOX, REAR Part #: 5261639 Required per assembly: 1 Currently Not Available
25	SHIELD-BOX, FRONT Part #: 5261640 Required per assembly: 1 Currently Not Available
