Clutch Cover - A16saa57n1 replacement parts for 2016 Polaris 450 HO 2X4 MD

OEM Parts Polaris 2016 Polaris 450 HO 2X4 MD Clutch Cover - A16saa57n1

Clutch Cover - A16SAA57N1 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASSEMBLY, CLUTCH, COVER, INNER Part #: 2634896 Required per assembly: 1 Note: INCL. COVER,2,3 Currently Not Available

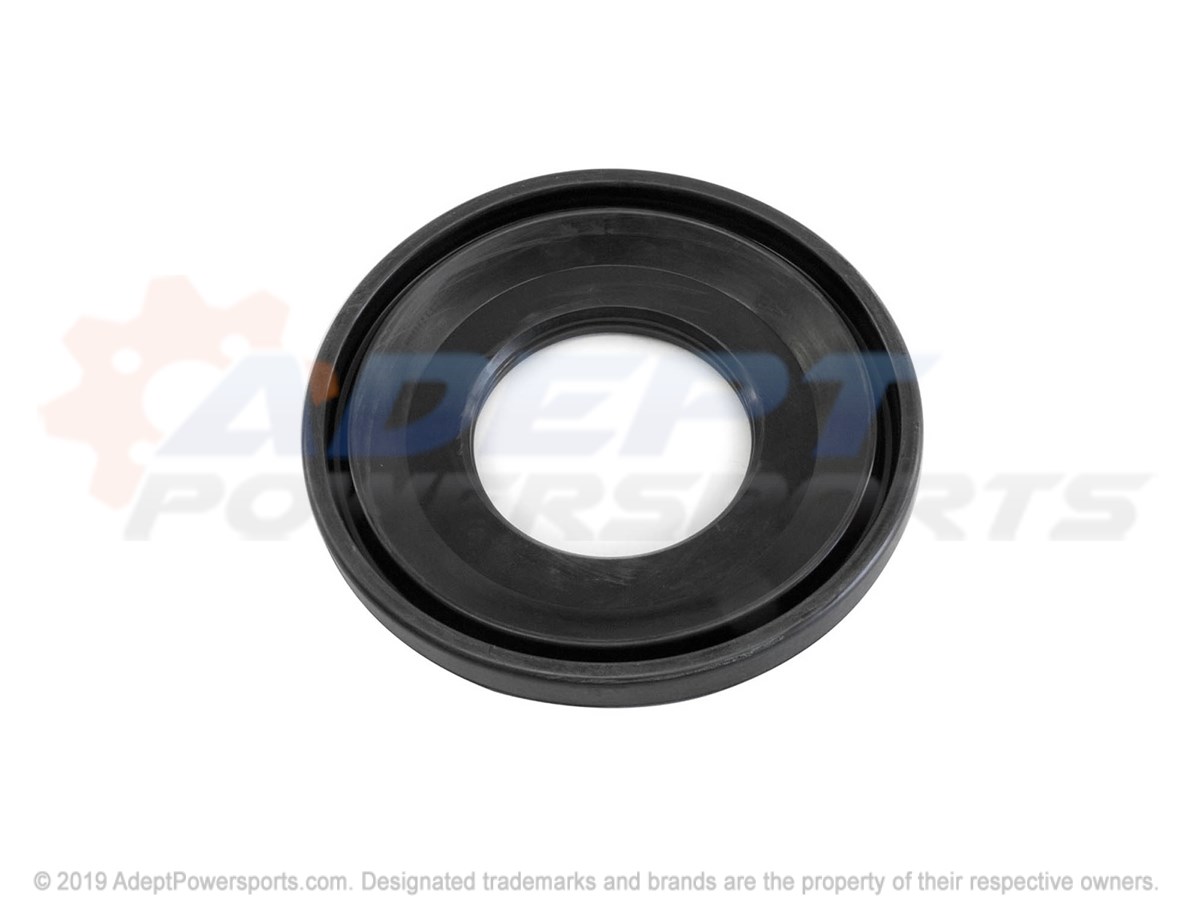

2	SEAL, CLUTCH, COVER, INNER Part #: 5414727 Required per assembly: 1 Currently Not Available
3	SEAL, CLUTCH, COVER, OUTER Part #: 5526450 Required per assembly: 1 Note: Seal, Cover, Clutch, Outer Currently Not Available
4	STRAP, PANDUIT, 14" Part #: 7080761 Required per assembly: 1 Note: Cable Tie Currently Not Available
5	BOLT /WASHER.88 Part #: 7517599 Required per assembly: 5 Note: Asm., Bolt/Washer [Incl. 3,4] Currently Not Available
6	SCREW Part #: 7517312 Required per assembly: 5 ~~$2.99~~ $1.73 - + Add to cart
7	WASHER Part #: 7555748 Required per assembly: 5 Currently Not Available
8	ASSEMBLY, CLUTCH, COVER, OUTER Part #: 2634897 Required per assembly: 1 Note: INCL. COVER,PLUG,O-RING,12,13 Currently Not Available
9	O-RING, MOLDED Part #: 5411432 Required per assembly: 1 ~~$4.99~~ $2.92 - + Add to cart
10	PLUG-DRAIN, CLUTCH, COVER Part #: 5434264 Required per assembly: 1 Note: Plug, Drain Currently Not Available
11	CLAMP Part #: 7081626 Required per assembly: 2 Note: Clamp Currently Not Available
12	COVER, CLUTCH, INTAKE, BAFFLE Part #: 5450420 Required per assembly: 1 Currently Not Available
13	SCREW Part #: 7512026 Required per assembly: 4 Note: Screw Currently Not Available
14	BOOT, DUCT, CLUTCH Part #: 5414768 Required per assembly: 2 Currently Not Available
15	CLAMP Part #: 7081626 Required per assembly: 2 Note: Clamp Currently Not Available
16	SCREW Part #: 7519849 Required per assembly: 8 Currently Not Available
17	DUCT-AIR, INLET, CLUTCH Part #: 5451155 Required per assembly: 1 Currently Not Available
18	DUCT, CLUTCH, OUTLET Part #: 5450546 Required per assembly: 1 Currently Not Available
