OEM Parts Polaris 2016 Polaris 450 HO 2X4 MD Rear Drive Shaft - A16saa57n1

2016 Polaris 450 HO 2X4 MD A16SAA57N1 - Rear Drive Shaft - A16saa57n1

Rear Drive Shaft - A16SAA57N1 Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ASM-DRIVESHAFT, SPMN, RR, 32, DEG

Part #: 1337130 Required per assembly: 2 Note: INCL. 1-9
Currently Not Available
2
Polaris 2204460 Kit-Boot Inboard (85-9453)

KIT-BOOT INBOARD (85-9453)

Part #: 2204460 Required per assembly: 2 Note: INCL. BOOT, CLAMPS, GREASE, RING
Currently Not Available
3

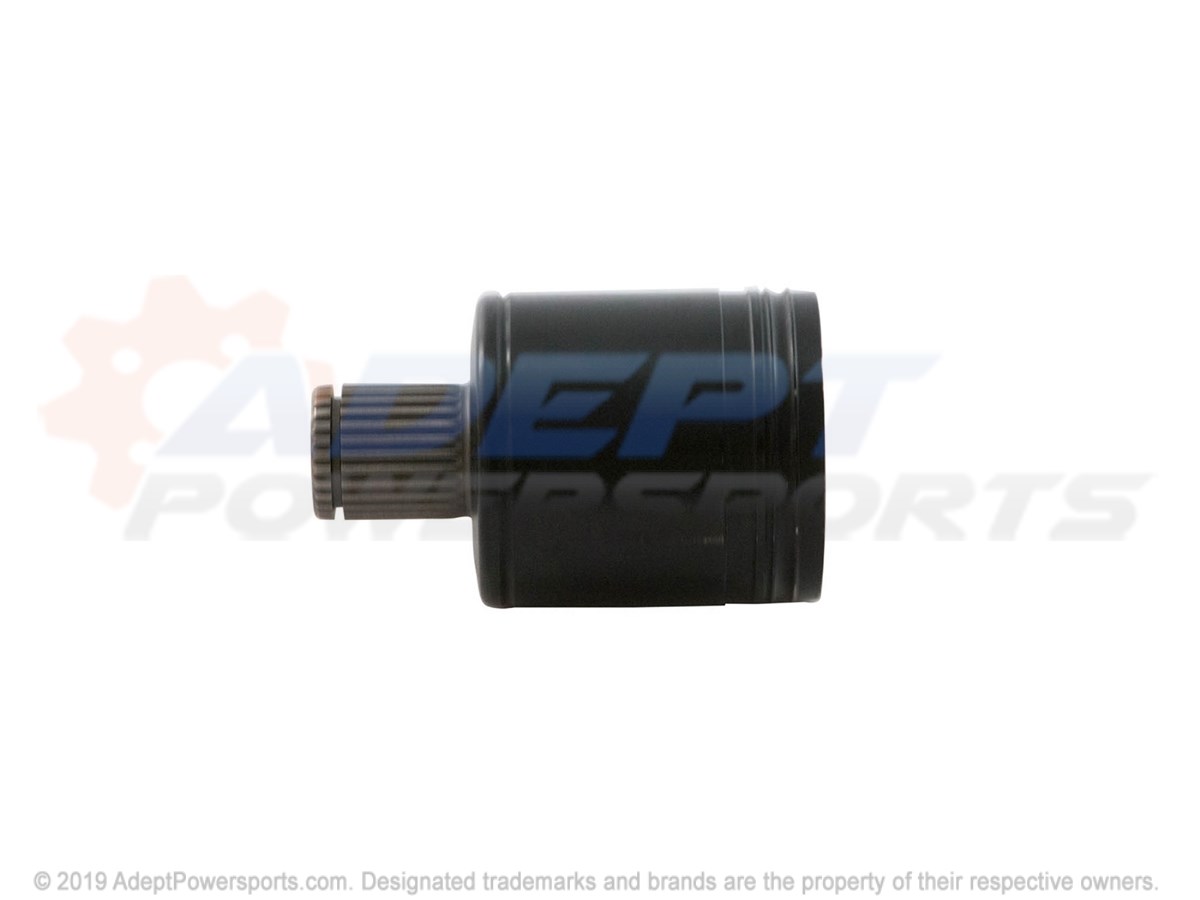

Polaris 2205583 Joint-Plunging (3135588)

JOINT-PLUNGING (3135588)

Part #: 2205583 Required per assembly: 1 Note: INCL. RING
Currently Not Available
4

SPRING-RING (93-8395)

Part #: 7710665 Required per assembly: 1
Currently Not Available
5
Polaris 2204365 Cv-Joint(3135595)

CV-JOINT(3135595)

Part #: 2204365 Required per assembly: 1 Note: JOINT ONLY
Currently Not Available
8

SPRING-RING (93-8388)

Part #: 7710664 Required per assembly: 2
Currently Not Available
9
Polaris 2204459 Kit-Boot Outboard (81-9452)

KIT-BOOT OUTBOARD (81-9452)

Part #: 2204459 Required per assembly: 1 Note: SPRING-RING P/N 7710664 sold separately
Currently Not Available
10
Polaris 5414534 O-Ring

O-RING

Part #: 5414534 Required per assembly: 2
Currently Not Available
