2016 Polaris Scrambler XP 1000 A16SVE95AA/AM - Rear Cab And Heat Shields - A16sve95aa/Am

Rear Cab and Heat Shields - A16SVE95AA/AM Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

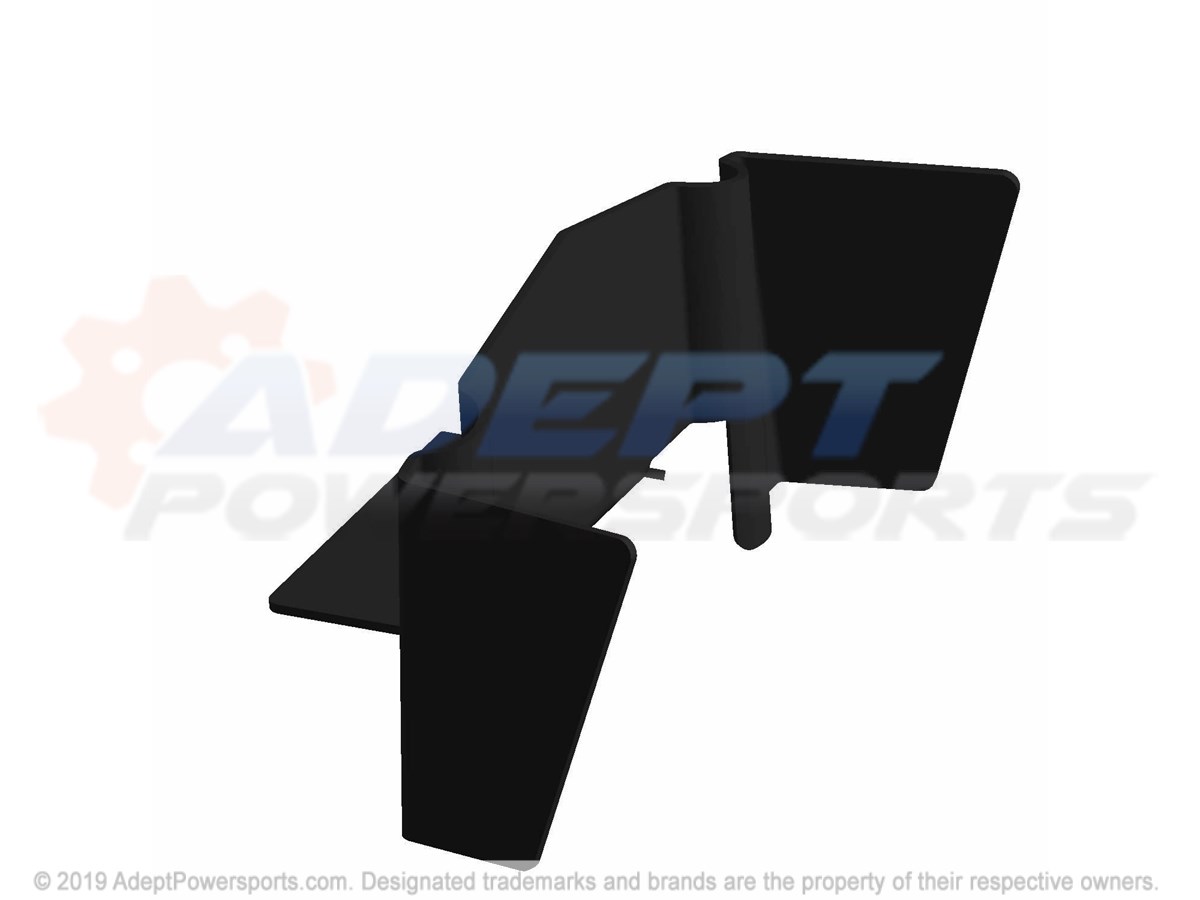

Polaris 5256534 Shield, Heat

SHIELD, HEAT

Part #: 5256534 Required per assembly: 1
Currently Not Available
2

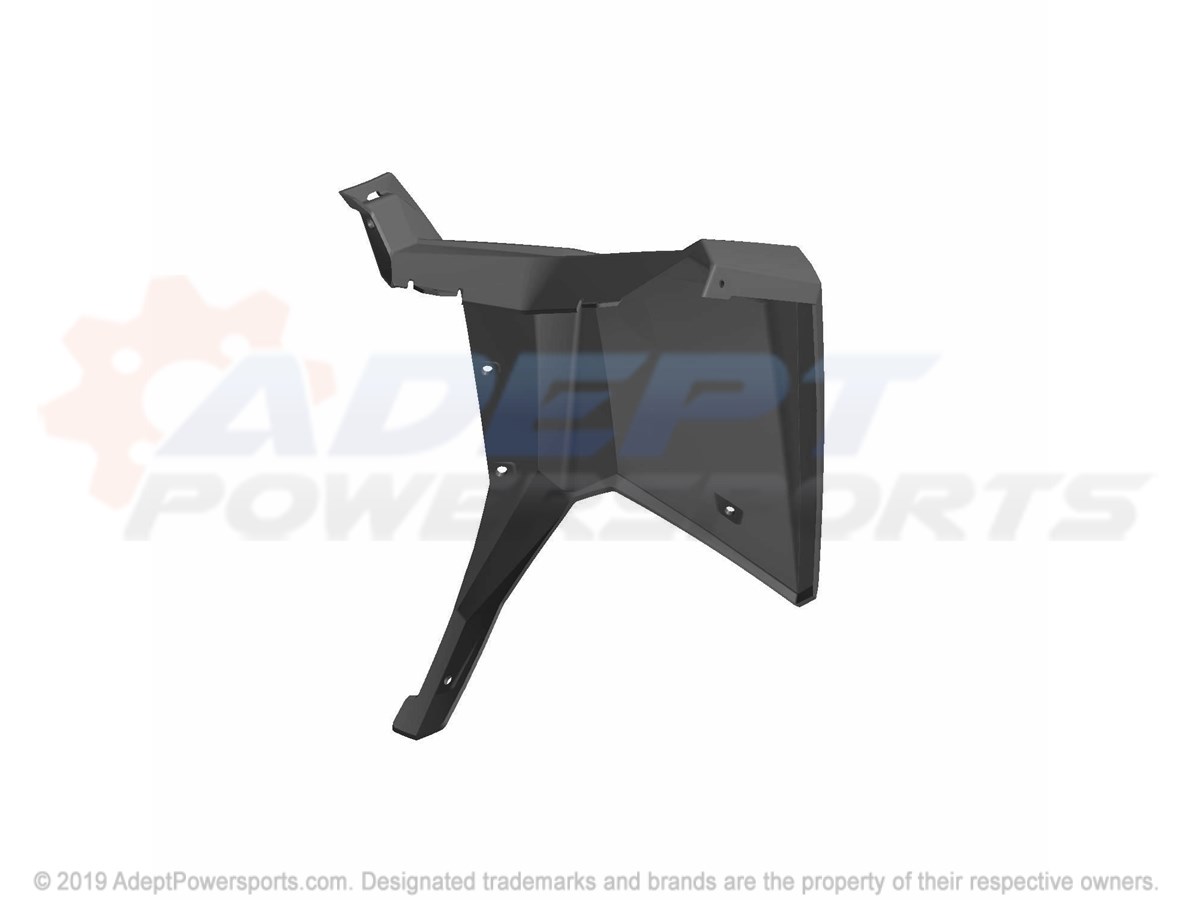

Polaris 2635065-632 Asm-Rr, Cab, Lh, Scr, Pntd, M.Titan

ASM-RR, CAB, LH, SCR, PNTD, M.TITAN

Part #: 2635065-632 Required per assembly: 1 Note: INCL. WARNING DECALS
Currently Not Available
3

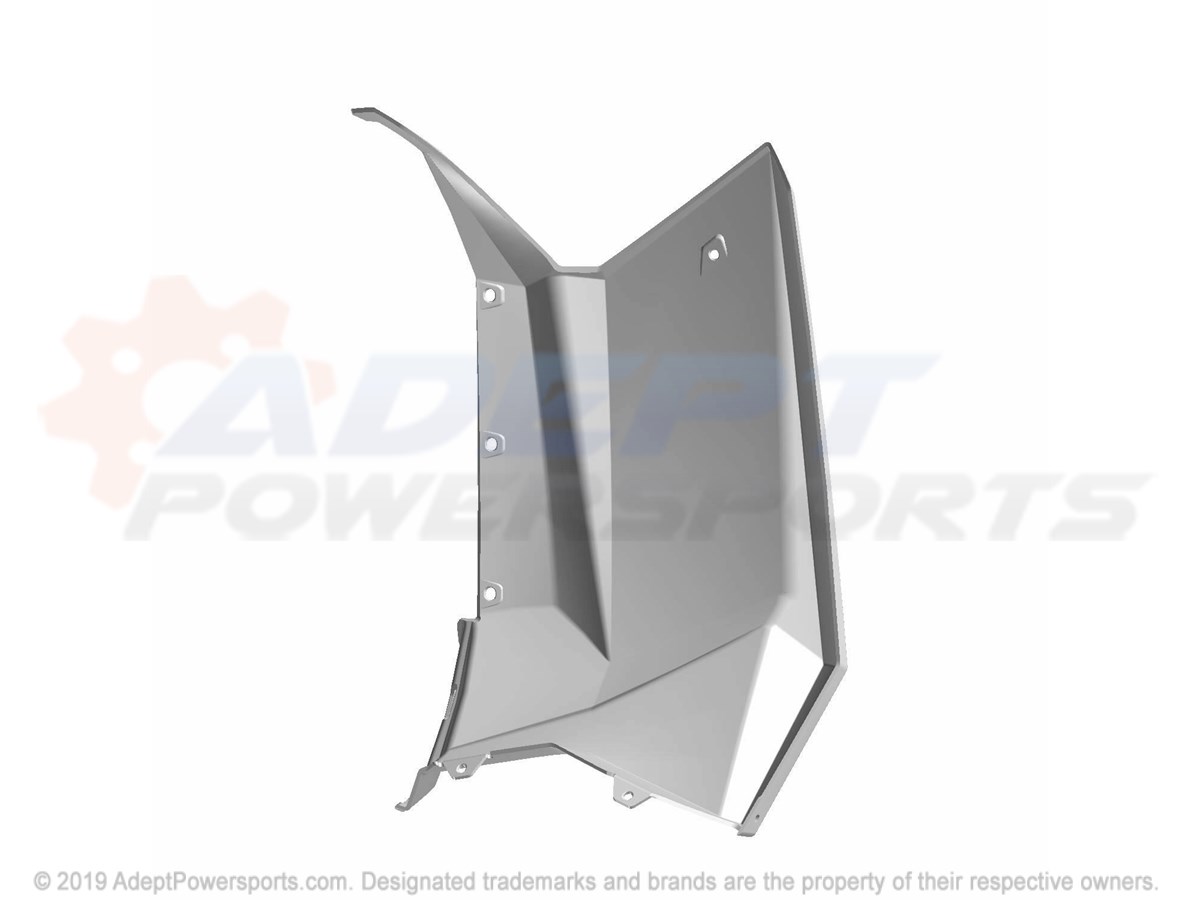

Polaris 5439706-632 Cab-Rr, Rh, Scr, 850, Pntd, M.Titan

CAB-RR, RH, SCR, 850, PNTD, M.TITAN

Part #: 5439706-632 Required per assembly: 1
Currently Not Available
4

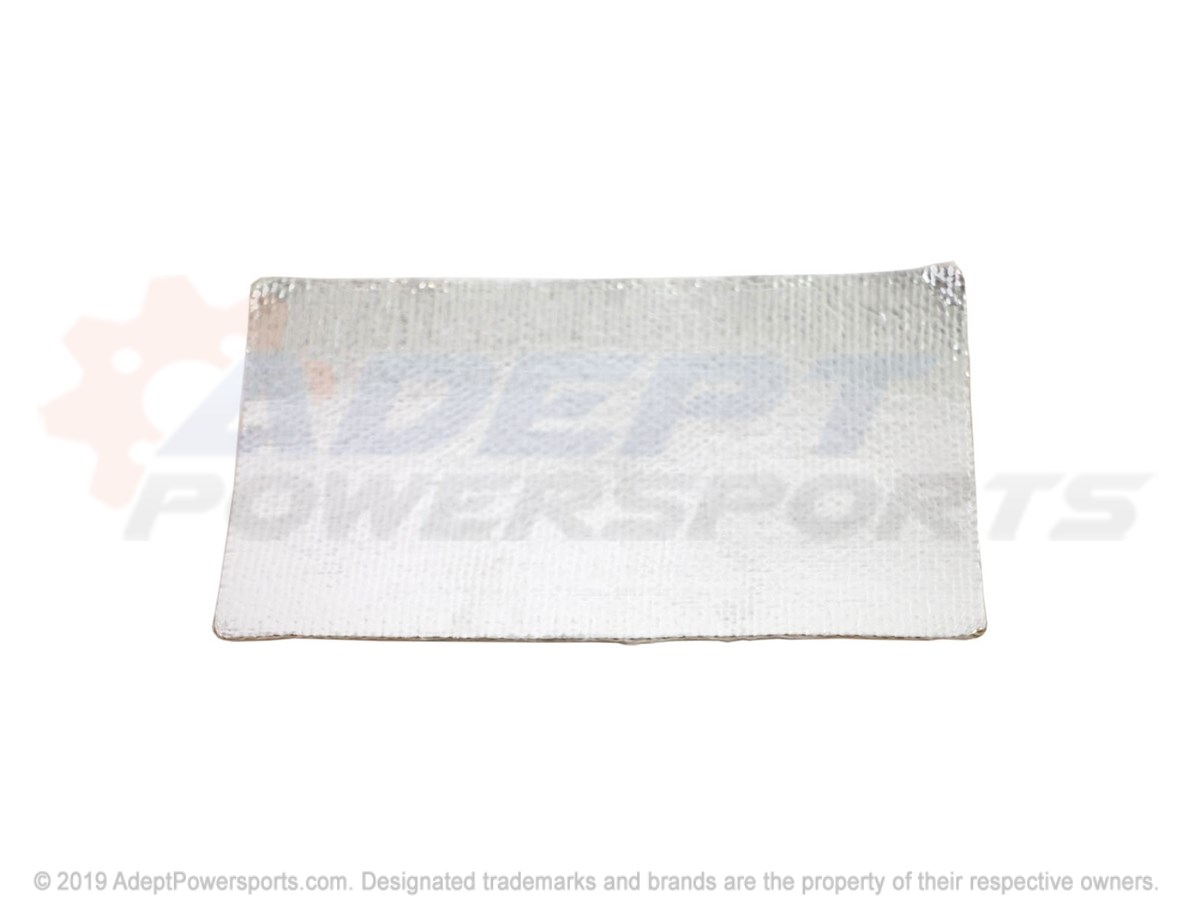

Polaris 5813924 Foil, Fiber, Box, Rear

FOIL, FIBER, BOX, REAR

Part #: 5813924 Required per assembly: 1
Currently Not Available
5
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 15
$2.99
$1.73
-
+
Add to cart
6
Polaris 5259457 Shield, Heat, Exhaust, Crosstube

SHIELD, HEAT, EXHAUST, CROSSTUBE

Part #: 5259457 Required per assembly: 1
Currently Not Available
7

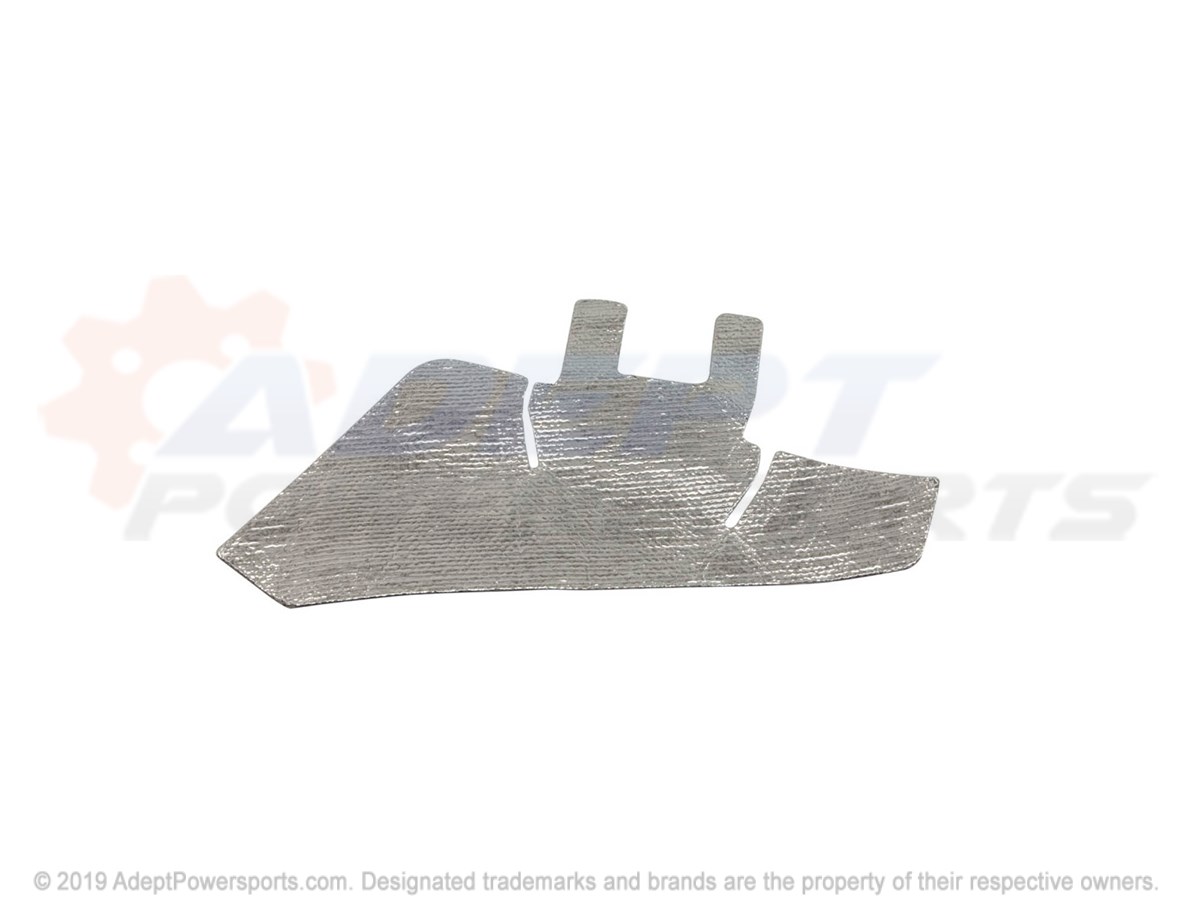

Polaris 5814111 Shield, Heat, Foil, Storage, Lh

SHIELD, HEAT, FOIL, STORAGE, LH

Part #: 5814111 Required per assembly: 1
Currently Not Available
8

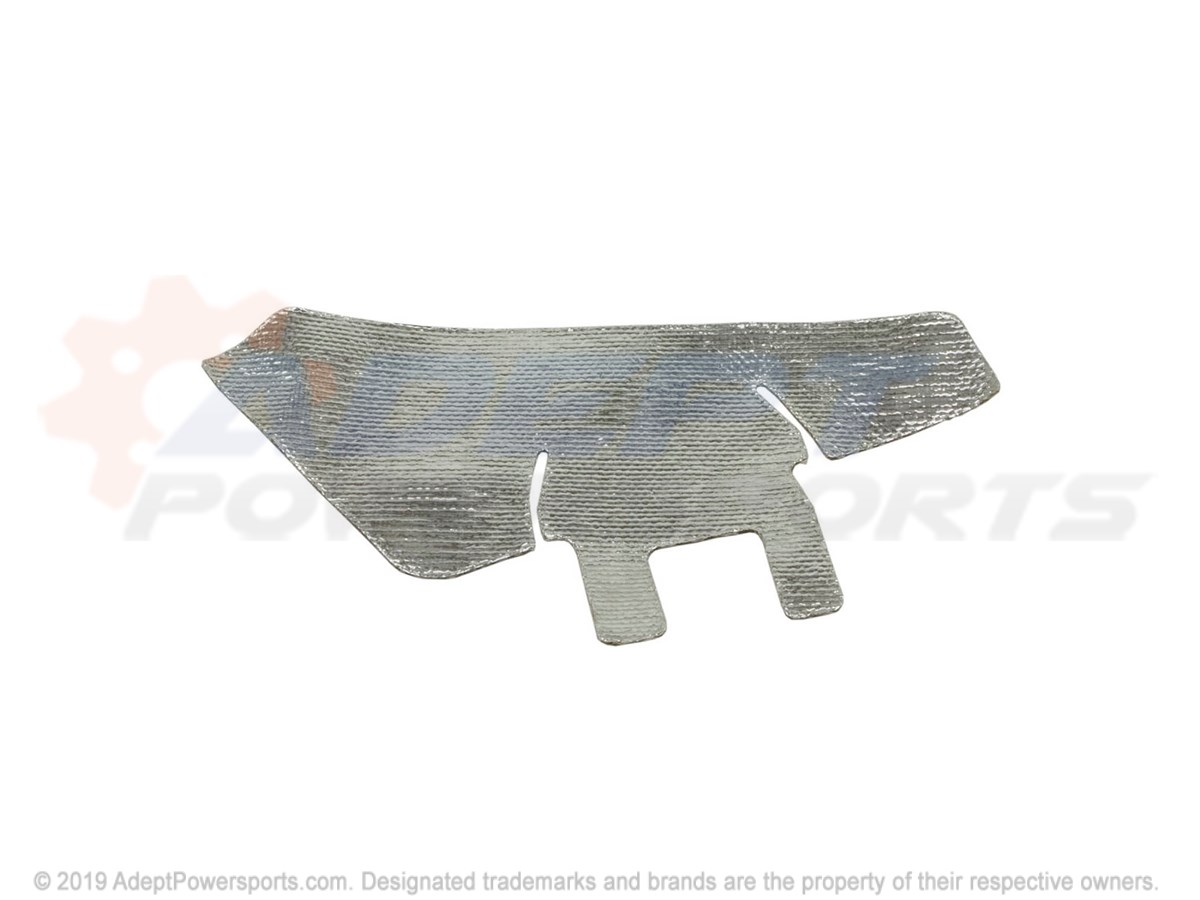

Polaris 5814112 Shield, Heat, Foil, Storage, Rh

SHIELD, HEAT, FOIL, STORAGE, RH

Part #: 5814112 Required per assembly: 1
Currently Not Available
9
Polaris 5814113 Shield, Heat, Foil, Frame

SHIELD, HEAT, FOIL, FRAME

Part #: 5814113 Required per assembly: 2
Currently Not Available
