OEM Parts Polaris 2016 Polaris Scrambler XP 1000 Throttle Body - A16sve95aa/Am

2016 Polaris Scrambler XP 1000 A16SVE95AA/AM - Throttle Body - A16sve95aa/Am

Throttle Body - A16SVE95AA/AM Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

ASM-THROTTLE BODY

Part #: 1205497 Required per assembly: 1 Note: INCL. 1-5, SENSORS
Currently Not Available
2

BOLT-FUEL RAIL

Part #: 3131716 Required per assembly: 2
Currently Not Available
3

CLIP, INJECTOR

Part #: 3131725 Required per assembly: 2
Currently Not Available
4
Polaris 1203568 Injector

INJECTOR

Part #: 1203568 Required per assembly: 2
Currently Not Available
6
Polaris 5814296 Gasket-Itb

GASKET-ITB

Part #: 5814296 Required per assembly: 2
Currently Not Available
7
Polaris 5137620 Scr-Shsems-M6x1.0X80 8.8 Zod

SCR-SHSEMS-M6X1.0X80 8.8 ZOD

Part #: 5137620 Required per assembly: 4
Currently Not Available
8
Polaris 3130543 Guide, Cable

GUIDE, CABLE

Part #: 3130543 Required per assembly: 1 Note: Guide, Cable
Currently Not Available
9
Polaris 5413599 O-Ring, Throttle, Cam, Cover

O-RING, THROTTLE, CAM, COVER

Part #: 5413599 Required per assembly: 1
Currently Not Available
10

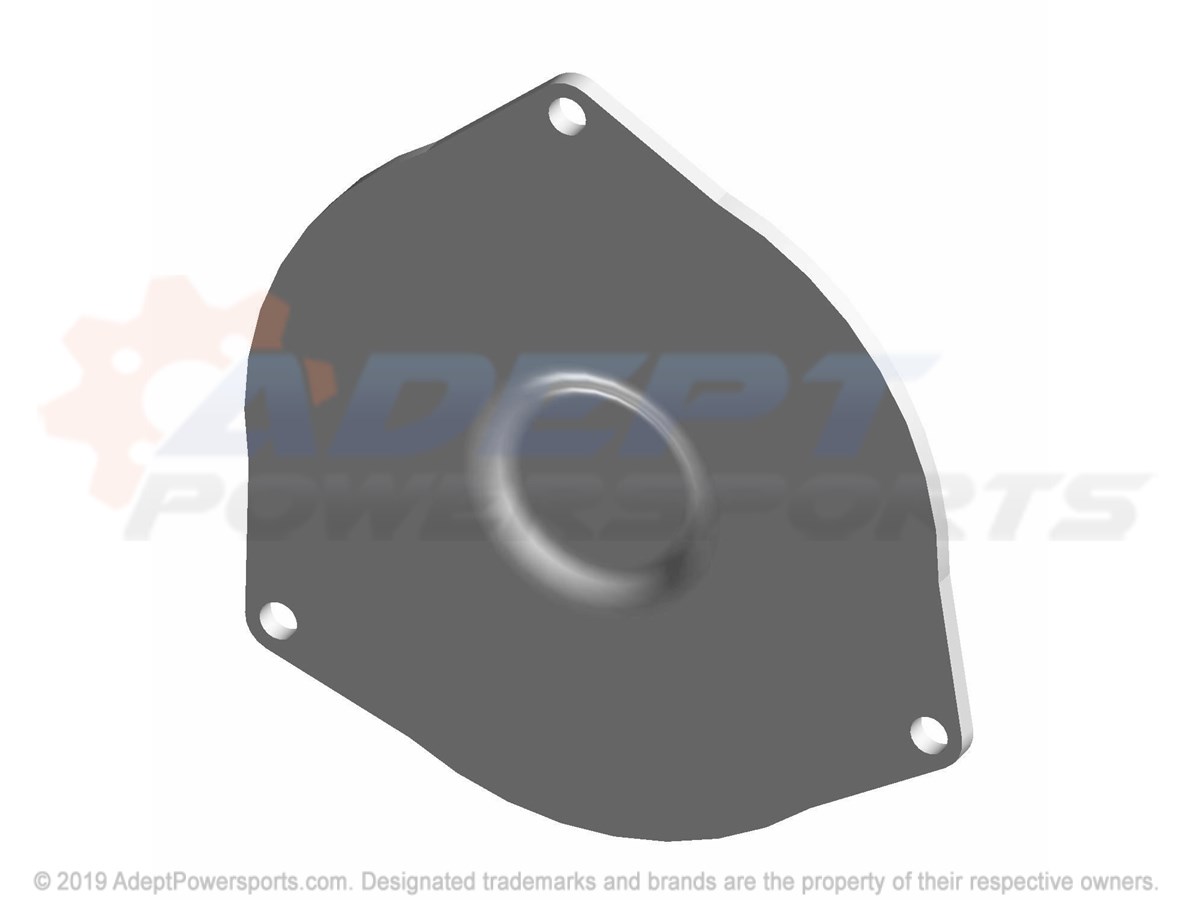

Polaris 5252518 Cover, Throttle, Cam

COVER, THROTTLE, CAM

Part #: 5252518 Required per assembly: 1 Note: BUILT 12/11/15 AND BEFORE
Currently Not Available
10
Polaris 5262110 Cover-Throttle Cam

COVER-THROTTLE CAM

Part #: 5262110 Required per assembly: 1 Note: BUILT 12/12/15 AND AFTER
Currently Not Available
11
Polaris 7519292 Scr-M4x0.7X8mm Tx

SCR-M4X0.7X8MM TX

Part #: 7519292 Required per assembly: 3
Currently Not Available
12

HOSE, FUEL

Part #: 8450123-71 Required per assembly: 1
Currently Not Available
12

HOSE, FUEL

Part #: 8450123-56 Required per assembly: 1
Currently Not Available
13
Polaris 7080534 Clamp, Spring,

CLAMP, SPRING,

Part #: 7080534 Required per assembly: 4 Note: Clamp, Hose
$3.99
$2.30
-
+
Add to cart
