2016 Polaris Sportsman 850 HL A16SXN85A3 - Battery - A16sxn85a3

Battery - A16SXN85A3 Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

CABLE-BAT, 6GA, RD, FL, 45, M6, 5/16

Part #: 4015529-1060 Required per assembly: 1 Note: POS.
Currently Not Available
2
Polaris 7518529 Screw

SCREW

Part #: 7518529 Required per assembly: 3
$2.99
$1.73
-
+
Add to cart
3

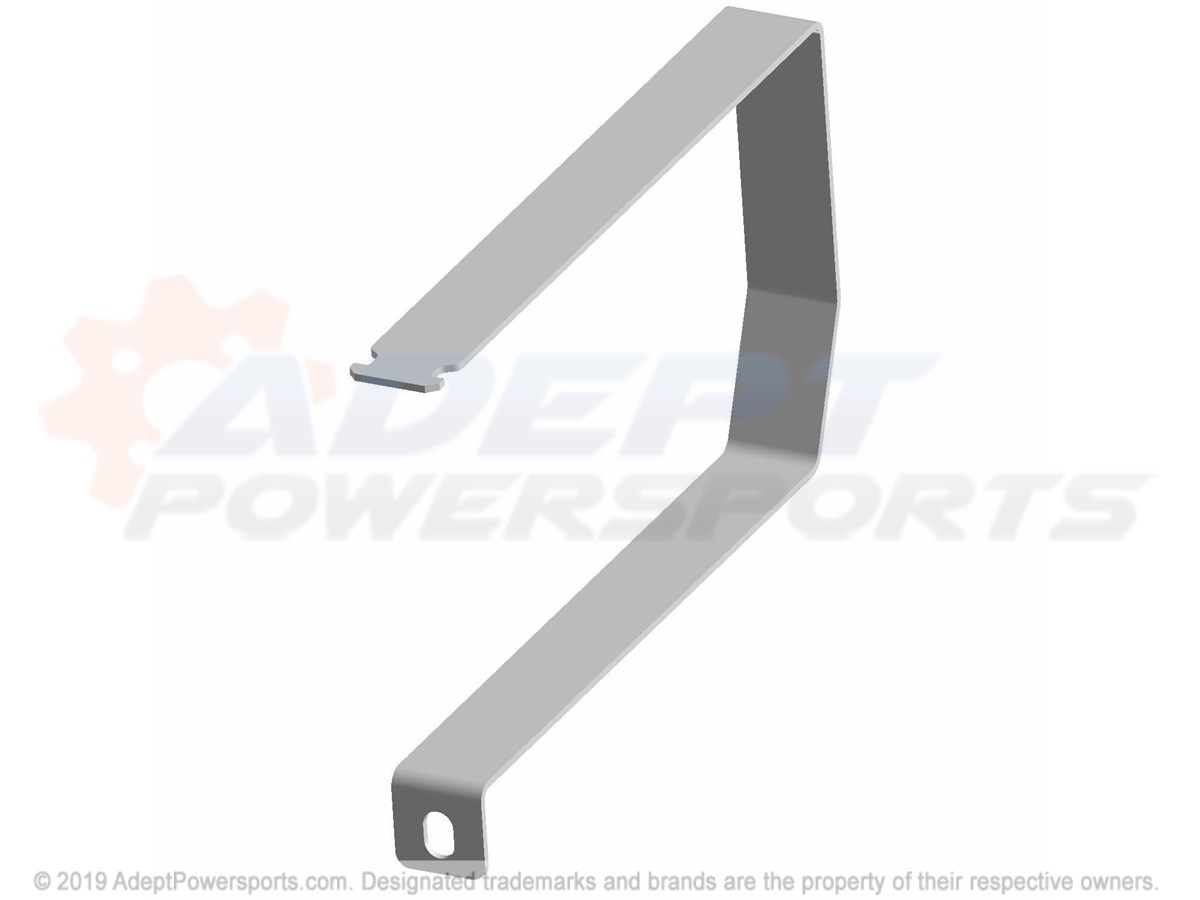

Polaris 5260751 Brkt-Battery Strap 18A-H

BRKT-BATTERY STRAP 18A-H

Part #: 5260751 Required per assembly: 1
Currently Not Available
4

BATTERY-YTX20HL, 18AH, 310CCA, V3

Part #: 4081963 Required per assembly: 1
Currently Not Available
5
Polaris 5438299 Cover, Battery

COVER, BATTERY

Part #: 5438299 Required per assembly: 1
Currently Not Available
6
Polaris 7519333 Stud

STUD

Part #: 7519333 Required per assembly: 1
Currently Not Available
7
Polaris 7518555 Screw

SCREW

Part #: 7518555 Required per assembly: 2 Note: Bolt, Flange
Currently Not Available
8
Polaris 4012709 Cable, Black

CABLE, BLACK

Part #: 4012709 Required per assembly: 1
Currently Not Available
9
Polaris 7547274 Nut

NUT

Part #: 7547274 Required per assembly: 1 Note: Nut, Flange
Currently Not Available
10

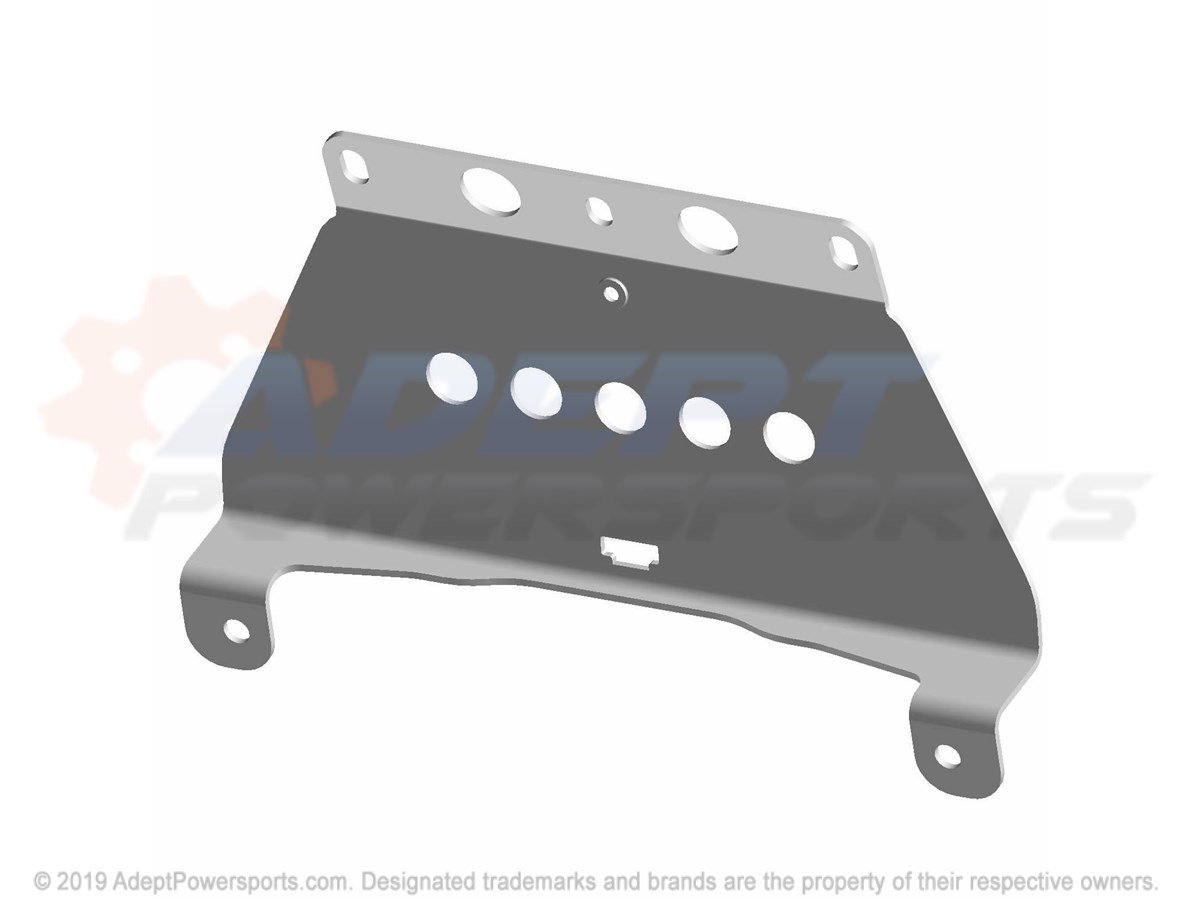

Polaris 5260752 Brkt-Battery Tray

BRKT-BATTERY TRAY

Part #: 5260752 Required per assembly: 1
Currently Not Available
11

CABLE-BATT, 6GA, BK, FLAT, 85, M6

Part #: 4014511-610 Required per assembly: 1 Note: NEG.
Currently Not Available
12

KIT, BATTERY, BOLT

Part #: 2201357 Required per assembly: 1
Currently Not Available
