OEM Parts Polaris 2016 Polaris Sportsman 850 HL Front Cab - A16sxn85a3

2016 Polaris Sportsman 850 HL A16SXN85A3 - Front Cab - A16sxn85a3

Front Cab - A16SXN85A3 Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1

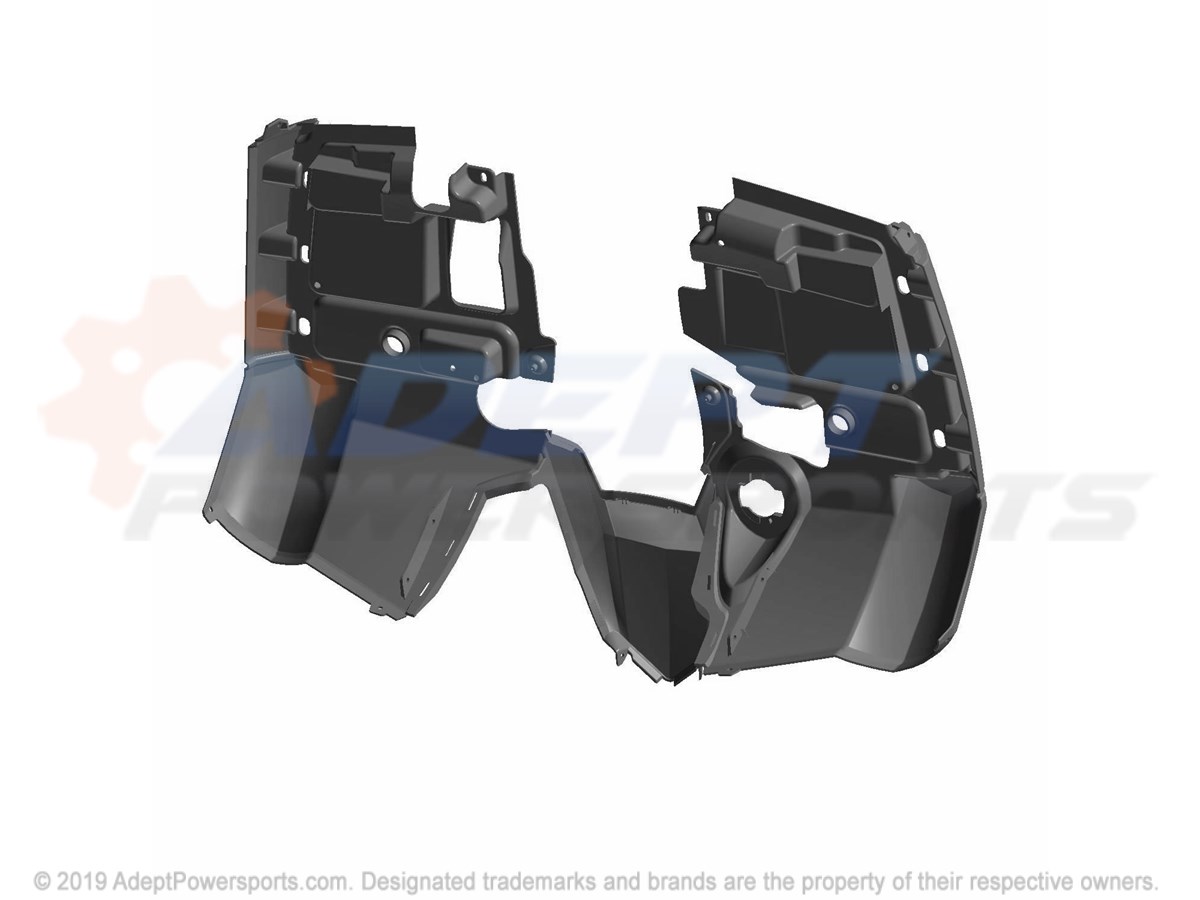

Polaris 2635736-593 Asm-Cab, Fr, Svc, Mod, Org, Madness

ASM-CAB, FR, SVC, MOD, ORG, MADNESS

Part #: 2635736-593 Required per assembly: 1 Note: INCL. WARNING DECALS
Currently Not Available
2
Polaris 5439089-070 Panel-Side, Upper, Rh, Blk

PANEL-SIDE, UPPER, RH, BLK

Part #: 5439089-070 Required per assembly: 1
Currently Not Available
3
Polaris 5438946-070 Panel-Side, Upper, Lh, Blk

PANEL-SIDE, UPPER, LH, BLK

Part #: 5438946-070 Required per assembly: 1
Currently Not Available
4
Polaris 5435827-593 Cover-Front, Orange, Madness

COVER-FRONT, ORANGE, MADNESS

Part #: 5435827-593 Required per assembly: 1
Currently Not Available
5
Polaris 7518238 Screw

SCREW

Part #: 7518238 Required per assembly: 2
$3.79
$1.73
-
+
Add to cart
6
Polaris 5452013-070 Guard-Mud, Frnt, Lh, Modified, Blk

GUARD-MUD, FRNT, LH, MODIFIED, BLK

Part #: 5452013-070 Required per assembly: 1
Currently Not Available
7
Polaris 5437063-070 Guard, Mud, Front, Rh, Black

GUARD, MUD, FRONT, RH, BLACK

Part #: 5437063-070 Required per assembly: 1
Currently Not Available
8
Polaris 7519045 Screw

SCREW

Part #: 7519045 Required per assembly: 2
Currently Not Available
9
Polaris 7519092 Screw

SCREW

Part #: 7519092 Required per assembly: 2
Currently Not Available
10
Polaris 7661855 Rivet

RIVET

Part #: 7661855 Required per assembly: 13
$2.99
$1.73
-
+
Add to cart
11

ASM-SHIELD, EXHAUST, COVER

Part #: 2635711 Required per assembly: 1
Currently Not Available
12
Polaris 5437476-070 Panel, Side, Lower, Lh, Black

PANEL, SIDE, LOWER, LH, BLACK

Part #: 5437476-070 Required per assembly: 1
Currently Not Available
