Handlebar - A16yaf11aa (A00004) replacement parts for 2016 Polaris Sportsman 110

OEM Parts Polaris 2016 Polaris Sportsman 110 Handlebar - A16yaf11aa (A00004)

Handlebar - A16YAF11AA (A00004) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	ASM-LEVER, RH, 110 Part #: 0455234 Required per assembly: 1 Note: INCL. Currently Not Available
2	ARM, THROTTLE Part #: 0452202 Required per assembly: 1 Currently Not Available
3	NUT, LOCK Part #: 0450808 Required per assembly: 2 Note: Nut ~~$3.99~~ $2.30 - + Add to cart
4	MOUNT, LEVER, BRAKE, RH Part #: 0453721 Required per assembly: 1 Currently Not Available
5	BOLT, BRAKE, LEVER, RH Part #: 0450806 Required per assembly: 1 ~~$3.99~~ $2.30 - + Add to cart
6	SCR W/JAM NUT THROTTLE STOP Part #: 0455403 Required per assembly: 1 Currently Not Available
7	BRACKET, BRAKE, CABLE Part #: 0450994 Required per assembly: 1 Currently Not Available
8	LEVER, BRAKE, RH Part #: 0450694 Required per assembly: 1 Note: Lever, Brake, Side Currently Not Available
9	WIRE, BRAKE, SWITCH Part #: 0453736 Required per assembly: 1 Currently Not Available
10	GRIP, HANDLEBAR Part #: 0453370 Required per assembly: 2 Currently Not Available
11	HANDLEBAR, BLACK Part #: 0453722-067 Required per assembly: 1 Currently Not Available
12	BEZEL, SPEEDOMETER Part #: 0454672 Required per assembly: 1 Currently Not Available

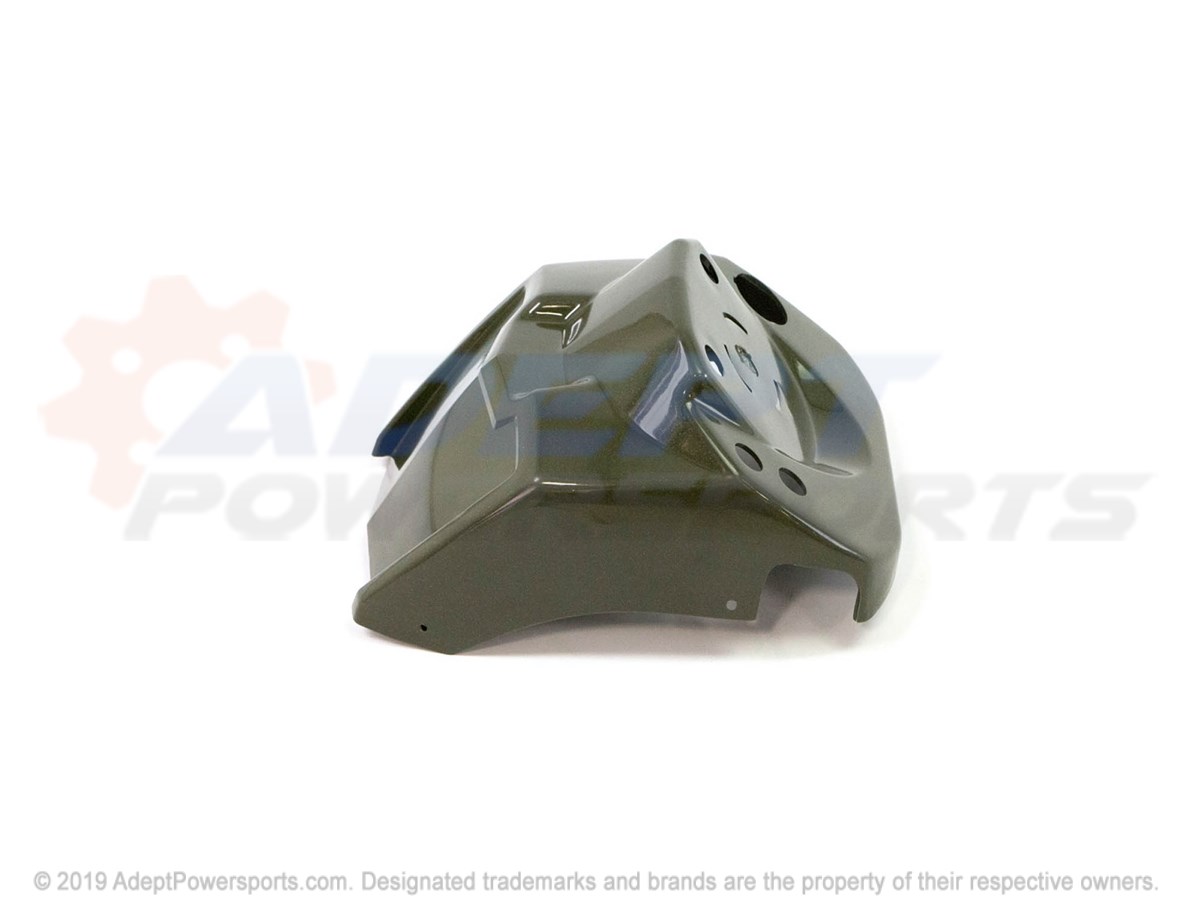

13	POD-UPPER, SPORTSMAN, 110, GRN Part #: 0455160-498 Required per assembly: 1 Currently Not Available
14	SCREW Part #: 0452421 Required per assembly: 2 Currently Not Available
15	SCREW Part #: 0450614 Required per assembly: 1 Currently Not Available
16	BRACKET, MOUNT, POD, BLACK Part #: 0453735 Required per assembly: 1 Currently Not Available
17	SCREW, TAPPING Part #: 0450040 Required per assembly: 2 Note: Screw ~~$1.99~~ $1.15 - + Add to cart
18	BOLT, SOCKET, HEX Part #: 0450148 Required per assembly: 4 Note: Bolt Sold in multiples of 10 only Currently Not Available
19	COVER, CLAMP, RH Part #: 0450461 Required per assembly: 1 Currently Not Available
20	COVER, CLAMP, LH Part #: 0450460 Required per assembly: 1 Currently Not Available
21	CLAMP, SADDLE Part #: 0450459 Required per assembly: 2 Currently Not Available
22	NUT, LOCK Part #: 0450276 Required per assembly: 2 Note: Nut ~~$2.99~~ $1.73 - + Add to cart
24	COVER, HANDLEBAR, LWR Part #: 0455247-070 Required per assembly: 1 Currently Not Available
25	U-NUT Part #: 0450752 Required per assembly: 2 ~~$3.99~~ $2.30 - + Add to cart
26	SCREW, TAPPING Part #: 0450514 Required per assembly: 2 Note: Screw ~~$3.99~~ $2.30 - + Add to cart
27	SENSOR, BRAKE Part #: 0453815 Required per assembly: 1 Currently Not Available
28	ASM-SWITCH, LH, 110 Part #: 0455499 Required per assembly: 1 Note: INCL. Currently Not Available
29	LEVER, BRAKE, LH Part #: 0450693 Required per assembly: 1 Note: Lever, Brake, Side, Black Currently Not Available
30	BOLT, BRAKE, LEVER, LH Part #: 0450807 Required per assembly: 1 Note: Bolt Currently Not Available
31	LOCK, HAND, BRAKE Part #: 0454042 Required per assembly: 1 Note: Lock, Park Brake Currently Not Available
32	ASSEMBLY, LEVER, LH Part #: 0454043 Required per assembly: 1 Note: INCL. Currently Not Available
