Switches, Harness And Indicators - A16yaf11aa (A00010) replacement parts for 2016 Polaris Sportsman 110

OEM Parts Polaris 2016 Polaris Sportsman 110 Switches, Harness And Indicators - A16yaf11aa (A00010)

Switches, Harness and Indicators - A16YAF11AA (A00010) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	WRISTBAND Part #: 0453501 Required per assembly: 1 Currently Not Available
2	BATTERY Part #: 4011181 Required per assembly: 1 Note: YUASA YTX5L Currently Not Available
3	BOLT Part #: 0453518 Required per assembly: 4 Currently Not Available
4	RECTIFIER/REGULATOR Part #: 0455032 Required per assembly: 1 Currently Not Available
5	GAUGE, TIRE Part #: 0450891 Required per assembly: 1 Currently Not Available
6	COVER-DUST Part #: 0455027 Required per assembly: 1 Currently Not Available

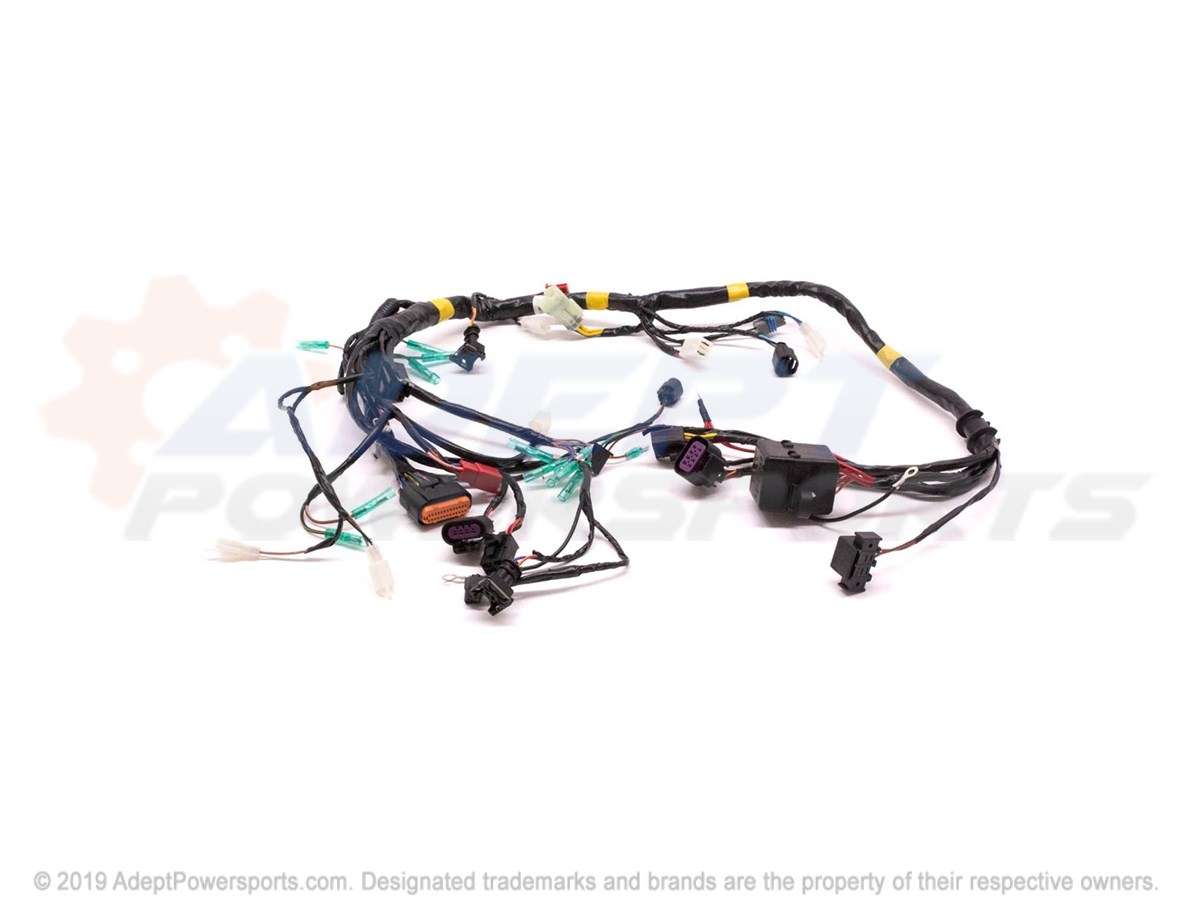

7	HARNESS-MAIN, WIRE, 110 Part #: 0455151 Required per assembly: 1 Currently Not Available
9	JUMPER Part #: 0451019 Required per assembly: 1 Currently Not Available
11	BOLT Part #: 0454011 Required per assembly: 1 Note: Bolt Currently Not Available
12	SCREW Part #: 0455026 Required per assembly: 2 Currently Not Available
14	ASM, STARTER, RELAY Part #: 0453488 Required per assembly: 1 Currently Not Available
15	SCREW Part #: 0452782 Required per assembly: 2 Note: Bolt Currently Not Available
16	WASHER, STAR Part #: 0450890 Required per assembly: 1 ~~$1.99~~ $1.15 - + Add to cart
18	ASM-COIL, IGNITION Part #: 0455029 Required per assembly: 1 Currently Not Available
19	ECU EFI Part #: 0455166 Required per assembly: 1 Currently Not Available
20	TOOL POUCH-YOUTH Part #: 0454703 Required per assembly: 1 Currently Not Available
21	HOSE Part #: 0455153 Required per assembly: 1 Currently Not Available
24	INDICATOR-REVERSE Part #: 0454655 Required per assembly: 1 Currently Not Available
25	INDICATOR-NEUTRAL Part #: 0454654 Required per assembly: 1 Currently Not Available
27	INDICATOR-TROUBLE Part #: 0455023 Required per assembly: 1 Currently Not Available
28	HORN Part #: 0451695 Required per assembly: 1 Currently Not Available
29	BOLT-W/LOCTITE Part #: 0454785 Required per assembly: 2 Currently Not Available
30	RELAY-EFI Part #: 0455030 Required per assembly: 1 Currently Not Available
31	ASSEMBLY, MAIN, SWITCH Part #: 0453417 Required per assembly: 1 Note: Clip, Main Switch Currently Not Available
33	KEY, BLANK, RH, GROOVE Part #: 0453143 Required per assembly: 1 Note: Key, Blank, RH Currently Not Available
33	KEY, BLANK, LH, GROOVE Part #: 0453372 Required per assembly: 1 Note: Key, Blank, LH Currently Not Available
33	ASM-SWITCH, MAIN Part #: 0455410 Required per assembly: 1 Currently Not Available
