Box, Tailgate - R16rtad1a1/E1 replacement parts for 2016 Polaris Ranger 1000 Diesel

OEM Parts Polaris 2016 Polaris Ranger 1000 Diesel Box, Tailgate - R16rtad1a1/E1

Box, Tailgate - R16RTAD1A1/E1 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

2	ROD Part #: 5134468 Required per assembly: 2 Currently Not Available
3	TUBE-TAILGATE, PIVOT, BLK Part #: 5337426-329 Required per assembly: 1 Currently Not Available
4	BRACKET, TAILGATE Part #: 5258200 Required per assembly: 1 Currently Not Available

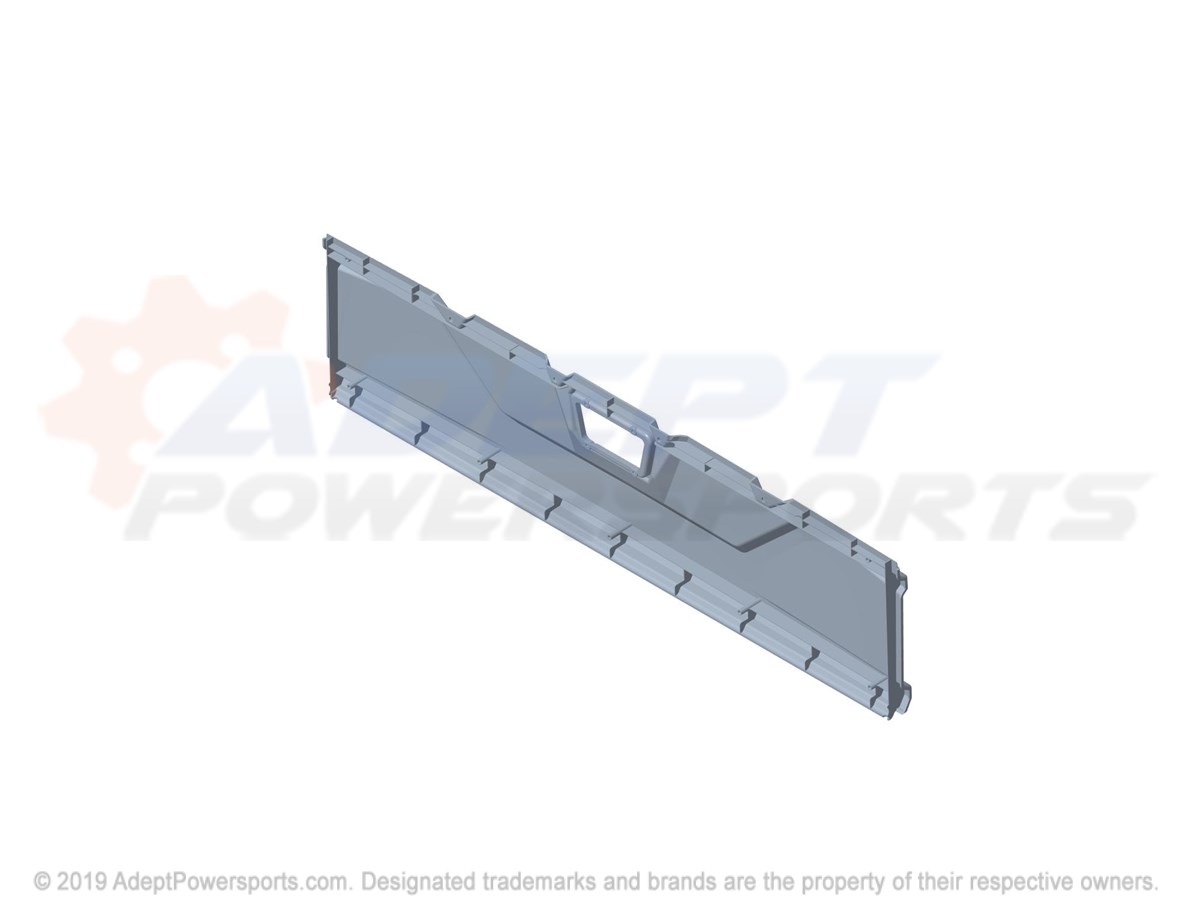

5	PANEL, TAILGATE, INNER, BLACK Part #: 5450711-070 Required per assembly: 1 Currently Not Available
6	PANEL, TAILGATE, OUTER, BLACK Part #: 5439114-070 Required per assembly: 1 Currently Not Available

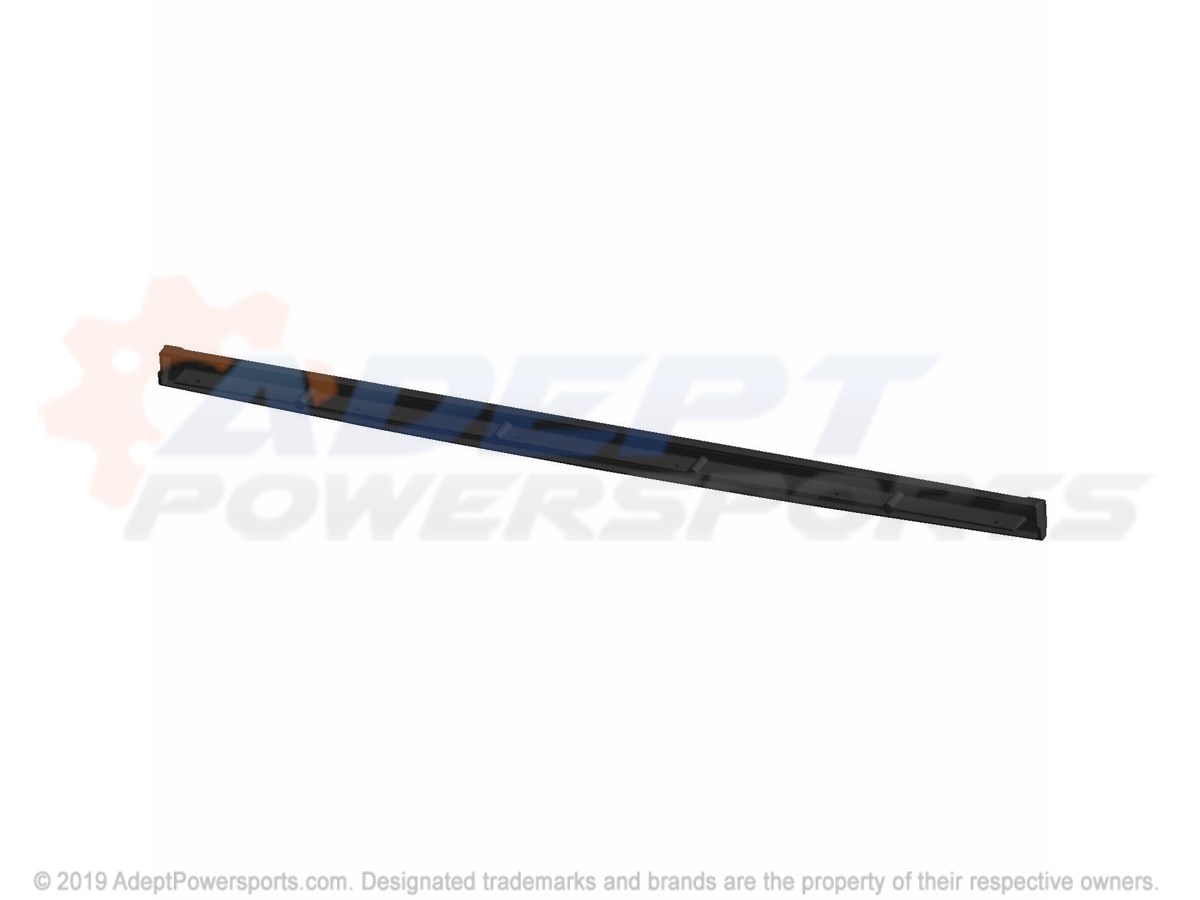

7	CAP, TAILGATE, BLACK Part #: 5439203-070 Required per assembly: 1 Currently Not Available

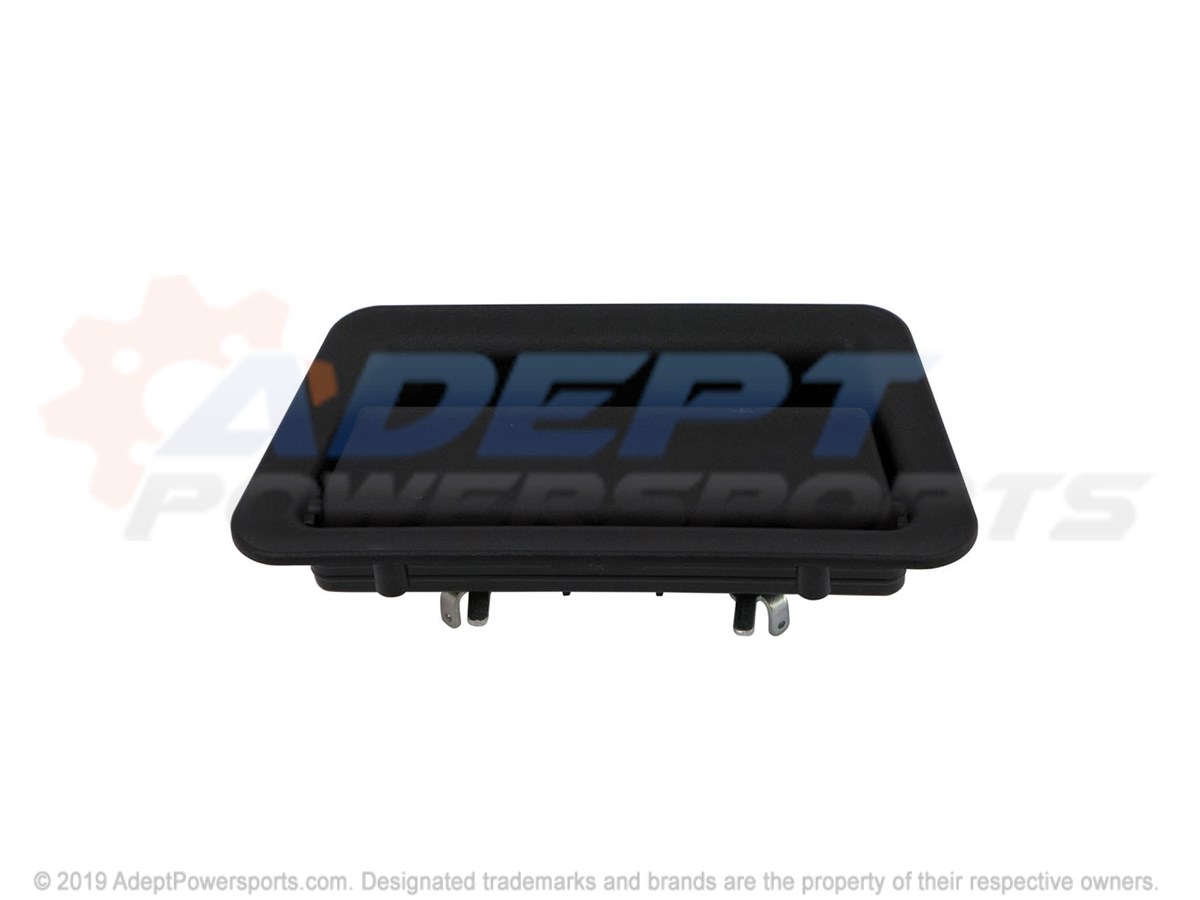

8	LATCH, PADDLE Part #: 7081820 Required per assembly: 1 Currently Not Available

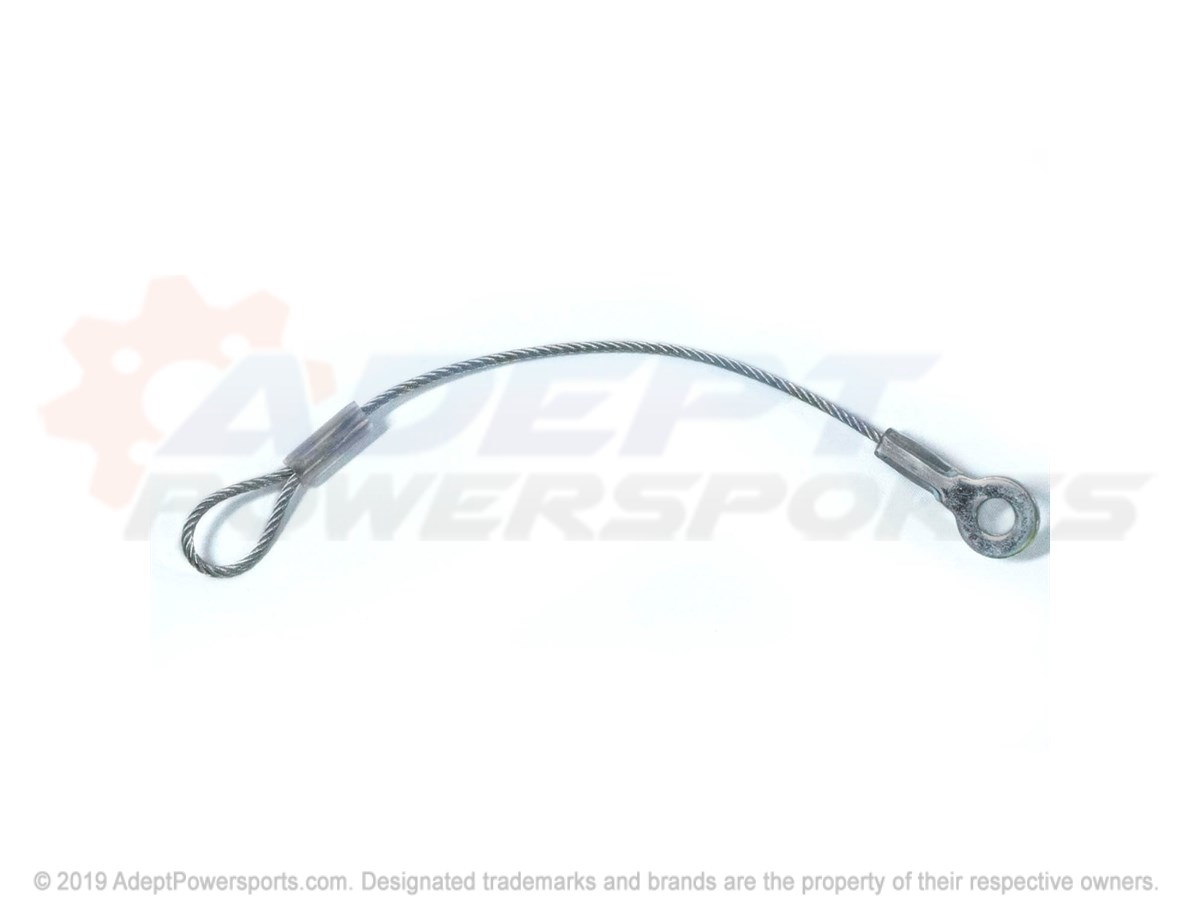

9	CABLE, TAILGATE Part #: 7081925 Required per assembly: 2 Currently Not Available
10	SCREW Part #: 7512026 Required per assembly: 4 Note: Screw Currently Not Available

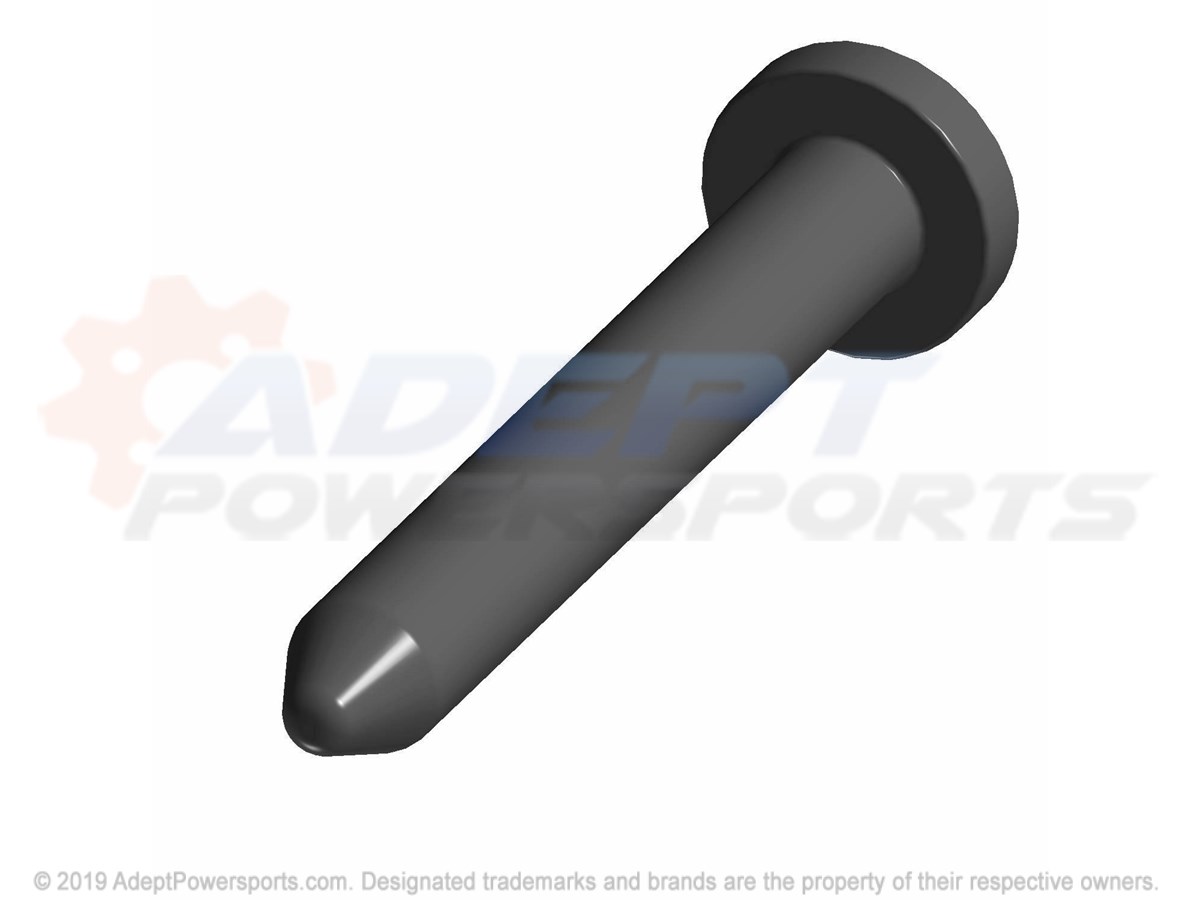

11	PIN, HITCH Part #: 7661644 Required per assembly: 2 Note: Pin, Hitch $1.99 $1.15 - + Add to cart
12	SCREW Part #: 7518158 Required per assembly: 4 Currently Not Available
13	BOLT Part #: 7518376 Required per assembly: 2 Currently Not Available
14	SCREW Part #: 7519150 Required per assembly: 7 Currently Not Available
15	NUT-HEX-1/4-20 NTE ZY3 NYL Part #: 7547484 Required per assembly: 2 Currently Not Available
16	WASHER Part #: 7555748 Required per assembly: 2 Currently Not Available
17	WASHER Part #: 7558301 Required per assembly: 2 $1.99 $1.15 - + Add to cart
18	SCREW Part #: 7517685 Required per assembly: 1 Note: Screw Currently Not Available
