Dash - R16rtad1a1/E1 replacement parts for 2016 Polaris Ranger 1000 Diesel

OEM Parts Polaris 2016 Polaris Ranger 1000 Diesel Dash - R16rtad1a1/E1

Dash - R16RTAD1A1/E1 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	DASH, STORAGE, BLACK Part #: 5439017-070 Required per assembly: 1 Currently Not Available
2	PANEL, DASH, CONTROLS, BLACK Part #: 5439013-070 Required per assembly: 1 $44.99 $33.52 - + Add to cart
3	DASH, PANEL, LOWER, SAGEBRUSH, GREEN, METALLIC Part #: 5439015-498 Required per assembly: 1 Note: A1 Currently Not Available

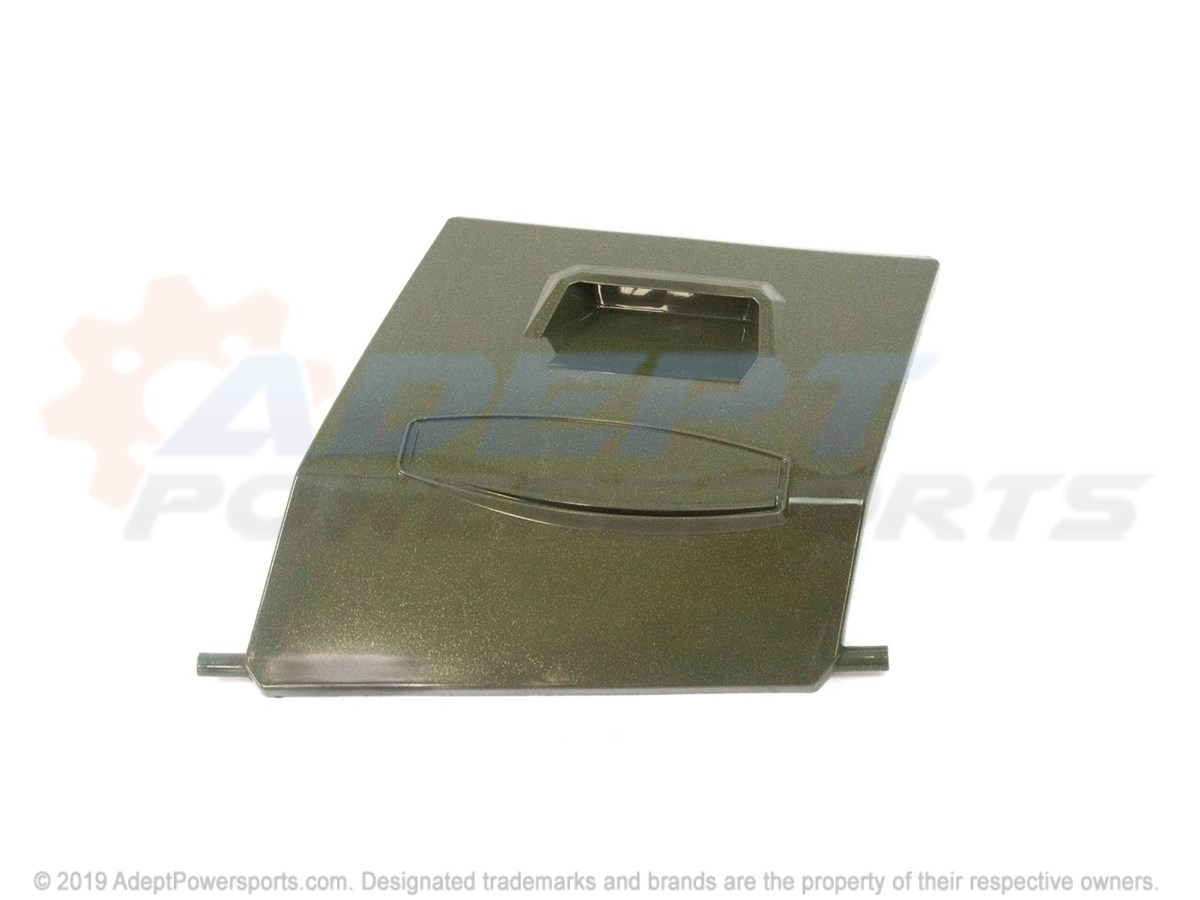

4	COVER, GLOVEBOX, SAGEBRUSH, GREEN, METALLIC Part #: 5439019-498 Required per assembly: 1 Currently Not Available

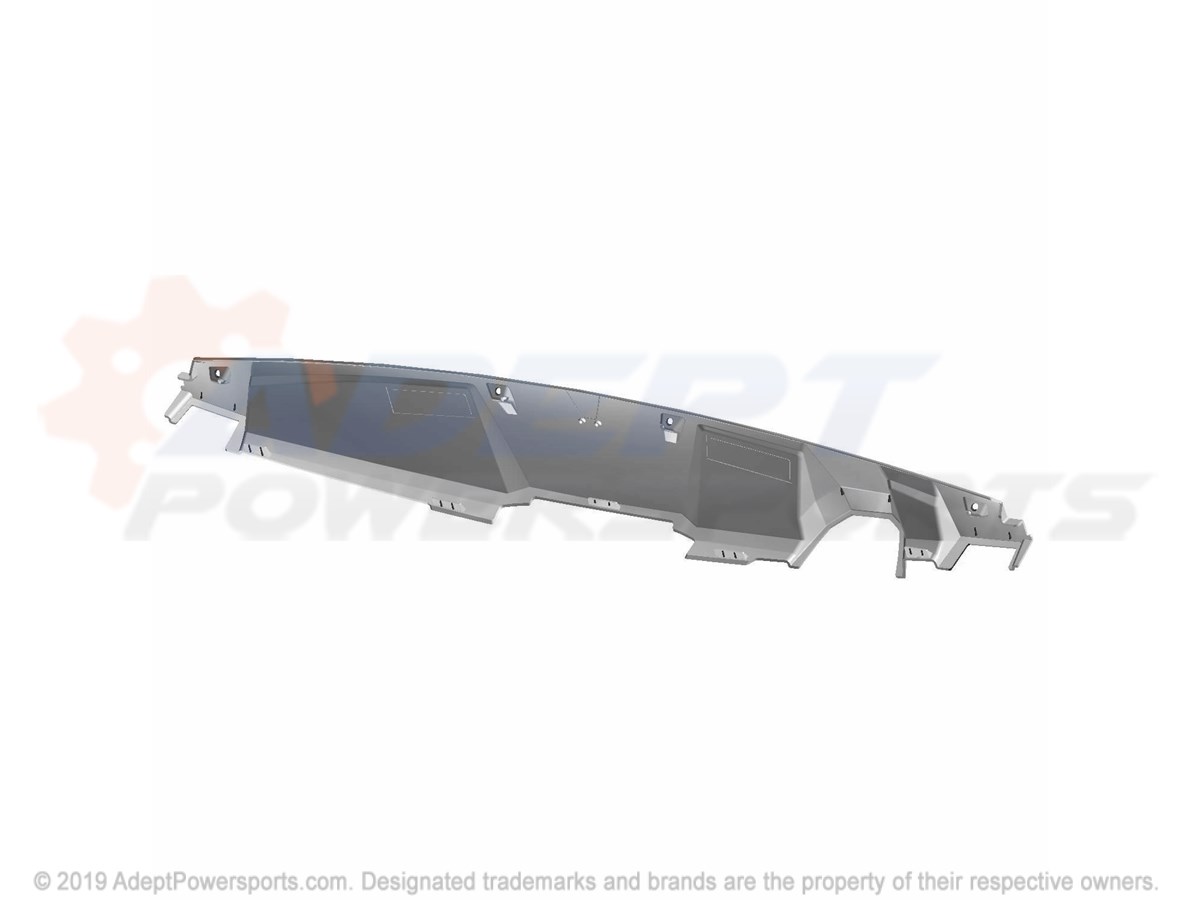

5	DASH, PANEL, UPPER, BLACK Part #: 5439014-070 Required per assembly: 1 Currently Not Available

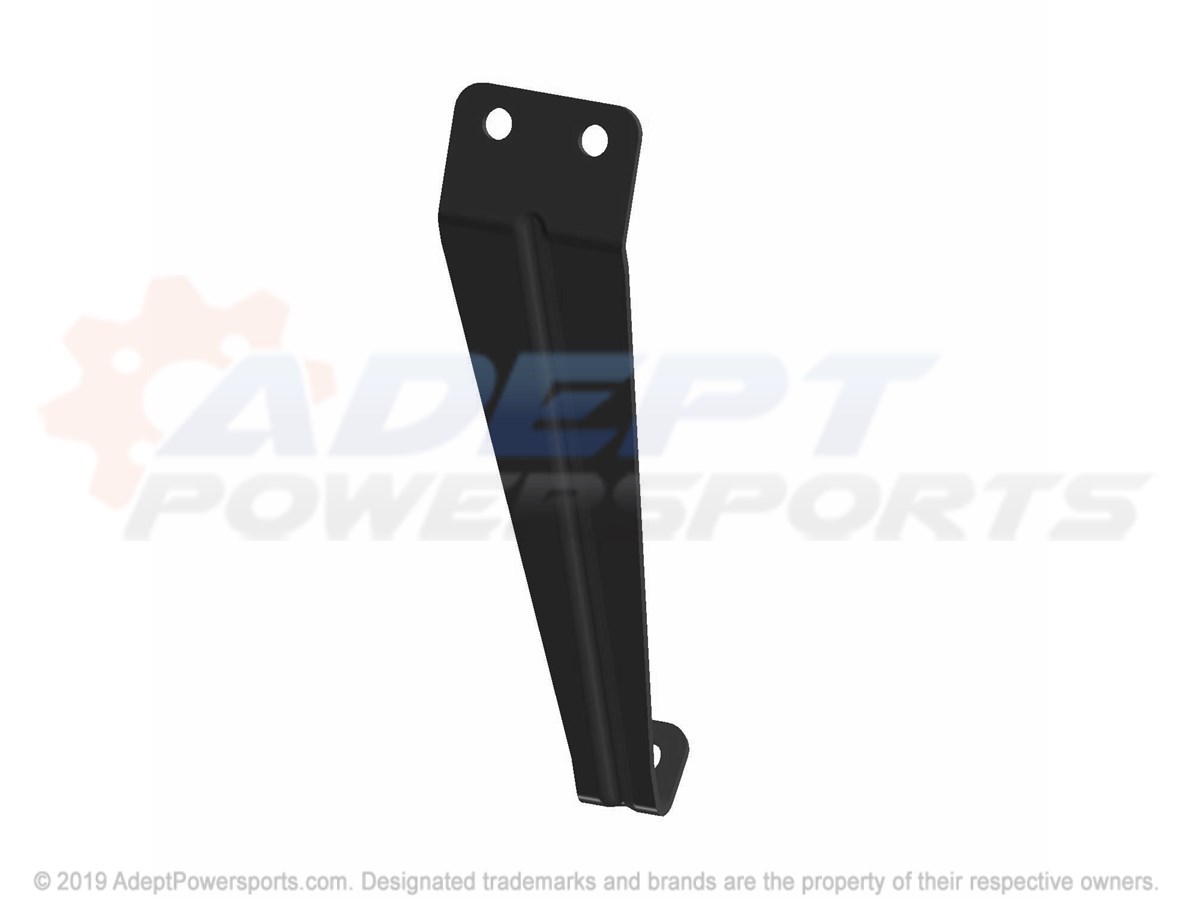

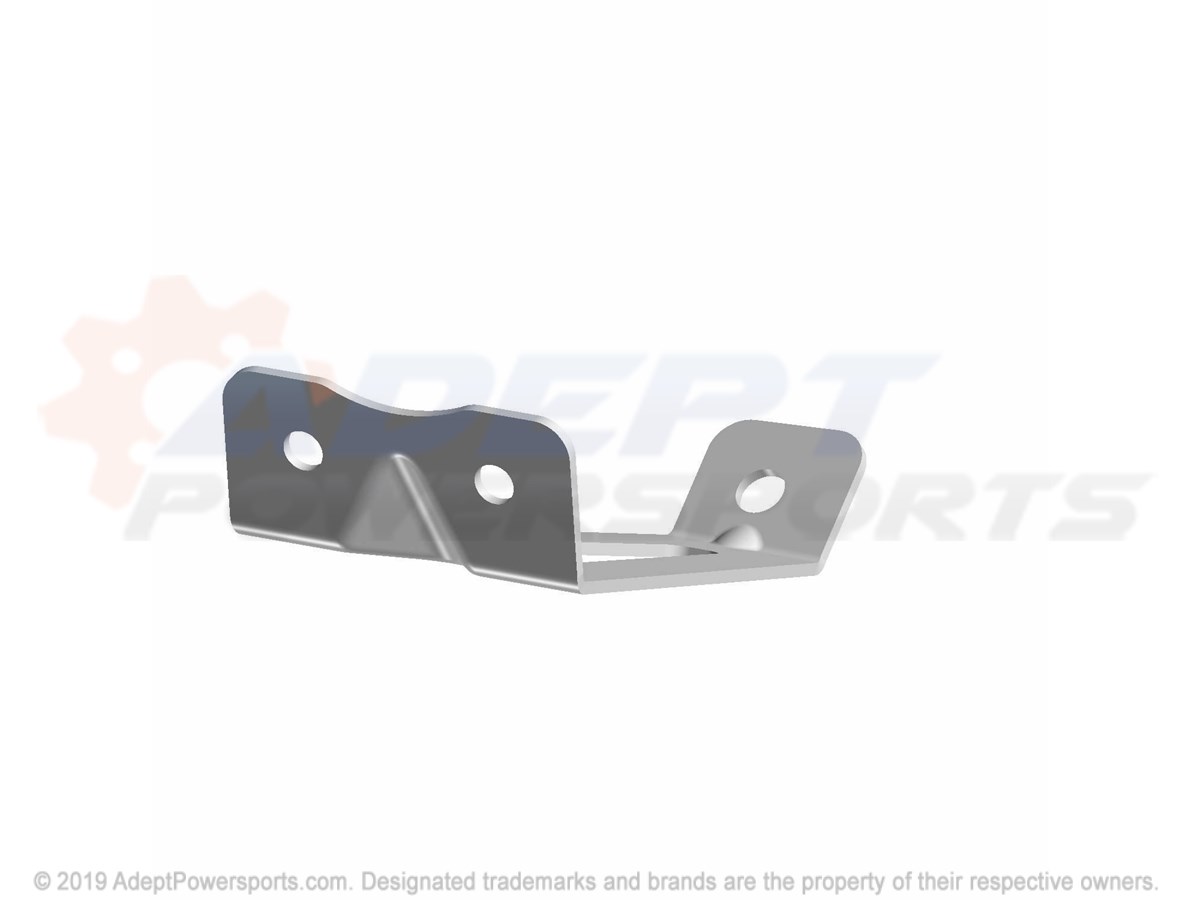

6	BRACKET, MOUNT Part #: 5258201 Required per assembly: 2 Currently Not Available
7	BRACKET, DASH, MOUNT Part #: 5258205 Required per assembly: 1 Currently Not Available
8	U-TYPE, SPEED, NUT Part #: 7081305 Note: Clip, U Speed Nut [Built 12/07/09 and Before] Currently Not Available

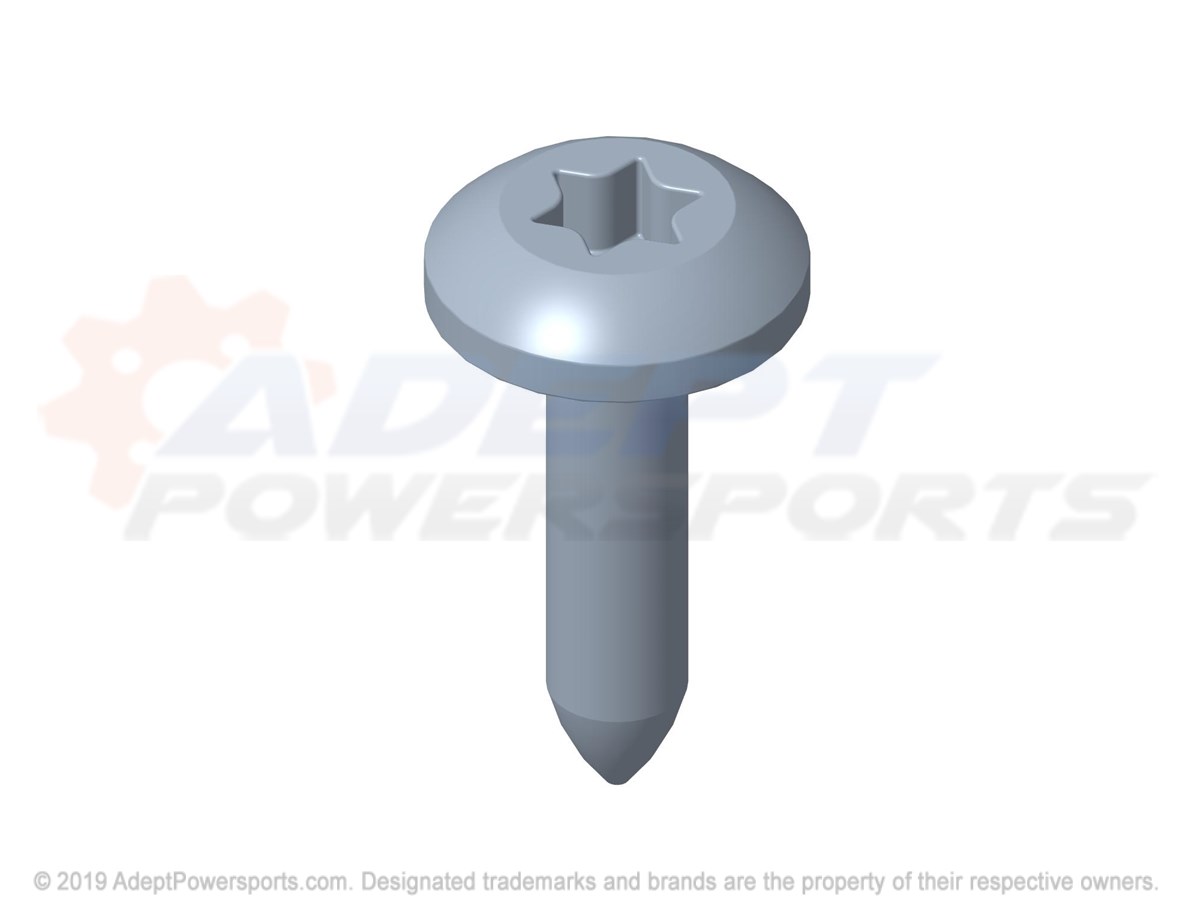

9	SCREW Part #: 7519045 Required per assembly: 4 Currently Not Available
10	SCREW Part #: 7519650 Currently Not Available

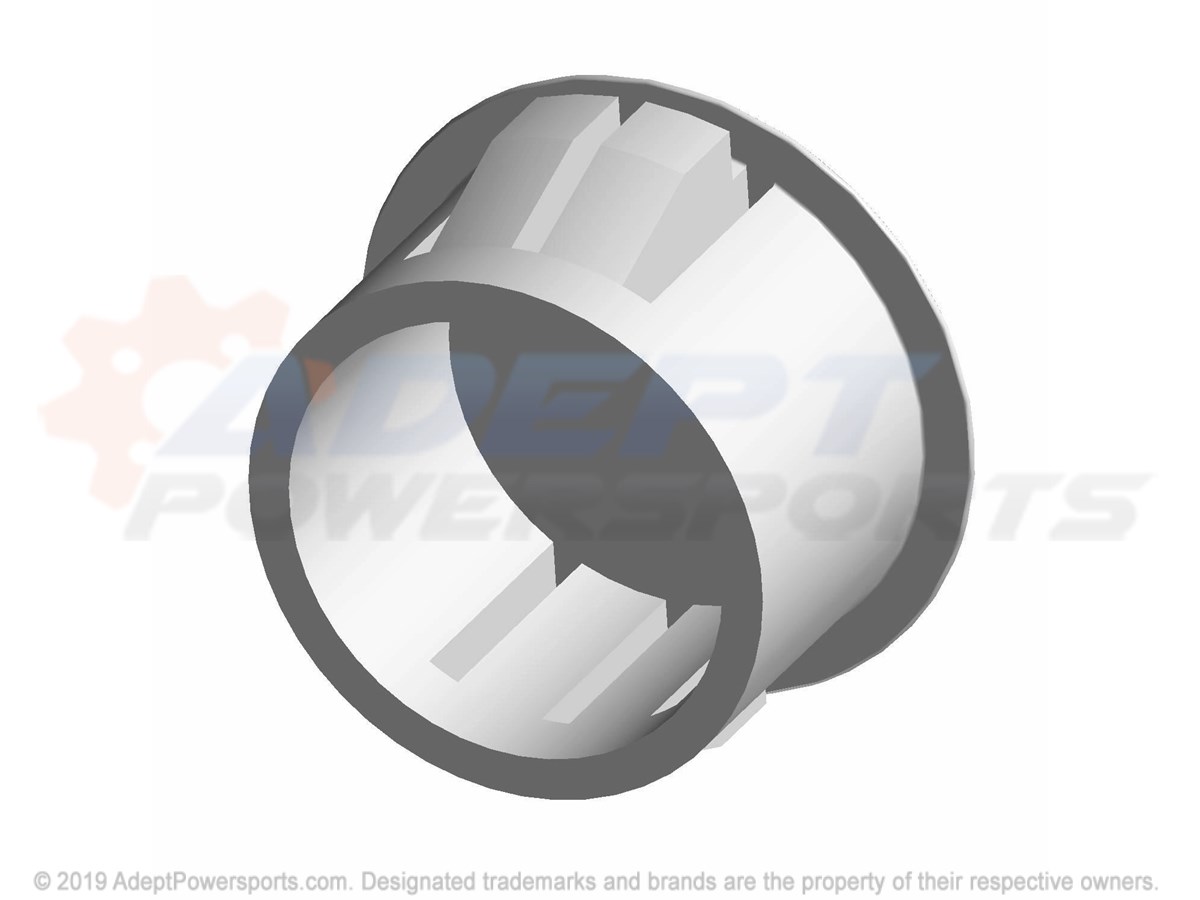

11	GROMMET Part #: 5412504 Required per assembly: 1 Currently Not Available
12	HOLDER, CUP Part #: 5436836 Required per assembly: 2 Currently Not Available
13	SEAL, GLOVEBOX Part #: 5521937 Required per assembly: 1 Currently Not Available
14	SCREW Part #: 7512026 Required per assembly: 6 Note: Screw Currently Not Available
15	RIVET Part #: 7661855 $2.99 $1.73 - + Add to cart
16	SCREW Part #: 7518529 Required per assembly: 6 $2.99 $1.73 - + Add to cart

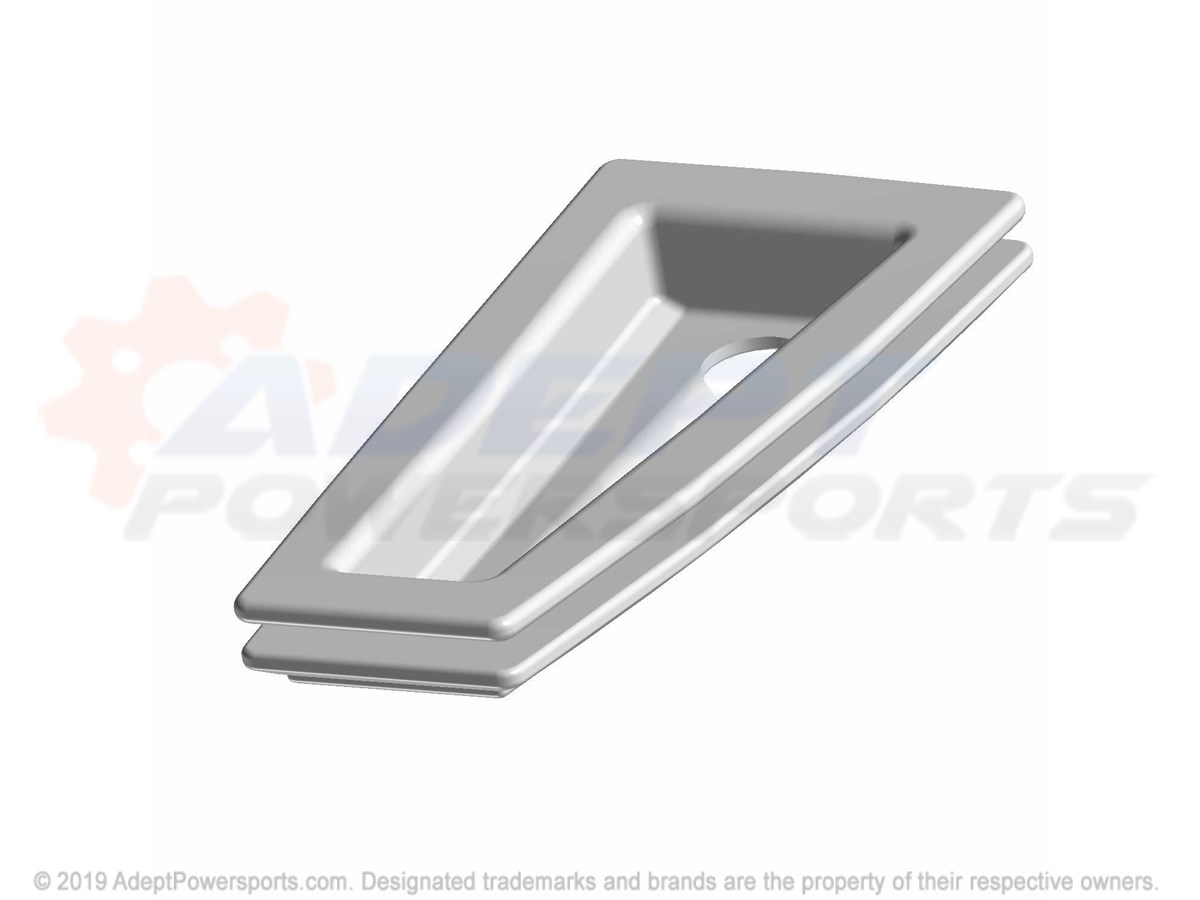

17	GROMMET, SHIFT, LEVER Part #: 5414249 Required per assembly: 1 Currently Not Available
18	PLUG, HOLE Part #: 7080416 Required per assembly: 1 $5.99 $3.45 - + Add to cart
