Harness - R16rte87f1/U87fk (700562) replacement parts for 2016 Polaris Ranger 900 XP EU

OEM Parts Polaris 2016 Polaris Ranger 900 XP EU Harness - R16rte87f1/U87fk (700562)

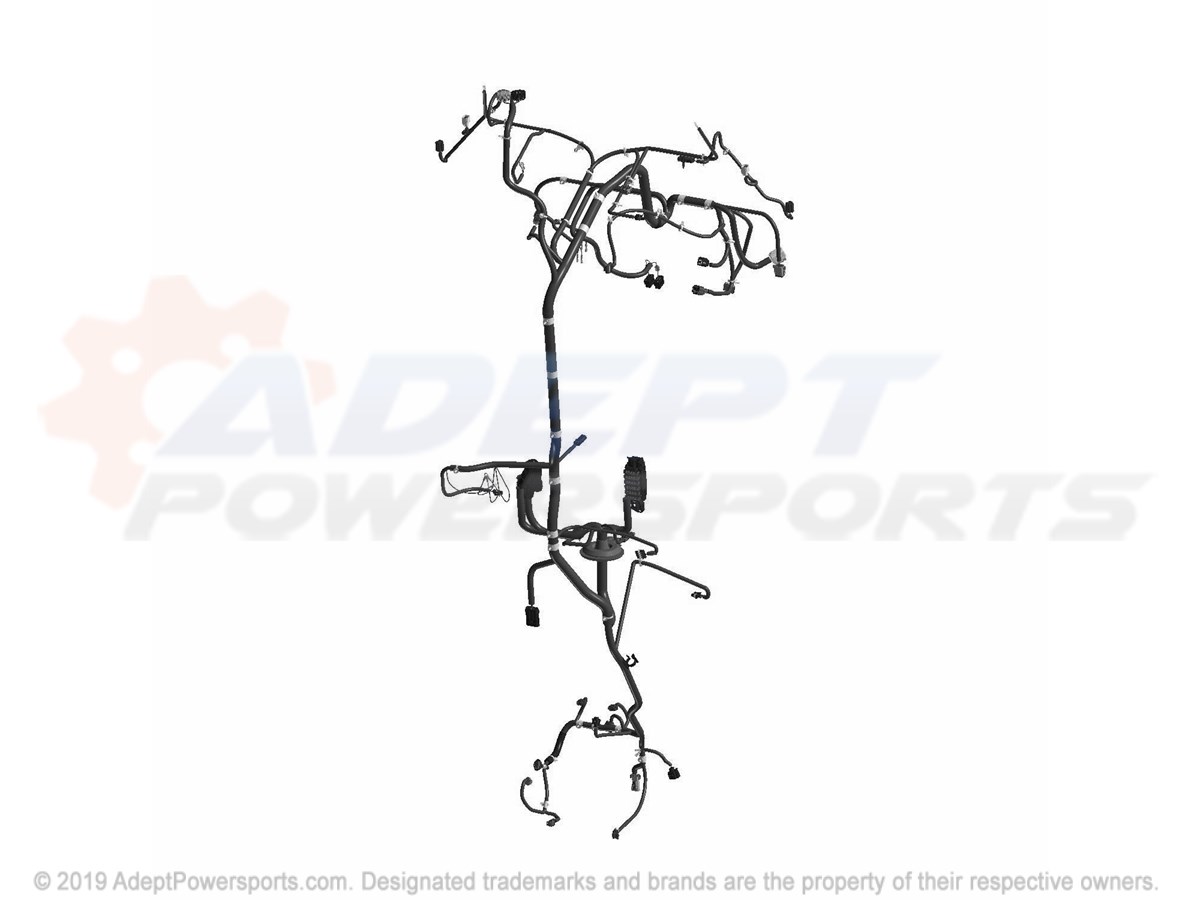

Harness - R16RTE87F1/U87FK (700562) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-CHASSIS, EPS, EU Part #: 2413326 Required per assembly: 1 Note: INCL 2-12 Currently Not Available
3	CLIP-ROUTING Part #: 7081496 Currently Not Available
4	GROMMET Part #: 5414435 Required per assembly: 1 Currently Not Available
5	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
6	BREAKER, CIRCUIT, 20, AMP Part #: 4011372 Required per assembly: 1 Currently Not Available
7	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 7 Currently Not Available
9	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 5 Currently Not Available
10	FUSE, 10AMP Part #: 2434016 Required per assembly: 6 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
11	KIT, FUSIBLE, LINK, .8MM Part #: 2202607 Required per assembly: 3 Currently Not Available
12	KIT, FUSIBLE, LINK Part #: 2202147 Required per assembly: 4 Note: Kit, Fusible Link, .5mm Currently Not Available
