OEM Parts Polaris 2016 Polaris Ranger 900 XP EU Side Nets - R16rte87f1/U87fk (49Rgrnets15900xp)

2016 Polaris Ranger 900 XP EU R16RTE87F1/U87FK - Side Nets - R16rte87f1/U87fk (49Rgrnets15900xp)

Side Nets - R16RTE87F1/U87FK (49RGRNETS15900XP) Full screen diagram
Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.
Location Part Description
1
Polaris 5452506 Buckle, 40Mm, Female

BUCKLE, 40MM, FEMALE

Part #: 5452506 Required per assembly: 2
Currently Not Available
2

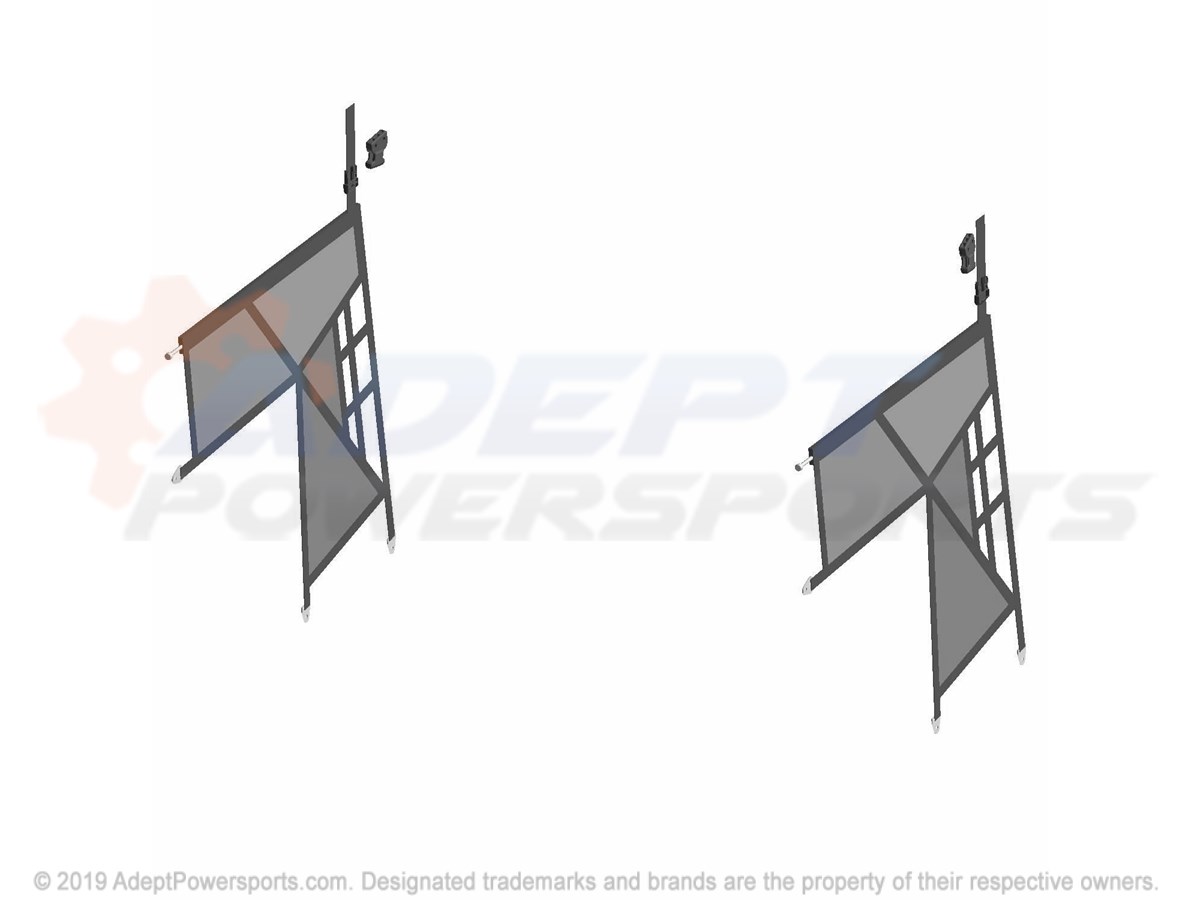

Polaris 2686765 Nets-Door, Frt, Rgr, Full

NETS-DOOR, FRT, RGR, FULL

Part #: 2686765 Required per assembly: 2 Note:
Includes:
  • P/N 2686855 (Qty 2) - MARKER,ASSEMBLY,NET,FRONT
  • P/N 5452505 (Qty 2) - BUCKLE,40MM,MALE
  • P/N 5452506 (Qty 2) - BUCKLE,40MM,FEMALE

INCL 1
Currently Not Available
3

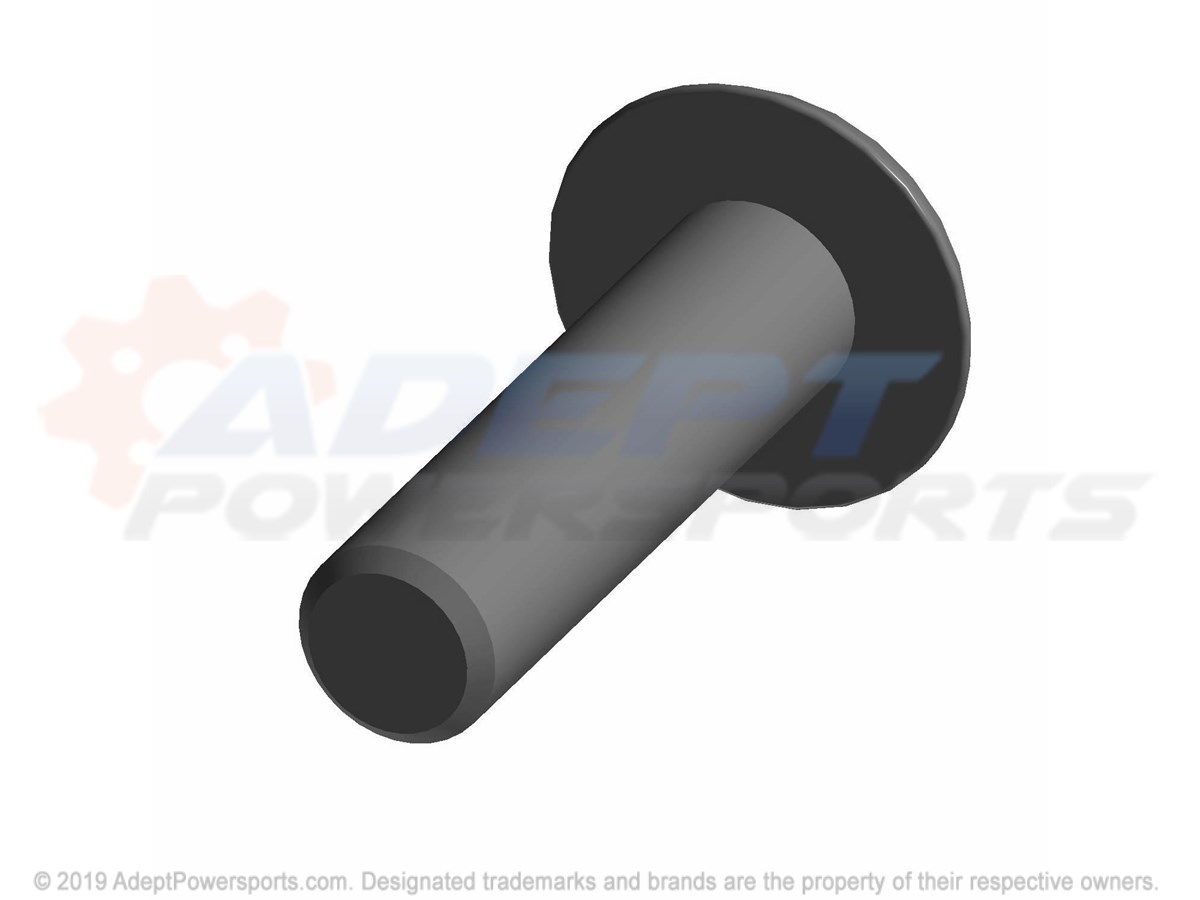

Polaris 7518529 Screw

SCREW

Part #: 7518529 Required per assembly: 2
$2.99
$1.73
-
+
Add to cart
4
Polaris 7518953 Screw

SCREW

Part #: 7518953 Required per assembly: 4
Currently Not Available
