Rear Control Arms - Z16vce87ab/Ar (700340) replacement parts for 2016 Polaris RZR 4 900

OEM Parts Polaris 2016 Polaris RZR 4 900 Rear Control Arms - Z16vce87ab/Ar (700340)

Rear Control Arms - Z16VCE87AB/AR (700340) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

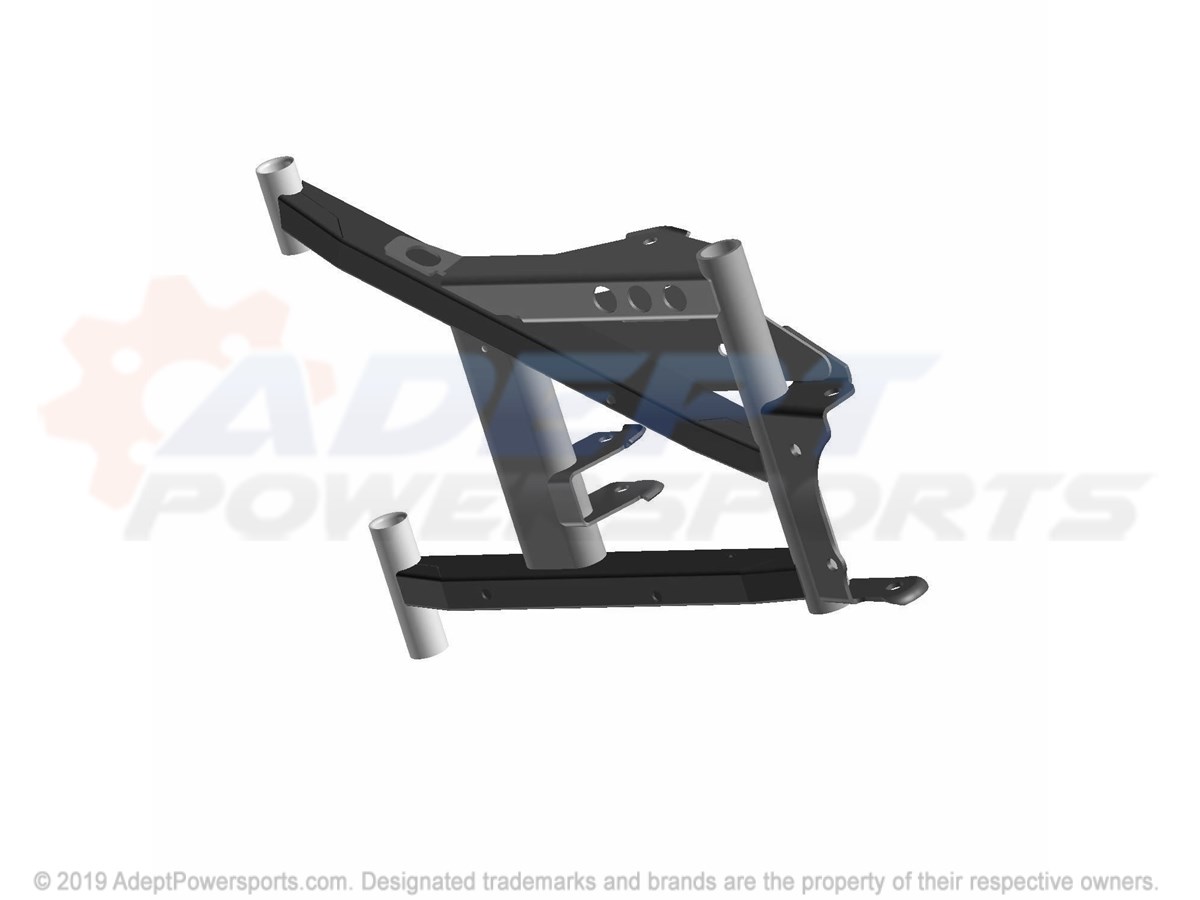

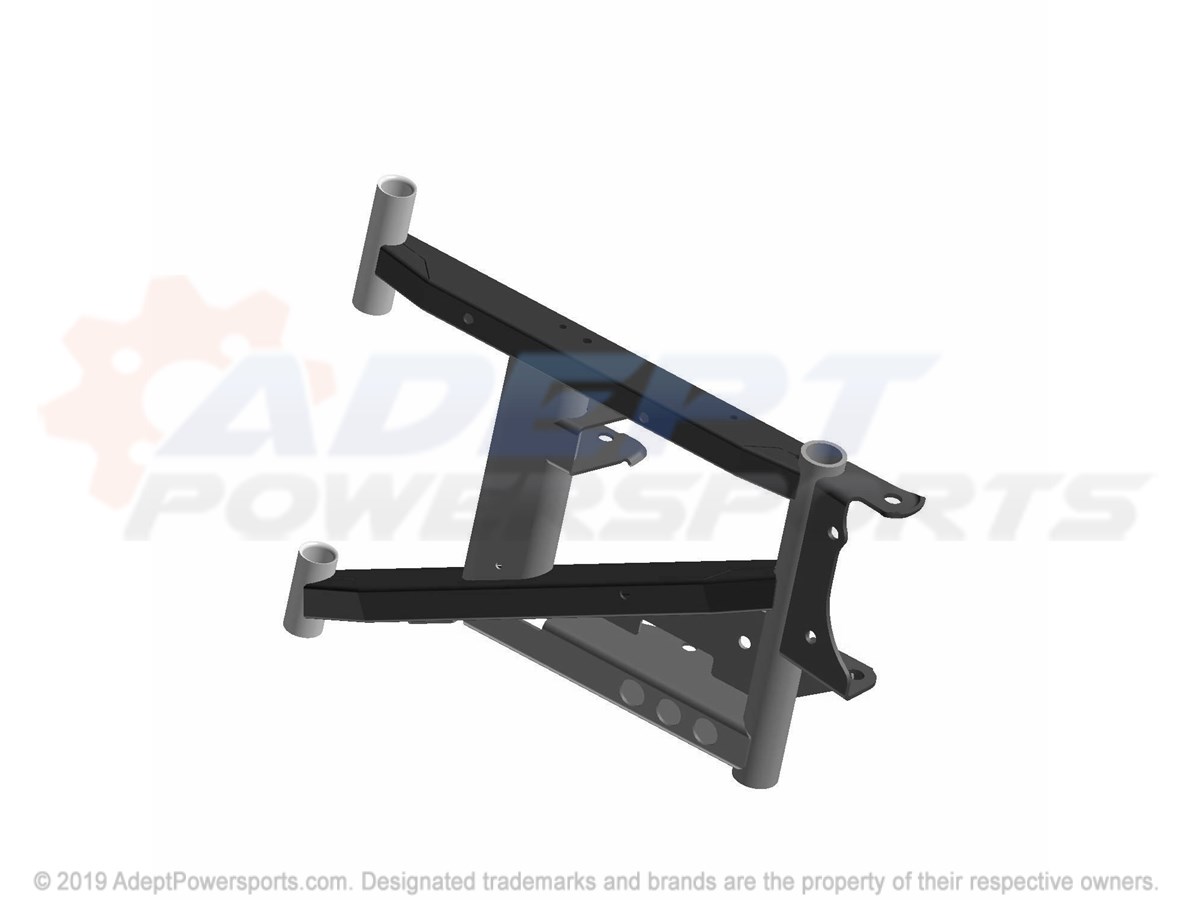

1	WELD-A-ARM, REAR, LWR, LH, 60, SLV Part #: 1021287-385 Required per assembly: 1 Note: AB Currently Not Available
1	WELD-A-ARM, REAR, LWR, RH, 60, SLV Part #: 1021288-385 Required per assembly: 1 Note: AB Currently Not Available
1	WELD-A-ARM, REAR, LWR, LH, 60, RED Part #: 1021287-293 Required per assembly: 1 Note: AR Currently Not Available
1	WELD-A-ARM, REAR, LWR, RH, 60, RED Part #: 1021288-293 Required per assembly: 1 Note: AR Currently Not Available
2	SHAFT, PIVOT Part #: 5138797 Required per assembly: 2 Currently Not Available
3	SHAFT-PIVOT, 107.26MM, 15.88OD Part #: 5138798 Required per assembly: 4 Currently Not Available
4	BUSHING Part #: 5439874 Required per assembly: 16 Currently Not Available
5	SCREW Part #: 7519043 Required per assembly: 2 Note: Bolt Currently Not Available
6	SCR-HH-M10X1.25X140, 10.9, ZOD Part #: 7519897 Required per assembly: 4 Currently Not Available
7	NUT, FLANGE Part #: 7547333 Required per assembly: 8 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
8	WASHER, FLAT Part #: 7556153 Required per assembly: 12 Note: Washer ~~$3.99~~ $2.30 - + Add to cart

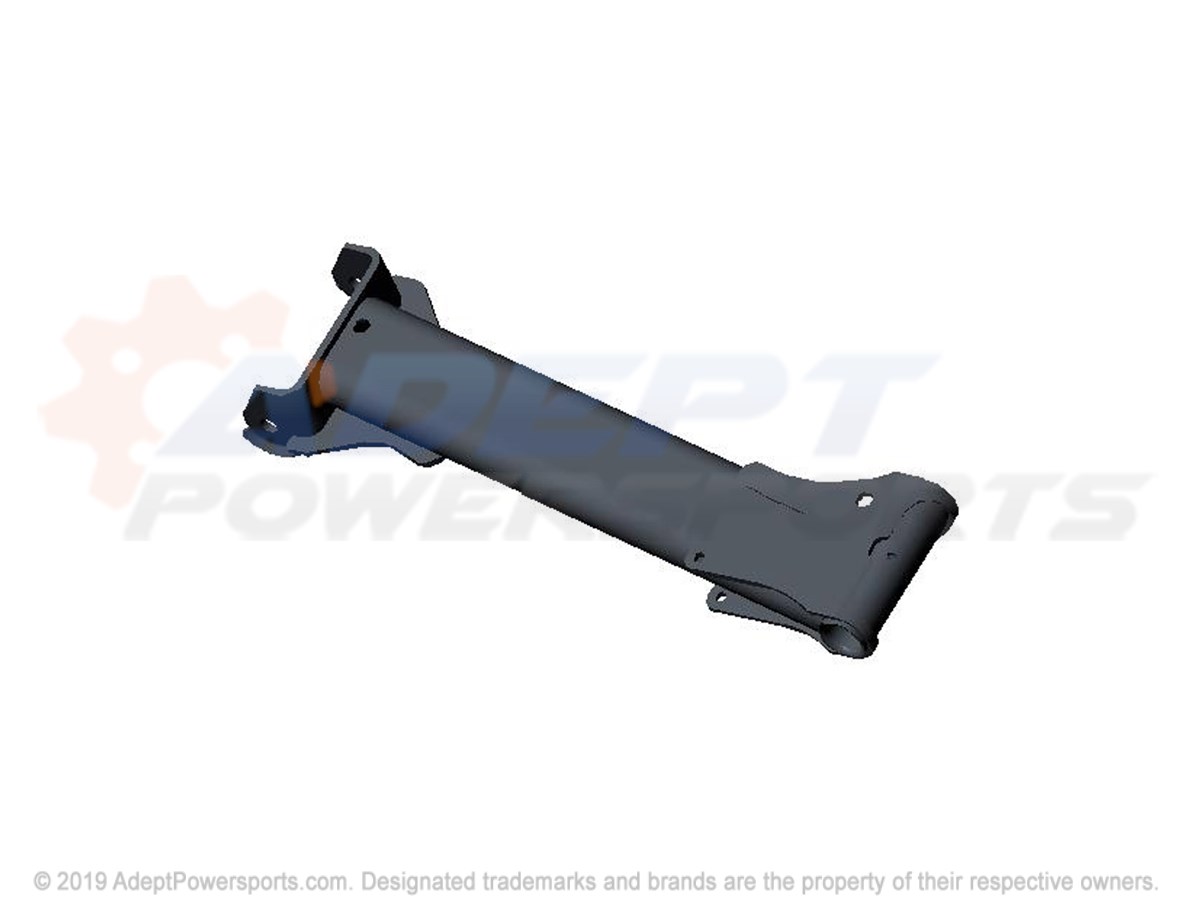

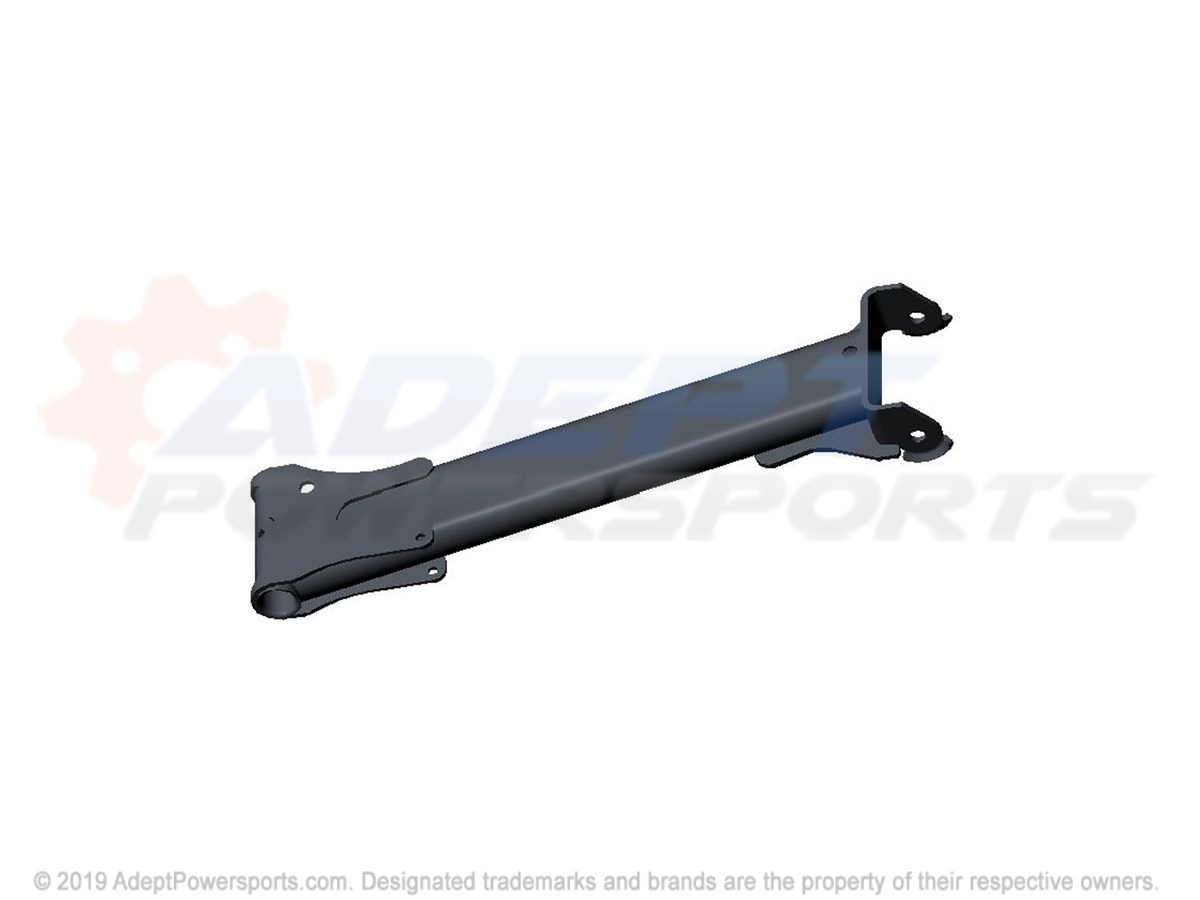

9	WELD-A-ARM, REAR, UPR, LH, 60, SLV Part #: 1018820-385 Required per assembly: 1 Note: AB Currently Not Available
9	WELD-A-ARM, REAR, UPR, RH, 60, SLV Part #: 1018821-385 Required per assembly: 1 Note: AB Currently Not Available
9	WELD-A-ARM, REAR, UPR, LH, 60, RED Part #: 1018820-293 Required per assembly: 1 Note: AR Currently Not Available
9	WELD-A-ARM, REAR, UPR, RH, 60, RED Part #: 1018821-293 Required per assembly: 1 Note: AR Currently Not Available
10	RIVET, BLIND Part #: 7621467 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
11	ASM-PIVOT, CAP, SEALED, M10 Part #: 1543611 Required per assembly: 4 Currently Not Available
12	ASM-PIVOT, CAP, SEALED, M12 Part #: 1543612 Required per assembly: 4 Currently Not Available
13	CARRIER-BEARING, WHEEL, RH Part #: 5139980 Required per assembly: 1 Currently Not Available
13	CARRIER-BEARING, WHEEL, LH Part #: 5139979 Required per assembly: 1 Currently Not Available
14	SCR-HXFL-M12X1.5X170 10.9 ZOD Part #: 7520294 Required per assembly: 2 Currently Not Available
15	SCREW Part #: 7519365 Required per assembly: 2 Currently Not Available
16	SHIELD-CV, REAR, BLK Part #: 5451336-070 Required per assembly: 2 Currently Not Available
17	FITTING, ZERK, (90, DEGREE) Part #: 7080510 Required per assembly: 6 Note: FITTING, ZERK (90o) Currently Not Available
18	SHAFT-PIVOT, SHORT, M10 Part #: 5139990 Required per assembly: 2 Currently Not Available
19	SHAFT-PIVOT, LONG, M12 Part #: 5139991 Required per assembly: 2 Currently Not Available
20	NUT, NYLOK Part #: 7547334 Required per assembly: 2 Currently Not Available
21	WASHER Part #: 7556212 Required per assembly: 2 Note: Sold in multiples of 10 only Currently Not Available
22	BUSHING-STANDARD, SUSP, M10 Part #: 5452233 Required per assembly: 4 Currently Not Available
23	BUSHING-STANDARD, SUSP, M12 Part #: 5452271 Required per assembly: 4 Currently Not Available
