Wire Harness - Z16vce87ab/Ar (700336) replacement parts for 2016 Polaris RZR 4 900

OEM Parts Polaris 2016 Polaris RZR 4 900 Wire Harness - Z16vce87ab/Ar (700336)

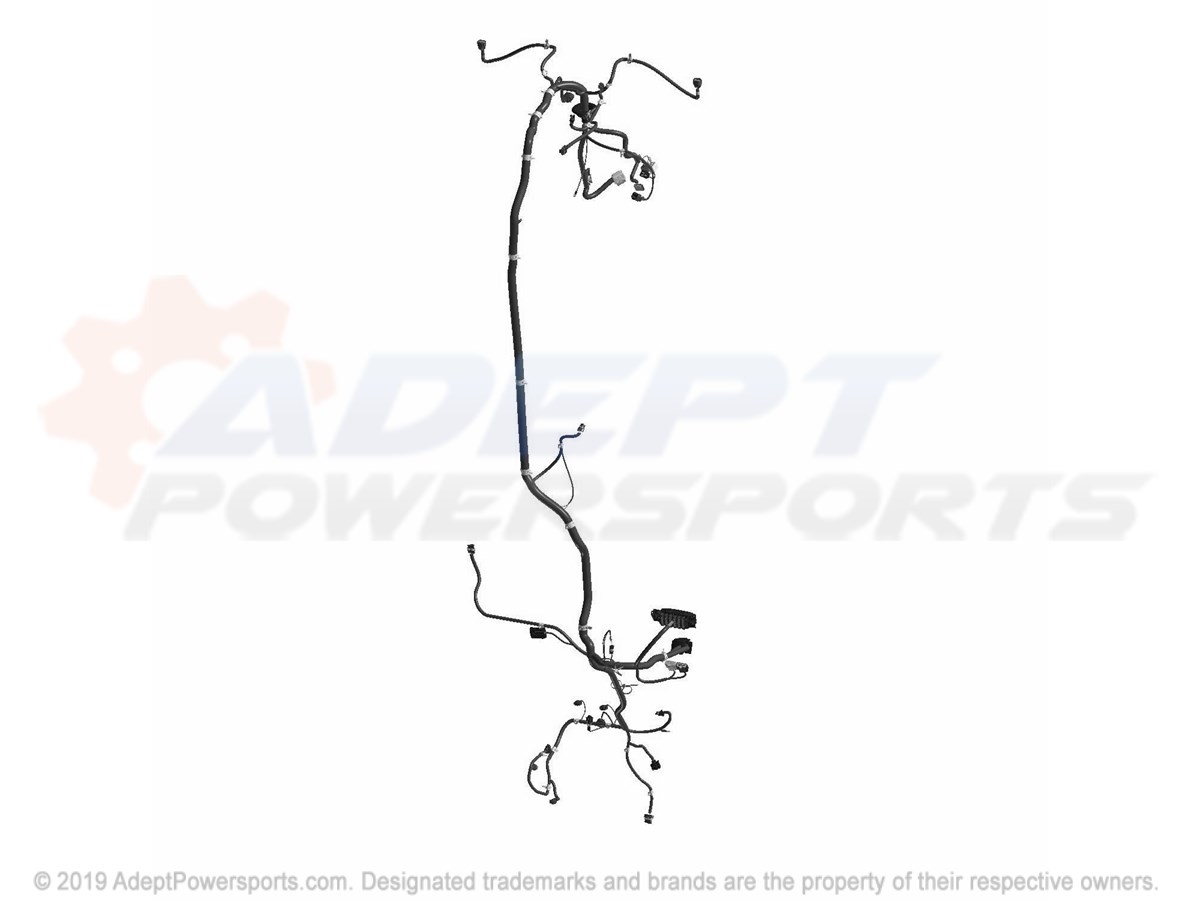

Wire Harness - Z16VCE87AB/AR (700336) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	HARNESS-BOX, RZR Part #: 2412287 Required per assembly: 1 Currently Not Available
2	HARNESS-CHASSIS, RZR, 900MP, EPS Part #: 2413226 Required per assembly: 1 Note: INCL 3-13, 28 Currently Not Available
3	STRAP, PANDUIT, DOUBLE, LOOP Part #: 7081916 Required per assembly: 4 Currently Not Available
5	CLIP-ROUTING Part #: 7081496 Required per assembly: 18 Currently Not Available
6	GROMMET-65MM, BLK Part #: 5813954 Required per assembly: 1 Currently Not Available
7	COVER, DIAGNOSTIC, W/CLIP Part #: 4012170 Required per assembly: 1 Currently Not Available
8	FUSE, MINI, BLADE, 15, AMP. Part #: 4010859 Required per assembly: 3 Currently Not Available
9	BREAKER, CIRCUIT, 20, AMP Part #: 4011372 Required per assembly: 1 Currently Not Available
10	RELAY-SPST, 12V, 20A, EPXY, HFA Part #: 4016819 Required per assembly: 5 Currently Not Available
11	FUSE-20 MINI BLADE 58V(YELLOW) Part #: 4012811 Required per assembly: 2 Currently Not Available
12	FUSE, 10AMP Part #: 2434016 Required per assembly: 5 Note: Fuse, 10 AMP, Ignition Sold in multiples of 10 only Currently Not Available
13	LED-PANEL, MNT, 12V, BLUE Part #: 2413217 Required per assembly: 1 Currently Not Available
14	REGULATOR-3PH, 50A, SERIES, HISPD Part #: 4016868 Required per assembly: 1 Currently Not Available
15	SCR-HXFL-M6X1.0X30 RIE DGPNT Part #: 7519202 Required per assembly: 2 Currently Not Available
16	GROMMET, ELECTRICAL Part #: 5414440 Required per assembly: 1 Currently Not Available
17	SCREW Part #: 7518533 Required per assembly: 2 Note: Screw, Flange Currently Not Available
18	KIT, IGNITION, COIL Part #: 2876049 Required per assembly: 1 Note: Coil Currently Not Available
19	JUMPER, COIL, GROUND Part #: 4014422 Required per assembly: 1 Currently Not Available
20	SPACER, COIL Part #: 5436577 Required per assembly: 1 Note: Spacer, Coil Mount Currently Not Available
21	SCREW Part #: 7518780 Required per assembly: 1 Currently Not Available
22	NUT, FLANGE Part #: 7547339 Required per assembly: 2 Currently Not Available
23	ECM Part #: 4014125 Required per assembly: 1 Currently Not Available
24	SCREW Part #: 7519091 Required per assembly: 4 Currently Not Available
25	BLOCK-TERMINAL, 3, POST, TALL Part #: 4015778 Required per assembly: 1 Currently Not Available
26	SCREW Part #: 7518196 Required per assembly: 2 ~~$1.99~~ $1.15 - + Add to cart
27	NUTS-10-32 KEPS Part #: 7547341 Required per assembly: 3 Currently Not Available
28	CLIP-ROUTING, DIN, BOX Part #: 7082020 Required per assembly: 1 Currently Not Available
29	NUT Part #: 7547274 Required per assembly: 1 Note: Nut, Flange Currently Not Available
