Front Shock Mounting - A17dae57am (100688) replacement parts for 2017 Polaris ACE 570 SP (R11)

OEM Parts Polaris 2017 Polaris ACE 570 SP (R11) Front Shock Mounting - A17dae57am (100688)

FRONT SHOCK MOUNTING - A17DAE57AM (100688) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT, FLANGE Part #: 7518561 Required per assembly: 2 Currently Not Available
2	BOLT, FLANGE Part #: 7518563 Required per assembly: 2 Currently Not Available
3	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
3	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
4	RETAINER, SPRING Part #: 5251753 Required per assembly: 2 Currently Not Available
5	CAM-ADJUSTING SPRING STEEL Part #: 5253768 Required per assembly: 2 Currently Not Available
6	SHOCK-TWIN TUBE Part #: 7044663 Required per assembly: 2 Currently Not Available

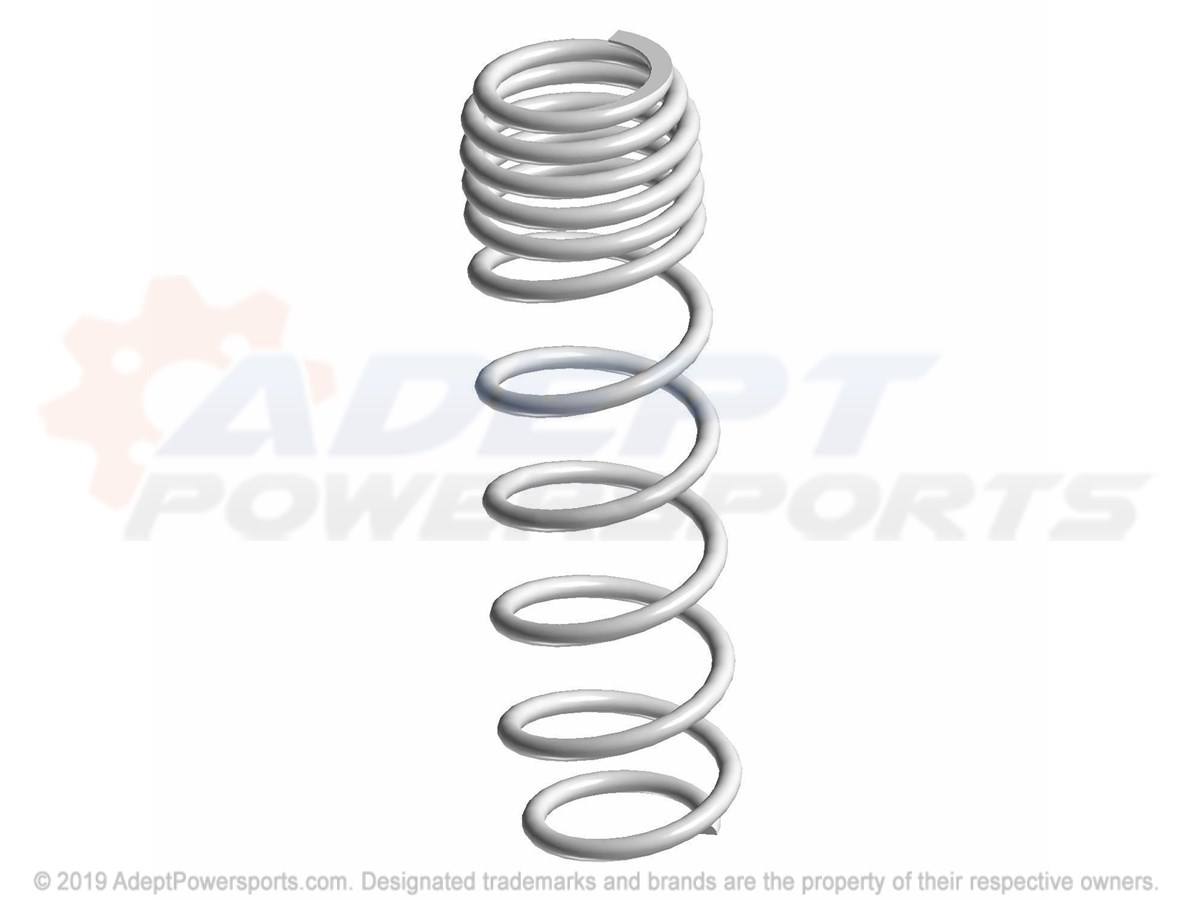

7	SPR-60-120#, 12.1FL, 2.06-2.06, W Part #: 7044664-133 Required per assembly: 2 Currently Not Available
