Rear Wheel - A17dae57am (100684) replacement parts for 2017 Polaris ACE 570 SP (R11)

OEM Parts Polaris 2017 Polaris ACE 570 SP (R11) Rear Wheel - A17dae57am (100684)

REAR WHEEL - A17DAE57AM (100684) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	NUT, WHEEL Part #: 7547309 Required per assembly: 8 Note: Nut, Wheel [AK] Sold in multiples of 10 only Currently Not Available
2	RIM-REAR, CAST, 12X5.5, SOLID.BLK Part #: 1522483-458 Required per assembly: 2 Currently Not Available
3	VALVE, RIM Part #: 1525017 Required per assembly: 2 Currently Not Available
4	PIN, COTTER Part #: 7661404 Required per assembly: 2 Currently Not Available
5	NUT, CASTLE, [4X4] Part #: 7547337 Required per assembly: 2 Note: Nut, Castle ~~$3.99~~ $2.30 - + Add to cart
6	WASHER, CONE Part #: 7555796 Required per assembly: 4 Currently Not Available
7	HUB-WHEEL, REAR, MACH Part #: 5143629 Required per assembly: 1 Currently Not Available
8	STUD Part #: 7518378 Required per assembly: 8 Note: Stud [AK] ~~$2.99~~ $1.73 - + Add to cart
9	DISC, BRAKE, REAR Part #: 5248250 Aftermarket alternatives available Required per assembly: 2 Currently Not Available
10	BOLT Part #: 7518903 Required per assembly: 4 Currently Not Available
11	RING, RETAINING Part #: 7710440 Required per assembly: 2 Note: Ring, Retaining Currently Not Available
12	BEARING, CARRIER, WHEEL Part #: 3514635 Required per assembly: 2 Note: Bearing, Carrier, Wheel Currently Not Available
13	CARRIER, BEARING, WHEEL, LH Part #: 5138501 Required per assembly: 1 Currently Not Available
13	CARRIER, BEARING, WHEEL, RH Part #: 5138502 Required per assembly: 1 Currently Not Available
14	TIRE-25X10-12 NHS 489 Part #: 5413961 Required per assembly: 2 Currently Not Available

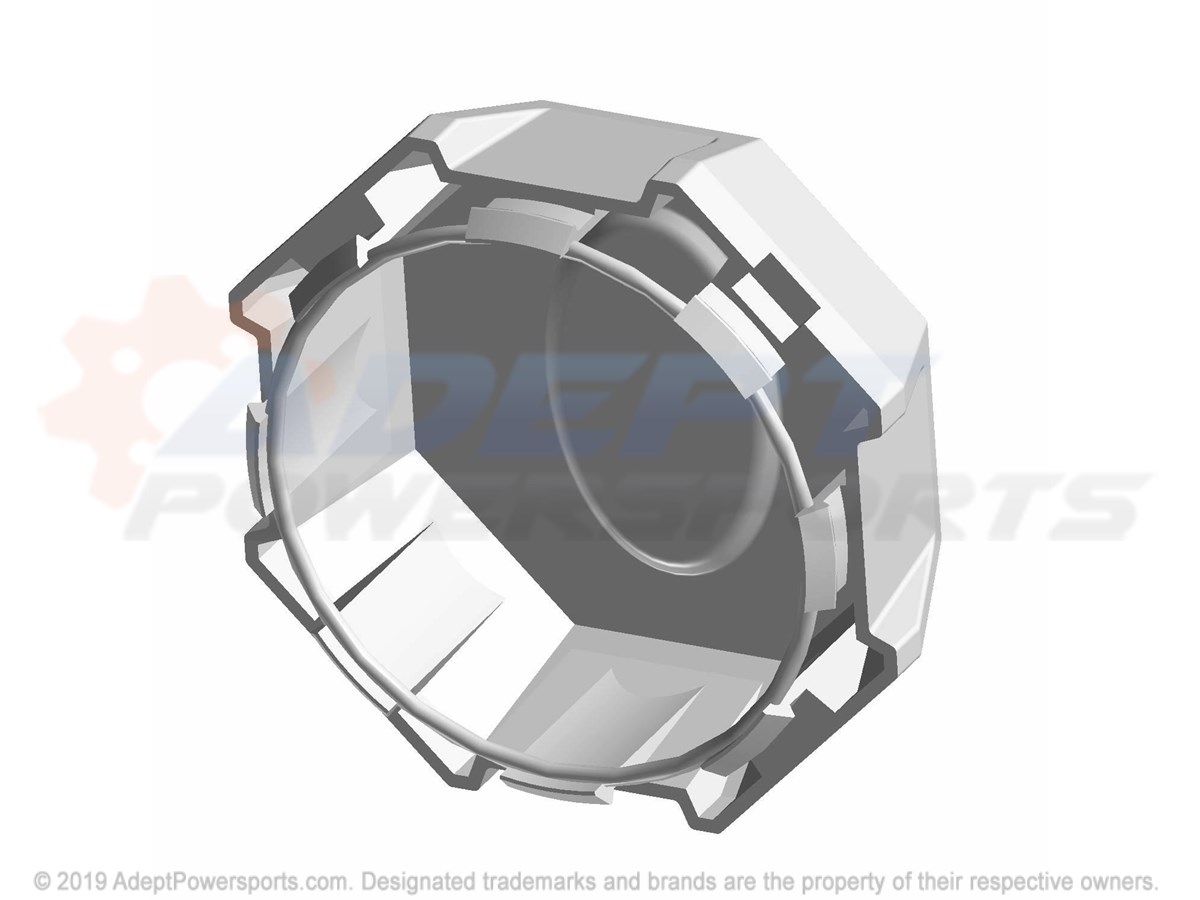

15	CAP-RIM, M, BLK Part #: 1521954-458 Required per assembly: 2 Currently Not Available
