Rear - A17svs95cm/T95c2 replacement parts for 2017 Polaris Scrambler 1000 Tractor (R07)

OEM Parts Polaris 2017 Polaris Scrambler 1000 Tractor (R07) Rear - A17svs95cm/T95c2

REAR - A17SVS95CM/T95C2 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	SCREW, FLANGE Part #: 7518467 Required per assembly: 2 Currently Not Available
2	NUT, FLANGE Part #: 7547313 Required per assembly: 8 ~~$2.79~~ $1.73 - + Add to cart
2	NUT, FLANGE Part #: 7547313 Required per assembly: 8 ~~$2.79~~ $1.73 - + Add to cart
2	NUT, FLANGE Part #: 7547313 Required per assembly: 8 ~~$2.79~~ $1.73 - + Add to cart
2	NUT, FLANGE Part #: 7547313 Required per assembly: 8 ~~$2.79~~ $1.73 - + Add to cart
3	ASSEMBLY, BUSHING, HD, W/SEAL Part #: 1543367 Required per assembly: 8 Currently Not Available
3	ASSEMBLY, BUSHING, HD, W/SEAL Part #: 1543367 Required per assembly: 8 Currently Not Available
3	ASSEMBLY, BUSHING, HD, W/SEAL Part #: 1543367 Required per assembly: 8 Currently Not Available

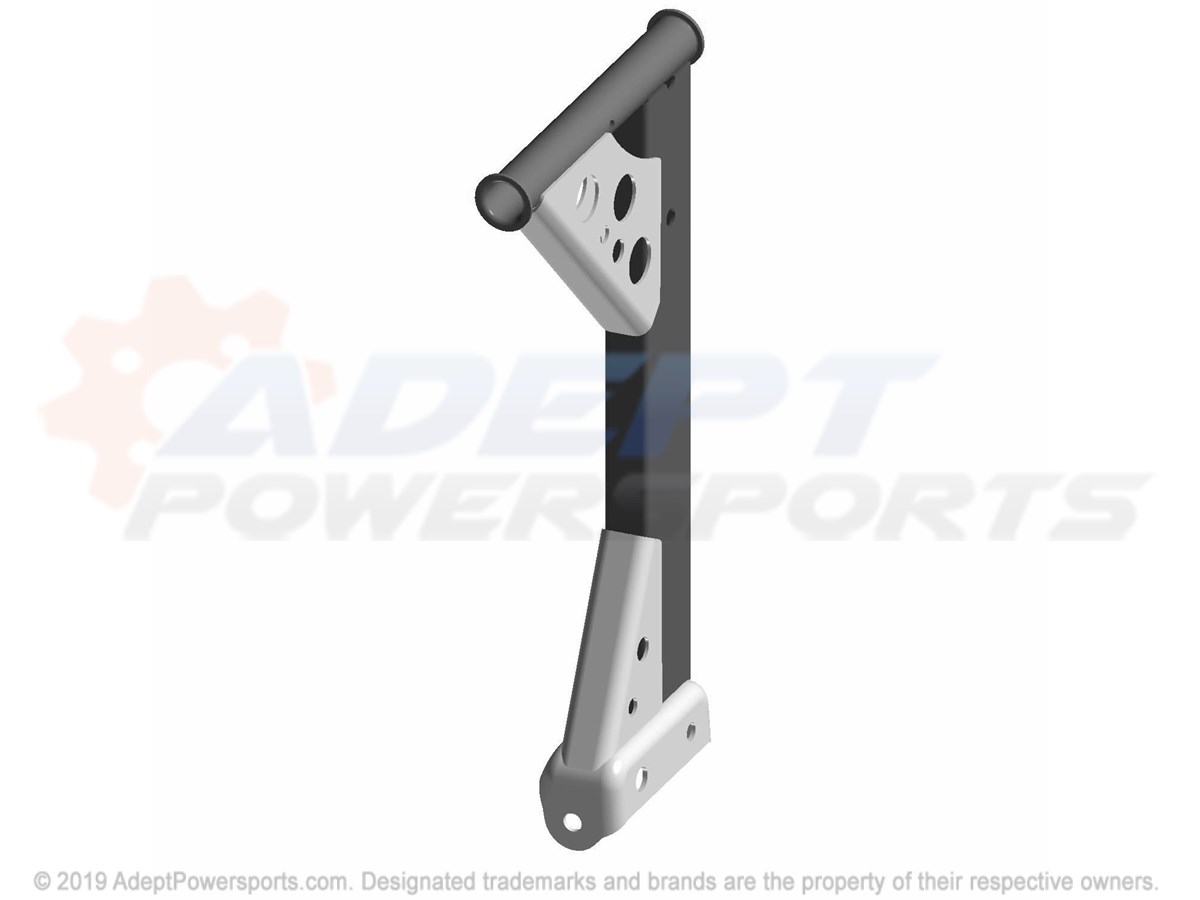

4	WELD-UCA, REAR, RH, BLK Part #: 1025620-067 Required per assembly: 1 Note: C2 Currently Not Available

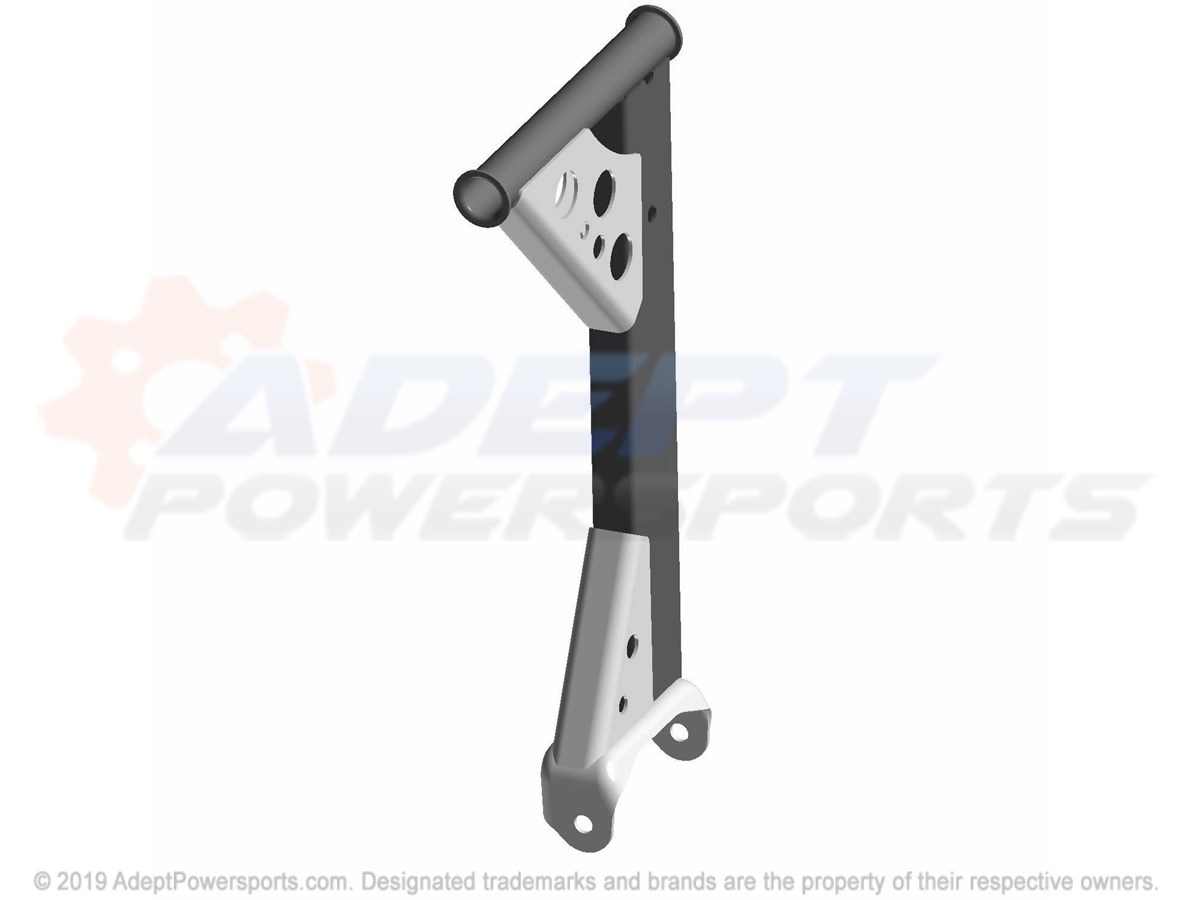

4	WELD-UCA, REAR, LH, BLK Part #: 1025619-067 Required per assembly: 1 Note: C2 Currently Not Available
4	WELD-UCA, REAR, RH, CLOUD, SILVER Part #: 1025620-385 Required per assembly: 1 Note: CM Currently Not Available
4	WELD-UCA, REAR, LH, CLOUD, SILVER Part #: 1025619-385 Required per assembly: 1 Note: CM Currently Not Available
5	ZERK, FITTING, THREADED Part #: 7080433 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
5	ZERK, FITTING, THREADED Part #: 7080433 Required per assembly: 4 ~~$2.99~~ $1.73 - + Add to cart
6	SHAFT-A-ARM 63.5MM Part #: 5137346 Required per assembly: 4 Currently Not Available
6	SHAFT-A-ARM 63.5MM Part #: 5137346 Required per assembly: 4 Currently Not Available
7	SCREW Part #: 7518466 Required per assembly: 4 Note: Bolt Currently Not Available

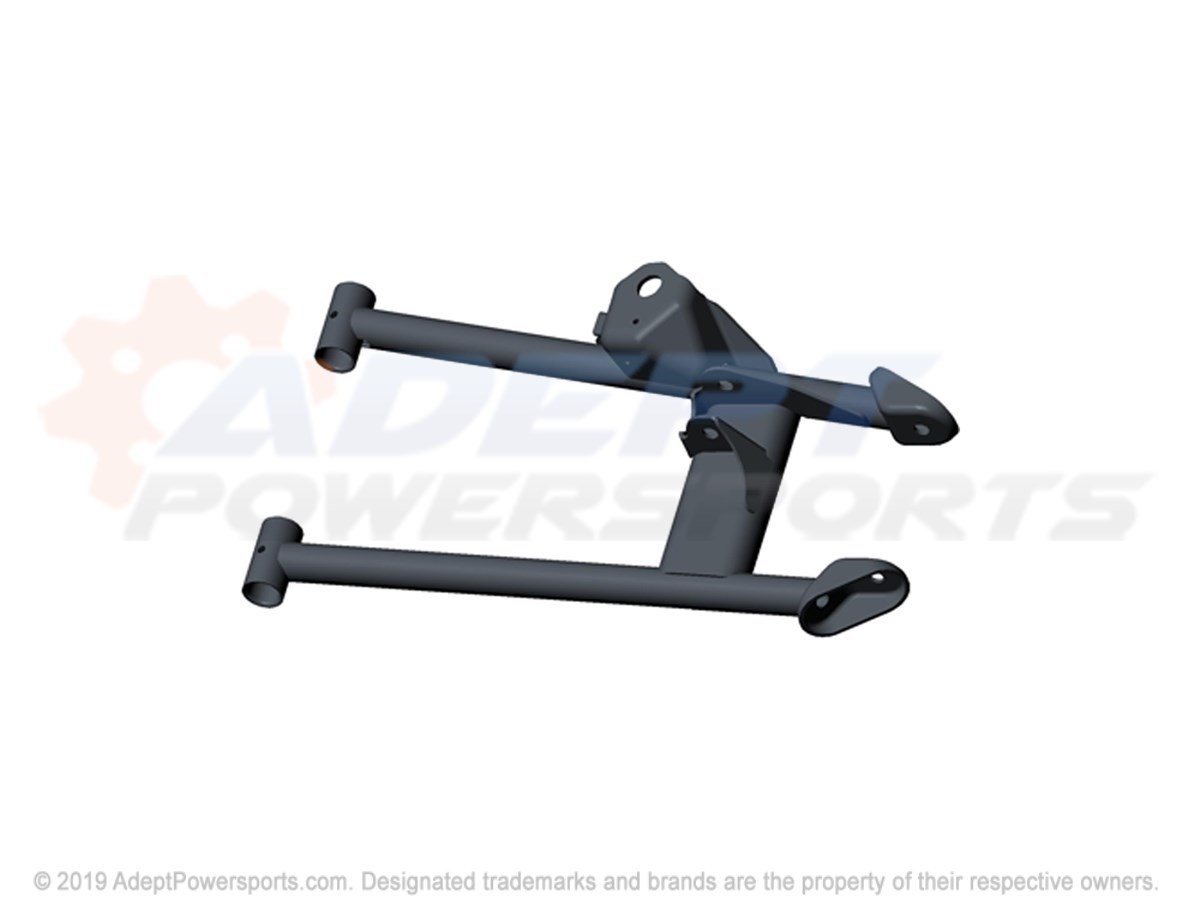

8	ARM, CONTROL, LOWER, REAR, RH, BLACK Part #: 1019411-067 Required per assembly: 1 Note: C2 Currently Not Available

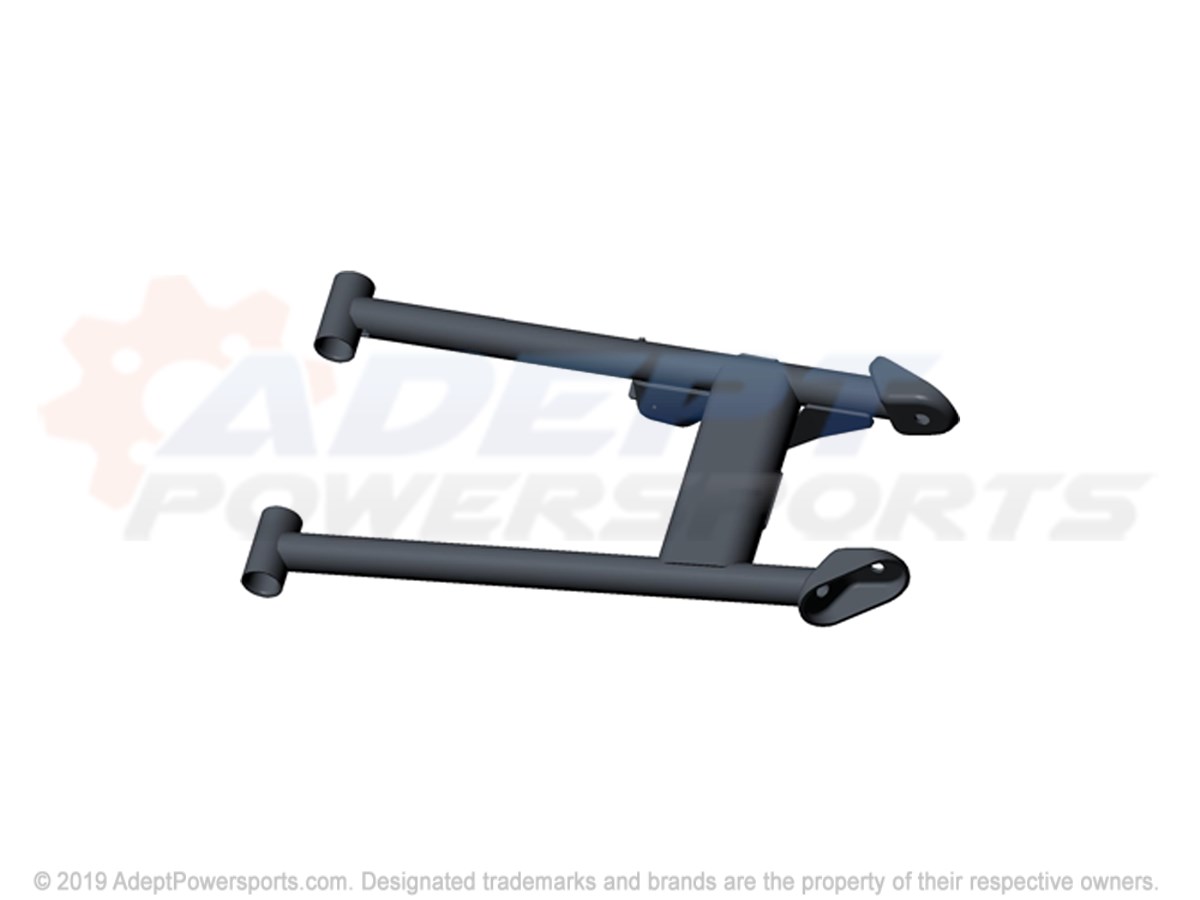

8	ARM, CONTROL, LOWER, REAR, LH, BLACK Part #: 1019410-067 Required per assembly: 1 Note: C2 Currently Not Available
8	ARM, CONTROL, LOWER, REAR, LH, CLOUD, SILVER Part #: 1019410-385 Required per assembly: 1 Note: CM Currently Not Available
8	ARM, CONTROL, LOWER, REAR, RH, CLOUD, SILVER Part #: 1019411-385 Required per assembly: 1 Note: CM Currently Not Available
9	BOLT, FLANGE Part #: 7518675 Required per assembly: 2 Currently Not Available
10	SHAFT-PIVOT 104.9MM ZINC YEL Part #: 5137590 Required per assembly: 2 Currently Not Available
11	SHAFT-A-ARM, LCA, 0.75", OD Part #: 5145086 Required per assembly: 2 Currently Not Available
12	BUSHING, LOWER, CONTROL, ARM Part #: 5437651 Required per assembly: 4 Currently Not Available
13	SHAFT-PIVOT 210.27MM ZINC YEL Part #: 5137594 Required per assembly: 2 Currently Not Available
14	ASSEMBLY, BUSHING, W/SEAL Part #: 1543326 Required per assembly: 4 Currently Not Available
14	ASSEMBLY, BUSHING, W/SEAL Part #: 1543326 Required per assembly: 4 Currently Not Available
15	SCREW Part #: 7519086 Required per assembly: 2 Currently Not Available
16	BUSHING Part #: 5439874 Required per assembly: 4 Currently Not Available
17	FITTING, ZERK, (90, DEGREE) Part #: 7080510 Required per assembly: 2 Note: FITTING, ZERK (90o) Currently Not Available
18	WASHER, FLAT Part #: 7556153 Required per assembly: 2 Note: Washer ~~$3.99~~ $2.30 - + Add to cart
19	NUT, FLANGE Part #: 7547333 Required per assembly: 2 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
