Valve System - A17svs95cm/T95c2 replacement parts for 2017 Polaris Scrambler 1000 Tractor (R07)

OEM Parts Polaris 2017 Polaris Scrambler 1000 Tractor (R07) Valve System - A17svs95cm/T95c2

VALVE SYSTEM - A17SVS95CM/T95C2 Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	BOLT, BANJO, W/BLEEDER Part #: 1911112 Required per assembly: 1 Currently Not Available
2	BOLT, BANJO, DOUBLE Part #: 1911194 Required per assembly: 1 Note: Bolt, Double Banjo Currently Not Available
3	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
3	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
3	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
3	SEAL Part #: 5413212 Required per assembly: 13 ~~$9.99~~ $5.85 - + Add to cart
4	LINE-BRK, HBMC, TO, DIST, 29, NYRC Part #: 1912659 Required per assembly: 1 Currently Not Available
5	LINE-BRAKE, REAR, AUX, COMMON Part #: 1912663 Required per assembly: 1 Currently Not Available
6	LINE-BRAKE, REAR, SVC, COMMON Part #: 1912664 Required per assembly: 1 Currently Not Available
7	VALVE, REDUCING Part #: 1911109 Required per assembly: 1 Currently Not Available
8	NUT-LOCK Part #: 7542122 Required per assembly: 2 Currently Not Available
8	NUT-LOCK Part #: 7542122 Required per assembly: 2 Currently Not Available
9	LINE-BRK, DIST-P/VALVE, 9, NPT, 0B Part #: 1912658 Required per assembly: 1 Currently Not Available
9	LINE-BRK, DIST-P/VALVE, 9, NPT, 0B Part #: 1912658 Required per assembly: 1 Currently Not Available
10	BRACKET, JUNCTION, BLOCK Part #: 5252667 Required per assembly: 1 Currently Not Available
11	SCREW Part #: 7518513 Required per assembly: 2 Currently Not Available
12	SCREW Part #: 7519682 Required per assembly: 1 Currently Not Available
13	SWITCH Part #: 4014225 Required per assembly: 1 Currently Not Available
14	BOLT, BANJO Part #: 1910958 Required per assembly: 1 Currently Not Available

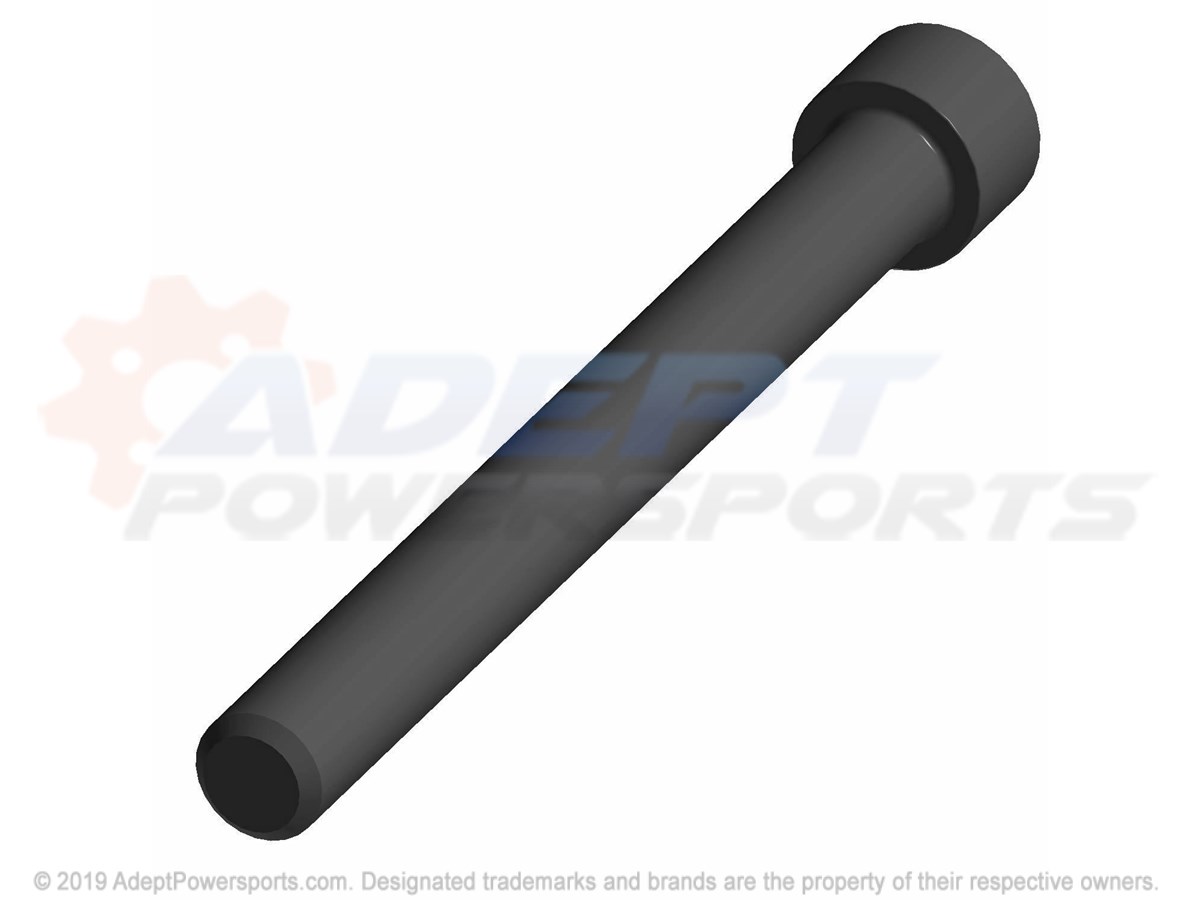

15	SCR-1/4-20X2.50 SOC CP-Y Part #: 7519012 Required per assembly: 1 Currently Not Available
16	LINE-BRK, FL, 26, 30B, 30B, 297.5, G Part #: 1912661 Required per assembly: 1 Currently Not Available
17	LINE-BRK, M/C-D, 36, 45B, 90SB, 180 Part #: 1912660 Required per assembly: 1 Currently Not Available
18	BLOCK-DIST, BRAKE, LONG, PISTON Part #: 1913923 Required per assembly: 1 Currently Not Available
19	LINE-BRK, FR, 26, 30B, 0B, 50, G Part #: 1912662 Required per assembly: 1 Currently Not Available
