Front Shock - R17rv_99 All Options (49Rgrshockmtg097004x4) replacement parts for 2017 Polaris Ranger Crew 1000XP PS All Options (R26)

OEM Parts Polaris 2017 Polaris Ranger Crew 1000XP PS All Options (R26) Front Shock - R17rv_99 All Options (49Rgrshockmtg097004x4)

FRONT SHOCK - R17RV_99 ALL OPTIONS (49RGRSHOCKMTG097004X4) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
1	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
2	RETAINER, SPRING Part #: 5251753 Required per assembly: 2 Currently Not Available
3	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
3	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available

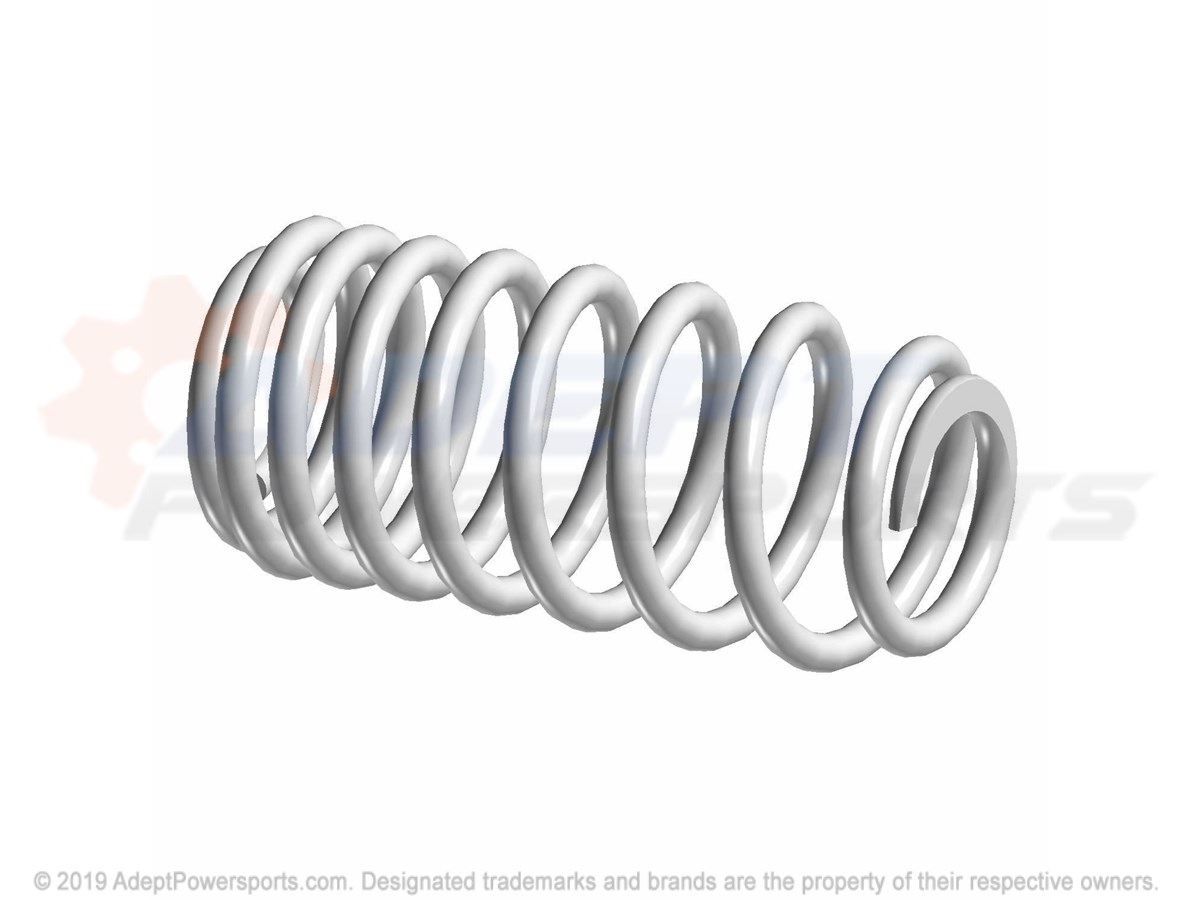

4	SPRING-FR, CREW, MUD, RGR, WHT Part #: 7044842-133 Required per assembly: 2 Note: VM99AM,BM Currently Not Available
4	SPR-190-280#, 11.95FL, 2ID, M.BLK Part #: 7045560-458 Required per assembly: 2 Note: VA99A1,B1 Currently Not Available
4	SPR-190-280#, 11.95FL, 2ID, C.SLV Part #: 7045560-385 Required per assembly: 2 Note: VE99AS,BS Currently Not Available
5	CAM-ADJUSTING SPRING STEEL Part #: 5253768 Required per assembly: 2 Currently Not Available
6	SHOCK, FRONT Part #: 7043755 Required per assembly: 2 Note: VA99A1,B1 Currently Not Available
6	SHOCK-FRONT, MUDDER Part #: 7044501 Required per assembly: 2 Note: VM99AM,BM Currently Not Available
