Front Shock Mounting - Z17vbs87c2/Cb/E87f2 (701560) replacement parts for 2017 Polaris RZR 900 60 Inch EU/Tractor (R06)

OEM Parts Polaris 2017 Polaris RZR 900 60 Inch EU/Tractor (R06) Front Shock Mounting - Z17vbs87c2/Cb/E87f2 (701560)

FRONT SHOCK MOUNTING - Z17VBS87C2/CB/E87F2 (701560) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

1	RETAINER-SPRING Part #: 1501194 Required per assembly: 2 Currently Not Available
2	SHOCK-FRONT, 2, RESVR, PIGGYBK, LH Part #: 7044649 Required per assembly: 1 Currently Not Available
2	SHOCK-FRONT, 2, RESVR, PIGGYBK, RH Part #: 7044650 Required per assembly: 1 Currently Not Available

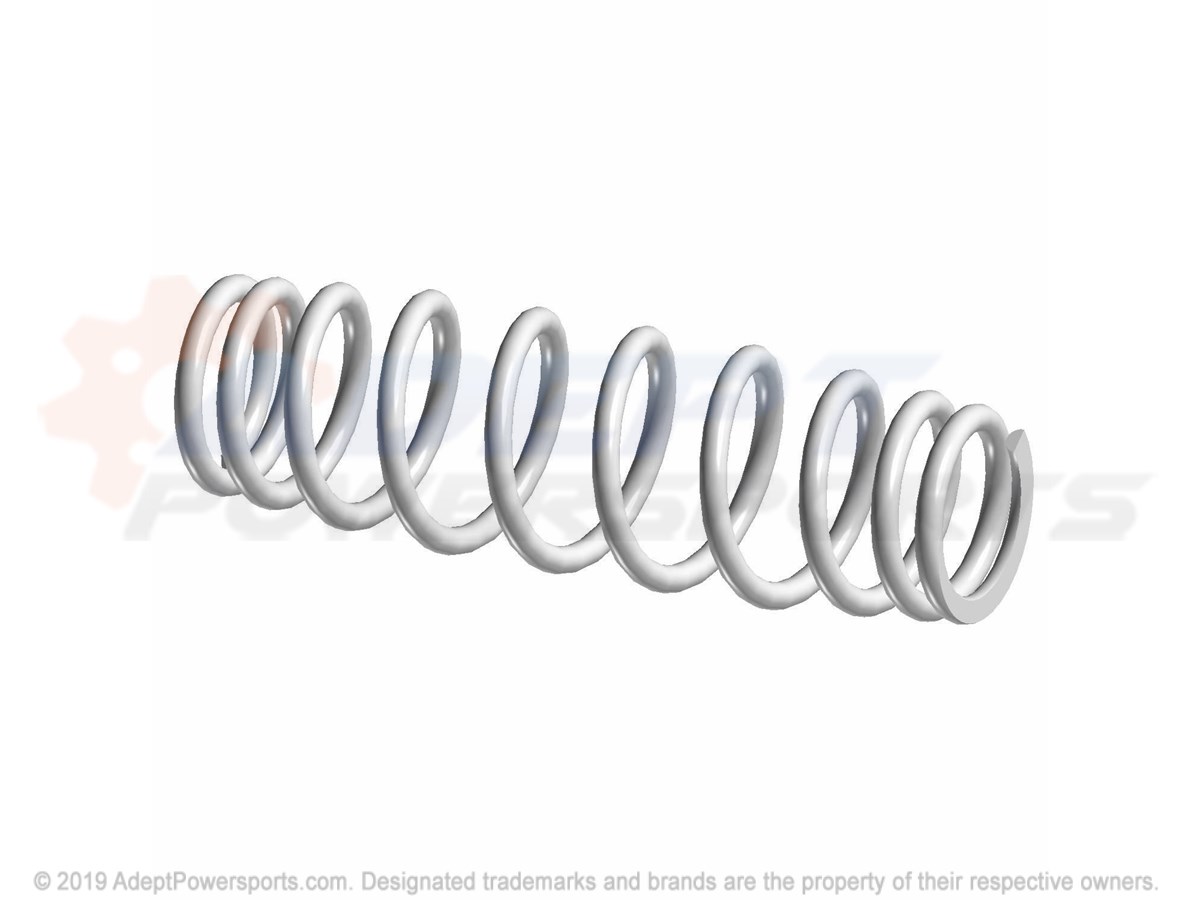

3	SPR-140#, 12FL, 2.3-2.31D, BLK Part #: 7044209-458 Required per assembly: 2 Note: C2 Currently Not Available
3	SPR-140#, 12FL, 2.3-2.3ID, V.BLU Part #: 7044209-689 Required per assembly: 2 Note: CB Currently Not Available
4	SCR-HXFL-M10X1.25X60 10.9 ZOD Part #: 7519306 Required per assembly: 4 Currently Not Available
5	NUT, FLANGE Part #: 7547333 Required per assembly: 4 Note: M10 x 1.25 ~~$3.74~~ $2.23 - + Add to cart
6	BUSHING-REDUCER .500X.398 ZYW Part #: 5137876 Required per assembly: 8 ~~$7.99~~ $4.60 - + Add to cart
7	O-RING Part #: 5412290 Required per assembly: 8 Currently Not Available
