Headlights And Taillights - Z17vbs87c2/Cb/E87f2 (49Rgrtaillamps14rzr1000) replacement parts for 2017 Polaris RZR 900 60 Inch EU/Tractor (R06)

OEM Parts Polaris 2017 Polaris RZR 900 60 Inch EU/Tractor (R06) Headlights And Taillights - Z17vbs87c2/Cb/E87f2 (49Rgrtaillamps14rzr1000)

HEADLIGHTS AND TAILLIGHTS - Z17VBS87C2/CB/E87F2 (49RGRTAILLAMPS14RZR1000) Full screen diagram

Please note: If a part is displayed on the diagram but not shown in the parts list, it is no longer available.

Location	Part Description

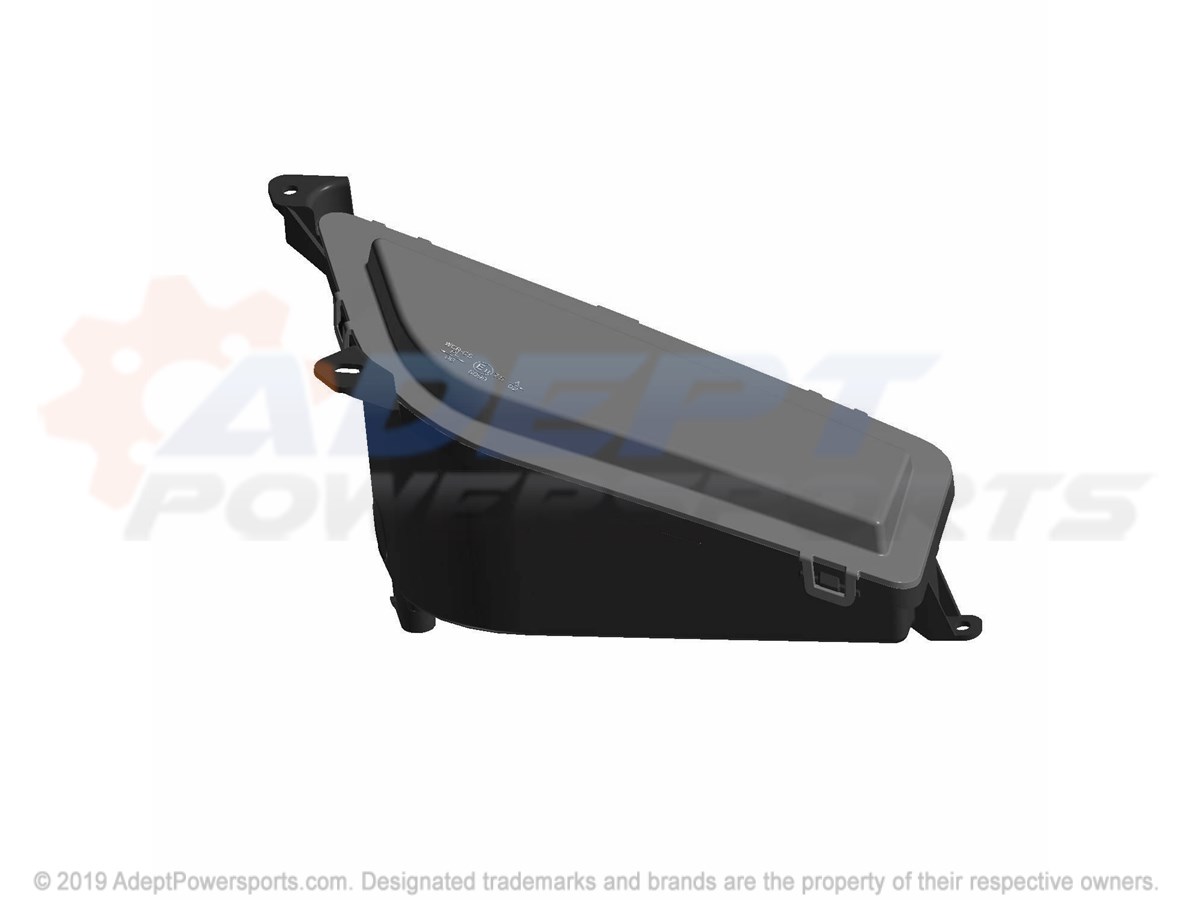

1	ASM-HEADLIGHT, LED, ECE, LH, TRC Part #: 2413682 Required per assembly: 1 Note: C2 Currently Not Available
1	ASM-HEADLIGHT, BMPR, LED, ECE, LH Part #: 2413788 Required per assembly: 1 Note: F2 Currently Not Available

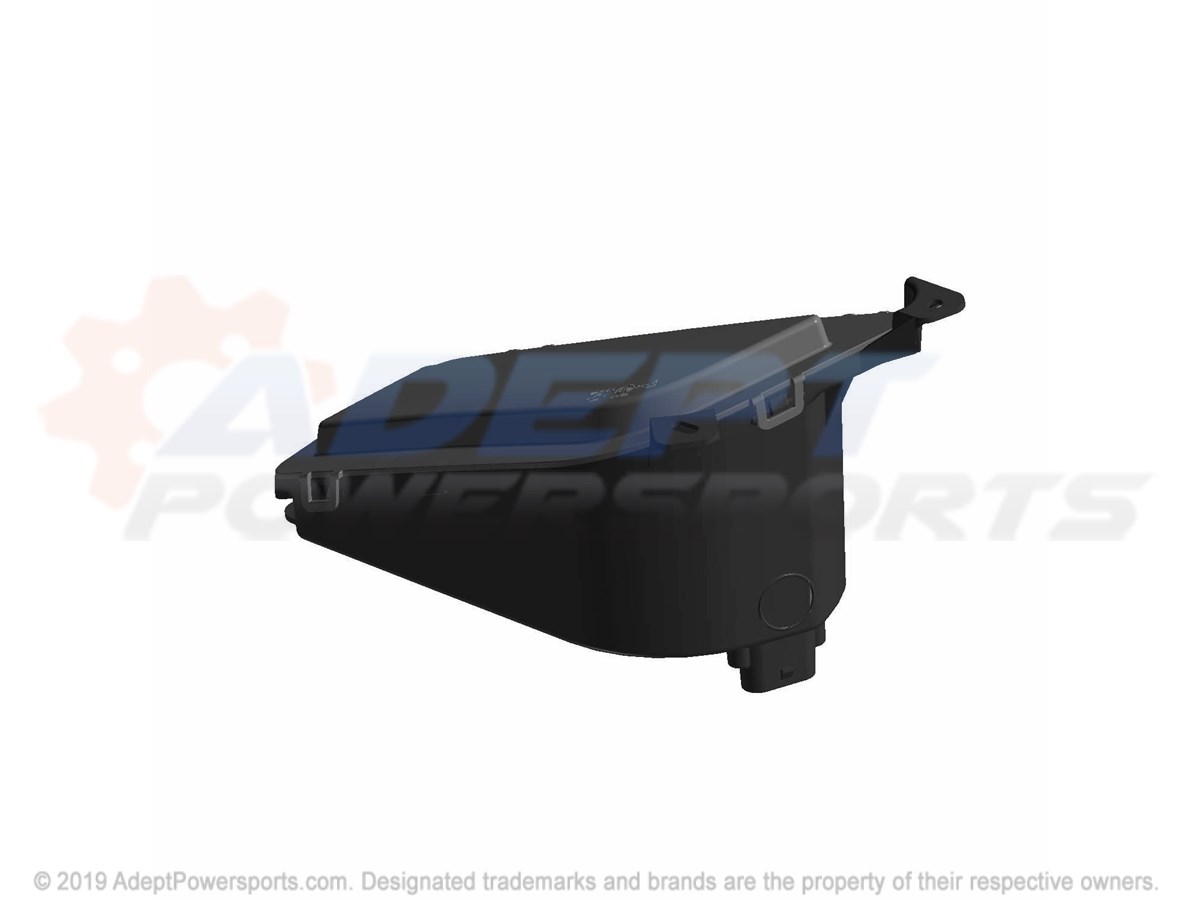

2	ASM-HEADLIGHT, BMPR, LED, ECE, RH Part #: 2413789 Required per assembly: 1 Note: F2 Currently Not Available
2	ASM-HEADLIGHT, LED, ECE, RH, TRC Part #: 2413683 Required per assembly: 1 Note: C2 Currently Not Available
3	SPRING-HEADLIGHT Part #: 7043816 Required per assembly: 6 Currently Not Available
4	SCREW Part #: 7512078 Required per assembly: 6 ~~$1.99~~ $1.15 - + Add to cart
5	ASM-STOP, TAIL, TURN, ECE, LH Part #: 2412695 Required per assembly: 1 Note: F2 Currently Not Available
5	ASM-STOP, TAIL, TURN, ECE, LH, TRC, [CB] Part #: 2413684 Required per assembly: 1 Note: C2 Currently Not Available
6	ASM-STOP, TAIL, TURN, ECE, RH, TRC, [CB] Part #: 2413685 Required per assembly: 1 Note: C2 Currently Not Available
6	ASM-STOP, TAIL, TURN, ECE, RH Part #: 2412696 Required per assembly: 1 Note: F2 Currently Not Available
7	NUT, PUSH-ON Part #: 7670054 Required per assembly: 6 ~~$2.99~~ $1.73 - + Add to cart
